Honda CRF250R Motorcycles

2004 CRF250R

Engine
Engine Type	249cc liquid-cooled single-cylinder four-stroke
Bore And Stroke	78.0mm x 52.2mm
Compression Ratio	12.9:1
Fuel Delivery	Keihin 37mm flat-slide with throttle position sensor
Valve Train	Unicam; four-valve
Ignition	Solid-state CD with electronic advance
DRIVETRAIN
Transmission	Close-ratio five-speed
Final Drive	#520 chain; 13T/51T
CHASSIS / SUSPENSION / BRAKES
Front Suspension	47mm inverted Showa cartridge fork with 16-position rebound- and 16-position compression-damping adjustability; 12.4-inch travel
Rear Suspension	Pro-Link Showa single shock with spring-preload, 17-position rebound-damping adjustability, and compression-damping adjustment separated into low speed (13 positions) and high-speed (3.5 turns); 12.4-inch travel
Front Brakes	Single 240mm disc with twin-piston caliper
Rear Brake	Single 240mm disc
Front Tire	80/100-21
Rear Tire	100/90-19
DIMENSION
Rake	27.49 degrees
Trail	120.1mm (4.7 inches)
Wheelbase	58.2 inches
Seat Height	37.9 inches
Ground Clearance	14.2 inches
Dry Weight	206.0 pounds
Fuel Capacity	2.0 gallons
OTHER
Model ID
Color	Red
Warranty

2005 CRF250R

Engine
Engine Type	249cc liquid-cooled single-cylinder four-stroke
Bore And Stroke	78.0mm x 52.2mm
Compression Ratio	12.9:1
Fuel Delivery	Keihin 37mm flat-slide with throttle position sensor (TPS)
Valve Train	Unicam; four-valve
Ignition	Solid-state CD with electronic advance
DRIVETRAIN
Transmission	Close-ratio five-speed
Final Drive	#520 chain; 13T/51T
CHASSIS / SUSPENSION / BRAKES
Front Suspension	47mm inverted Showa cartridge fork with 16-position rebound- and 16-position compression-damping adjustability; 12.4-inch travel
Rear Suspension	Pro-Link Showa single shock with spring-preload, 17-position rebound-damping adjustability, and compression-damping adjustment separated into low speed (13 positions) and high-speed (3.5 turns); 12.4-inch travel
Front Brakes	Single 240mm disc with twin-piston caliper
Rear Brake	Single 240mm disc
Front Tire	80/100-21
Rear Tire	100/90-19
DIMENSION
Rake	27.5 degrees
Trail	123.0mm (4.8 inches)
Wheelbase	58.2 inches
Seat Height	38 inches
Ground Clearance	14.2 inches
Dry Weight	204.0 pounds
Fuel Capacity	2.0 gallons
OTHER
Model ID
Color	Red
Warranty

2006 CRF250R

Engine
Engine Type	249cc liquid-cooled single-cylinder four-stroke
Bore And Stroke	78.0mm x 52.2mm
Compression Ratio	12.9:1
Fuel Delivery	Keihin 40.0mm flat-slide with throttle position sensor (TPS)
Valve Train	Unicam; four-valve
Ignition	CD with electronic advance
DRIVETRAIN
Transmission	Close-ratio five-speed
Final Drive	#520 chain; 13T/51T
CHASSIS / SUSPENSION / BRAKES
Front Suspension	47mm inverted Showa cartridge fork with 16-position rebound- and 16-position compression-damping adjustability; 12.4-inch travel
Rear Suspension	Pro-Link Showa single shock with spring-preload, 17-position rebound-damping adjustability, and compression-damping adjustment separated into low speed (13 positions) and high-speed (3.5 turns); 12.4-inch travel
Front Brakes	Single 240mm disc with twin-piston caliper
Rear Brake	Single 240mm disc
Front Tire	80/100-21
Rear Tire	100/90-19
DIMENSION
Rake	27.5 degrees
Trail	123.0mm (4.8 inches)
Wheelbase	58.2 inches
Seat Height	38 inches
Ground Clearance	14.2 inches
Dry Weight	204.0 pounds
Fuel Capacity	2.0 gallons
OTHER
Model ID	CRF250R
Color	Red
Warranty

2007 CRF250R

OVERVIEW

• With an AMA SX Lites title and countless magazine kudos to its name, some might think the CRF250R would rest on its laurels. Some would be sorely mistaken, because at this level of competition, there is no rest. So we honed this machine to an even finer, higher-revving edge for 2007, shaving weight, retooling cam profiles, revising the brake lever linkage for additional stopping power, and beefing up the clutch to ensure the best is even better.

Engine
Engine Type	249cc liquid-cooled single-cylinder four-stroke
Bore And Stroke	78.0mm x 52.2mm
Compression Ratio	12.9:1
Fuel Delivery	Keihin 40.0mm flat-slide with throttle position sensor (TPS)
Valve Train	Unicam; four-valve
Ignition	CD with electronic advance
DRIVETRAIN
Transmission	Close-ratio five-speed
Final Drive	#520 chain; 13T/51T
CHASSIS / SUSPENSION / BRAKES
Front Suspension	47mm inverted Showa cartridge fork with 16-position rebound- and 16-position compression-damping adjustability; 12.4-inch travel
Rear Suspension	Pro-Link Showa single shock with spring-preload, 17-position rebound-damping adjustability, and compression-damping adjustment separated into low speed (13 positions) and high-speed (3.5 turns); 12.4-inch travel
Front Brakes	Single 240mm disc with twin-piston caliper
Rear Brake	Single 240mm disc
Front Tire	80/100-21
Rear Tire	100/90-19
DIMENSION
Rake	27.5 degrees
Trail	123.0mm (4.8 inches)
Wheelbase	58.2 inches
Seat Height	38 inches
Ground Clearance	14.2 inches
Dry Weight	204.0 pounds
Fuel Capacity	2.0 gallons
OTHER
Model ID	CRF250R
Color	Red
Warranty

2008 CRF250R

OVERVIEW

• Getting in and out of corners is where races are won — no question. And that’s why, like the new CRF450R, the 2008 CRF250R features Honda’s revolutionary new Honda Progressive Steering Damper (HPSD), improving cornering traction and stability while reducing fatigue. Add all-new works-style brake discs, power-boosting engine mods (higher compression and new cylinder-head porting), and once again, Honda proves the best can get better.

Engine
Engine Type	249cc liquid-cooled single-cylinder four-stroke
Bore And Stroke	78.0mm x 52.2mm
Compression Ratio	12.9:1
Fuel Delivery	40mm Keihin flat-slide
Valve Train
Ignition	CD
DRIVETRAIN
Transmission	Close-ratio five-speed
Final Drive	#520 chain; 13T/51T
CHASSIS / SUSPENSION / BRAKES
Front Suspension	47mm inverted Showa cartridge fork with 16-position rebound- and 16-position compression-damping adjustability; 12.4-inch travel
Rear Suspension	Pro-Link Showa single shock with spring-preload, 17-position rebound-damping adjustability, and compression-damping adjustment separated into low speed (13 positions) and high-speed (3.5 turns); 12.4-inch travel
Front Brakes	Single-disc with twin-piston caliper
Rear Brake	Single-disc
Front Tire	80/100-21
Rear Tire	100/90-19
DIMENSION
Rake	27.9 degrees
Trail	125 mm (4.9 inches)
Wheelbase	58.2 inches
Seat Height	38 inches
Ground Clearance	14.2 inches
Dry Weight	227 lbs (Includes all standard equipment, required fluids and a full tank of fuel — ready to ride)
Fuel Capacity	1.9 gallons
OTHER
Model ID	CRF250R
Color	Red Black (2008 Special Color, Limited Availability)
Price	$6449

2009 CRF250R

Engine
Engine Type	249cc liquid-cooled single-cylinder four-stroke
Bore And Stroke	78.0mm x 52.2mm
Compression Ratio	12.9:1
Fuel Delivery	40mm Keihin flat-slide
Valve Train
Ignition	CD
DRIVETRAIN
Transmission	Close-ratio five-speed
Final Drive	#520 chain; 13T/51T
CHASSIS / SUSPENSION / BRAKES
Front Suspension	47mm inverted Showa cartridge fork with 16-position rebound- and 16-position compression-damping adjustability; 12.4-inch travel
Rear Suspension	Pro-Link Showa single-shock with spring preload, 13-position [low-speed] and 3.5-turn [high-speed] compression damping and 17-position rebound damping adjustability; 12.4-inch travel
Front Brakes	Single-disc with twin-piston caliper
Rear Brake	Single-disc
Front Tire	80/100-21
Rear Tire	100/90-19
DIMENSION
Rake
Trail
Wheelbase	58.2 inches
Seat Height	38 inches
Ground Clearance
Dry Weight	227 lbs
Fuel Capacity	1.9 gallons
OTHER
Model ID	CRF250R
Color	Red
Price	$6549

2010 CRF250R

Engine
Engine Type	249cc liquid-cooled single-cylinder four-stroke
Bore And Stroke	76.8mm x 53.8mm
Compression Ratio	13.2:1
Fuel Delivery	Programmed Fuel Injection (PGM-FI), 50mm throttle body
Valve Train
Ignition	Full transistor with electronic advance
DRIVETRAIN
Transmission	Close-ratio five-speed
Final Drive	#520 chain; 13T/51T
CHASSIS / SUSPENSION / BRAKES
Front Suspension	48mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustability; 12.4 inches travel
Rear Suspension	Pro-Link Showa single-shock with spring preload, 17-position rebound-damping adjustability, and compression-damping adjustment separated into low-speed (13 positions) and high-speed (3.5 turns); 12.6 inches travel
Front Brakes	Single 240mm disc with twin-piston caliper
Rear Brake	Single 240mm disc
Front Tire	Dunlop 742FA 80/100-21
Rear Tire	Dunlop D756 100/90-19
DIMENSION
Rake
Trail
Wheelbase	58.8 in.
Seat Height	37.6 in.
Ground Clearance
Dry Weight	226 lb
Fuel Capacity	1.5 Gal US
OTHER
Model ID
Color	Red
Price

2011 CRF250R

Engine
Engine Type	249cc liquid-cooled single-cylinder four-stroke
Bore And Stroke	76.8mm x 53.8mm
Compression Ratio	13.2:1
Fuel Delivery	PGM-FI electronic fuel injection with 50 mm throttle body
Valve Train	Unicam®, four-valve; 30.5mm intake, titanium; 25mm exhaust, steel
Ignition	Full transistor with electronic advance
DRIVETRAIN
Transmission	Close-ratio five-speed
Final Drive	#520 O-ring-sealed chain, 13T/49T
CHASSIS / SUSPENSION / BRAKES
Front Suspension	48 mm inverted Showa cartridge fork with 16-position rebound and 16-position compression damping adjustment; 310 mm (12.2 in.) travel
Rear Suspension	Pro-Link Showa single shock with spring preload, 17-position rebound damping adjustment, and compression damping adjustment separated into low-speed (13 positions) and high-speed (3.5 turns); 318 mm (12.5 in.) travel
Front Brakes	Single 240mm disc with twin-piston caliper
Rear Brake	Single 240mm disc
Front Tire	Dunlop 742FA 80/100-21
Rear Tire	Dunlop D756 100/90-19
DIMENSION
Rake	27°12′ (Caster Angle)
Trail	117mm (4.6 inches)
Wheelbase	1488 mm (58.6 in.)
Seat Height	955 mm (37.6 in.)
Ground Clearance	325 mm (12.8 in.)
Dry Weight	102.5 kg (226 lb) including required fluids and full tank of gas – ready to ride
Fuel Capacity	5.7 litres (1.5 GalUS)
OTHER
Model ID	CRF250R
Color	Extreme Red
MSRP	$8,499
Warranty	No warrranty

2012 CRF250R

Engine
Engine Type	249cc Liquid-cooled 4-stroke 4-valve SOHC single
Bore And Stroke	76.8mm x 53.8mm
Compression Ratio	13.2:1
Fuel Delivery	Programmed Fuel Injection (PGM-FI), 46mm throttle body
Valve Train	Unicam®, four-valve; 30.5mm intake, titanium; 25mm exhaust, steel
Ignition	Computer-controlled digital capacitor discharge with electronic advance
Max. Power Output	29kW
Max. Torque	27.3Nm
Starter	Primary kick
DRIVETRAIN
Transmission	5-speed constant mesh close-ratio
Final Drive	#520 roller chain
Front sprocket	13T
Rear sprocket	49T
Front Wheels	Aluminium rim/wire spoke 21 x 1.60
Rear Wheels	Aluminium rim/wire spoke 19 x 1.85
CHASSIS / SUSPENSION / BRAKES
Front Suspension	48mm inverted Showa leading-axle twin-chamber cartridge-type telescopic fork with 16-step adjustable compression and rebound damping; 310mm axle travel
Rear Suspension	Pro-Link with single Showa damper, adjustable low-speed (13-step) & high-speed (3.5-turn) compression and 17-step rebound damping; 313mm axle travel
Front Brakes	240mm x 3mm hydraulic disc with dual-piston caliper and sintered metal pads
Rear Brake	240mm x 4mm hydraulic disc with single-piston caliper and sintered metal pads
Front Tire	80/100-21 (51M)
Rear Tire	100/90-19 (57M)
DIMENSION
Rake	27° 23′ (Caster Angle)
Trail	118mm (4.6 inches)
Wheelbase	1493mm (58.8 inches)
Overall Length	2183mm (85.9 inches)
Overall Width	827mm (32.6 inches)
Overall Height	1273mm (50.1 inches)
Seat Height	955mm (37.6 inches)
Ground Clearance	325mm (12.8 inches)
CurbWeight	103.9 kg (228.6 lb) Front: 51.1 kg (112.4 lb) Rear: 52.8 kg (116.2 lb)
Fuel Capacity	5.7 Litres (1.5 GalUS)
OTHER
Model ID	CRF250R
Color	Red
MSRP
Warranty

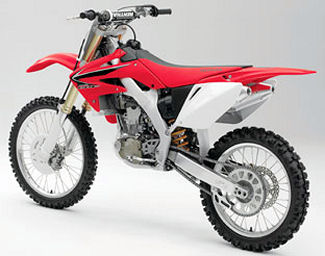

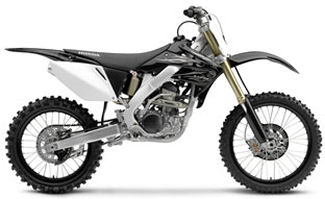

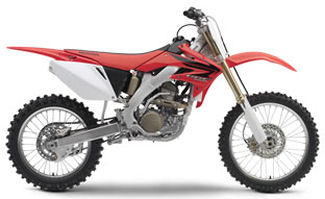

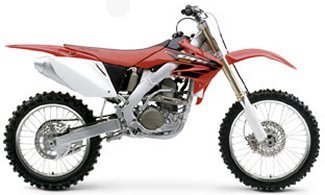

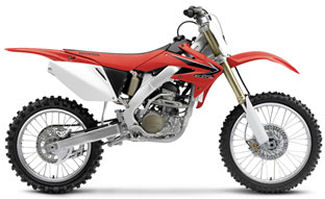

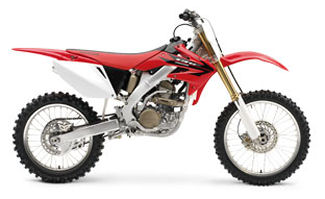

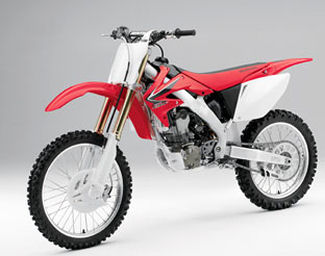

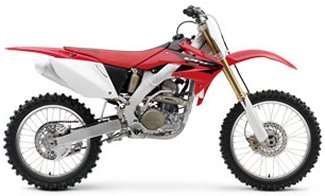

Honda CRF250R Photo Gallery
