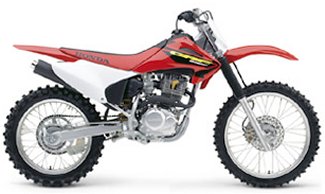

2004 CRF230F
ENGINE |
|
| Engine Type | 223cc air-cooled single-cylinder four-stroke |
| Bore and Stroke | 65.5mm x 66.2mm |
| Compression Ratio | 9.0:1 |
| Valve Train | SOHC; two-valve |
| Fuel Delivery | 26mm piston-valve |
| Ignition | CDI |
DRIVETRAIN |
|
| Transmission | Six-speed |
| Final Drive | #520 O-ring-sealed chain; 13T/50T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 37mm leading-axle Showa fork; 9.5-inch travel |
| Rear Suspension | Pro-Link Showa single-shock with spring-preload adjustability; 9.0-inch travel |
| Front Brake | Single 240mm disc |
| Rear Brake | Drum |
| Front Tire | 80/100-21 |
| Rear Tire | 100/100-18 |
DIMENSION |
|
| Rake | 27.3 degrees |
| Trail | 112.0mm (4.4 inches) |
| Wheelbase | 54.1 inches |
| Seat Height | 34.1 inches |
| Dry Weight | 238.0 pounds |
| Ground Clearance | 11.7 inches |
| Fuel Capacity | 2.2 gallons, including 0.4-gallon reserve |
OTHER |
|
| Colors | Red |
| Warranty | 6 months |

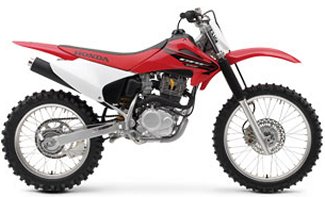

2005 CRF230F
ENGINE |
|
| Engine Type | 223cc air-cooled single-cylinder four-stroke |
| Bore and Stroke | 65.5mm x 66.2mm |
| Compression Ratio | 9.0:1 |
| Valve Train | SOHC; two-valve |
| Fuel Delivery | 26mm piston-valve |
| Ignition | CDI |
DRIVETRAIN |
|
| Transmission | Six-speed |
| Final Drive | #520 O-ring-sealed chain; 13T/50T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 37mm leading-axle Showa fork; 9.5-inch travel |
| Rear Suspension | Pro-Link Showa single-shock with spring-preload adjustability; 9.0-inch travel |
| Front Brake | Single 240mm disc |
| Rear Brake | Drum |
| Front Tire | 80/100-21 |
| Rear Tire | 100/100-18 |
DIMENSION |
|
| Rake | 27.3 degrees |
| Trail | 112.0mm (4.4 inches) |
| Wheelbase | 54.1 inches |
| Seat Height | 34.1 inches |
| Dry Weight | 238.0 pounds |
| Ground Clearance | 11.7 inches |
| Fuel Capacity | 2.2 gallons, including 0.4-gallon reserve |
OTHER |
|
| Colors | Red |
| Warranty | 6 months |
2006 CRF230F
ENGINE |
|
| Engine Type | 223cc air-cooled single-cylinder four-stroke |
| Bore and Stroke | 65.5mm x 66.2mm |
| Compression Ratio | 9.0:1 |
| Valve Train | SOHC; two-valve |
| Fuel Delivery | 26mm piston-valve |
| Ignition | CDI |
DRIVETRAIN |
|
| Transmission | Six-speed |
| Final Drive | #520 O-ring-sealed chain; 13T/50T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 37mm leading-axle Showa fork; 9.5-inch travel |
| Rear Suspension | Pro-Link Showa single-shock with spring-preload adjustability; 9.0-inch travel |
| Front Brake | Single 240mm disc |
| Rear Brake | Drum |
| Front Tire | 80/100-21 |
| Rear Tire | 100/100-18 |
DIMENSION |
|
| Rake | 27.3 degrees |
| Trail | 112.0mm (4.4 inches) |
| Wheelbase | 54.1 inches |
| Seat Height | 34.1 inches |
| Dry Weight | 238.0 pounds |
| Ground Clearance | 11.7 inches |
| Fuel Capacity | 2.2 gallons, including 0.4-gallon reserve |
OTHER |
|
| Colors | Red |
| Model ID | CRF230F |

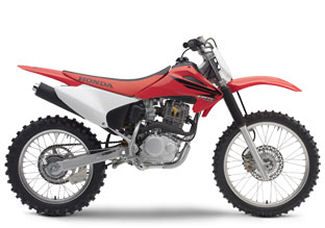

2007 CRF230F
OVERVIEW
- Overview: A certified hit with anyone who’s ever thrown a leg over it, the CRF230F with its six-speed tranny is, hands down, a blast to ride, packing all the four-stroke performance for which Honda is legendary. With a 34.1″ seat height, it’s perfectly sized for adults and teenagers alike. And thanks to electric start and plush, long-travel suspension, it’s also as easy to ride as it is fun.
ENGINE |
|
| Engine Type | 223cc air-cooled single-cylinder four-stroke |
| Bore and Stroke | 65.5mm x 66.2mm |
| Compression Ratio | 9.0:1 |
| Valve Train | SOHC; two-valve |
| Fuel Delivery | 26mm piston-valve |
| Ignition | CDI |
DRIVETRAIN |
|
| Transmission | Six-speed |
| Final Drive | #520 O-ring-sealed chain; 13T/50T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 37mm leading-axle Showa fork; 9.5-inch travel |
| Rear Suspension | Pro-Link Showa single-shock with spring-preload adjustability; 9.0-inch travel |
| Front Brake | Single 240mm disc |
| Rear Brake | Drum |
| Front Tire | 80/100-21 |
| Rear Tire | 100/100-18 |
DIMENSION |
|
| Rake | 27.3 degrees |
| Trail | 112.0mm (4.4 inches) |
| Wheelbase | 54.1 inches |
| Seat Height | 34.1 inches |
| Dry Weight | 238.0 pounds |
| Ground Clearance | 11.7 inches |
| Fuel Capacity | 2.2 gallons, including 0.4-gallon reserve |
OTHER |
|
| Colors | Red |
| Model ID | CRF230F |

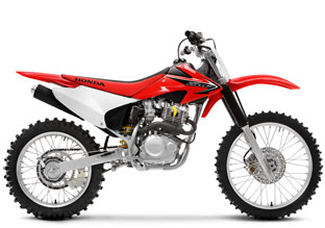

2008 CRF230F
OVERVIEW
- Overview: Put in simple, moto-friendly terms, the CRF230F is a certified blast to ride. Just ask the countless riders, of all skill and experience levels, who’ve ever twisted its throttle and made easy work of the toughest trails. With its six-speed transmission, plush, long-travel suspension, electric starter, 34.1-inch seat height, and new fuel tank, it’s the perfect — and perfectly sized — off-roader for adults and teenagers alike.
ENGINE |
|
| Engine Type | 223cc air-cooled single-cylinder four-stroke |
| Bore and Stroke | 65.5mm x 66.2mm |
| Compression Ratio | 9.0:1 |
| Valve Train | SOHC; two-valve |
| Fuel Delivery | 26mm piston-valve |
| Ignition | CDI |
DRIVETRAIN |
|
| Transmission | Six-speed |
| Final Drive | #520 O-ring-sealed chain; 13T/50T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 37mm leading-axle Showa fork; 9.5-inch travel |
| Rear Suspension | Pro-Link Showa single-shock with spring-preload adjustability; 9.0-inch travel |
| Front Brake | Single 240mm disc |
| Rear Brake | Drum |
| Front Tire | 80/100-21 |
| Rear Tire | 100/100-18 |
DIMENSION |
|
| Rake | 27.3 degrees |
| Trail | 112.0mm (4.4 inches) |
| Wheelbase | 54.1 inches |
| Seat Height | 34.1 inches |
| Curb Weight | TBD |
| Ground Clearance | 11.7 inches |
| Fuel Capacity | 1.9 gallons, including 0.4-gallon reserve |
OTHER |
|
| Colors | Red |
| Model ID | CRF230F |
| Emissions | Meets current CARB and EPA standards. California version differs slightly due to emissions equipment. |
| Warranty | 6 months coverage of defects in materials and workmanship |

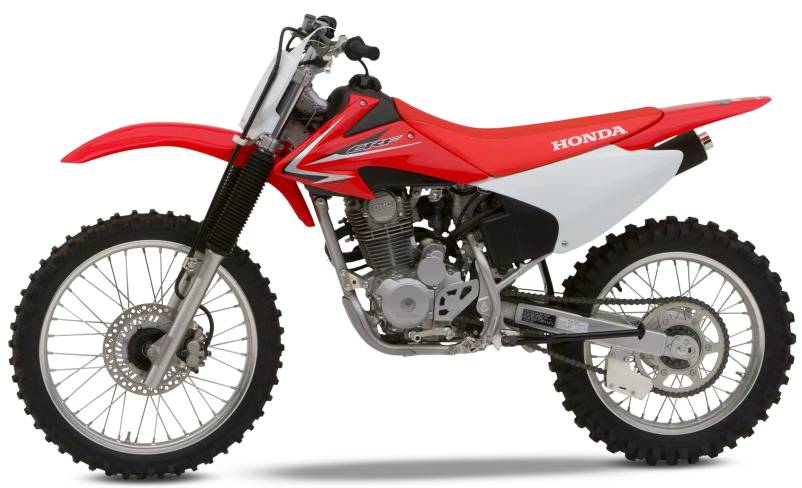

2009 CRF230F
ENGINE |
|
| Engine Type | 223cc air-cooled single-cylinder four-stroke |
| Bore and Stroke | 65.5mm x 66.2mm |
| Compression Ratio | 9.0:1 |
| Valve Train | SOHC; two-valve |
| Fuel Delivery | 26mm piston-valve |
| Ignition | CDI |
DRIVETRAIN |
|
| Transmission | Six-speed |
| Final Drive | #520 O-ring-sealed chain; 13T/50T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 37mm leading-axle Showa fork; 9.5-inch travel |
| Rear Suspension | Pro-Link Showa single-shock with spring-preload adjustability; 9.0-inch travel |
| Front Brake | Single 240mm disc |
| Rear Brake | Drum |
| Front Tire | 80/100-21 |
| Rear Tire | 100/100-18 |
DIMENSION |
|
| Rake | 27.3 degrees |
| Trail | 112.0mm (4.4 inches) |
| Wheelbase | 54.1 inches |
| Seat Height | 34.1 inches |
| Curb Weight | 249 pounds (Includes all standard equipment, required fluids and full tank of fuel ready to ride) |
| Ground Clearance | 11.7 inches |
| Fuel Capacity | 1.9 gallons, including 0.4-gallon reserve |
OTHER |
|
| Colors | Red |
| Model ID | CRF230F |
| Emissions | Meets current CARB and EPA standards. California version differs slightly due to emissions equipment. |
| Warranty | 6 months coverage of defects in materials and workmanship |

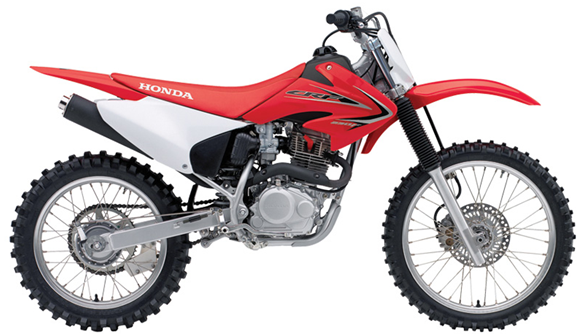

2011 CRF230F
ENGINE |
|
| Engine Type | 223cc air-cooled single-cylinder four-stroke |
| Bore and Stroke | 65.5mm x 66.2mm |
| Compression Ratio | 9.0:1 |
| Valve Train | SOHC; two-valve |
| Fuel Delivery | Single 28 mm piston-valve carb |
| Ignition | N/A |
DRIVETRAIN |
|
| Transmission | Six-speed with manual clutch |
| Final Drive | #520 O-ring-sealed chain, 13T/50T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 37 mm leading-axle Showa fork; 216 mm (8.5 in.) travel |
| Rear Suspension | Pro-Link Showa single shock with spring preload adjustment; 230 mm (9.1 in.) travel |
| Front Brake | Single 240mm disc |
| Brake | Front 240 mm disc with dual-piston caliper; rear drum |
| Front Tire | 80/100-21 |
DIMENSION |
|
| Wheelbase | 1,372 mm (54 in.) |
| Seat Height | 878 mm (34.6 in.) |
| Curb Weight | 113 kg (249 lb) including required fluids and full tank of gas – ready to ride |
| Ground Clearance | 305 mm (12 in.) |
| Fuel Capacity | 7 litres, including 1.3-litre reserve |
OTHER |
|
| Colors | Extreme Red |
| MSRP | $4,499 |
| Emissions | Meets current CARB and EPA standards. California version differs slightly due to emissions equipment. |
| Warranty | 6 months, unlimited mileage, freely transferable warranty, extended coverage available with Honda Plus |

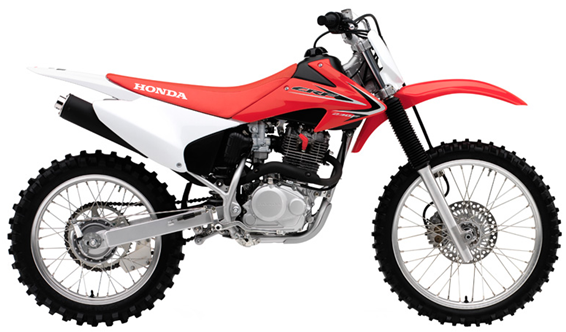

2012 CRF230F
ENGINE |
|
| Engine Type | air-cooled single-cylinder four-stroke |
| Displacement | 223 cc |
| Bore and Stroke | 65.5mm x 66.2mm |
| Compression Ratio | 9:1 |
| Valve Train | SOHC; two-valve |
| Fuel Delivery |
|
| Ignition | N/A |
DRIVETRAIN |
|
| Transmission | Six-speed with manual clutch |
| Final Drive | #520 O-ring-sealed chain |
| Front sprocket | 13T |
| Rear sprocket | 50T |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 37 mm leading-axle Showa fork; 216 mm (8.5 in.) travel |
| Rear Suspension | Pro-Link Showa single shock with spring preload adjustment; 230 mm (9.1 in.) travel |
| Front Brake | Single 240mm disc |
| Brake | Front 240 mm disc with dual-piston caliper; rear drum |
| Front Tire | 80/100-21 |
DIMENSION |
|
| Rake | 27.3° (Caster Angle) |
| Trail | 112mm (4.4 inches) |
| Wheelbase | 1,372 mm (54 in.) |
| Seat Height | 878 mm (34.6 in.) |
| Curb Weight | 113 kg (249 lb) including required fluids and full tank of gas – ready to ride |
| Ground Clearance | 305 mm (12 in.) |
| Fuel Capacity | 7 litres (1.9 GalUS), including 1.3-litre (0.4 Gal) reserve |
OTHER |
|
| Colors | Extreme Red |
| MSRP | $4,599 |
| Emissions | Meets current California Air Resources Board (CARB) and EPA off-road emissions standards. |
| Warranty | 6 months, unlimited mileage, freely transferable warranty; extended coverage available with Honda Plus |
| Model Id | CRF230F |
