Honda CR85RB Expert Motorcycles

2004 CR85R Expert

Engine
Engine Type	84.7cc liquid-cooled single-cylinder two-stroke
Spark plug	BR10EG
Bore and Stroke	47.5mm x 47.8mm
Compression Ratio	8.4:1
Fuel Delivery	Reed-valve
Ignition	CD with electronic advance
DRIVETRAIN
Transmission	Honda V-Matic belt-converter automatic transmission
Final Drive	#420 chain x 126; 15T/56T
CHASSIS / SUSPENSION / BRAKES
Front Suspension	7mm fully adjustable leading-axle inverted Showa cartridge fork; 10.8-inch travel
Rear Suspension	Pro-Link fully adjustable Showa single-shock; 11.4-inch travel
Front Brakes	Single disc
Rear Brakes	Single disc
Front Tire	70/100-19
Rear Tire	90/100-16
DIMENSION
Rake	27.48 degrees
Trail	99.0mm (3.9 inches)
Wheelbase	50.7 inches
Seat Height	34.5 inches
Ground Clearance	14.4 inches
Dry Weight	145.0 pounds
Fuel Capacity	1.4 gallons
OTHER
Colors	Red
Model ID	CR85RB

2005 CR85R Expert

Engine
Engine Type	84.7cc liquid-cooled single-cylinder two-stroke
Spark plug	BR10EG
Bore and Stroke	47.5mm x 47.8mm
Compression Ratio	8.4:1
Fuel Delivery	28mm flat slide
Ignition	CD with electronic advance
DRIVETRAIN
Transmission	Close-ratio six-speed
Final Drive	#420 chain x 126; 15T/56T
CHASSIS / SUSPENSION / BRAKES
Front Suspension	37mm fully adjustable leading-axle inverted Showa cartridge fork; 10.8-inch travel
Rear Suspension	Pro-Link fully adjustable Showa single-shock; 11.4-inch travel
Front Brakes	Single disc
Rear Brakes	Single disc
Front Tire	70/100-19
Rear Tire	90/100-16
DIMENSION
Rake	27.48 degrees
Trail	92.3mm (3.63 inches)
Wheelbase	49.1 inches
Seat Height	34.0 inches
Ground Clearance	13.9 inches
Dry Weight	145.0 pounds
Fuel Capacity	1.35 gallons
OTHER
Colors	Red
Model ID	CR85RB

2006 CR85RB Expert

Engine
Engine Type	84.7cc liquid-cooled single-cylinder two-stroke
Spark plug	.024
Bore and Stroke	47.5mm x 47.8mm
Compression Ratio	8.4:1
Fuel Delivery	28mm flat slide
Ignition	CD with electronic advance
DRIVETRAIN
Transmission	Close-ratio six-speed
Final Drive	#420 chain x 126; 15T/56T
CHASSIS / SUSPENSION / BRAKES
Front Suspension	37mm fully adjustable leading-axle inverted Showa cartridge fork; 10.8-inch travel
Rear Suspension	Pro-Link fully adjustable Showa single-shock; 11.4-inch travel
Front Brakes	Single disc
Rear Brakes	Single disc
Front Tire	70/100-19
Rear Tire	90/100-16
DIMENSION
Rake	27.48 degrees
Trail	92.3mm (3.63 inches)
Wheelbase	50.7 inches
Seat Height	34.0 inches
Ground Clearance	13.9 inches
Dry Weight	145.0 pounds
Fuel Capacity	1.35 gallons
OTHER
Colors	Red
Model ID	CR85RB

2007 CR85RB Expert

OVERVIEW

• Overview: The CR85R Expert boasts the same engineering and specs as the CR85R, but features bigger wheels, a higher seat and longer swingarm — the perfect step-up for your taller young racer.

Engine
Engine Type	84.7cc liquid-cooled single-cylinder two-stroke
Spark plug	.024
Bore and Stroke	47.5mm x 47.8mm
Compression Ratio	8.4:1
Fuel Delivery	28mm flat slide
Ignition	CD with electronic advance
DRIVETRAIN
Transmission	Close-ratio six-speed
Final Drive	#420 chain x 126; 15T/56T
CHASSIS / SUSPENSION / BRAKES
Front Suspension	37mm fully adjustable leading-axle inverted Showa cartridge fork; 10.8-inch travel
Rear Suspension	Pro-Link fully adjustable Showa single-shock; 11.4-inch travel
Front Brakes	Single disc
Rear Brakes	Single disc
Front Tire	70/100-19
Rear Tire	90/100-16
DIMENSION
Rake	27.25 degrees
Trail	92.3mm (3.63 inches)
Wheelbase	50.7 inches
Seat Height	34.0 inches
Ground Clearance	13.9 inches
Dry Weight	145.0 pounds
Fuel Capacity	1.35 gallons
OTHER
Colors	Red
Model ID	CR85RB

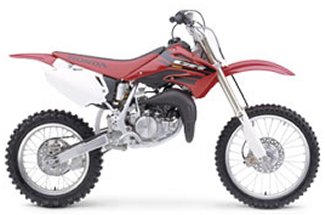

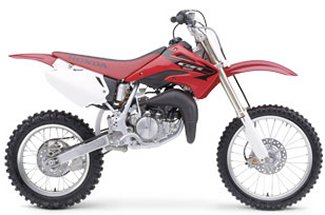

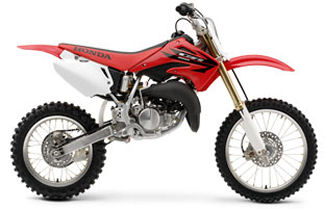

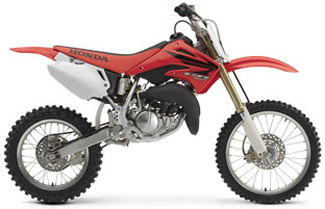

CR85RB Image Gallery
