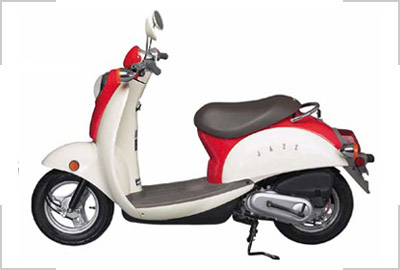

2002 Metropolitan (CHF 50)
Engine |
|
| Engine | 49cc liquid-cooled single-cylinder four-stroke |
| Bore & Stroke | 38mm x 44mm |
| Compression ratio | 12: 1 |
| Valve Train | SOHC |
| Fuel Delivery | 15mm CV with automatic choke |
DRIVETRAIN |
|
| Transmission | Automatic |
| Final Drive | Belt drive |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | Twin-downtube fork; 48mm travel |
| Rear Suspension | Single shock; 66mm travel |
| Front Brakes | Drum |
| Rear Brake | Drum with CBS |
| Front Tire | 90/90-10 |
| Rear Tire | 90/90-10 |
DIMENSION |
|
| Wheelbase | 1191mm (46.9 in.) |
| Seat Height | 711mm (28.0 in.) |
| Dry Weight | 71 kg (157lb) |
| Fuel Capacity | 5 litres |
OTHER |
2003 Metropolitan (CHF 50)
Engine |
|
| Engine | 49cc liquid-cooled single-cylinder four-stroke |
| Bore & Stroke | 38mm X 44mm |
| Compression ratio | 12: 1 |
| Valve Train | SOHC |
| Fuel Delivery | 15mm CV with automatic choke |
DRIVETRAIN |
|
| Transmission | Automatic |
| Final Drive | Belt drive |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | Twin-downtube fork; 48mm travel |
| Rear Suspension | Single shock; 66mm travel |
| Front Brakes | Drum |
| Rear Brake | Drum with CBS |
| Front Tire | 90/90-10 |
| Rear Tire | 90/90-10 |
DIMENSION |
|
| Wheelbase | 1191mm (46.9 in.) |
| Seat Height | 711mm (28.0 in.) |
| Dry Weight | 71 kg (157lb) |
| Fuel Capacity | 5 litres |
OTHER |

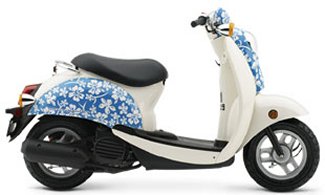

2004 Metropolitan (CHF50)
Engine |
|
| Engine | 49cc liquid-cooled single-cylinder four-stroke |
| Fuel Delivery | 15mm CV with automatic choke |
| Ignition | CDI |
DRIVETRAIN |
|
| Transmission | Automatic V-Matic belt drive |
| Final Drive | N/A |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | Twin-downtube fork; 1.9-inch travel |
| Rear Suspension | Single shock; 2.6-inch travel |
| Front Brakes | Drum |
| Rear Brake | Drum with CBS |
| Front Tire | 90/90-10 |
| Rear Tire | 90/90-10 |
DIMENSION |
|
| Wheelbase | 46.9 inches |
| Seat Height | 28.0 inches |
| Dry Weight | 157.0 pounds |
| Fuel Capacity | 1.3 gallons |
OTHER |
|
| Colors |
|
| Warranty | 1 year |

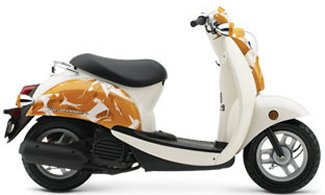

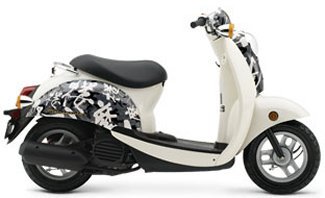

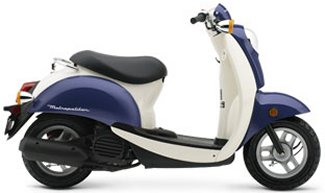

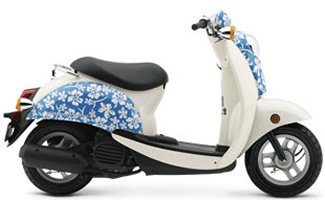

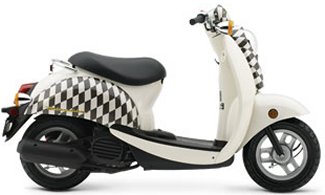

2005 Metropolitan (CHF50)
Engine |
|
| Engine | 49cc liquid-cooled single-cylinder four-stroke |
| Fuel Delivery | 15mm CV with automatic choke |
| Ignition | CDI |
DRIVETRAIN |
|
| Transmission | Automatic V-Matic belt drive |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | Twin-downtube fork; 1.9-inch travel |
| Rear Suspension | Single shock; 2.6-inch travel |
| Front Brakes | Drum |
| Rear Brake | Drum with CBS |
| Front Tire | 90/90-10 |
| Rear Tire | 90/90-10 |
DIMENSION |
|
| Wheelbase | 46.9 inches |
| Seat Height | 28.0 inches |
| Dry Weight | 157 pounds |
| Fuel Capacity | 1.3 gallons |
OTHER |
|
| Colors |
|
| Warranty | 1 year |

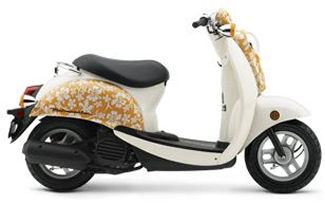

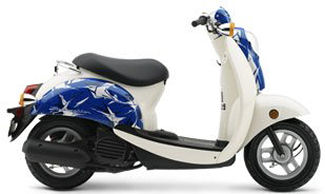

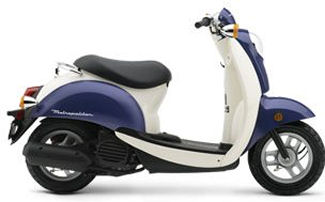

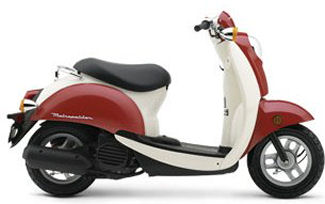

2006 Metropolitan (CHF50)
Engine |
|
| Engine | 49cc liquid-cooled single-cylinder four-stroke |
| Fuel Delivery | 18.0mm CV with automatic choke |
| Ignition | CDI |
| Spark plug | CR8EH-9 |
| Plug gap | .036 |
DRIVETRAIN |
|
| Transmission | Automatic V-Matic belt drive |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | Twin-downtube fork; 1.9-inch travel |
| Rear Suspension | Single shock; 2.6-inch travel |
| Front Brakes | Drum |
| Rear Brake | Drum with CBSDrum with Combined Braking System |
| Front Tire | 90/90-10 |
| Rear Tire | 90/90-10 |
DIMENSION |
|
| Wheelbase | 46.9 inches |
| Seat Height | 28.0 inches |
| Dry Weight | 163 pounds |
| Fuel Capacity | 1.3 gallons |
OTHER |
|
| Colors |
|
| Model ID | CHF50 |

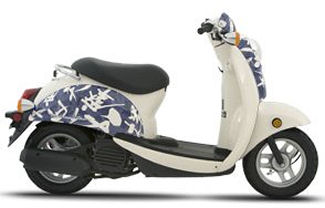

2007 Metropolitan (CHF50)
OVERVIEW
- Sure it’s cute, hip and cool. And it sports a wide array of colors and groovy graphics to suit anybody’s fashion sense. But beneath that fun-loving form is a fuel-efficient, ultra-reliable machine. An eager 49cc engine, easy-to-use controls and comfortable ergonomics all help you enjoy mile after mile of good times, with absolutely zero worries. It’s the perfect way to get around in style.
Engine |
|
| Engine | 49cc liquid-cooled single-cylinder four-stroke |
| Fuel Delivery | 18.0mm CV with automatic choke |
| Ignition | CDI |
| Spark plug | CR8EH-9 |
| Plug gap | .036 |
DRIVETRAIN |
|
| Transmission | Automatic V-Matic belt drive |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | Twin-downtube fork; 1.9-inch travel |
| Rear Suspension | Single shock; 2.6-inch travel |
| Front Brakes | Drum |
| Rear Brake | Drum with Combined Braking System |
| Front Tire | 90/90-10 |
| Rear Tire | 90/90-10 |
DIMENSION |
|
| Wheelbase | 46.9 inches |
| Seat Height | 28.3 inches |
| Dry Weight | 163 pounds |
| Fuel Capacity | 1.32 gallons |
OTHER |
|
| Colors |
|
| Model ID | CHF50 |
2008 Metropolitan (CHF50)
OVERVIEW
- Already one of the most stylish, Euro-cool scooters going, the Metropolitan(R) takes the hip factor even higher for 2008. With amped-up urban styling, and (on selected models) chrome mirrors and muffler cover, two-tone seat, and black wheels accented by 3D emblems, this fully automatic, 49cc fashion plate is two-wheeled proof that a scooter can be both ultra-hip and ultra-practical.
Engine |
|
| Engine | 49cc liquid-cooled single-cylinder four-stroke |
| Fuel Delivery | 18.0mm CV with automatic choke |
| Ignition | CDI |
| Spark plug | CR8EH-9 |
| Plug gap | .036 |
DRIVETRAIN |
|
| Transmission | Automatic V-Matic belt drive |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | Twin-downtube fork; 1.9-inch travel |
| Rear Suspension | Single shock; 2.6 inches travel |
| Front Brakes | Drum |
| Rear Brake | rum with CBS |
| Front Tire | 90/90-10 |
| Rear Tire | 90/90-10 |
DIMENSION |
|
| Wheelbase | 46.9 inches |
| Seat Height | 28.3 inches |
| Dry Weight | 176 lbs (Includes all standard equipment, required fluids and a full tank of fuel — ready to ride) |
| Fuel Capacity | 1.32 gallons |
OTHER |
|
| Colors |
|
| Model ID | CHF50 |
One year Unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.

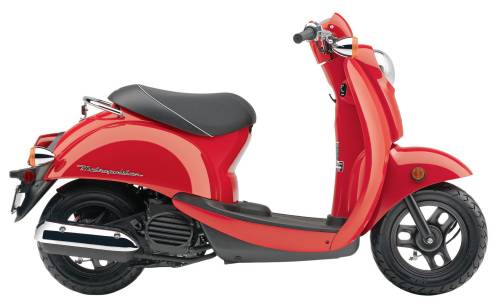

2009 Metropolitan (CHF50)
Engine |
|
| Engine | 49cc liquid-cooled single-cylinder four-stroke |
| Fuel Delivery | 18.0mm CV with automatic choke |
| Ignition | CDI |
| Spark plug | CR8EH-9 |
| Plug gap | .036 |
DRIVETRAIN |
|
| Transmission | Automatic V-Matic belt drive |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | Twin-downtube fork; 1.9-inch travel |
| Rear Suspension | Single shock; 2.6 inches travel |
| Front Brakes | Drum |
| Rear Brake | rum with CBS |
| Front Tire | 90/90-10 |
| Rear Tire | 90/90-10 |
DIMENSION |
|
| Wheelbase | 46.9 inches |
| Seat Height | 28.3 inches |
| Dry Weight | 176 lbs (Includes all standard equipment, required fluids and a full tank of fuel — ready to ride) |
| Fuel Capacity | 1.32 gallons |
| Miles Per Gallon | 114 – Honda’s fuel economy estimates are based on EPA exhaust emission measurement test procedures and are intended for comparison purposes only. Your actual mileage will vary depending on how you ride, how you maintain your vehicle, weather, road conditions, tire pressure, installation of accessories, cargo, rider and passenger weight, and other factors. |
OTHER |
- Available Colors: Ocean, Ghost, Monza, Graphite
- Model Id: CHF50
- FACTORY WARRANTY: One year, Unlimited-mileage limited warranty; extended coverage available with a Honda Protection Plan.
