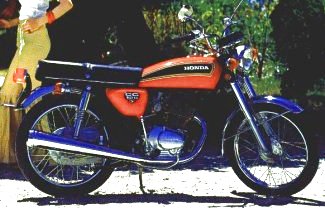

1974 CG125
- ENGINE
- N/A
- DRIVETRAIN
- N/A
- CHASSIS / SUSPENSION / BRAKES
- N/A
- DIMENSION
- N/A
- OTHER
- It was not sold in the USA or Canada.
- The tank design is like the 1974 CB125 model .

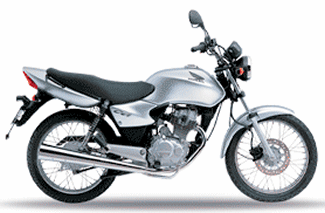

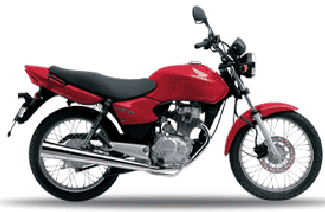

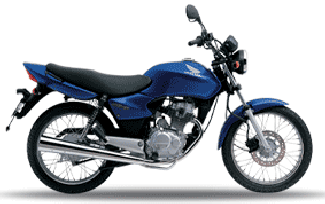

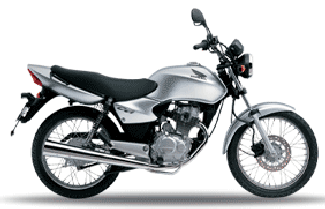

2004 CG125
Engine |
|
| Engine Type | Air-cooled 4-stroke OHV single cylinder |
| Displacement | 124cc |
| Bore and Stroke | 56.5 x 49.5mm |
| Compression Ratio | 9.5:1 |
| Fuel Delivery | 22mm piston-valve type carburetor |
| Ignition | Capacitor Discharge – CDI |
| Max. Power Output | 11 bhp at 9000 rpm |
| Max. Torque | 9.8Nm at 7000 rpm |
| Starter | Electric |
DRIVETRAIN |
|
| Transmission | 5-speed constant mesh |
| Final Drive | Roller chain |
| Front Wheel | 18 x 1.60 steel rim/wire spoke |
| Rear Wheel | 18 x 1.85 steel rim/wire spoke |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 31mm telescopic fork, 102mm axle travel |
| Rear Suspension | Dual dampers with 5-step adjustable spring preload, 80mm axle travel |
| Front Brakes | 240mm hydraulic disc with single-piston caliper and sintered metal pads |
| Rear Brakes | 130mm leading/trailing drum |
| Front Tire | 2.75-18 (42P) |
| Rear Tire | 90/90-18 (57P) |
DIMENSION |
|
| Length x Width x Height | 1982 x 736 x 1067mm |
| Seat Height | 781mm |
| Wheelbase | 1297mm |
| Dry Weight | 114kg |
| Fuel Capacity | 13.5 litres (including 2.3-litre reserve) |
| Ground Clearance | 173mm |
OTHER |

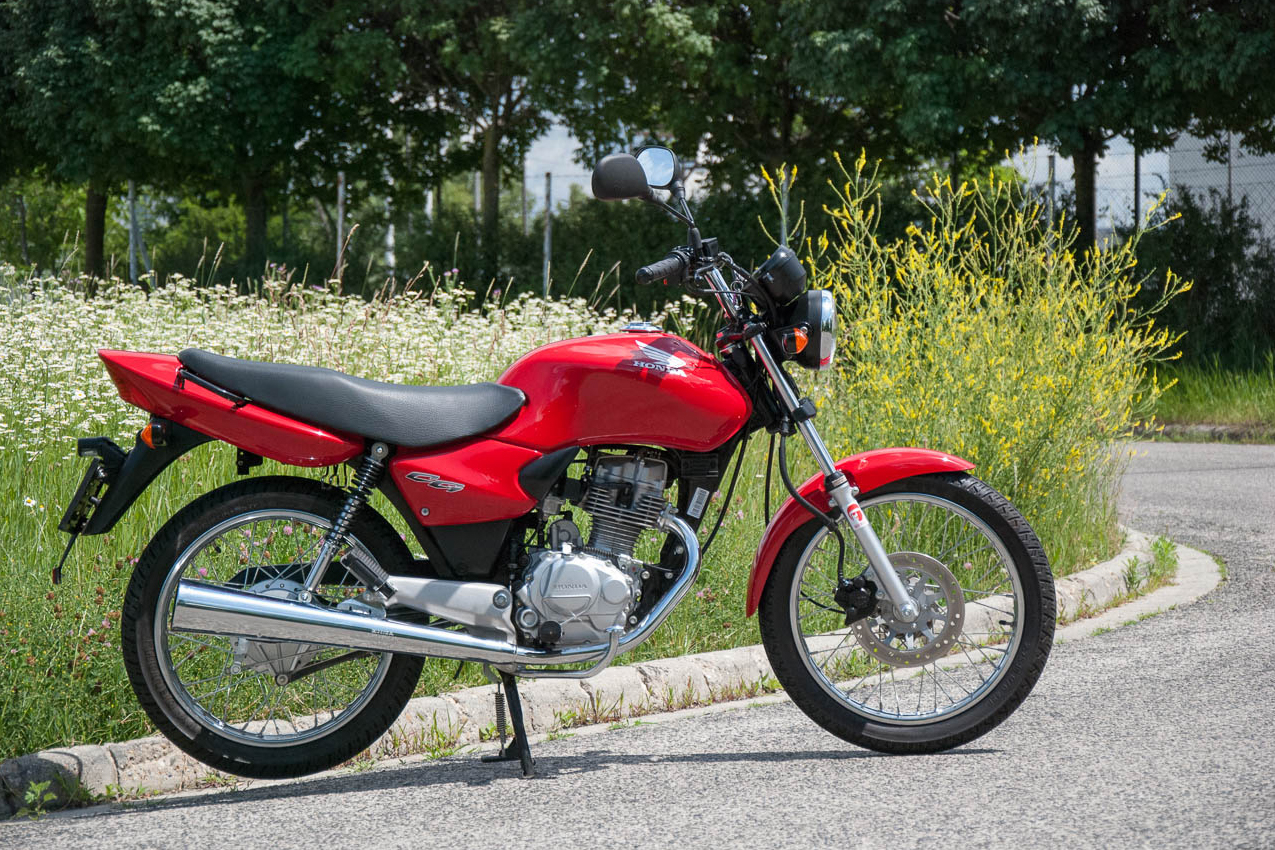

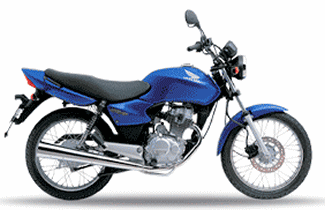

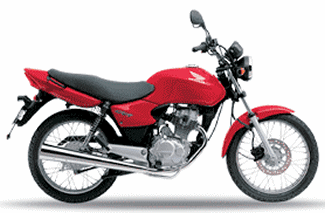

2007 CG125
Engine |
|
| Engine Type | Air-cooled 4-stroke OHV single cylinder |
| Displacement | 124cc |
| Bore and Stroke | 56.5 x 49.5mm |
| Compression Ratio | 9.5:1 |
| Fuel Delivery | 22mm piston-valve type carburetor |
| Ignition | Capacitor Discharge – CDI |
| Max. Power Output | 11 bhp at 9000 rpm |
| Max. Torque | 9.8Nm at 7000 rpm |
| Starter | Electric |
DRIVETRAIN |
|
| Transmission | 5-speed constant mesh |
| Final Drive | Roller chain |
| Front Wheel | 18 x 1.60 steel rim/wire spoke |
| Rear Wheel | 18 x 1.85 steel rim/wire spoke |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 31mm telescopic fork, 102mm axle travel |
| Rear Suspension | Dual dampers with 5-step adjustable spring preload, 80mm axle travel |
| Front Brakes | 240mm hydraulic disc with single-piston caliper and sintered metal pads |
| Rear Brakes | 130mm leading/trailing drum |
| Front Tire | 2.75-18 (42P) |
| Rear Tire | 90/90-18 (57P) |
DIMENSION |
|
| Length x Width x Height | 1,982 x 736 x 1,067mm |
| Seat Height | 781mm |
| Wheelbase | 1,297mm |
| Dry Weight | 114kg |
| Fuel Capacity | 13.5 litres (including 2.3-litre reserve) |
| Ground Clearance | 173mm |
OTHER |
No Comment
