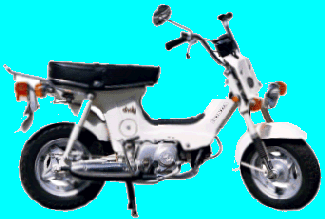

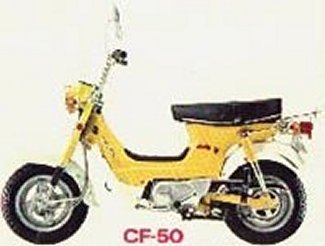

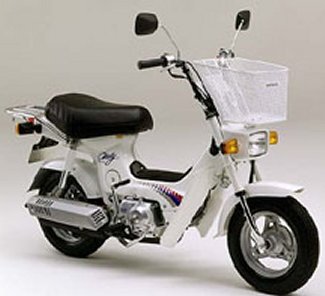

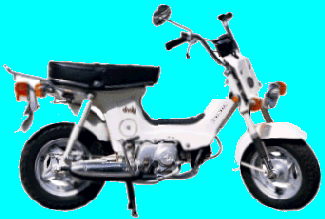

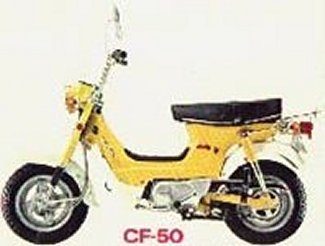

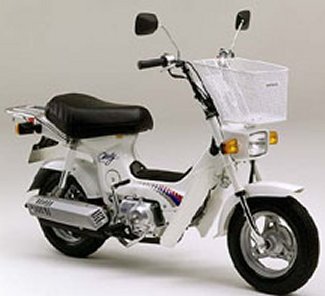

Chaly 50 (CF50)
Engine |
|
| Engine | air cooled single cylinder 4 cycles |
| Displacement | 49cc |
| Bore & Stroke | 39.0mm × 41.4mm |
| Compression ratio | 10.0:1 |
| Carburetor | VC 58 |
| Starting system | Kick system |
| Ignition device type | CDI type magnetic ignition |
| Lubricating system | Force splash combined use system |
DRIVETRAIN |
|
| Clutch type | Wet multiple plate coil spring system |
| Transmission type | Regular gearing three speed |
| 1st gear ratio | 3.272:1 |
| 2nd gear ratio | 1.823:1 |
| 3rd gear ratio | 1.190:1 |
CHASSIS / SUSPENSION / BRAKES |
|
| Tire size | 3.50-10-2 PR (front and rear) |
| Brake type | Mechanical cable type leading & trailing (front & rear) |
| Front suspension | Telescopic system |
| Rear suspension | Swing arm |
| Frame type | Low floor backbone |
DIMENSION |
|
| length | 1665 mm (65.5″) |
| width | 645 mm (25″) |
| height | 985 mm (39″) |
| Wheelbase | 1100 mm (43″) |
| Road clearance | 125 mm (5″) |
| Seat hight | 710 mm (28″) |
| Vehicle weight | 76 kg (167.2 lb) |
| Dry weight | 72 kg (158.4 lb) |
| Fuel consumption @ 30 km/h (17 mph) | 0.87 l/100 km (260 mi/US gal) |
| Minimum turning radius | 1600mm (63″) |
| Oil capacity | 0.7 liter |
| Fuel tank capacity | 2.8 liter |
OTHER |
