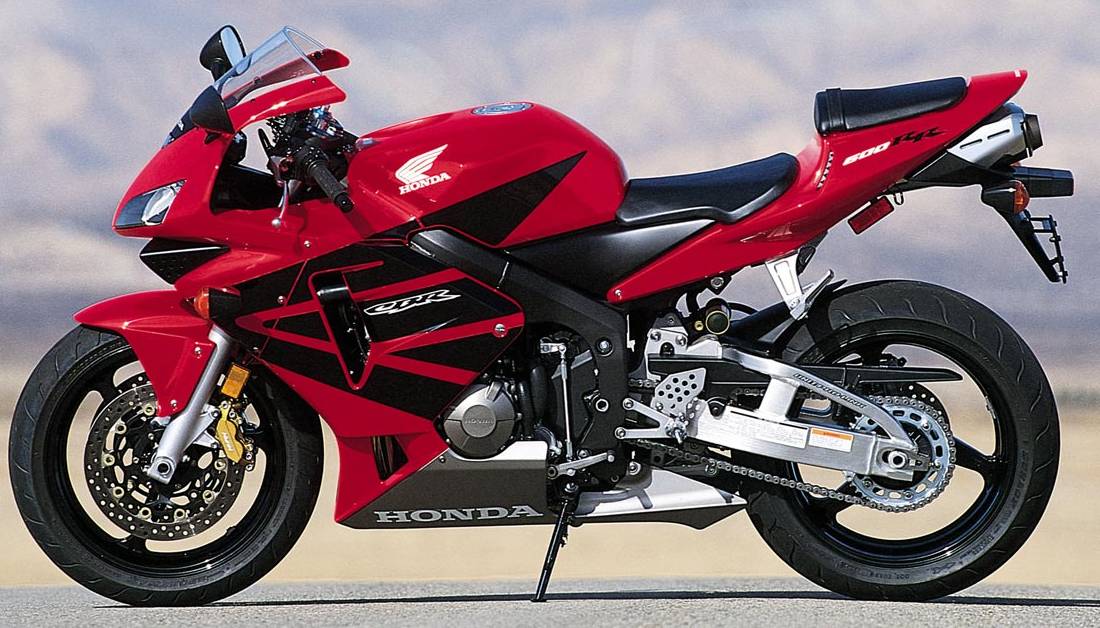

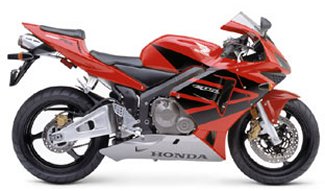

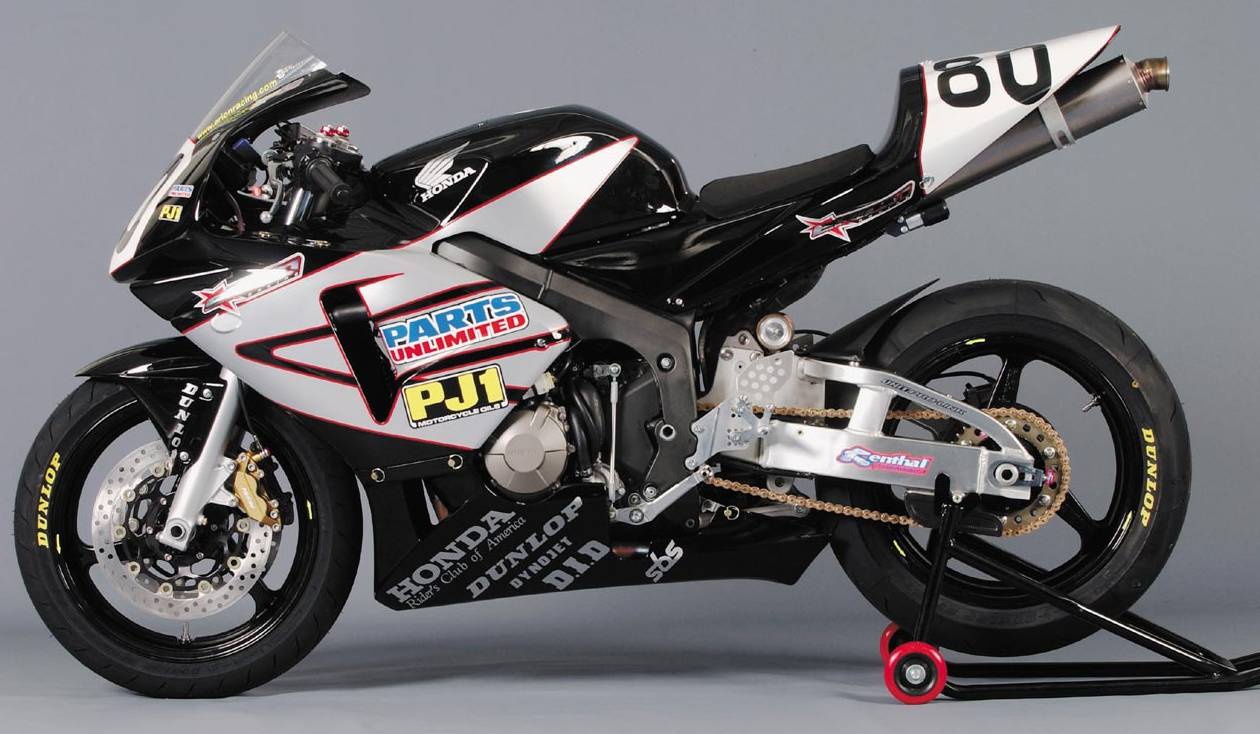

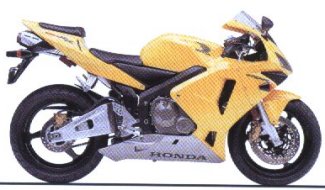

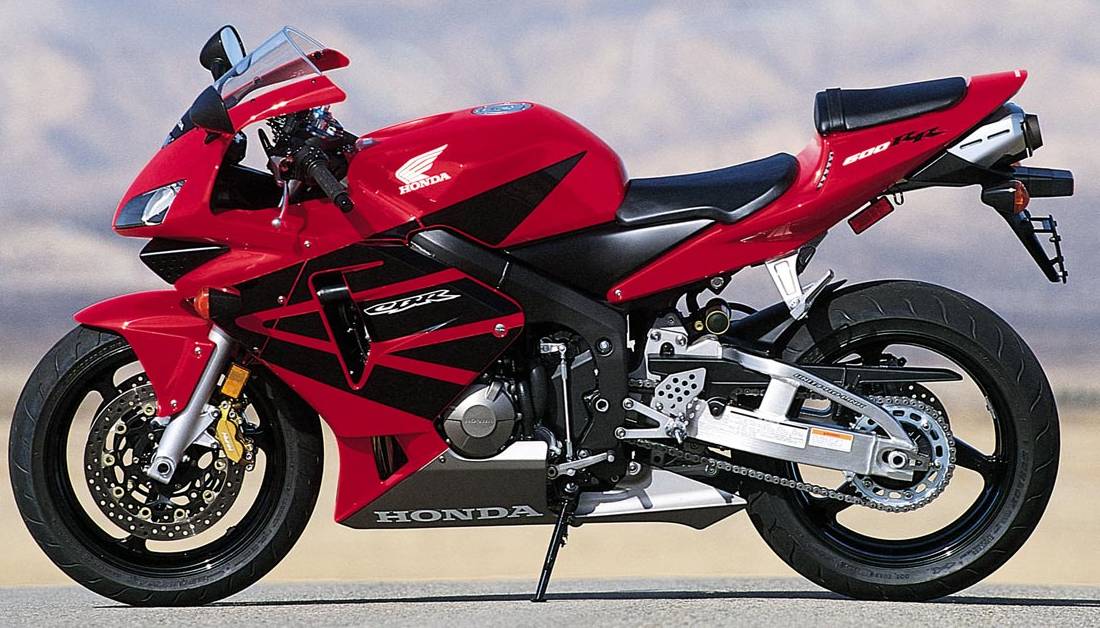

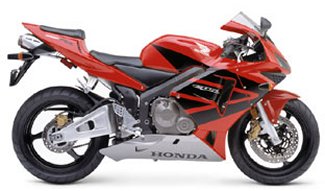

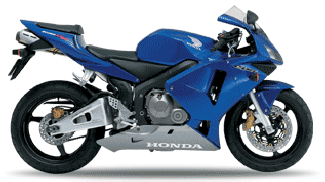

2003 CBR600RR
ENGINE |
|
| Engine Type | 599cc DOHC liquid-cooled inline four-cylinder four-stroke |
| Bore and Stroke | 67.0 x 42.5 mm |
| Compression Ratio | 12.0:1 |
| Valve Train | DOHC; four valves per cylinder |
| Fuel Delivery | Dual Stage Fuel Injection (DSFI) |
DRIVETRAIN |
|
| Transmission | Close-ratio six-speed |
| Final Drive | #525 O-ring-sealed chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 45mm HMAS cartridge fork with spring preload, rebound and compression damping adjustability; 120mm travel |
| Rear Suspension | Unit Pro-Link HMAS single shock with spring preload, rebound and compression damping adjustability; 120mm travel |
| Front Tire | 120/70ZR-17 radial |
| Rear Tire | 180/55ZR-17 radial |
| Front Brakes | Dual full-floating 310mm discs with four-piston calipers |
| Rear Brakes | Single 220mm disc with single-piston caliper |
DIMENSION |
|
| Seat Height | 820mm (32.3 in.) |
| Wheelbase | 1390mm (54.7 in.) |
| Fuel Capacity | 18 litres (4.7 GalUS) |
| Dry weight | 68 kg (370 lb) |
OTHER |
|
| Colors |
|

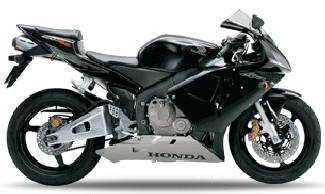

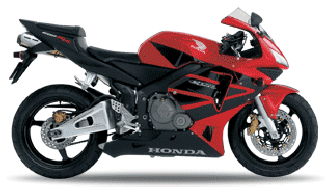

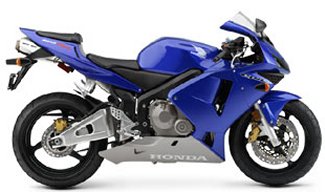

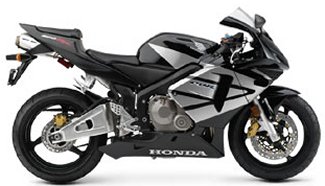

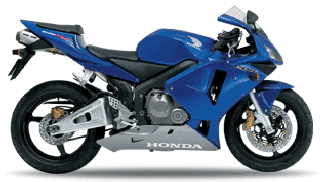

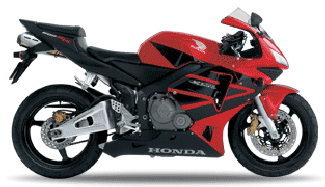

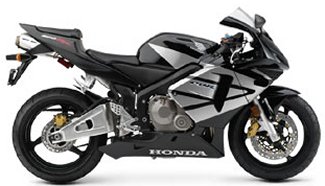

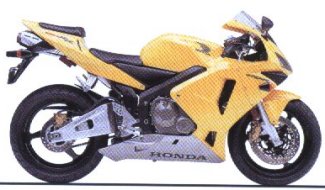

2004 CBR600RR
ENGINE |
|
| Engine Type | 599cc liquid-cooled inline four-cylinder |
| Bore and Stroke | 67.0mm x 42.5mm |
| Compression Ratio | 12.0:1 |
| Valve Train | DOHC; four valves per cylinder |
| Fuel Delivery | Dual Stage Fuel Injection (DSFI) |
| Ignition | Computer-controlled digital transistorized with three-dimensional mapping |
DRIVETRAIN |
|
| Transmission | Close-ratio six-speed |
| Final Drive | #525 O-ring-sealed chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 45mm HMAS cartridge fork with spring preload, rebound and compression damping adjustability; 120mm travel |
| Rear Suspension | Unit Pro-Link HMAS single shock with spring preload, rebound and compression damping adjustability; 120mm travel |
| Front Tire | 120/70ZR-17 radial |
| Rear Tire | 180/55ZR-17 radial |
| Front Brakes | Dual 310.0mm discs with four-piston calipers |
| Rear Brakes | Single 220.0mm disc |
DIMENSION |
|
| Rake | 24.0 degrees |
| Trail | 95.0mm (3.7 inches) |
| Seat Height | 32.3 inches |
| Wheelbase | 54.7 inches |
| Fuel Capacity | 4.8 gallons, including 0.9-gallon reserve |
| Dry weight | 370.0 pounds |
OTHER |
|
| Colors |
|
| Emissions | California version meets CARB 2004 emissions standards. |
| Model ID | CBR600RR |
| Warranty | 1 year |

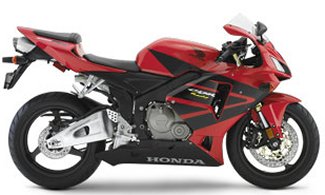

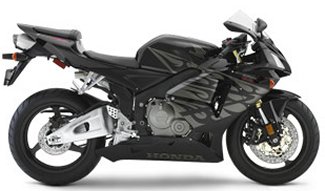

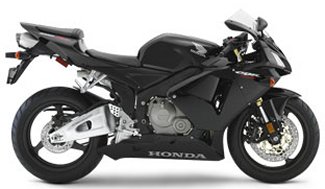

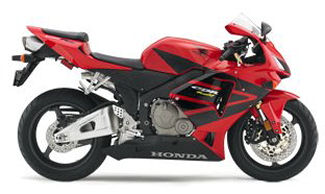

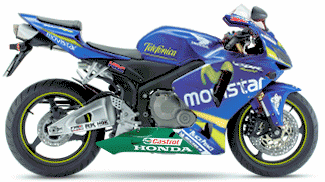

2005 CBR600RR
ENGINE |
|
| Engine Type | 599cc liquid-cooled inline four-cylinder |
| Bore and Stroke | 67.0mm x 42.5mm |
| Compression Ratio | 12.0:1 |
| Valve Train | DOHC; four valves per cylinder |
| Fuel Delivery | Dual Stage Fuel Injection (DSFI) |
| Ignition | Computer-controlled digital transistorized with three-dimensional mapping |
DRIVETRAIN |
|
| Transmission | Close-ratio six-speed |
| Final Drive | #525 O-ring-sealed chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 41.0mm inverted HMAS cartridge fork with spring-preload, rebound and compression-damping adjustability; 4.7-inch travel |
| Rear Suspension | Unit Pro-Link HMAS single shock with spring-preload, rebound and compression-damping adjustability; 5.1-inch travel |
| Front Tire | 120/70ZR-17 radial |
| Rear Tire | 180/55ZR-17 radial |
| Front Brakes | Dual radial-mounted four-piston calipers with 310.0mm discs |
| Rear Brakes | Single 220.0mm disc |
DIMENSION |
|
| Rake | 24.0 degrees |
| Trail | 95.0mm (3.7 inches) |
| Seat Height | 32.3 inches |
| Wheelbase | 54.7 inches |
| Fuel Capacity | 4.8 gallons, including 0.9-gallon reserve |
| Dry weight | 361 pounds |
OTHER |
|
| Colors |
|
| Emissions | N/A |
| Model ID | CBR600RR |
| Warranty | 1 year |

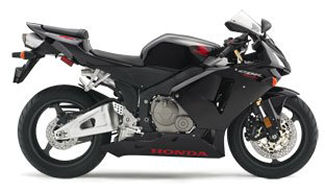

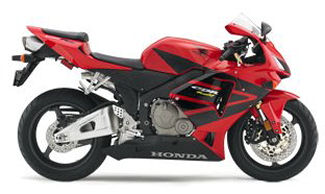

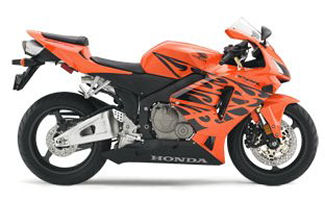

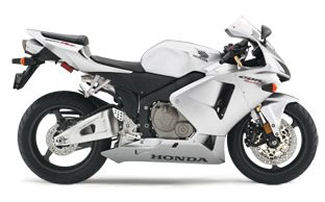

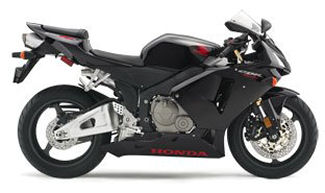

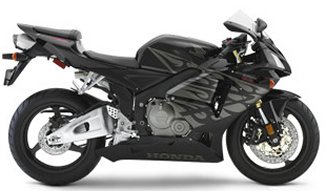

2006 CBR600RR
ENGINE |
|
| Engine Type | 599cc liquid-cooled inline four-cylinder |
| Bore and Stroke | 67.0mm x 42.5mm |
| Compression Ratio | 12.0:1 |
| Valve Train | DOHC; four valves per cylinder |
| Fuel Delivery | Dual Stage Fuel Injection (DSFI) |
| Ignition | Computer-controlled digital transistorized with three-dimensional mapping |
DRIVETRAIN |
|
| Transmission | Close-ratio six-speed |
| Final Drive | #525 O-ring-sealed chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 41.0mm inverted HMAS cartridge fork with spring-preload, rebound and compression-damping adjustability; 4.7-inch travel |
| Rear Suspension | Unit Pro-Link HMAS single shock with spring-preload, rebound and compression-damping adjustability; 5.1-inch travel |
| Front Tire | 120/70ZR-17 radial |
| Rear Tire | 180/55ZR-17 radial |
| Front Brakes | Dual radial-mounted four-piston calipers with 310.0mm discs |
| Rear Brakes | Single 220.0mm disc |
DIMENSION |
|
| Rake | 24.0 degrees |
| Trail | 95.0mm (3.7 inches) |
| Seat Height | 32.3 inches |
| Wheelbase | 54.7 inches |
| Turning Radius | 10.5 feet |
| Fuel Capacity | 4.8 gallons, including 0.9-gallon reserve |
| Dry weight | 361 pounds |
OTHER |
|
| Colors |
|
| Emissions | N/A |
| Model ID | CBR600RR |

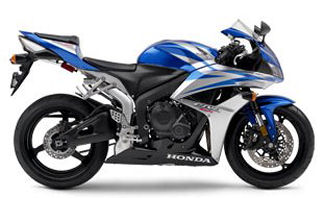

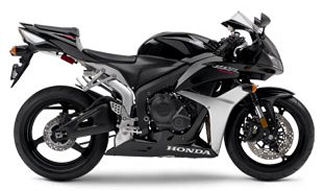

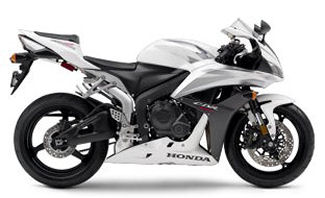

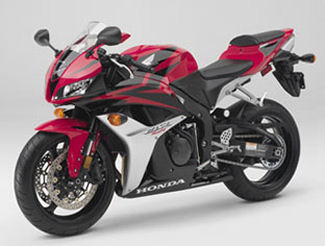

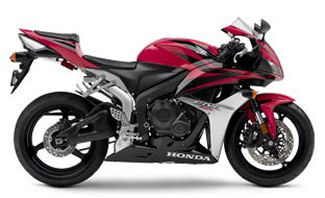

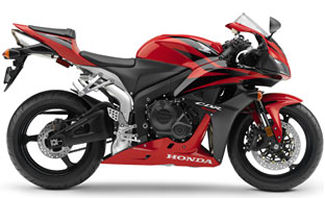

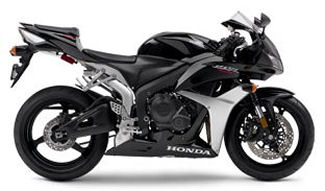

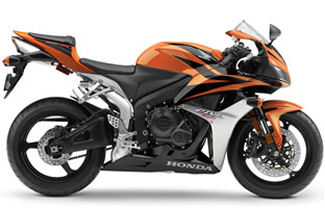

2007 CBR600RR
OVERVIEW
- Overview: Serious sportbike pilots have eagerly anticipated the arrival of the potent new 2007 CBR600RR, and now the industry experts have confirmed this incredible machine was well worth the wait. Cycle News crowned this middleweight missile winner of its ’07 600cc Class Shootout, with the more compact, more powerful and lighter-weight 600RR easily besting the competition on both track and street. Roadracing World went one better, calling the CBR600RR “the best 600cc sportbike ever.” Praise doesn’t come much higher. And neither does performance.
ENGINE |
|
| Engine Type | 599cc liquid-cooled inline four-cylinder |
| Bore and Stroke | 67.0mm x 42.5mm |
| Compression Ratio | 12.0:1 |
| Valve Train | DOHC; four valves per cylinder |
| Fuel Delivery | Dual Stage Fuel Injection (DSFI) |
| Ignition | Computer-controlled digital transistorized with three-dimensional mapping |
DRIVETRAIN |
|
| Transmission | Close-ratio six-speed |
| Final Drive | #525 O-ring-sealed chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 41mm inverted HMAS cartridge fork with spring preload, rebound and compression damping adjustability; 4.7 inches travel |
| Rear Suspension | Unit Pro-Link HMAS single shock with spring preload, rebound and compression damping adjustability; 5.1 inches travel |
| Front Tire | 120/70ZR-17 radial |
| Rear Tire | 180/55ZR-17 radial |
| Front Brakes | Dual radial-mounted four-piston calipers with 310mm discs |
| Rear Brakes | Single 220.0mm disc |
DIMENSION |
|
| Rake | 23.7 degrees |
| Trail | 96.3mm (3.8 inches) |
| Seat Height | 32.3 inches |
| Wheelbase | TBD |
| Turning Radius | 10.5 feet |
| Fuel Capacity | 4.8 gallons, including 0.9-gallon reserve |
| Dry weight | 345 pounds |
OTHER |
|
| Colors |
|
| Emissions | N/A |
| Model ID | CBR600RR |

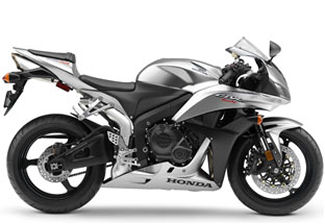

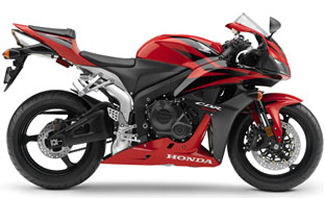

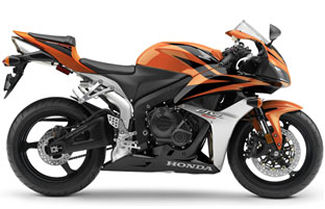

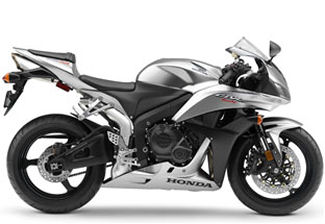

2008 CBR600RR
OVERVIEW
- Overview: If 2007 gave any clue, the CBR®600RR has only just begun to write its legacy in the annals of 600-class performance. Crowned the Best Middleweight of 2007 by both Cycle World and Rider magazines, the CBR600RR oozes MotoGP-bred tech. Dual Stage Fuel Injection, Pro-Link® rear suspension, HESD electronic steering damper, wicked new colors for 2008 there’s no other 600 like it. And there never will be.
ENGINE |
|
| Engine Type | 599cc liquid-cooled inline four-cylinder |
| Bore and Stroke | 67.0mm x 42.5mm |
| Compression Ratio | 12.0:1 |
| Valve Train | DOHC; four valves per cylinder |
| Carburetion | Dual Stage Fuel Injection (DSFI) with 40mm throttle bodies, Denso 12-hole injectors |
| Ignition | Computer-controlled digital transistorized with three-dimensional mapping |
DRIVETRAIN |
|
| Transmission | Close-ratio six-speed |
| Final Drive | #525 O-ring-sealed chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 41mm inverted HMAS cartridge fork with spring preload, rebound and compression damping adjustability; 4.7 inches travel |
| Rear Suspension | Unit Pro-Link HMAS single shock with spring preload, rebound and compression damping adjustability; 5.1 inches travel |
| Front Tire | 120/70ZR-17 radial |
| Rear Tire | 180/55ZR-17 radial |
| Front Brakes | Dual radial-mounted four-piston calipers with 310mm discs |
| Rear Brakes | Single 220.0mm disc |
DIMENSION |
|
| Rake | (Caster Angle): 23.55° |
| Trail | 97.7mm (3.8 inches) |
| Seat Height | 32.3 inches |
| Wheelbase | 53.9 inches |
| Turning Radius | 10.5 feet |
| Fuel Capacity | 4.8 gallons, including 0.9-gallon reserve |
| Curb weight | 410 lbs (Includes all standard equipment, required fluids and a full tank of fuel — ready to ride) |
OTHER |
|
| Colors |
|
| One year Unlimited | mileage limited warranty; extended coverage |
| Model ID | CBR600RR |

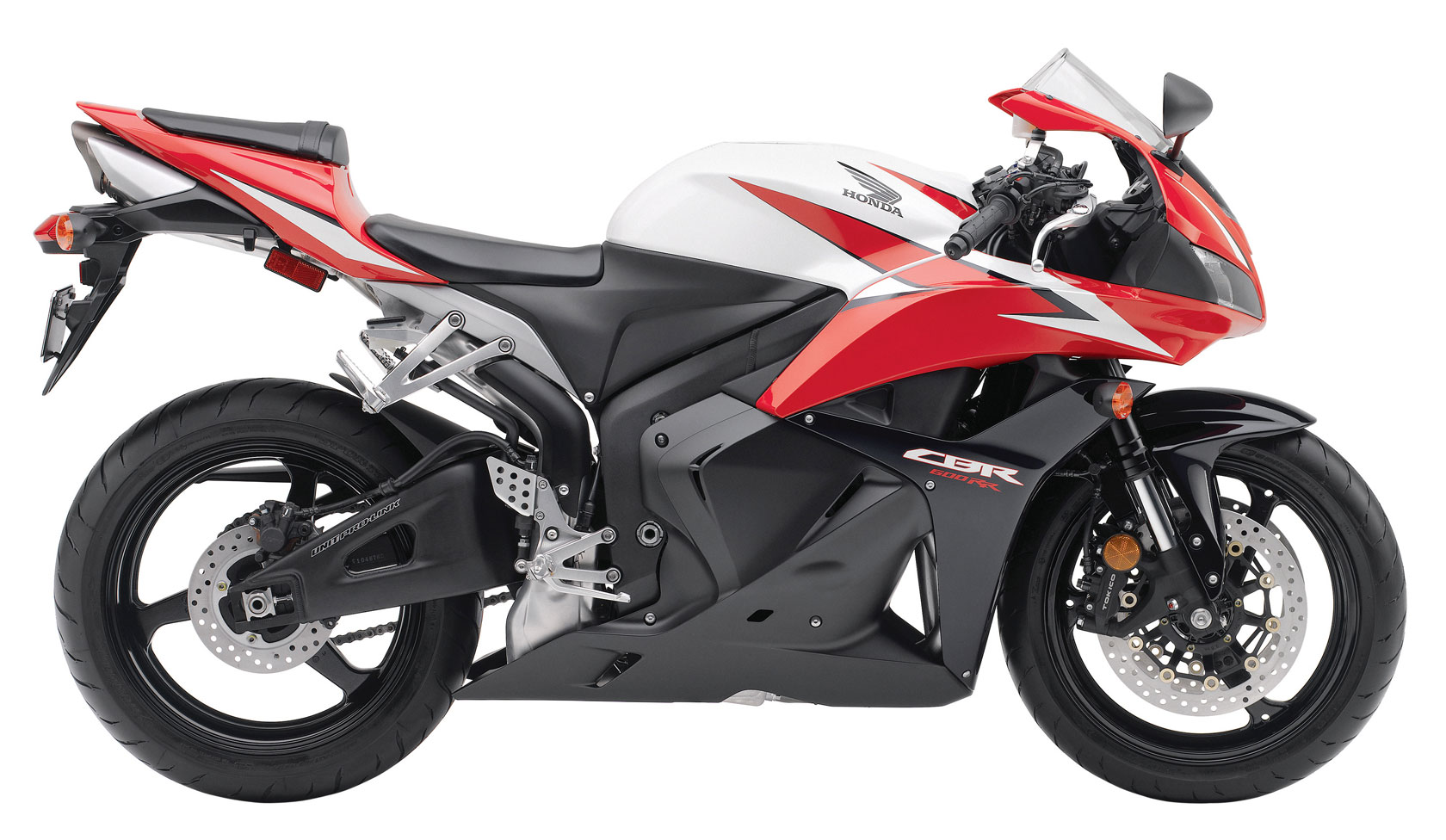

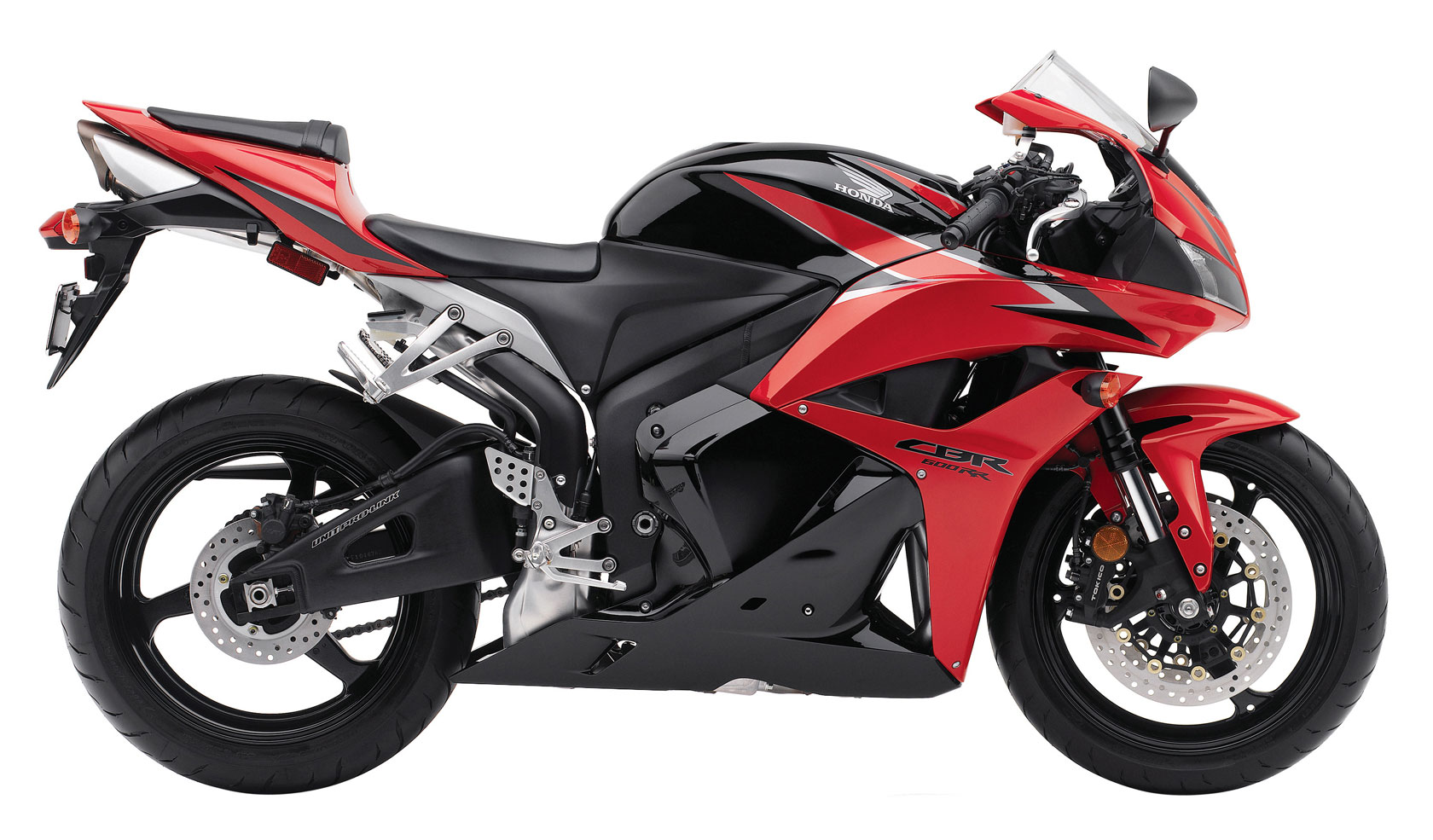

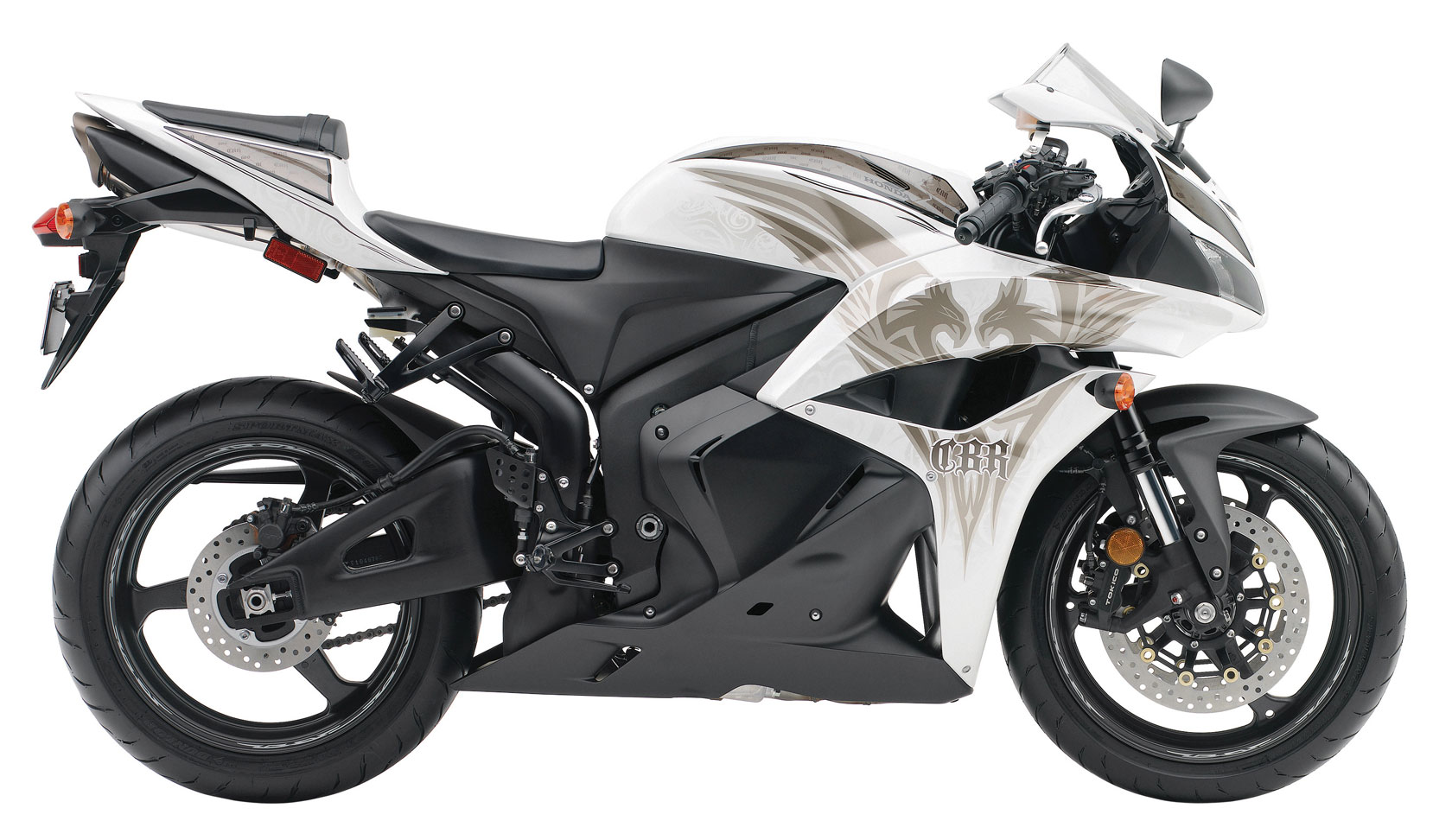

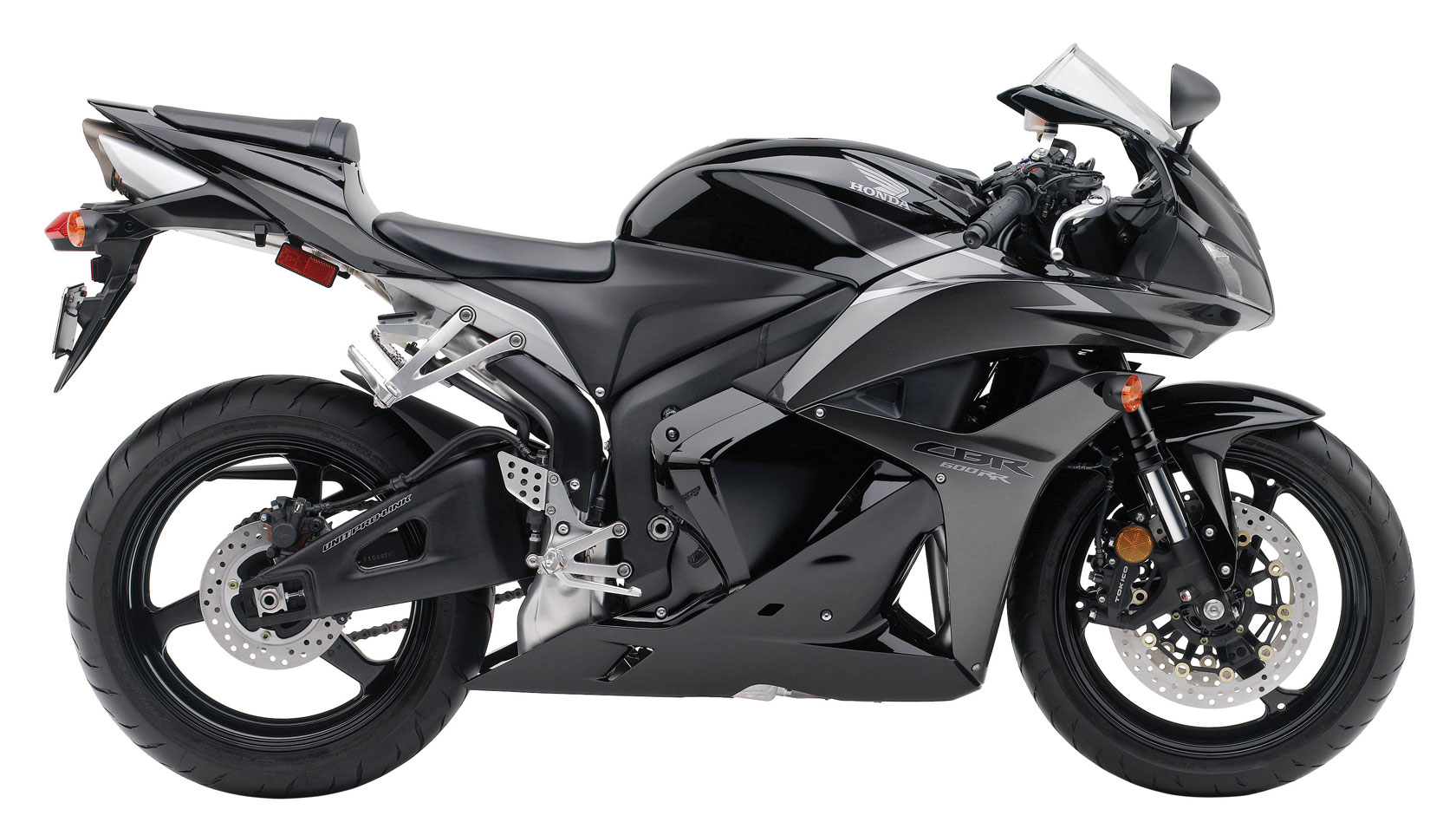

2009 CBR600RR
ENGINE |
|
| Engine Type | 599cc |
| Engine Detail | liquid-cooled inline four-cylinder |
| Bore and Stroke | 67mm x 42.5mm |
| Compression Ratio | 12.2:1 |
| Valve Train | DOHC; four valves per cylinder |
| Fuel System | Dual Stage Fuel Injection (DSFI) with 40mm throttle bodies, Denso 12-hole injectors |
| Ignition | Computer-controlled digital transistorized with three-dimensional mapping |
DRIVETRAIN |
|
| Transmission | Close-ratio six-speed |
| Final Drive | #525 O-ring-sealed chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 41mm inverted HMAS cartridge fork with spring preload, rebound and compression damping adjustability; 4.7 inches travel |
| Rear Suspension | Unit Pro-Link HMAS single shock with spring preload, rebound and compression damping adjustability; 5.1 inches travel |
| Front Tire | 120/70ZR-17 radial |
| Rear Tire | 180/55ZR-17 radial |
| Front Brakes | Dual radial-mounted four-piston calipers with 310 mm discs |
| Rear Brakes | Single 220.0mm disc |
DIMENSION |
|
| Seat Height | 32.3 in. |
| Wheelbase | 53.9 in. |
| Fuel Capacity | 4.8 gal. |
| Curb weight | 410 lbs. |
OTHER |
|
| Colors | Red / Black, Black / Bright Green Metallic, Metallic Black, Phoenix, [Pearl White / Pearl Blue / Red – limited edition] |
| One year Unlimited | mileage limited warranty; extended coverage |
| Price | $9799 |
| Warranty | 1 Year |

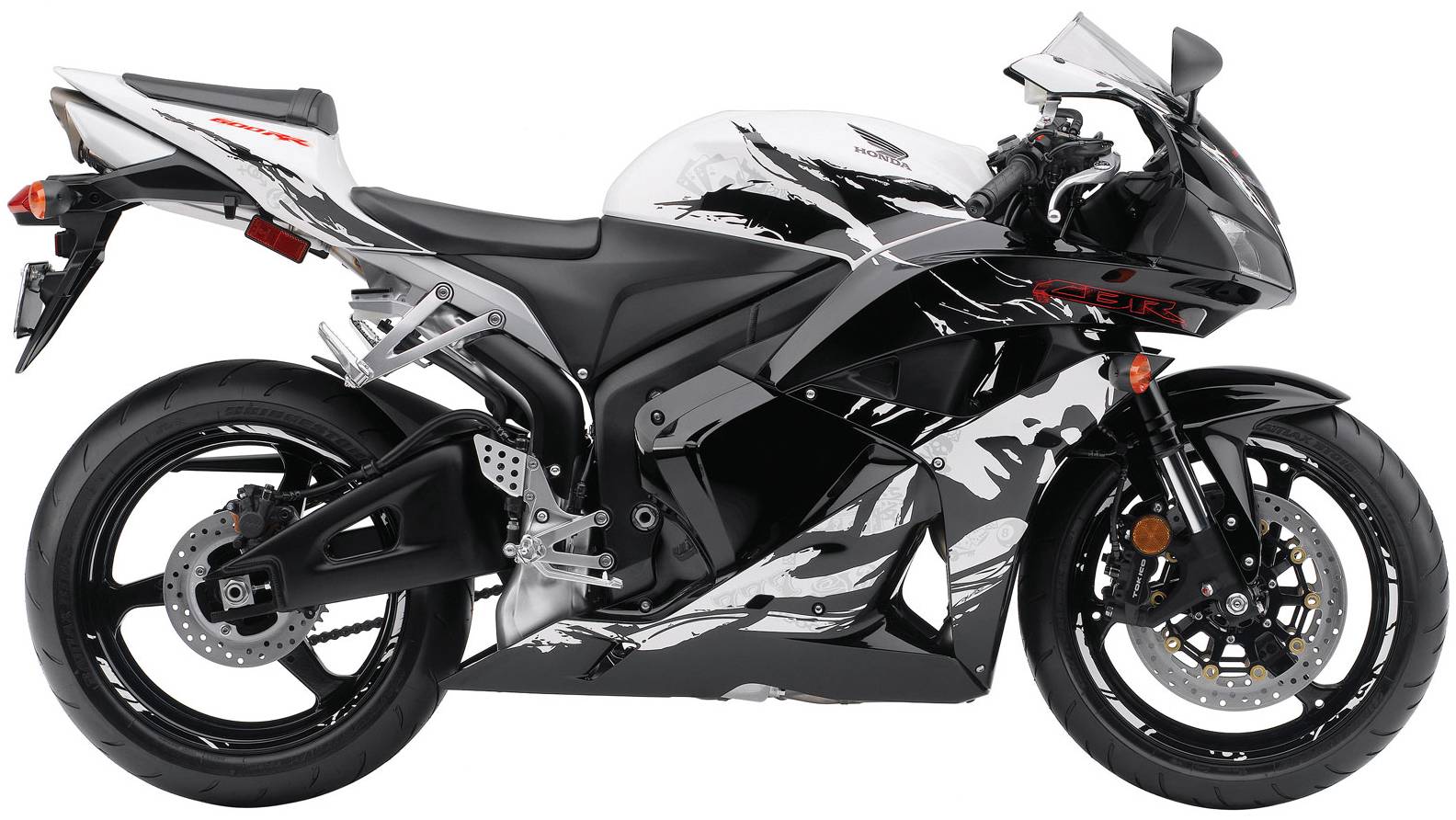

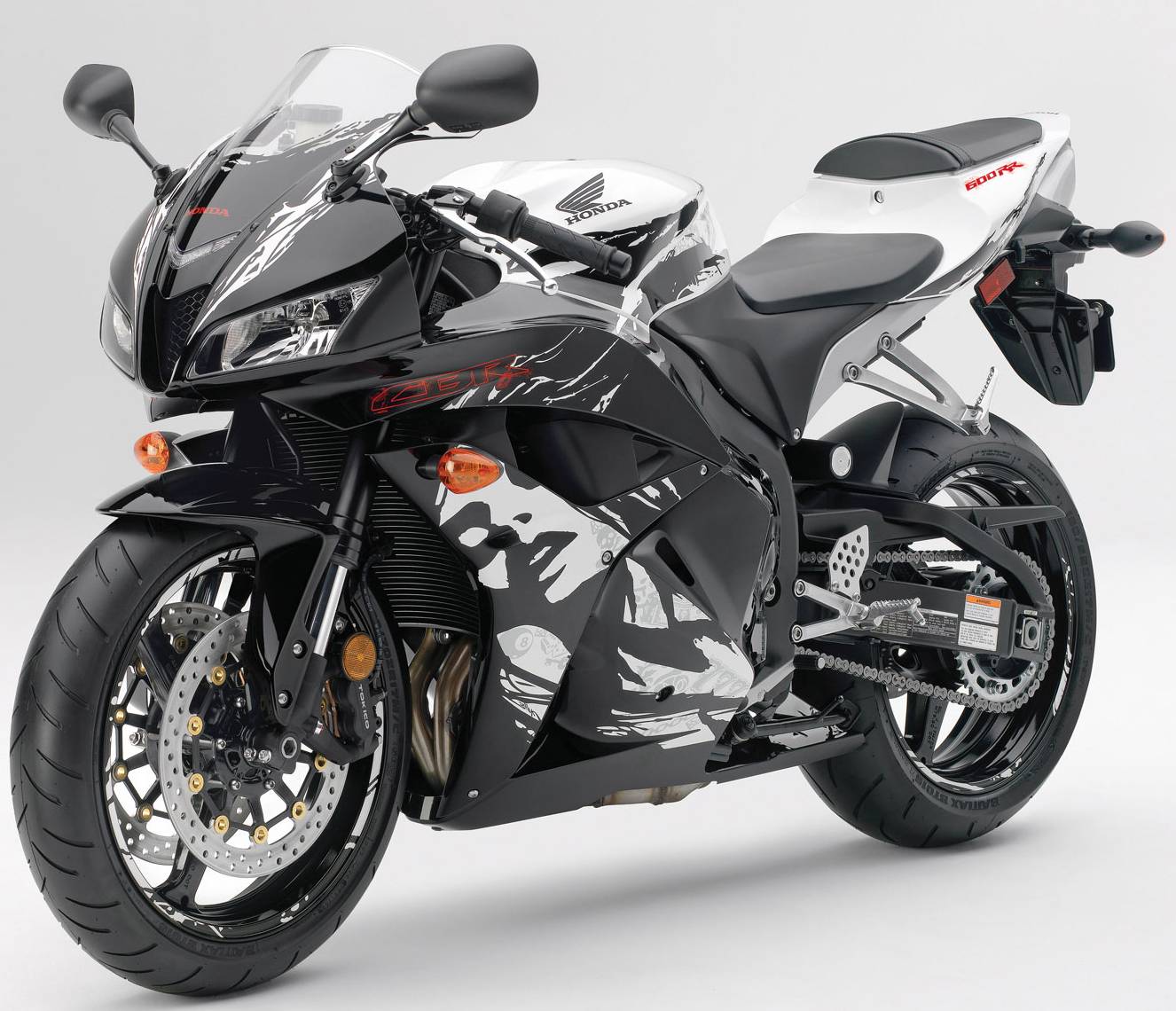

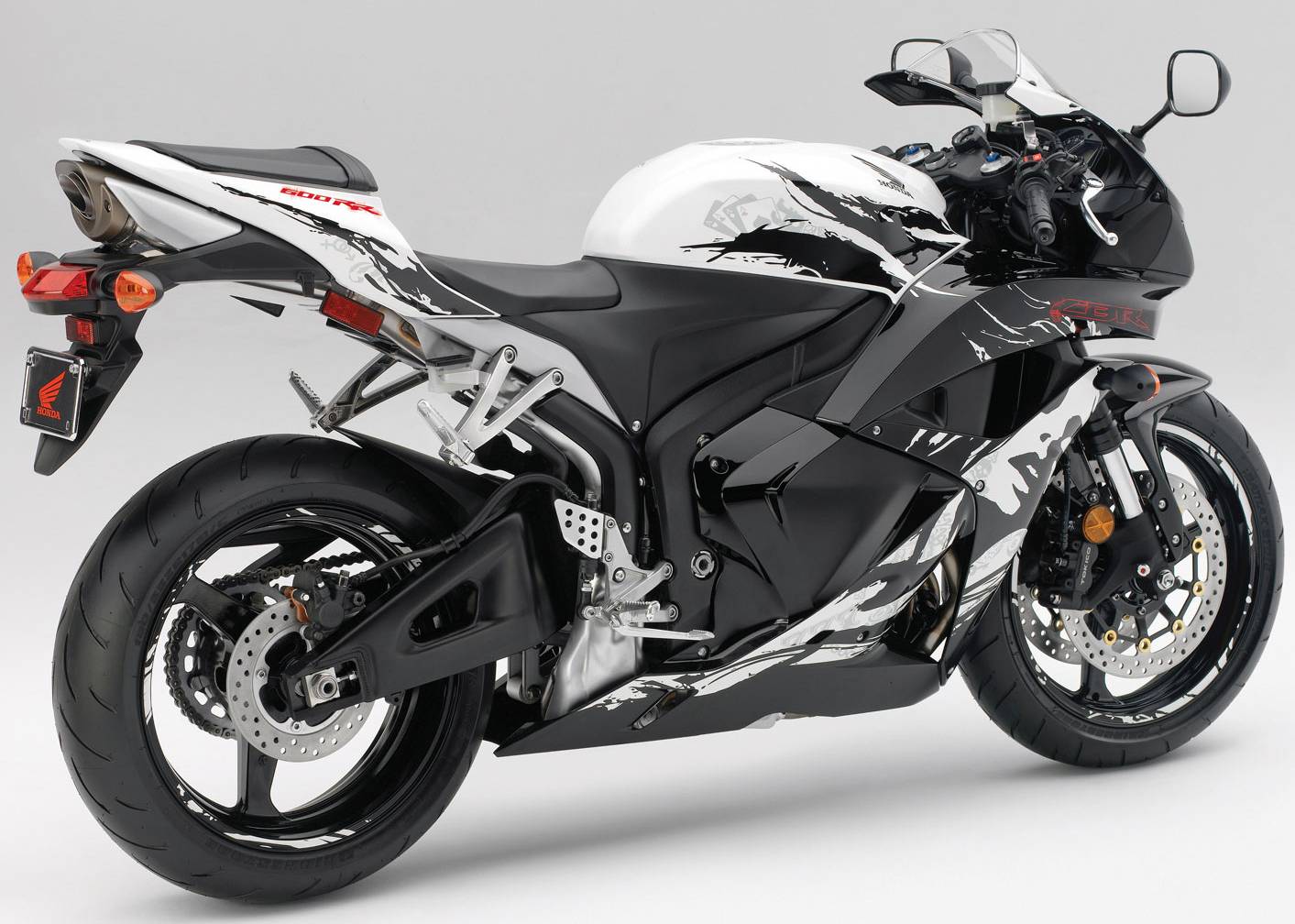

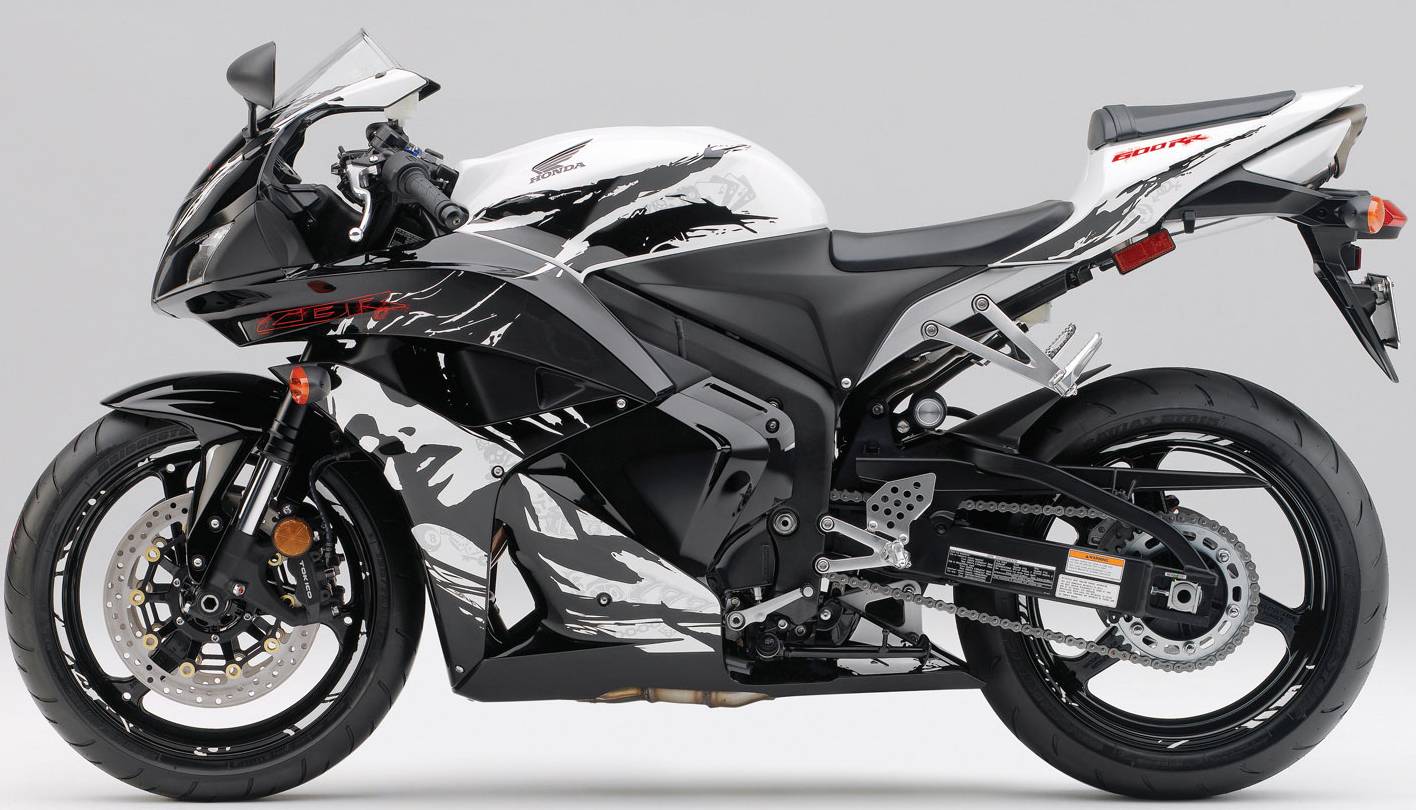

2010 CBR 600RR
ENGINE |
|
| Engine Type | Liquid-cooled inline-four |
| Displacement | 599 cc |
| Bore and Stroke | 67 mm x 42.5 mm |
| Compression Ratio | 12.2:1 |
| Valve Train | Chain-driven DOHC, 4 valves per cylinder |
| Fuel Delivery | Dual Stage Fuel Injection (DSFI) with 40mm throttle bodies, Denso 12-hole injectors |
| Ignition | Computer-controlled digital transistorized with three-dimensional mapping |
DRIVETRAIN |
|
| Transmission | Close-ratio six-speed |
| Final Drive | #525 O-ring-sealed chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 41 mm inverted HMAS cartridge fork with full adjustability; 110 mm (4.3 in) travel |
| Rear Suspension | Unit Pro-Link HMAS single shock with full adjustability; 129 mm (5.1 in.) travel |
| Front Tire | 120/70ZR-17 radial |
| Rear Tire | 180/55ZR-17 radial |
| Brake option | Electronically Controlled Combined ABS |
| Front Brakes | Dual 310 mm discs with radial-mounted four-piston calipers. |
| Rear Brakes | Single 220 mm disc with single-piston caliper. |
DIMENSION |
|
| Seat Height | 820 mm (32.3 in.) |
| Wheelbase | 1,370 mm (53.9 in.) |
| Fuel Capacity | 18 litres (4.8 GalUS) |
| Curb weight |
|
OTHER |
|
| Colors |
|
| MSRP |
|
| Warranty | 1 Year |

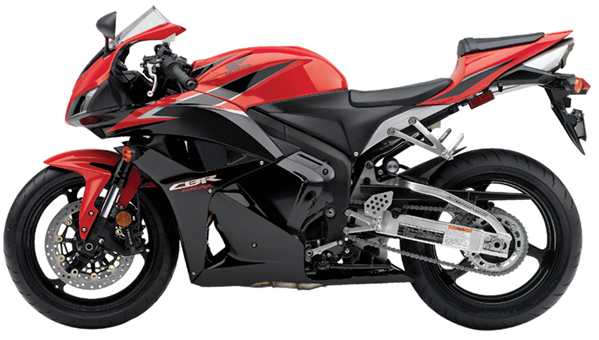

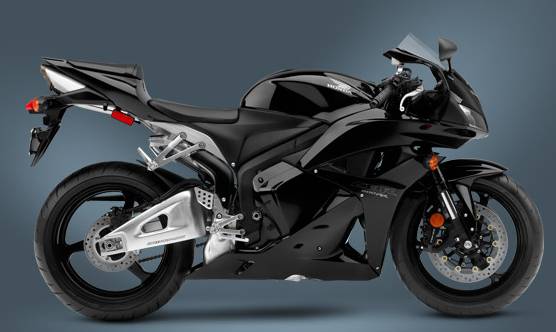

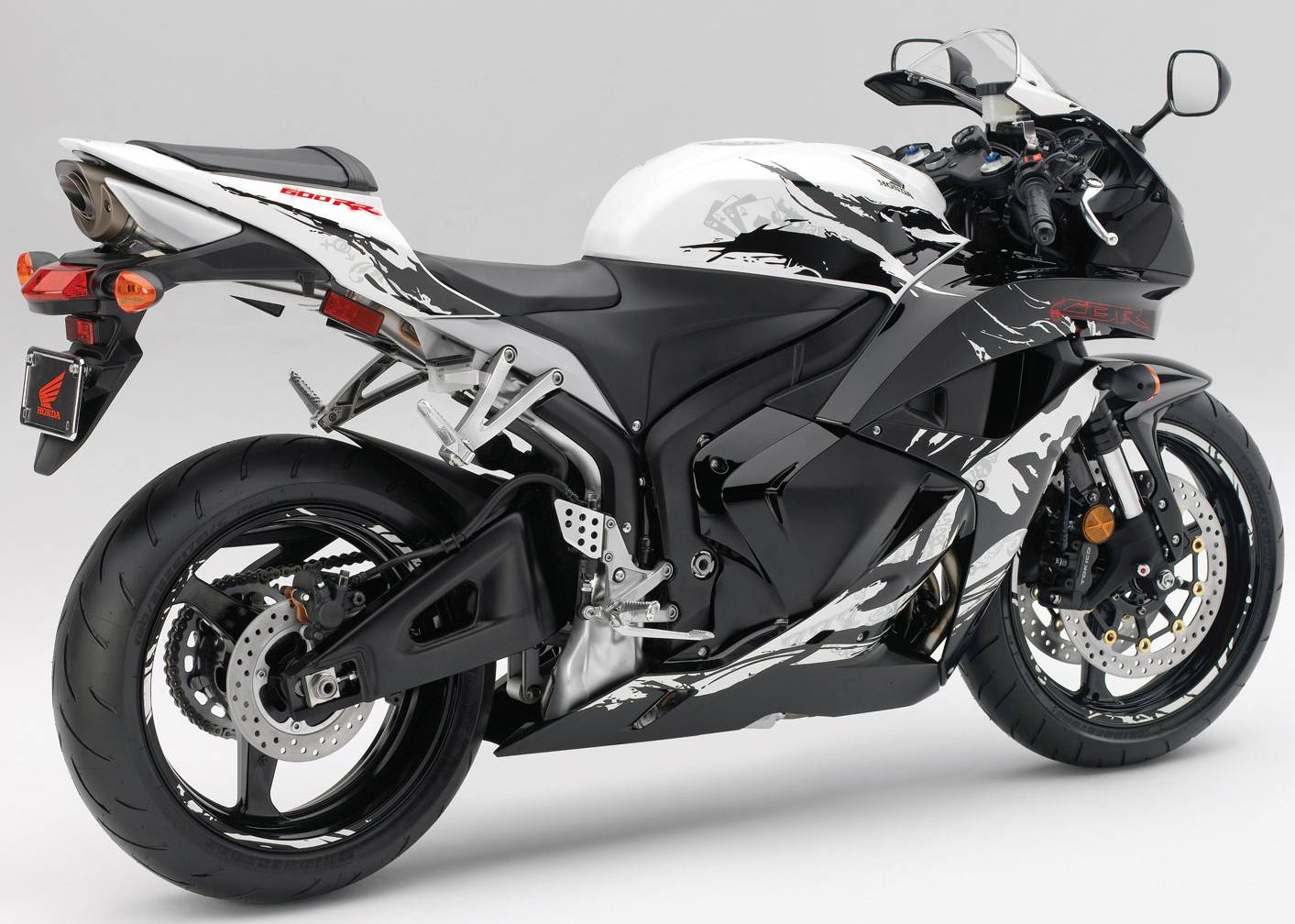

2012 Honda CBR600RR
ENGINE |
|
| Engine Type | Liquid-cooled inline-four cylinder |
| Displacement | 599 cc |
| Bore and Stroke | 67 mm x 42.5 mm |
| Compression Ratio | 12.2:1 |
| Valve Train | Chain-driven DOHC, 4 valves per cylinder |
| Fuel Delivery | Dual Stage Fuel Injection (DSFI) with 40mm throttle bodies, Denso 12-hole injectors |
| Ignition | Computer-controlled digital transistorized with three-dimensional mapping |
DRIVETRAIN |
|
| Transmission | Close-ratio six-speed |
| Final Drive | O-ring-sealed chain |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | 41 mm inverted HMAS cartridge fork with full adjustability; 110 mm (4.3 in) travel |
| Rear Suspension | Unit Pro-Link HMAS single shock with full adjustability; 129 mm (5.1 in.) travel |
| Front Tire | 120/70ZR-17 radial |
| Rear Tire | 180/55ZR-17 radial |
| Brake option | Electronically Controlled Combined ABS |
| Front Brakes | Dual 310 mm discs with radial-mounted four-piston calipers. |
| Rear Brakes | Single 220 mm disc with single-piston caliper. |
DIMENSION |
|
| Rake | 23.5 degrees (Caster Angle) |
| Trail | 97.7mm (3.9 inches) |
| Seat Height | 820 mm (32.3 in.) |
| Wheelbase | 1,370 mm (53.9 in.) |
| Fuel Capacity | 18 litres (4.8 galUS) |
| Curb weight | 196 kg (432 lb) including required fluids and full tank of gas — ready to ride |
OTHER |
|
| Colors |
|
| Fuel Consumption | 5.9 L/100km (40 mpgUS) |
| Emissions | Meets current EPA standards. California version meets current CARB standards and may differ slightly due to emissions equipment. |
| Warranty | 1 Year |
| Model Id | CBR600RR |
| MSRP | $13,599 |
