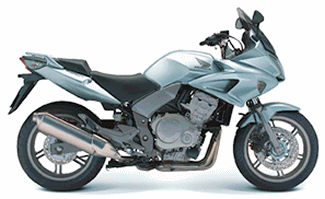

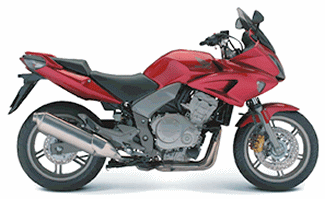

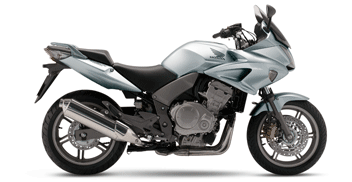

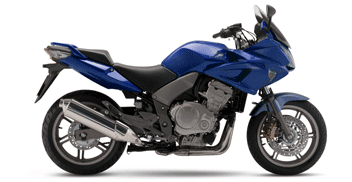

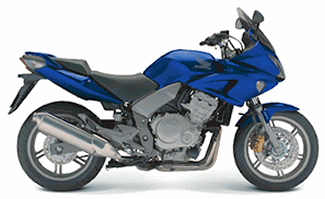

2007 CBF1000F
Engine |
|
| Engine Type | Inline 4 Cylinder, Liquid-cooled 4-stroke, 16-valve DOHC |
| Engine Displacement | 998 cc |
| Bore and Stroke | 75 x 56.5 mm |
| Compression Ratio | 11 :1 |
| Fuel Delivery | PGM-FI electronic fuel injection |
| Ignition | Computer-controlled digital transistorised with electronic advance |
| Max. Power Output | 72 kW/8,000 min-1 (95/1/EC) (96bhp) |
| Max. Torque | 97 Nm/6,500 min-1 (95/1/EC) |
| Starter | Electric |
DRIVETRAIN |
|
| Transmission | 6-speed |
| Final drive | #530 O-ring sealed chain |
| Wheels Front | 17M/C x MT3.50 hollow-section 6-spoke cast aluminium |
| Wheels Rear | 17M/C x MT5.00 hollow-section 6-spoke cast aluminium |
CHASSIS / SUSPENSION / BRAKES |
|
| Suspension Front | 41 mm cartridge-type telescopic fork, 120 mm axle travel |
| Suspension Rear | Pro-Link with gas-charges HMAS damper, 120 mm axle travel |
| Front Brakes | 296 x 4.5 mm dual hydraulic disc with 4-piston calipers, floating rotors and sintered metal pads |
| Rear Brakes | 240 x 6 mm hydraulic disc with single-piston caliper and sintered pads |
| Tires Front | 120/70 ZR17M/C (58W) |
| Tires Rear | 160/60 ZR17M/C (69W) |
DIMENSION |
|
| Wheelbase | 1483mm (58.4 inches) |
| Overall Length | 2176mm (85.8 inches) |
| Overall Width | 827mm (32.6 inches) |
| Overall Height | 1175mm (46.3 inches) |
| Seat Height | 795mm (31.3 inches) (±15 mm (0.6 inches)) |
| Ground Clearance | 135mm (5.3 inches) |
| Fuel Capacity | 19 litres (5 GalUS) [inc. 4-litre (1 Gal) LCD-indicated reserve] |
| Dry Weight | 220 kg (484 lb) |
OTHER |
2012 CBF1000F
Engine |
|
| Engine Type | Inline 4 Cylinder, Liquid-cooled 4-stroke, 16-valve DOHC |
| Engine Displacement | 998 cc |
| Bore and Stroke | 75 x 56.5 mm |
| Compression Ratio | 11 :1 |
| Fuel Delivery | PGM-FI electronic fuel injection |
| Ignition | Computer-controlled digital transistorised with electronic advance |
| Max. Power Output | 79kW/9,000min-1 (95/1/EC) |
| Max. Torque | 96Nm/6,500min-1 (95/1/EC) |
| Starter | Electric |
DRIVETRAIN |
|
| Transmission | 6-speed |
| Final drive | #530 O-ring sealed chain |
| Wheels Front | 17M/C x MT3.50 hollow-section 6-spoke cast aluminium |
| Wheels Rear | 17M/C x MT5.00 hollow-section 6-spoke cast aluminium |
CHASSIS / SUSPENSION / BRAKES |
|
| Suspension Front | 41 mm cartridge-type telescopic fork, 120 mm axle travel |
| Suspension Rear | Pro-Link with gas-charges HMAS damper, 120 mm axle travel |
| Front Brakes | 296 x 4.5 mm dual hydraulic disc with 4-piston calipers, floating rotors and sintered metal pads |
| Rear Brakes | 240 x 6 mm hydraulic disc with single-piston caliper and sintered pads |
| Tires Front | 120/70 ZR17M/C (58W) |
| Tires Rear | 160/60 ZR17M/C (69W) |
DIMENSION |
|
| Wheelbase | 1483mm (58.4 inches) |
| Overall Length | 2210mm (87 inches) |
| Overall Width | 780mm (30.7 inches) |
| Overall Height | 1220mm (48 inches) |
| Seat Height | 795 mm (31.3 inches) [±15 mm (0.6 inch)] |
| Ground Clearance | 135 mm (5.3 inches) |
| Fuel Capacity | 20 Litres (5.3 GalUS) |
| Dry Weight | 245 kg (539 lb)
|
