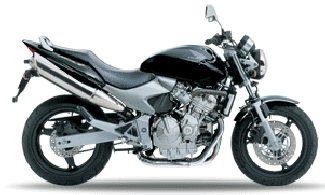

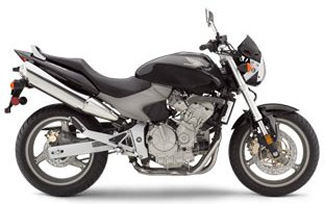

2000 CB600F Hornet
| Engine Type | Liquid-cooled 4-stroke, |
| Bore and Stroke | 65 x 45.2mm |
| Displacement | 599cc |
| Compression Ratio | 12:1 |
| Carburation | Four 34mm downdraft flat-slide CV-type |
| Max. Power Output | 88bhp@11,750rpm |
| Max. Torque | 45lb/ft@9,250rpm |
| Ignition | Computer-controlled digital transistorized with electronic advance |
| Starter | Electric |
| Gearbox | 6-speed |
| Final Drive | ‘O’-ring sealed chain |
| Dimensions | 2095 x 740 x 1065mm |
| Wheelbase | 1425mm |
| Seat Height | 790mm |
| Ground Clearance | 140mm |
| Fuel Capacity | 16 liters (including three-litre reserve) |
| Dry Weight | 176kg |
| Wheels Front | 17 x MT3.50 hollow-section triple-spoke cast aluminum |
| Wheels Rear | 17 x MT5.50 hollow-section triple-spoke cast aluminum |
| Tires Front | 120/70 ZR17 |
| ires Rear | 180/55 ZR17 |
| Suspension Front | 41mm telescopic fork, 120mm axle travel |
| Suspension Rear | Monoshock damper with 7-step adjustable pre-load, 128mm axle travel |
| Brakes Front | 296 x 4.5mm dual hydraulic disc with dual-piston calipers fitted with sintered metal pads and gripping floating steel rotors |
| Brakes Rear | 220 x 5mm hydraulic disc with single-piston caliper and sintered metal pads |

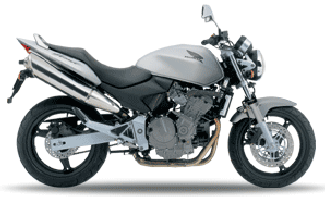

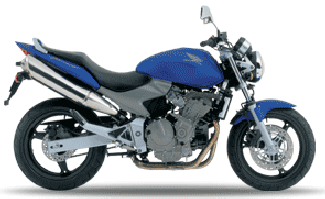

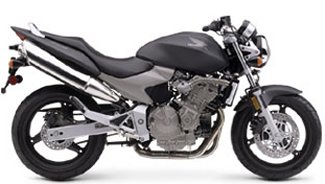

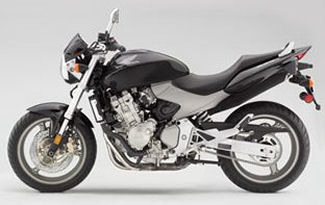

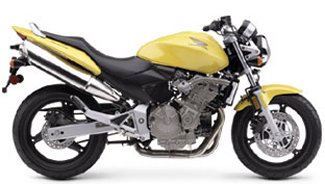

2004 CB600F
| Engine Type | 599cc liquid-cooled inline four-cylinder |
| Bore and Stroke | 65.0mm x 45.2mm |
| Displacement | 12.0:1 |
| Compression Ratio | 12:1 |
| Valve Train | DOHC; four valves per cylinder |
| Carburation | Four 34.0mm slanted flat-slide CV |
| Ignition | Computer-controlled digital transistorized with electronic advance |
| Starter | |
| Transmission | Six-speed |
| Final Drive | #525 O-ring-sealed chain |
| Rake | 25.0 degrees |
| Trail | 98.0mm (3.9 inches) |
| Wheelbase | 55.9 inches |
| Seat Height | 31.1 inches |
| Dry Weight | 401.0 pounds |
| Fuel Capacity | 5.0 gallons |
| Emissions | California version meets CARB 2004 emissions standards. |
| Colors |
|
| Warranty | 1 year |

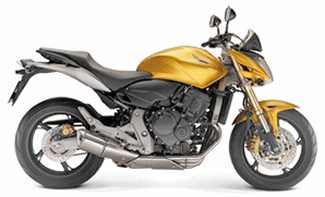

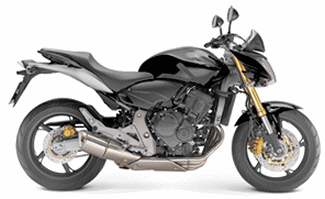

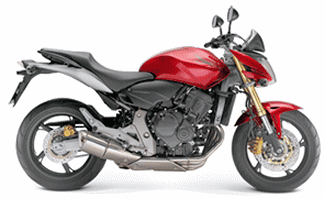

2006 CB600F “599”
| Engine Type | 599cc liquid-cooled inline four-cylinder |
| Bore and Stroke | 65 x 45.2mm |
| Displacement | 599cc |
| Compression Ratio | 12.0:1 |
| Valve Train | DOHC; four valves per cylinder |
| Carburation | Four 34.0mm slanted flat-slide CV |
| Model ID | CB600F |
| Ignition | Computer-controlled digital with electronic advance |
| Transmission | Six-speed |
| Final Drive | #525 O-ring-sealed chain |
| Fuel Capacity | 4.5 gallons |
| Wheelbase | 56.1 inches |
| Seat Height | 31.1 inches |
| Rake | 25.5 degrees |
| Trail | 96.0mm (3.8 inches) |
| Dry Weight | 404.0 pounds |
| Emissions | Meets current CARB and EPA standards |
| Meets current CARB and EPA standards | Metallic Black |
| Tires Front | 120/70ZR-17 radial |
| Rires Rear | 180/55ZR-17 radial |
| Suspension Front | 41mm inverted fork; 4.7-inch travel |
| Suspension Rear | Single shock with seven-position spring-preload adjustability; 5.0-inch travel |
| Brakes Front | Dual full-floating 296.0mm discs with twin-piston calipers |
| Brakes Rear | Single 220.0mm disc with single-piston caliper |
