Honda CB400 Super Bol D’or Motorcycles

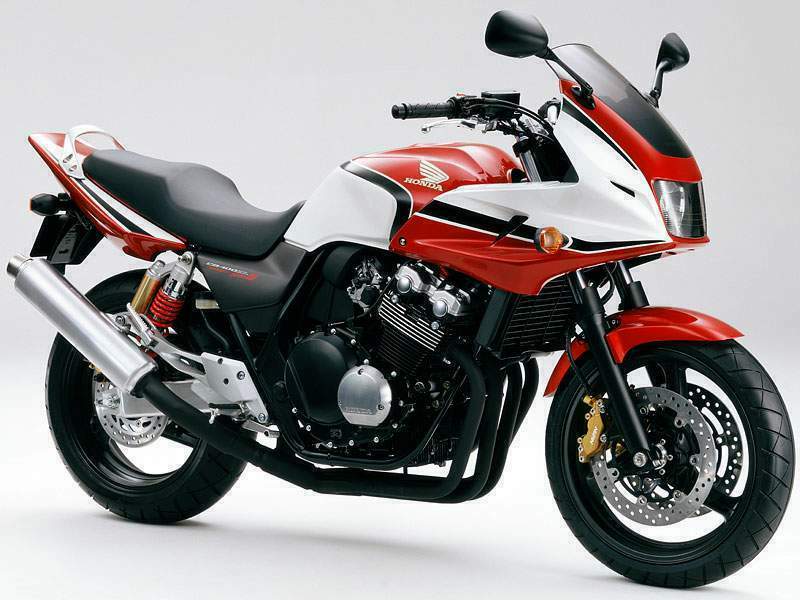

2005-07 Honda CB400 Super Bol D’or

Engine

Engine Liquid cooled, transverse four cylinders, four stroke, DOHC,
Displacement 399cc
Bore x Stroke 55 x 42 mm
Compression Ratio 11.3:1
Fuel Delivery Four 32mm carburetors
Ignition CDI
Starter Electric
Max Power 38.6 kW (53 hp) @ 11000 rpm
Max Torque 40.18 Nm @ 7500 rpm

Drivetrain

Transmission 5-speed
Final Drive Chain

CHASSIS / SUSPENSION / BRAKES

Frame High-tension steel cradle frame
Front Brakes Two 296mm discs 4 piston calipers
Rear Brakes Single 240mm disc 2 piston caliper
Front Tires 120/70 ZR17
Rear Tires 160/50 ZR17

DIMENSION

Dry-Weight 198kg (437 lb)
Fuel Capacity 18 Litres (4.75 gal)

OTHER

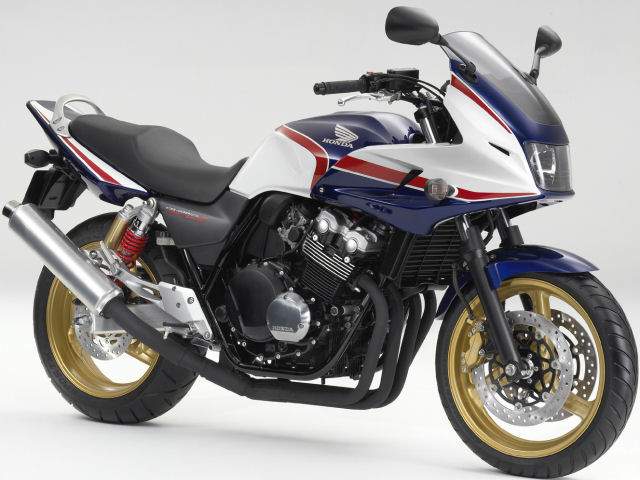

2008-10 Honda CB400 Super Bol D’or

Engine

Engine Liquid cooled, transverse four cylinders, four stroke, DOHC,
Displacement 399cc
Bore x Stroke 55 x 42 mm
Compression Ratio 11.3:1
Valving 4 valves per cylinder
Fuel Delivery Fuel Injection
Ignition CDI
Starter Electric
Max Power 38.6 kW (53 hp) @ 11000 rpm
Max Torque 40.18 Nm @ 7500 rpm

Drivetrain

Transmission 5-speed
Final Drive Chain

CHASSIS / SUSPENSION / BRAKES

Frame High-tension steel cradle frame
Front Brakes Two 296mm discs 4 piston calipers
Rear Brakes Single 240mm disc 2 piston caliper
Front Tires 120/60 ZR17
Rear Tires 160/60 ZR17

DIMENSION

Dry-Weight 175kg (385 lb)
Fuel Capacity 18 Litres (4.75 gal)

OTHER

2011 Honda CB400 Super Bol D’or SE

Engine

Engine Liquid cooled, transverse four cylinders, four stroke, DOHC, 4 valve per cylinder
Displacement 399cc
Bore x Stroke 55 x 42 mm
Compression Ratio 11.3:1
Fuel Delivery Fuel Injection
Ignition CDI
Starter Electric
Max Power 38.6 kW (53 hp) @ 11000 rpm
Max Torque 40.18 Nm @ 7500 rpm

Drivetrain

Transmission 5-speed
Final Drive Chain

CHASSIS / SUSPENSION / BRAKES

Frame High-tension steel cradle frame
Front Brakes Two 296mm discs 4 piston calipers
Rear Brakes Single 240mm disc 2 piston caliper
Front Tires 120/60 ZR17
Rear Tires 160/60 ZR17

DIMENSION

Dry-Weight 198kg (437 lb)
Fuel Capacity 18 Litres (4.75 gal)

OTHER

 CB400 Super Bol D’or Photo Gallery
