Honda Aero 80 (NH80) Motorcycles

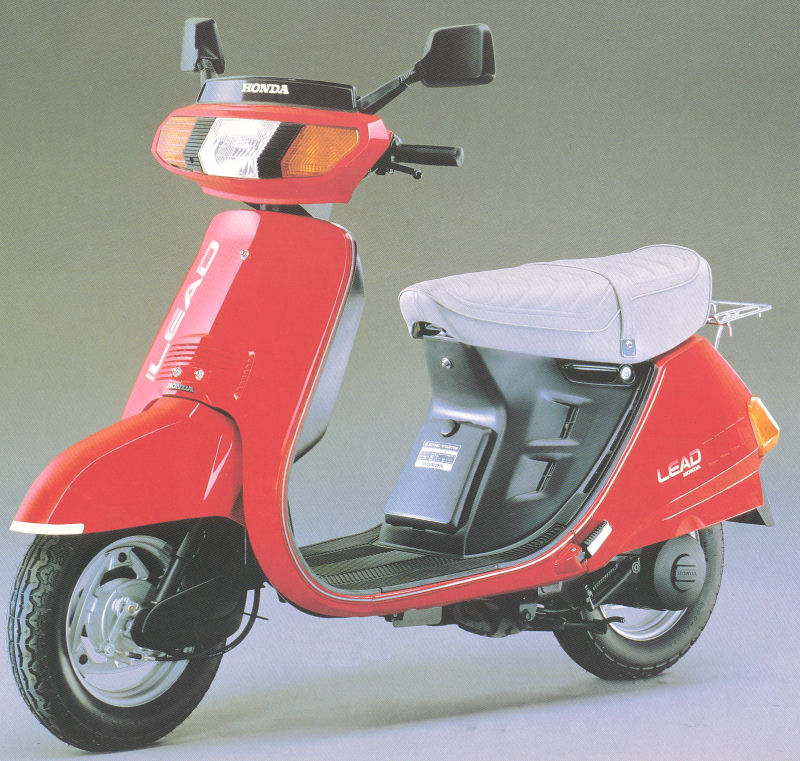

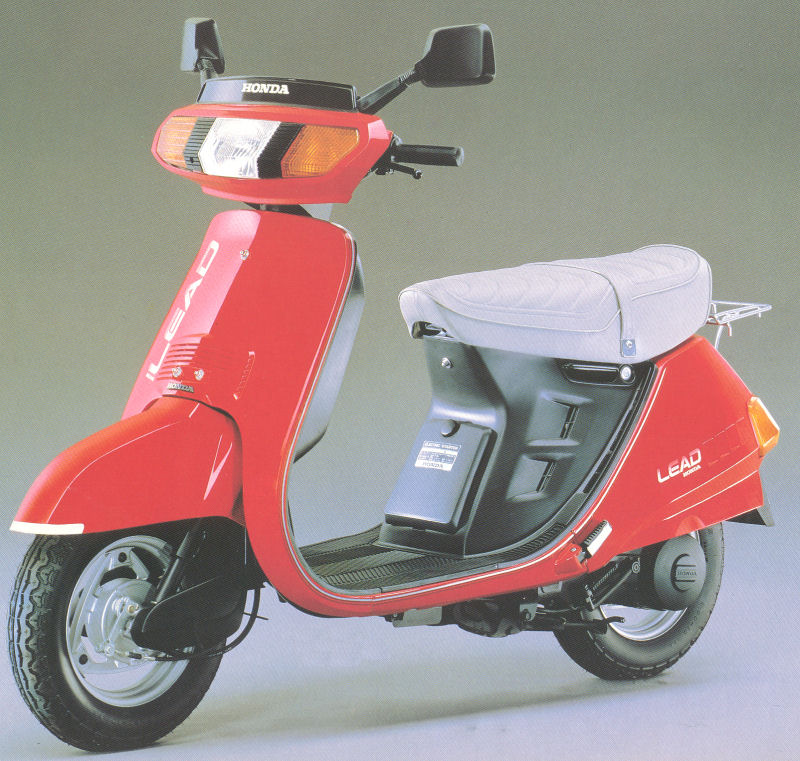

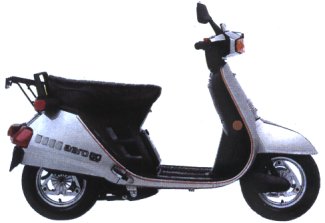

1983 Honda Aero 80 (LEAD) NH80

“Honda’s got a spanking new way to break into city riding without breaking the bank. It’s our peppy super-looking NH80 scooter. It features a gas-miserly engine. Electric starting. Full front and rear suspension, And powerful front and rear brakes. So first-timers are bound to find it really first-class.”

Engine
Engine Type	Two-stroke
Displacement	79cc
Choke	automatic
Ignition system	CDI
Spark plug	BPR6HS
Plug gap	.028
Gasoline	Regular with oil injection
Starter system	Electric and kick
DRIVETRAIN
Transmission	Honda V-matic belt
Clutch	Automatic
Drive line	Belt
Wheels	Pressed steel
CHASSIS / SUSPENSION / BRAKES
Front Suspension	Bottom link-type
Rear Suspension	Single shoick, swing-arm
Front Brakes	Drum brakes front and rear with wet-resistant design
Front Tire	3.00-10
Rear Tire	3.50-10
DIMENSION
Overall length	1657mm (62.5 in.)
Overall width	665mm (26.2 in.)
Fuel capacity	5.3 liters (1.4 US gal.) (1.2 Imp. gal.)
OTHER
Bodywork	lightweight to provide good wind and splash protection
Storage compartment	latching
Seat	deep-cushion
Carrier	metal frame luggage carrier behind seat Automotive style instrument panel with speedometer and indicator lamps Handlebar lock incorporated in ignition switch

Engine
Engine Type	Air-cooled two-stroke
Displacement	80cc
Bore & Stroke	48 x 44mm
Compression ratio	6.8:1
Fuel Delivery	16mm piston-valve type
Spark plug	BPR6HS
Plug gap	.028
Electric	CDI
Starter system	Electric
DRIVETRAIN
Transmission	Variable ratio V-matic^TM
Clutch	Automatic Centrifugal
Drive line	Belt
Wheels	Pressed steel
CHASSIS / SUSPENSION / BRAKES
Front Suspension	Bottom-Link type
Rear Suspension	Single Shock
Brakes	Front and Rear Drum
Tire Size	3.50-10 (front and rear)
DIMENSION
Overall length	75 kg (165.3 lb)
Overall width	665mm (26.2 in.)
Fuel capacity	5.3 liters (1.4 US gal.) (1.2 Imp. gal.)
Seat height	730mm (28.7 in.)
Fuel capacity	5.3 liters (1.5 US Gal.) (1.2 Imp. Gal.)
Wheelbase	1170mm (46.1 in.)
OTHER
Accessory	Rear carrier
Colors	Candy Ruby Red Moonlit Silver Metallic

Engine
Engine Type	Air-cooled two-stroke
Displacement	79.6cc
Bore & Stroke	48 x 44mm
Compression ratio	6.8:1
Fuel Delivery	16mm piston-valve type
Spark plug	BPR6HS
Plug gap	.028
Electric	CDI
Starter system	Electric
DRIVETRAIN
Transmission	Variable ratio V-matic^TM
Clutch	Automatic Centrifugal
Drive line	Belt
Wheels	Pressed steel
CHASSIS / SUSPENSION / BRAKES
Front Suspension	Bottom-Link type
Rear Suspension	Single Shock
Brakes	Front and Rear Drum
Tire Size	3.50-10 (front and rear)
DIMENSION
Overall length	1719mm (67.7 in.)
Dry weight	74 kg (163 lb.)
Overall width	665mm (26.2 in.)
Fuel capacity	5.3 liters (1.4 US gal.) (1.2 Imp. gal.)
Seat height	730mm (28.7 in.)
Fuel capacity	4.8 liters (1.3 US gal)(1.1 Imp. gal)
Wheelbase	1170mm (46.1 in.)
OTHER
Colors	Monza Red or Capri Blue or Parati Blue
