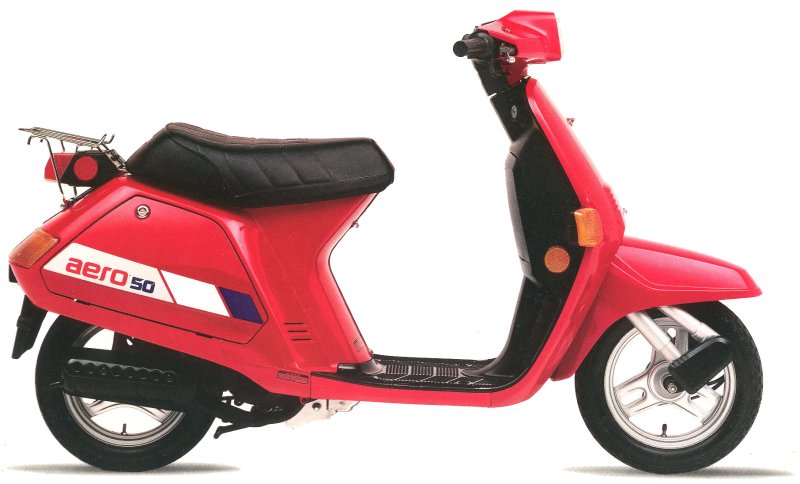

1983 Honda Aero 50 NB50M
Engine |
|
| Engine | Forced-air-cooled 49cc two-stroke with automatic oil injection |
| Spark plug | BPR6HS |
| Plug gap | .028 |
| Starter | Electric |
DRIVETRAIN |
|
| Transmission | V-maticTM |
| Drive | Belt |
CHASSIS / SUSPENSION / BRAKES |
|
| N/A | |
DIMENSION |
|
| Wheelbase | 1120mm (44.1 in.) |
| Dry weight | 56.7 kg (125 lb) |
| Seat height | 690mm (27.2 in.) |
OTHER |
|
| Colors | Monza Red with blue “AERO” logo and black stripes |
| Accessory | Rear carrier |
| Color | Persian Blue with gradient orange to red “AERO” logo and silver stripes |
- The stripes are on the front fender
- V.I.N.: JH2AB0709DK000004
- Engine: AB07E-5006313

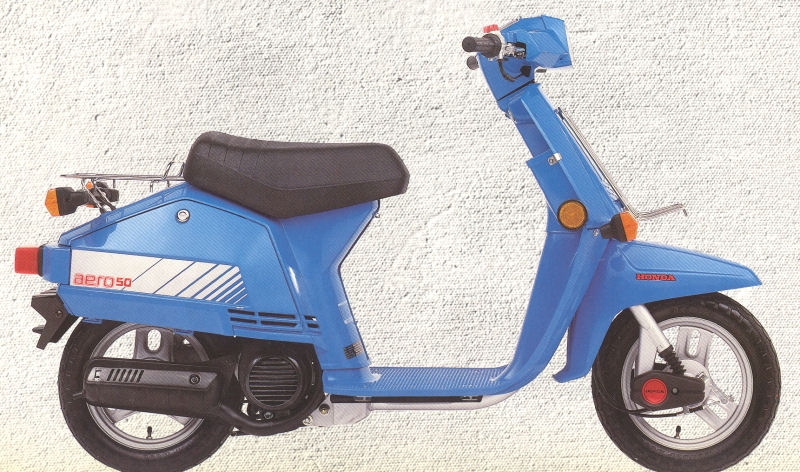

1984 Honda Aero 50 NB50M
Engine |
|
| Engine | Forced-air-cooled two-stroke |
| Displacement | 49cc |
| Bore & Stroke | 40 x 39.3mm |
| Compression ratio | 7.2:1 |
| Spark plug | BPR6HS |
| Plug gap | .028 |
| Fuel Delivery | 14mm piston-valve type |
| Ignition system | CDI |
| Oil | Automatic oil injection |
| Starter | Electric and kick |
DRIVETRAIN |
|
| Transmission | Variable ratio V-maticTM |
| Drive | V-Belt |
| Clutch | Automatic centrifugal |
CHASSIS / SUSPENSION / BRAKES |
|
| Brakes | Front and rear drum |
| Brake type | 2.75-10 (front and rear) |
| Front suspension | Bottom-link type |
| Rear suspension | Single shock |
| Wheels | Pressed steel |
DIMENSION |
|
| Wheelbase | 1120mm (44.1 in.) |
| Dry weight | 56.7 kg (125 lb) |
| Overall length | 1600mm (63 in.) |
| Overall width | 630mm (24.8 in.) |
| Seat height | 690mm (27.2 in.) |
| Fuel capacity | 3.2 liters (.85 US gal) (.7 Imp gal) |
OTHER |
|
| Accessory | Rear carrier |
| Color | Berry Glow Red with black “AERO” logo and silver stripes |
| Color | Neptune Blue with red “AERO” logo and silver stripes |
| Color | Shiny Orange |
| V.I.N. | JH2AB0708EK100001 |
| Engine | AB07E-5100002 |
| There are no stripes on the front fender this year |

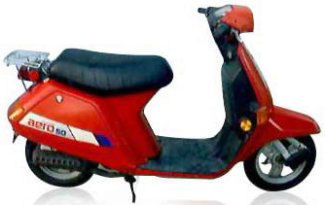

1985 Honda Aero 50 NB50M
Engine |
|
| Engine | Forced-air-cooled two-stroke |
| Displacement | 49cc |
| Bore & Stroke | 41 x 37.4mm |
| Compression ratio | 6.8:1 |
| Spark plug | BPR6HSA/li> |
| Plug gap | .028 |
| Fuel Delivery | 14mm piston-valve type |
| Ignition system | CDI |
| Oil | Automatic oil injection |
| Starter | Electric and kick |
DRIVETRAIN |
|
| Transmission | Vriable Ratio V-maticTM |
| Drive | V-Belt |
| Clutch | Automatic centrifugal |
CHASSIS / SUSPENSION / BRAKES |
|
| Brakes | Front and rear drum |
| Tire size | 2.75-10 front and rear |
| Front suspension | Leading-link |
| Rear suspension | Single shock |
| Wheels | Pressed steel |
DIMENSION |
|
| Wheelbase | 1130mm (44.5 in.) |
| Dry weight | 54.5 kg (120 lb) |
| Overall length | 1595mm (62.8 in.) |
| Overall width | 625mm (24.6 in.) |
| Seat height | 690mm (27.2 in.) |
| Fuel capacity | 3.7 liters (.98 US gal.) (.81 Imp. gal.) |
OTHER |
|
| Accessory | Rear carrier |
| Color | Monza Red with black seat and interior |
| Color | Black with red seat and interior |
| Color | Shiny Orange |
| V.I.N. | JH2AF0908FS000001 |
| Engine | AF05E-3000001 |
