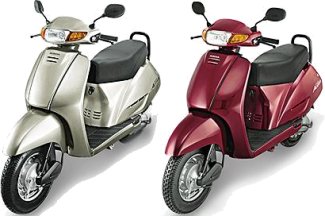

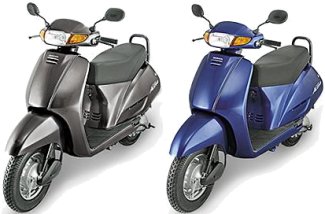

2005 Activa
Engine |
|
| Engine Type | 4-stroke, Single cylinder, air cooled, OHC |
| Displacement | 102cc |
| Max. Power | 7 Bhp @ 7000 rpm |
| Max. Torque | 0-8 Kg-m @ 5500 rpm |
| Ignition | Electric start or kick |
| Battery | 12V, 5Ah |
DRIVETRAIN |
|
| Transmission | V-matic belt drive |
CHASSIS / SUSPENSION / BRAKES |
|
| Front Suspension | Bottom Link with spring loaded hydraulic damper |
| Rear Suspension | Unit swing with spring loaded hydraulic damper |
| Front Brakes | Drum, 130 mm dia |
| Rear Brakes | Drum, 130 mm dia |
| Front Tire | 3.50 – 10, 4 PR |
| Rear Tire | 3.50 – 10, 4 PR |
DIMENSION |
|
| Overall length | 1765mm |
| Width | 715mm |
| Wheelbase | 1235 mm |
| Height | 1130mm |
| Seat Height | 760 mm |
| Ground Clearance | 145 smm |
| Fuel Tank Capacity | 6 litres |
OTHER |
|
| Headlamp | 35W |
| Colors |
|
