The 2021 Kawasaki KLX 140R, 140R L, and 110R F dirt bikes are designed to be progressively used by teenaged riders to progress through to full sized off-road bikes. Powered by a 144cc air cooled, four-stroke single, all three variations of the bike share a five speed manual transmission and a light but positive clutch.

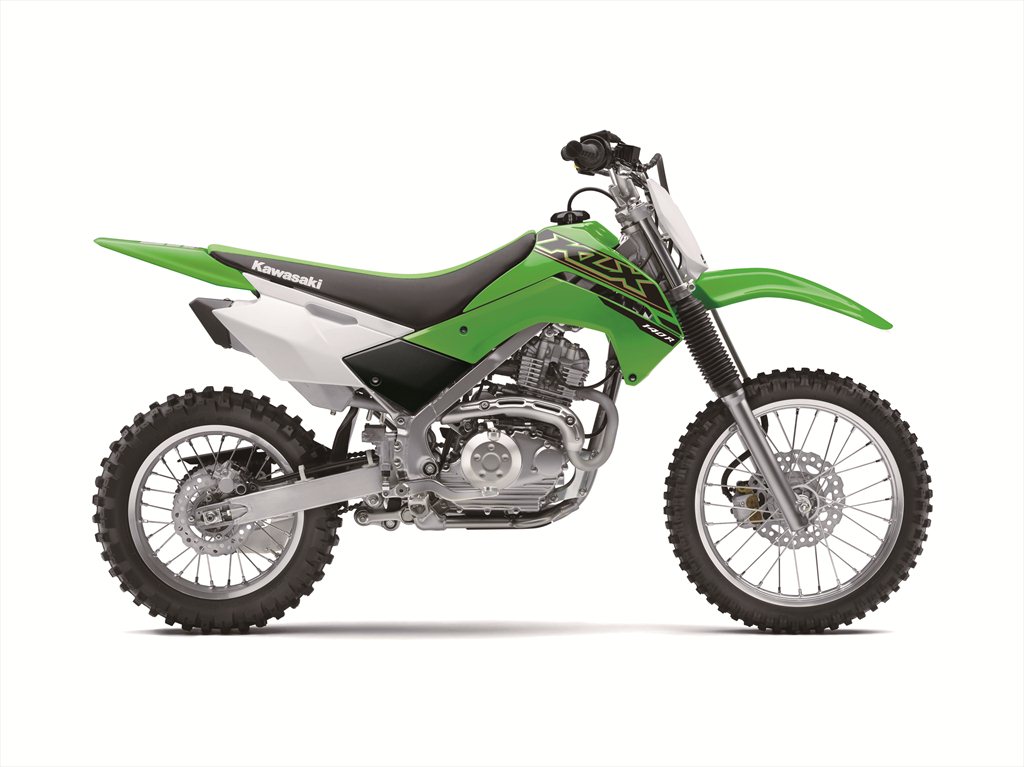

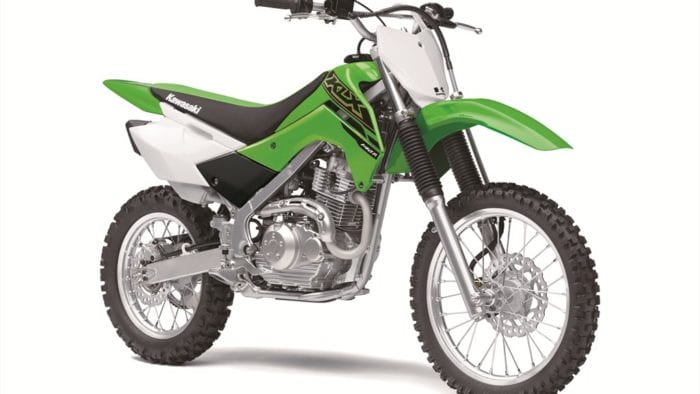

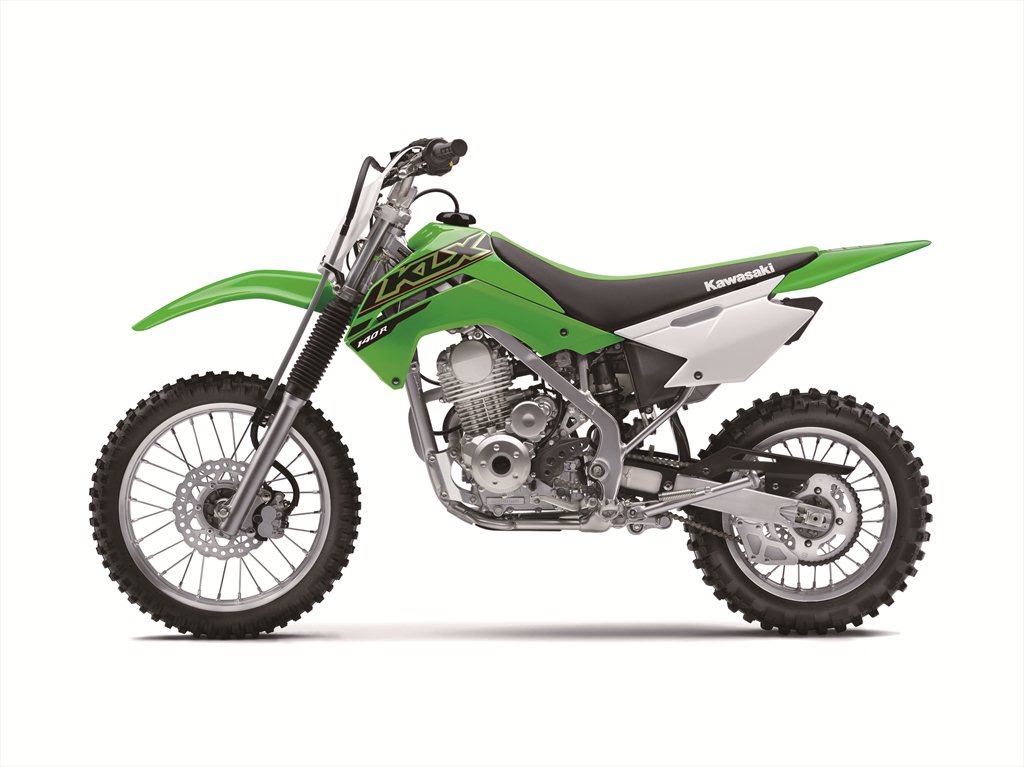

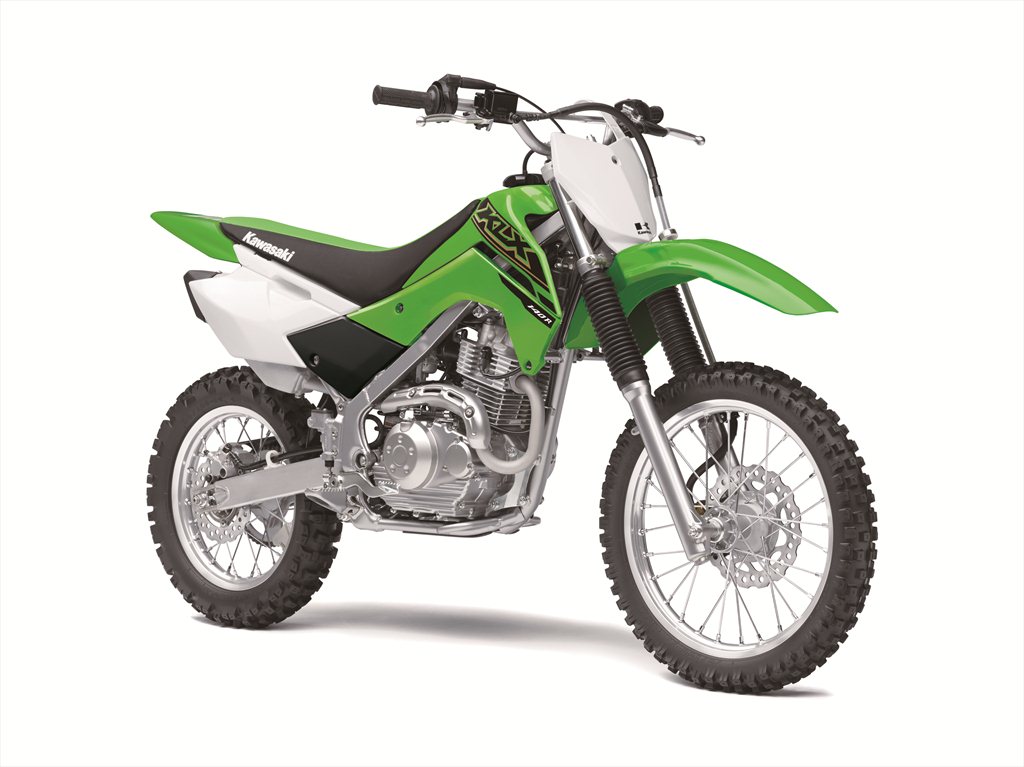

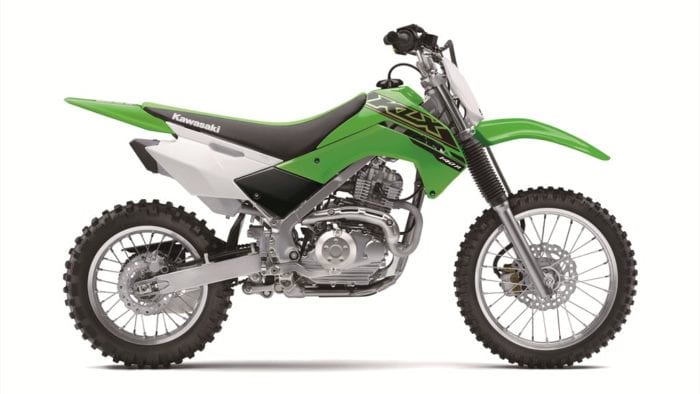

The KLX 140R is the base spec of the three and is aimed at the 10-14 year old rider with a low seat height and smaller wheels. It features disc brakes front and rear, an electric starter, and a full 7 inches of suspension travel.

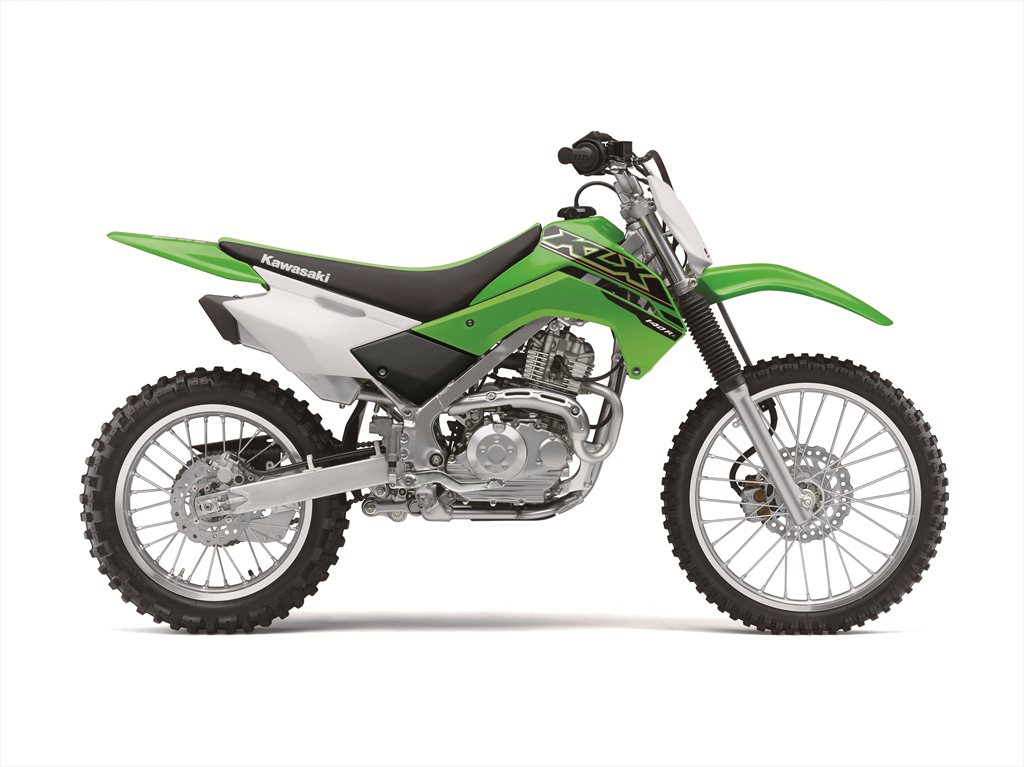

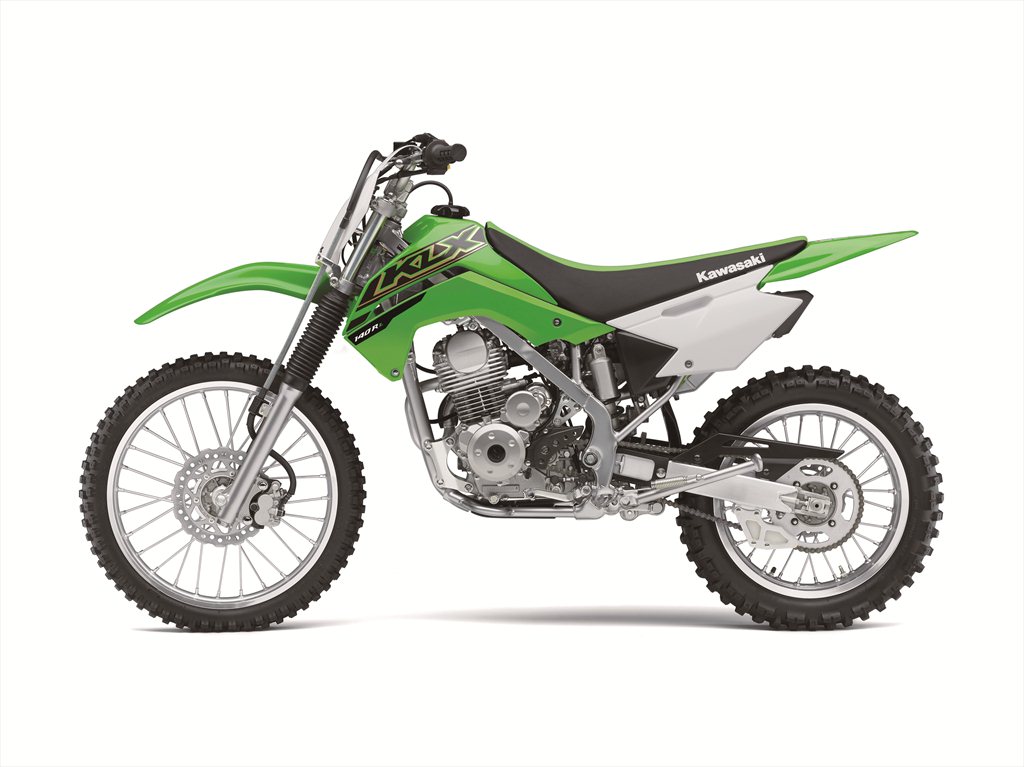

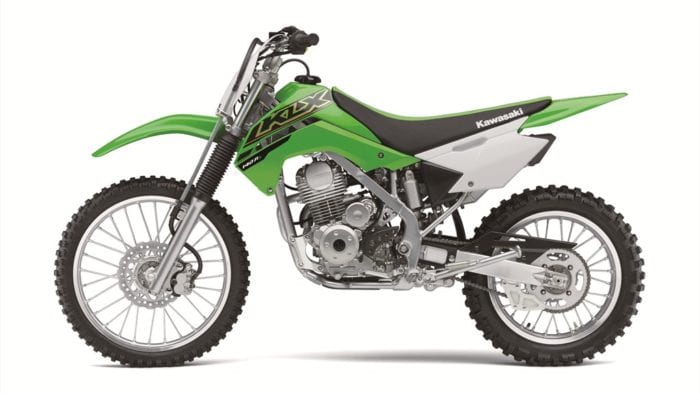

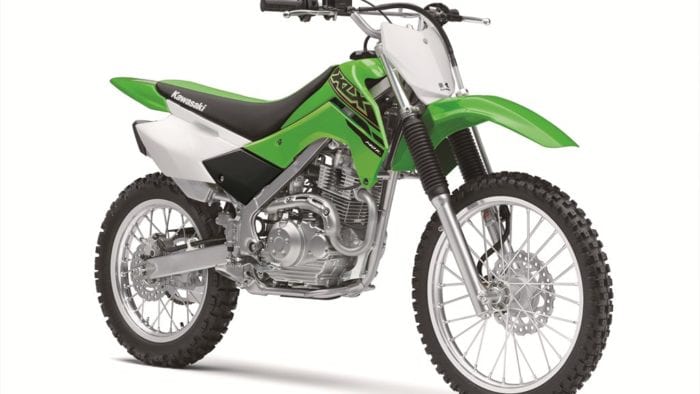

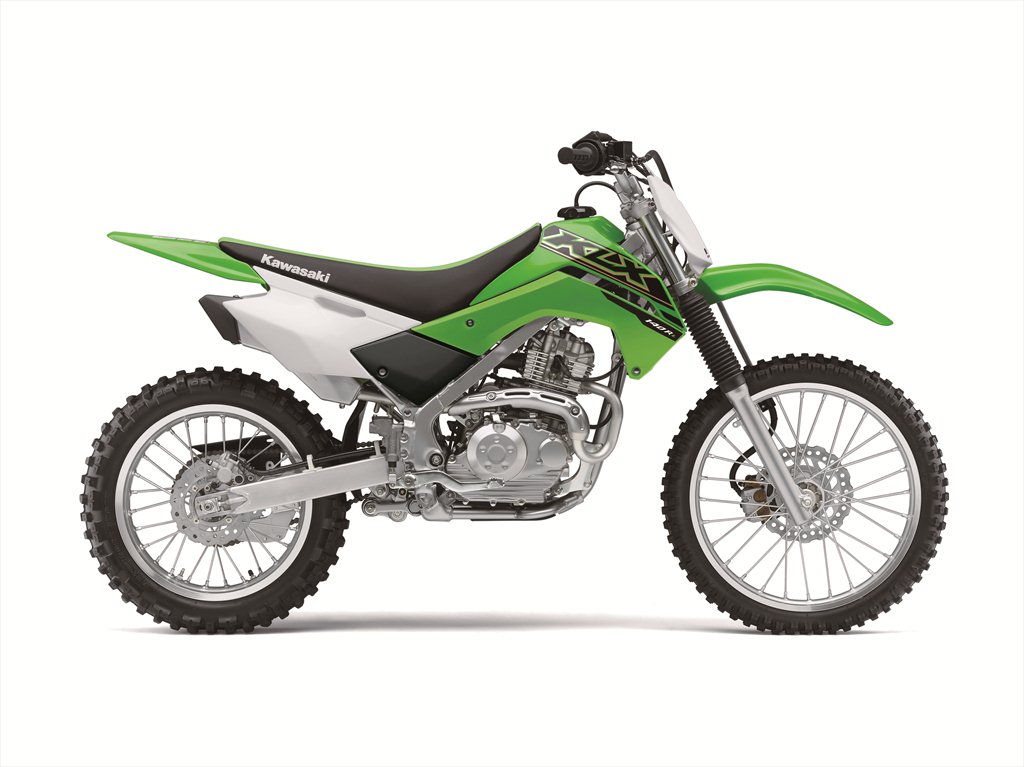

The KLX 140R L from the Japanese manufacturer is the mid-spec, designed for 13-15 year olds. The only major difference from the base spec is larger wheels, with 19 inches at the front and 16 inches at the rear. It shares the same suspension movement of the base spec at 7.1 inches.

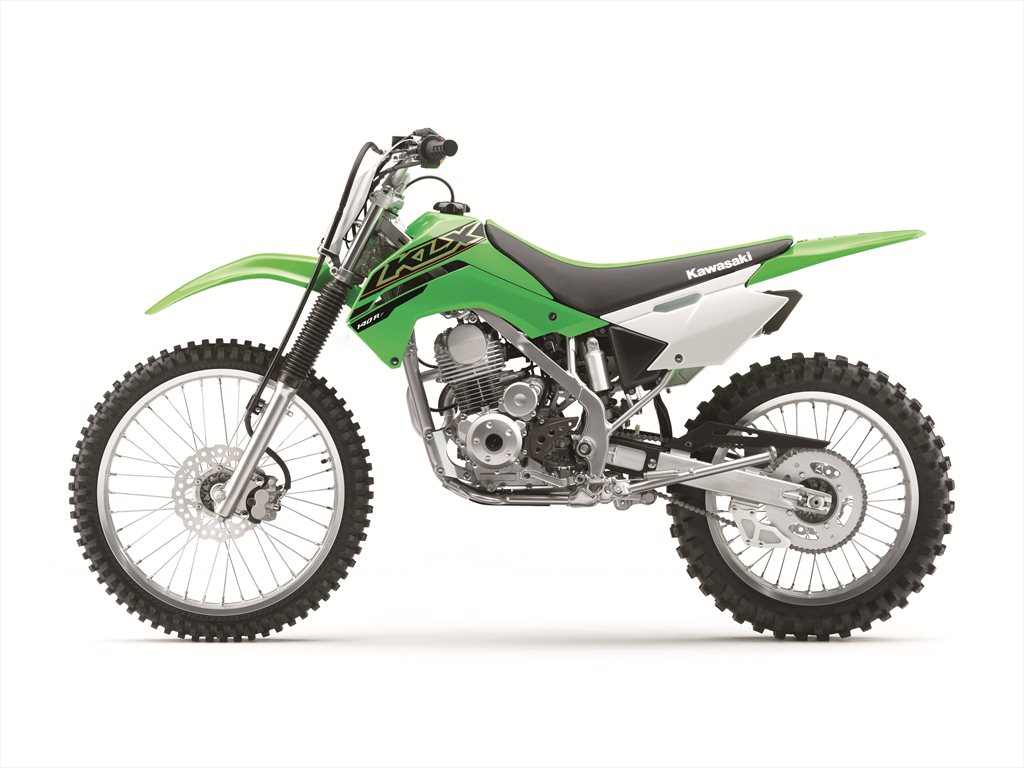

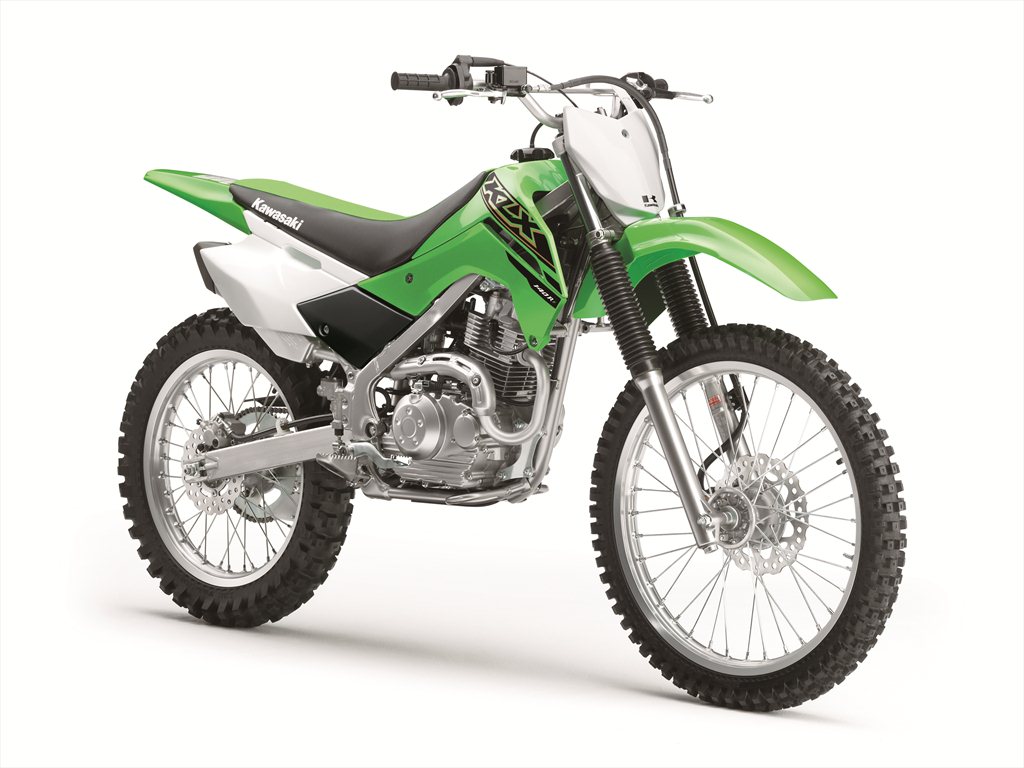

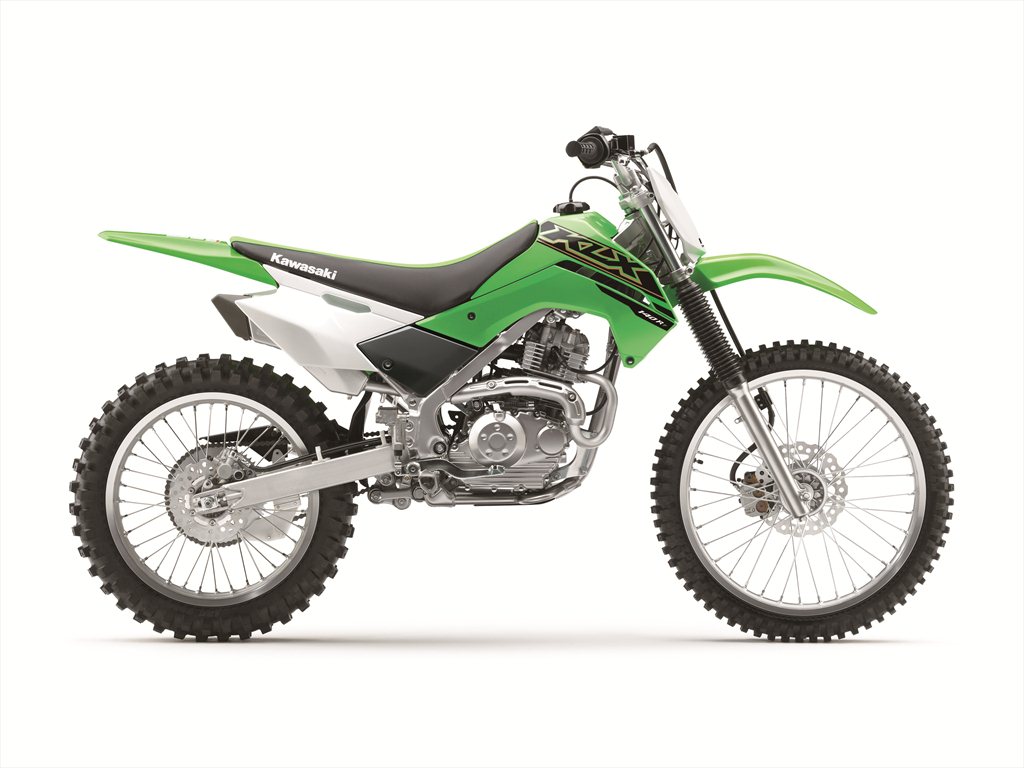

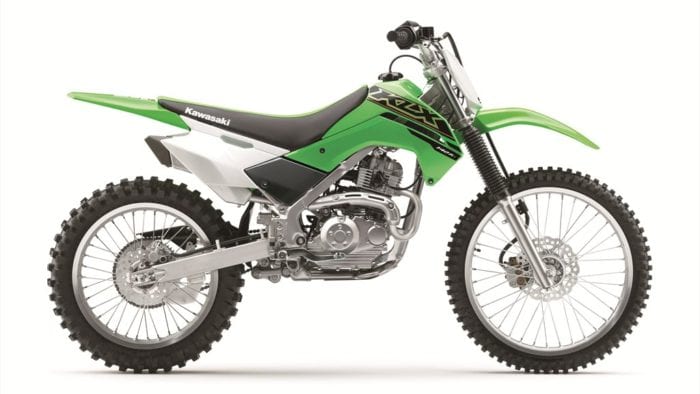

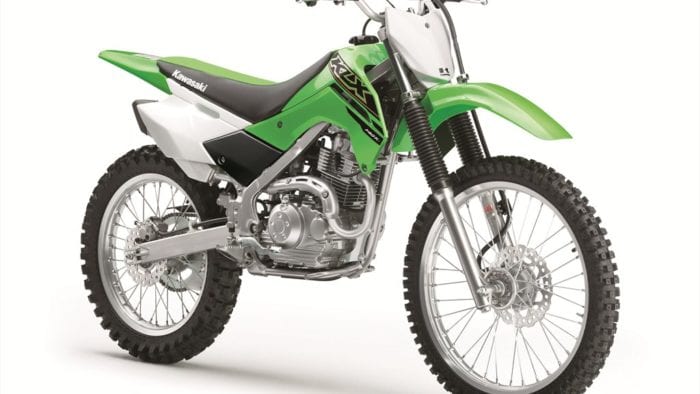

The Kawasaki KX110R F is the “big boy” bike of the lineup for fully grown young teens at 16+ years old, featuring full sized wheels and adjustable suspension. The front wheel is 21 inches, the rear is 18 inches, and the suspension can be adjusted to provide up to 7.5 inches of travel, and is meant to be the transition bike to more powerful or larger trail or off-road bikes.

The 2021 Kawasaki KLX 140R starts at $3,149 USD / $3,849 CAD,

The KLX 140R L starts at $3,449 USD / $4,249 CAD

The KLX 140R F starts at $3,749 USD / $4,449 CAD.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new 2021 Kawasaki KLX 140R/140R L/140R F in one place.

Model Overview

General Info

Price: $3,149 USD / $3,849 CAD
Key Features:
- Five speed manual transmission across all three models
- Full disc brakes front and rear
- Electronic starter

Main Specs

Engine Type: 144cc, air-cooled, 4-stroke, SOHC 2-valve single
Horsepower: Not provided by manufacturer
Torque: Not provided by manufacturer
Wet Weight: 205 lbs (93 kg)
Seat Height: 30.7 inches (780 mm)

Competitors

2021 Kawasaki KLX 140R Series Specifications

From Kawasaki

ENGINE
Engine	144cc, air-cooled, 4-stroke, SOHC 2-valve single
Power	Not provided by manufacturer
Bore x Stroke	58.0 x 54.4mm
Compression Ratio	9.5:1
Fuel System	20mm Keihin carburetor
Starter	Electric
Lubrication
DRIVETRAIN
Clutch	Wet multi-disc manual clutch
Transmission	5-speed, return shift
Final Drive	Chain
CHASSIS
Suspension Front	33mm telescopic fork/7.1 in
Suspension Rear	Uni-Trak® linkage system and single shock with 5-way preload adjustability/7.1 in
Brakes Front	Single 220mm petal disc with a dual-piston caliper
Brakes Rear	Single 186mm petal disc with single-piston caliper
Tires Front	70/100-17
Tires Rear	90/100-14
Fuel Tank Capacity	1.5 gal
Color	Lime Green
ELECTRICAL
Ignition	Digital DC-CDI
Spark Plugs
Headlight	LED
Tail Light	LED
DIMENSIONS
Overall Length	71.7 in
Overall Width	31.1 in
Overall Height	41.3 in
Wheelbase	49.6 in
Ground Clearance	9.3 in
Seat Height	30.7 in
Curb Weight	205.0 lb
WARRANTY
Warranty	6 Months
Kawasaki Protection Plus	12, 24, or 36 months
