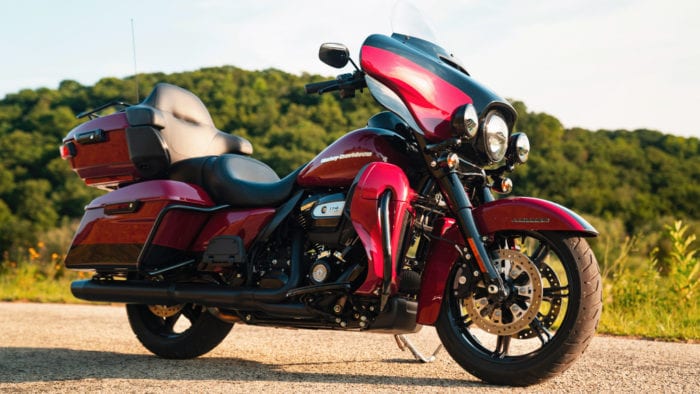

The 2021 Harley Davidson Ultra Limited: Fully Loaded

Model Overview
Specifications
Features
Photos
Videos
Links

As the Limited name implies, this Harley Davidson is packed with all the comforts required for long-distance touring. The 2021 Harley Davidson lineup does have a few full-dressed touring bikes, but the Ultra Limited offers an incredible number of color and trim combinations if the Batwing fairing look is your preferred.

The Limited has plenty of torque (119 lbs-ft) thanks to the powerful Milwaukee-Eight® 114 engine. The classic American V-twin exhaust note provides such a sweet sound, but you can always crank up the 4 speaker Boom!™ Box GTS Infotainment System and rock out down the road.

The sleek yet spacious Tour-Pak™ luggage carrier with luggage rack that can easily house both rider and passenger helmets along with extra travel essentials. Comfort features like heated grips and cruise control are standard, the Reflex™ Defensive Rider System is an option, but let’s face it, you know you are adding those very useful electronic rider aids, they are well worth it. The toughest choice you will face ordering your new Ultra Limited is solid color or two-tone, and more chrome or more blacked-out?

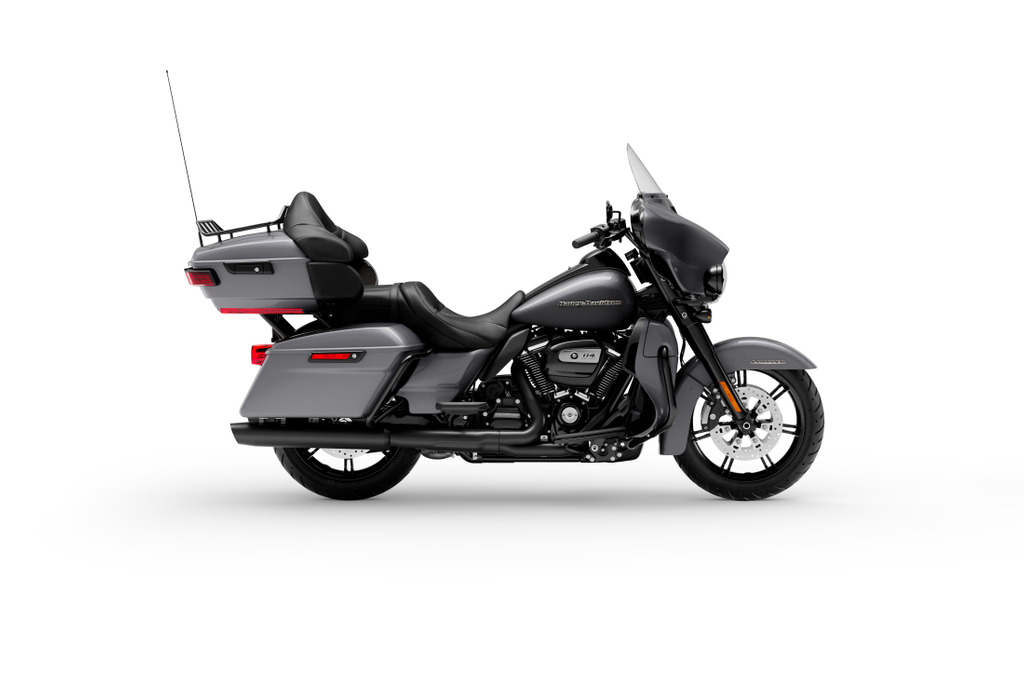

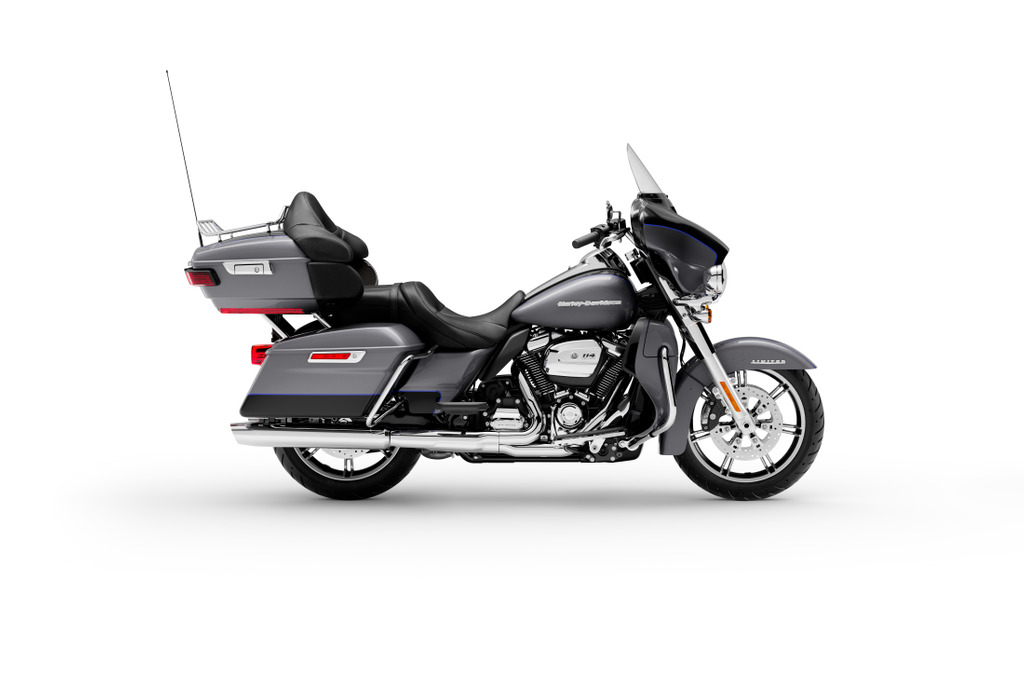

There is an amazing list of 15 color choices for the 2021 Harley Davidson Ultra Limited, including but not limited to:

River Rock Gray Denim / Black Denim – Black Finish
Billiard Red / Vivid Black – Black Finish
Gauntlet Gray Metallic – Black Finish
Vivid Black — Black Finish

Check out the brand links below for the entire list of colors available.

The 2021 Harley Davidson Ultra Limited starts at $28,699 USD / $33,999 CAD.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new 2021 Harley Davidson Ultra Limited in one place.

Model Overview

General Info

Price: $28,699 USD / $33,999 CAD
Key Features:
- Milwaukee-Eight® 114 V-Twin engine
- Vented Batwing Fairing
- Two-Tone Paint Options
- Optional RDRS Electronics Package

Main Specs

Engine: 114 ci V-twin
Power: 100.5 HP (estimated)
Torque: 119 lbs-ft @ 3000 RPM
Wet Weight: 917 lb. (416 kg)
Seat Height: 27.5 in. (699 mm)

Competitors

2021 Harley Davidson Ultra Limited Specifications

From Harley-Davidson

ENGINE
Engine	114 ci V-twin, Twin-Cooled™ Milwaukee-Eight® 114
Engine Torque	119 lbs-ft @ 3000 RPM
Bore x Stroke	4.016 in. in x 4.5 in
Compression Ratio	10.5:1
Fuel System	Electronic Sequential Port Fuel Injection (ESPFI)
Starter	Electric
Exhaust	2:1:2 dual exhaust with 4 in. tapered mufflers
DRIVETRAIN
Clutch
Transmission	6-speed
Primary Drive	Chain, 34/46 ratio
CHASSIS
Wheels, Front Type	Slicer II cast aluminum with clear coat
Wheels, Rear Type	Slicer II cast aluminum with clear coat
Brakes Front	32 mm, 4-piston fixed
Brakes Rear	32 mm, 4-piston fixed
Tires Front	BW 130/70B18 63H
Tires Rear	BW 180/55B18 80H
Fuel Tank Capacity	6 gal.
Color	River Rock Gray Denim / Black Denim – Black Finish, Billiard Red / Vivid Black – Black Finish, Gauntlet Gray Metallic – Black Finish, Vivid Black — Black Finish
ELECTRICAL
Ignition
Spark Plugs
Headlight	High beam
Tail Light	LED
DIMENSIONS
Overall Length	102.3 in.
Trail	6.7 in
Rake	26
Wheelbase	64 in
Ground Clearance	5.3 in.
Seat Height	27.5 in
Weight, As Shipped	880 lb.
WARRANTY
Warranty
Extension

2021 Harley Davidson Ultra Limited Features

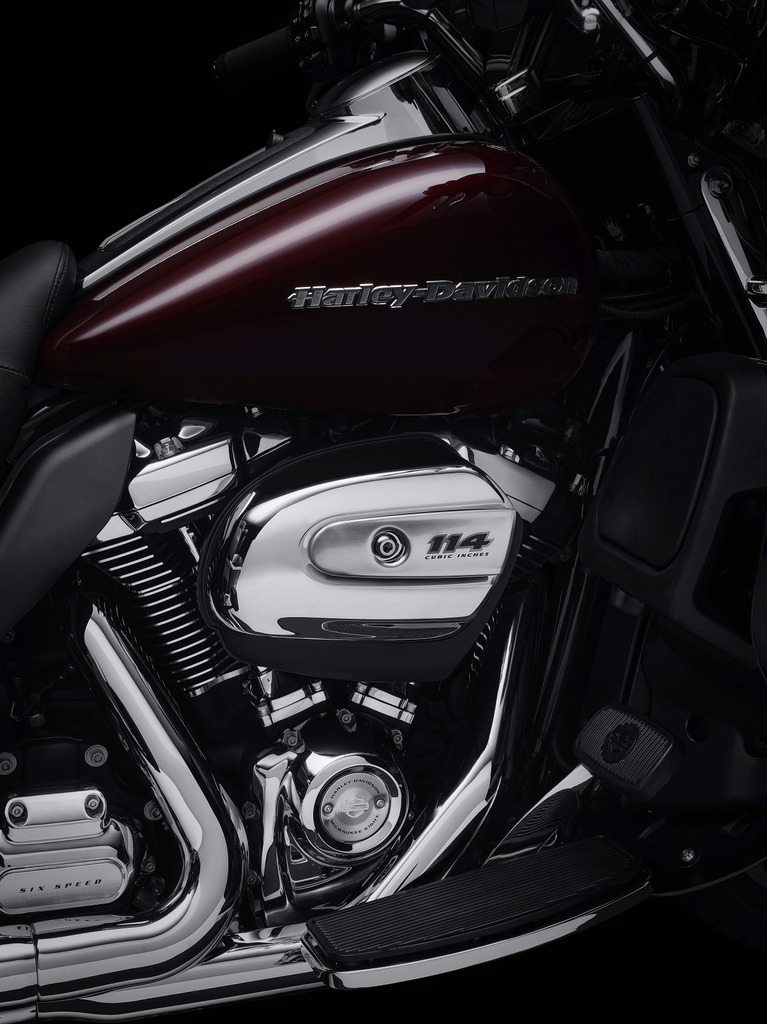

The most displacement in standard H-D® Touring models. You get 114 cubic inches of passing and horizon-chasing power.

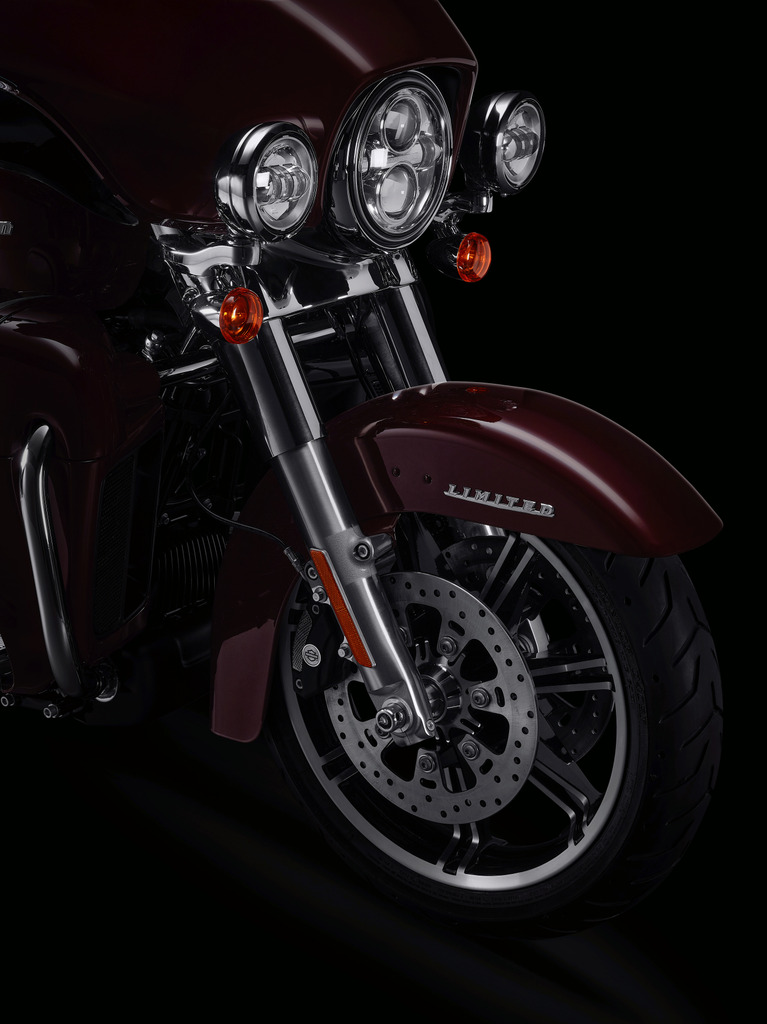

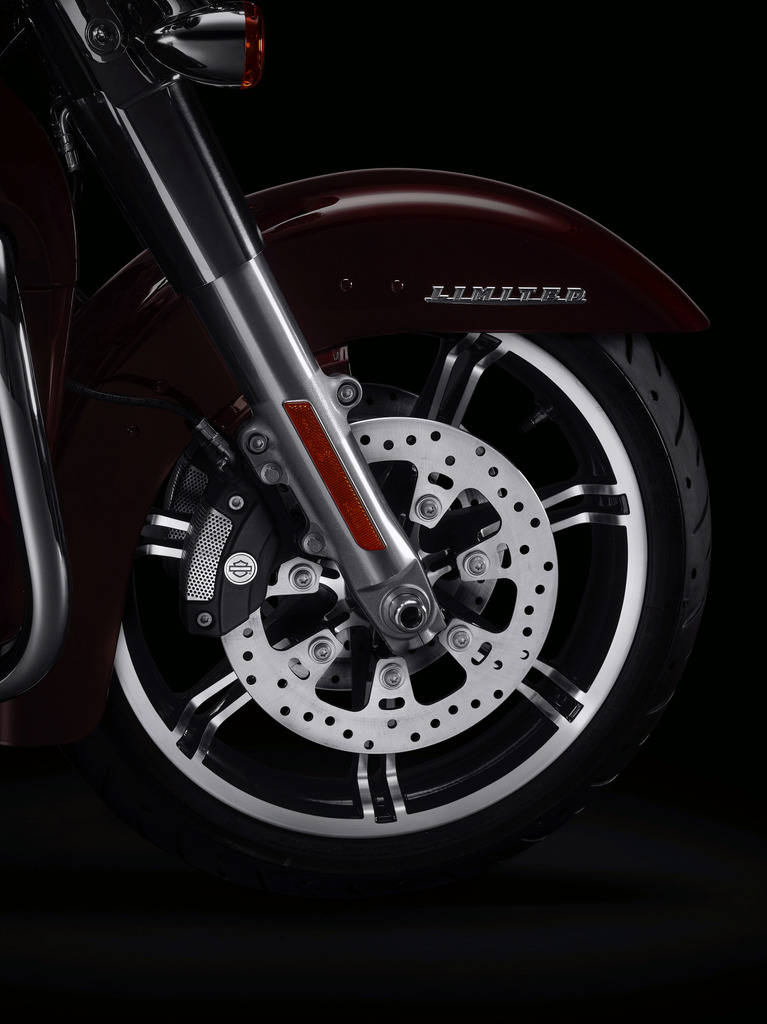

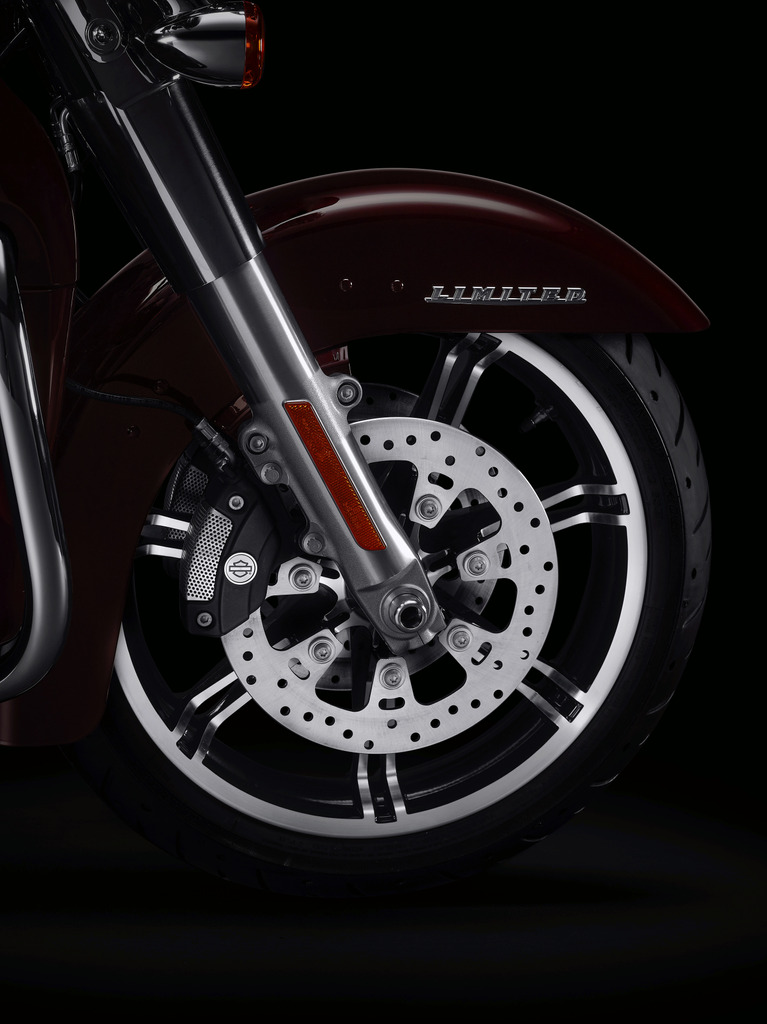

Designed to help prevent the wheels from locking under braking to assist the rider in maintaining control when braking in a straight-line. ABS operates independently on front and rear brakes to keep the wheels rolling and help prevent uncontrolled wheel lock in urgent situations.

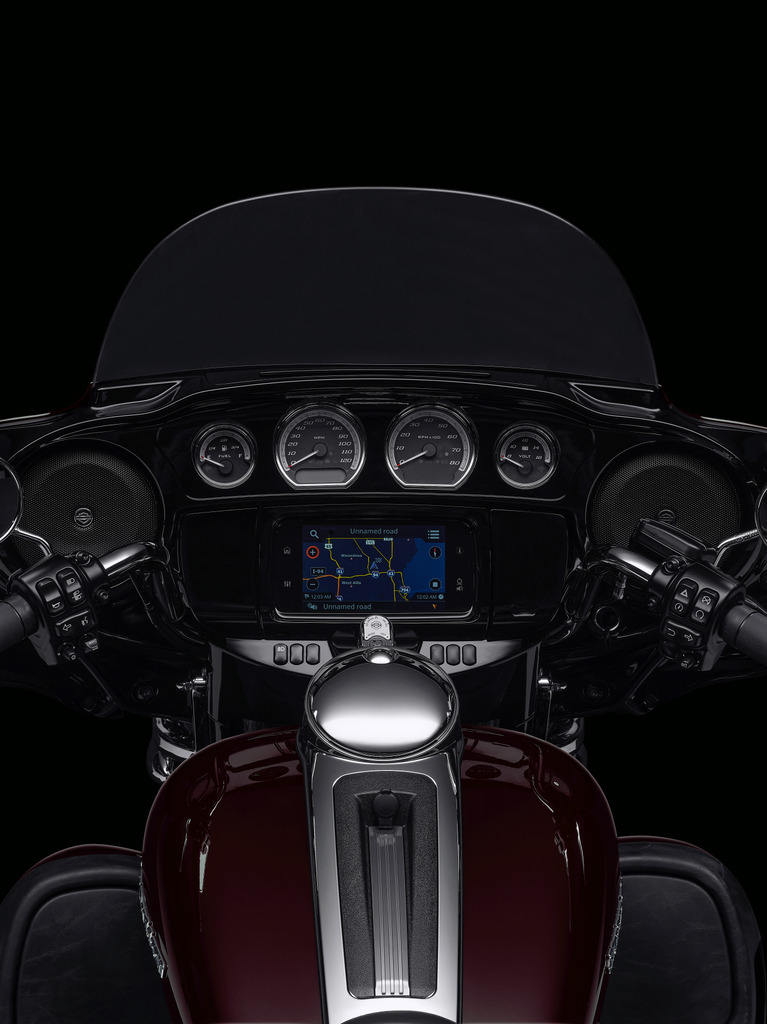

An evolved interface experience that offers a contemporary look, feel and function, with exceptional durability and features designed specifically for motorcycling. Every element is optimized to enhance the rider’s interaction with the bike and connectivity with the world.

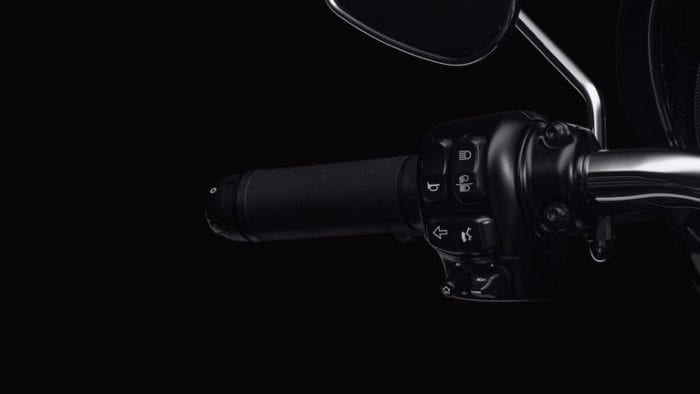

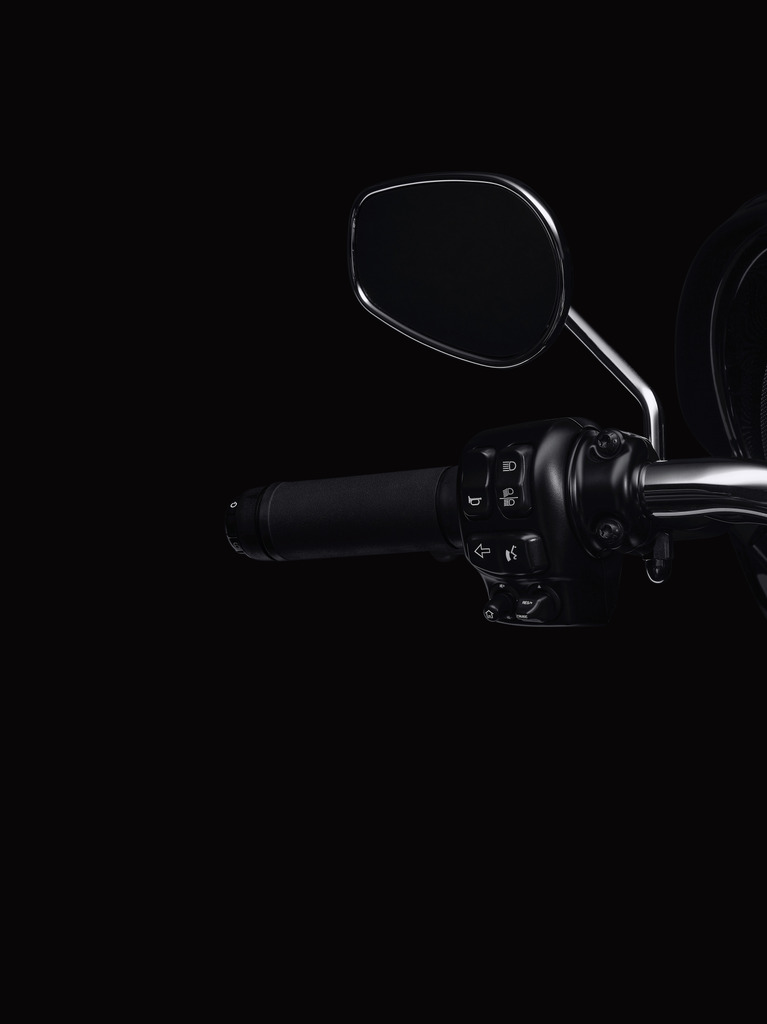

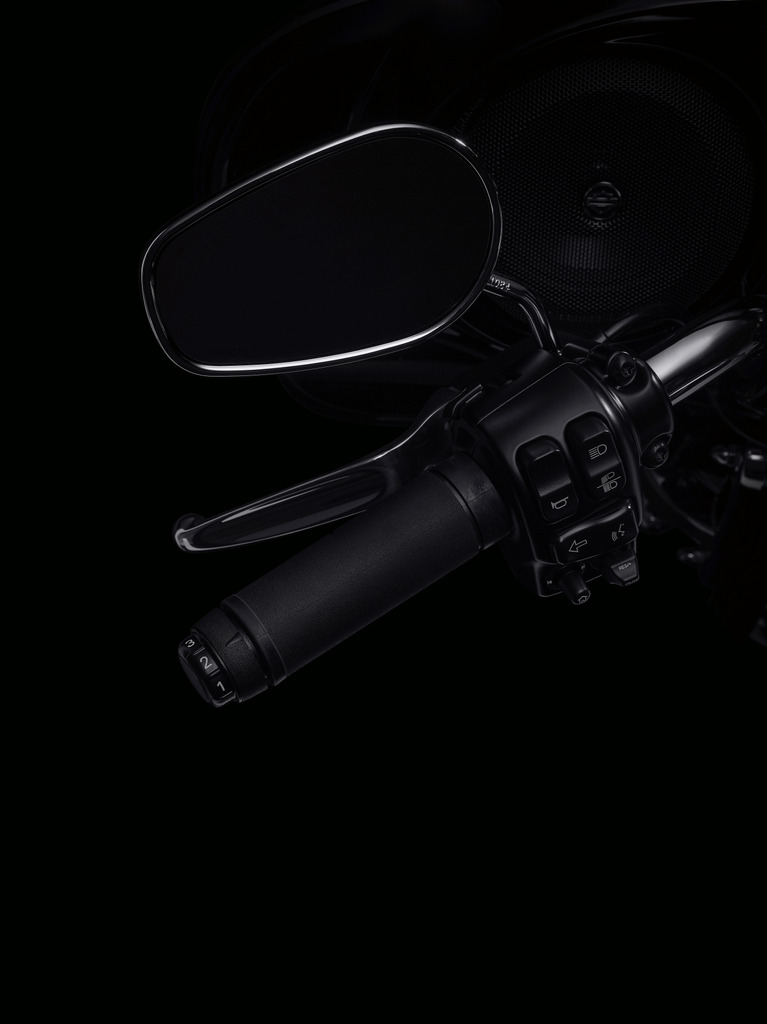

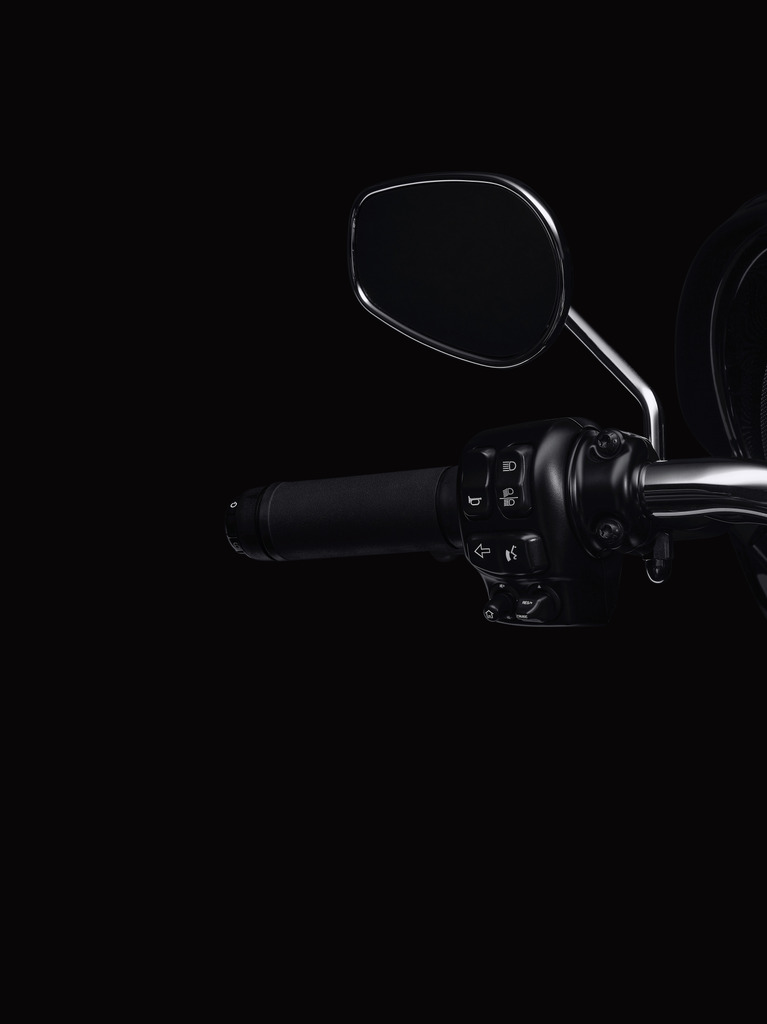

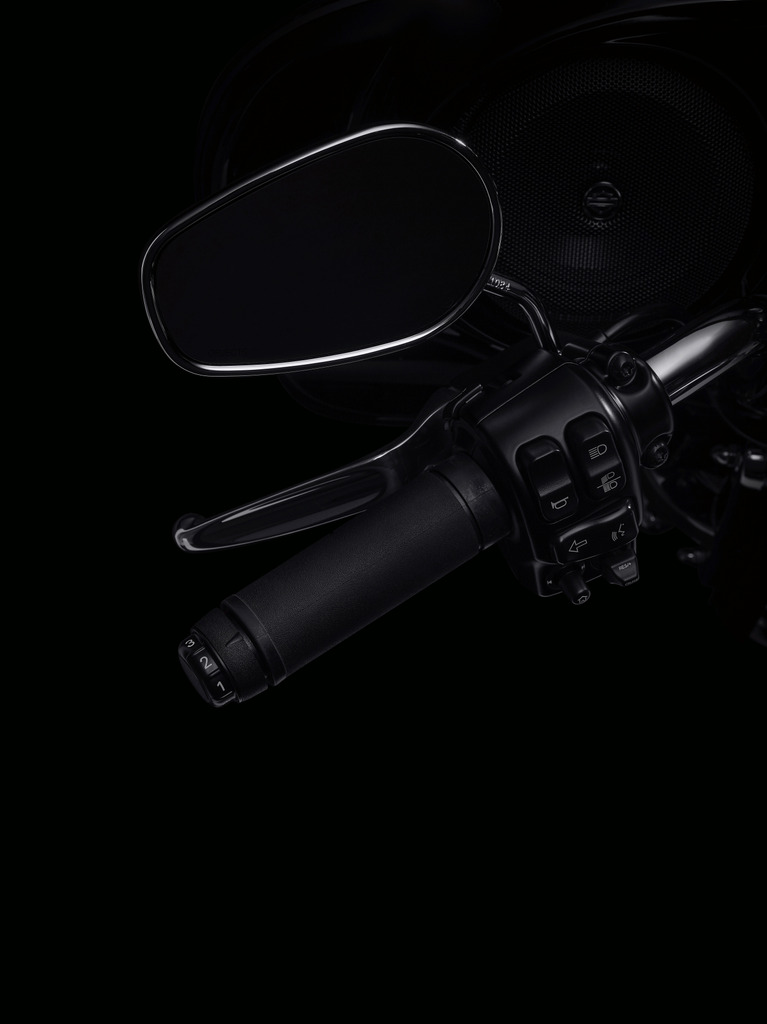

Equipped with six settings, so you can easily adjust on the fly for the heat you need.

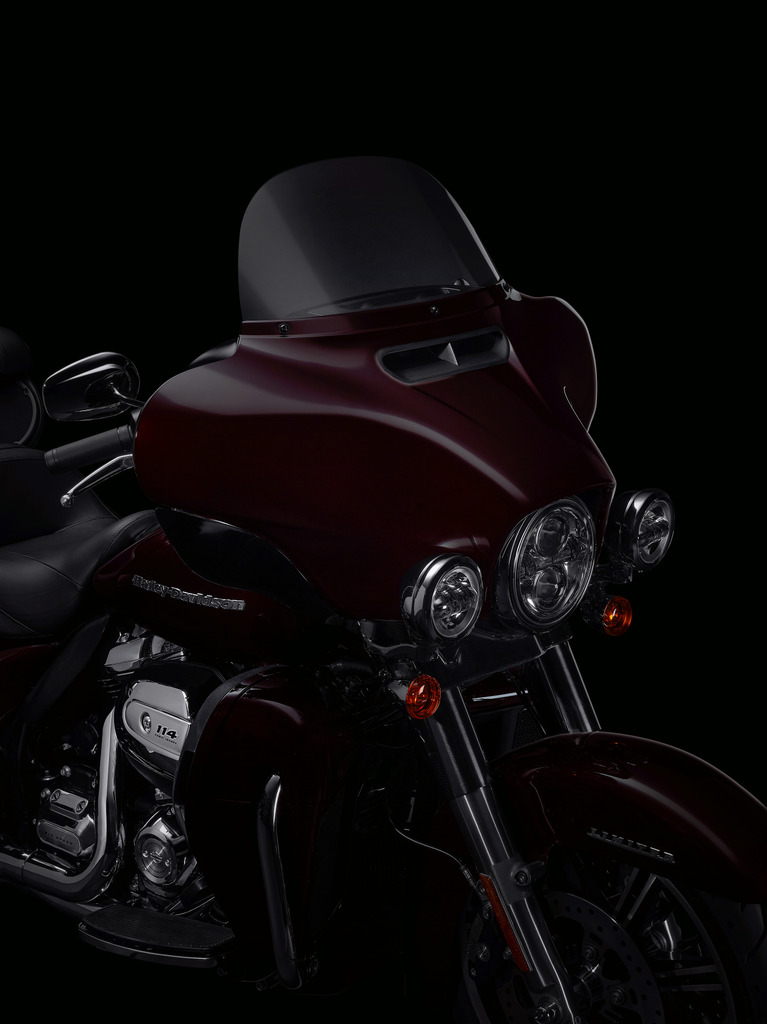

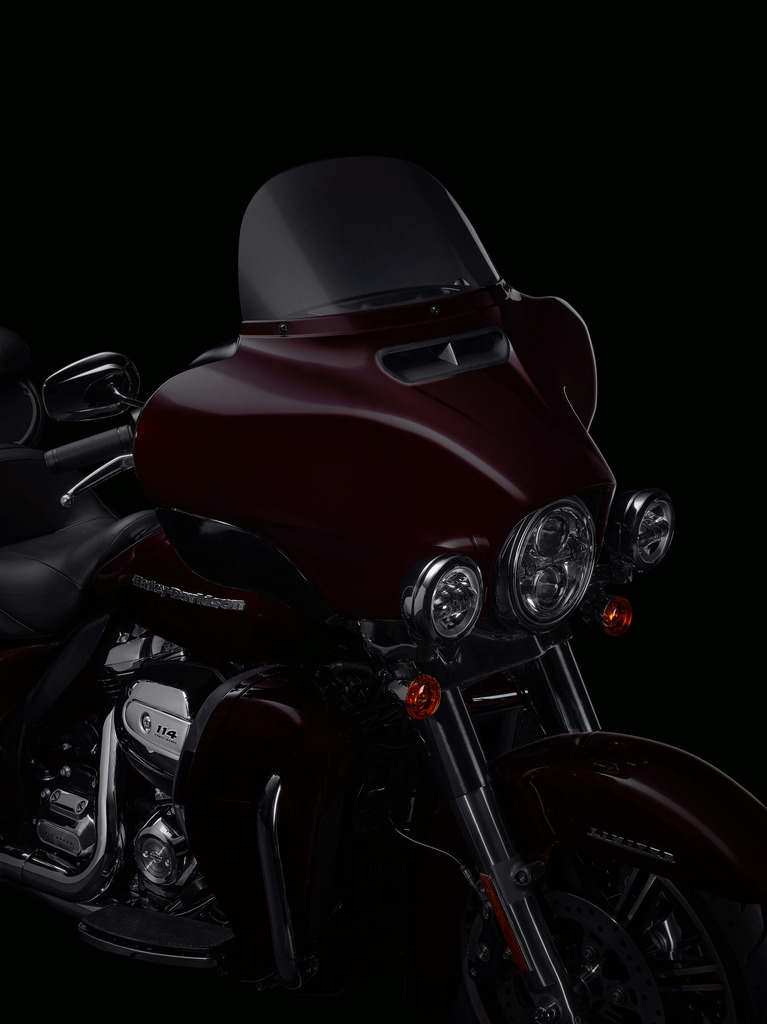

Designed to deliver smoother airflow and reduced head buffeting with a pressure-equalizing duct on the front. It opens and closes with one touch of a button.

Set your own speed on the 6-Speed Cruise Drive® Transmission. It provides smooth, quiet shifting and adapts to whatever terrain you’re riding on.

High-performing front and rear suspension with easily adjustable rear shocks put you in control of a plush ride.

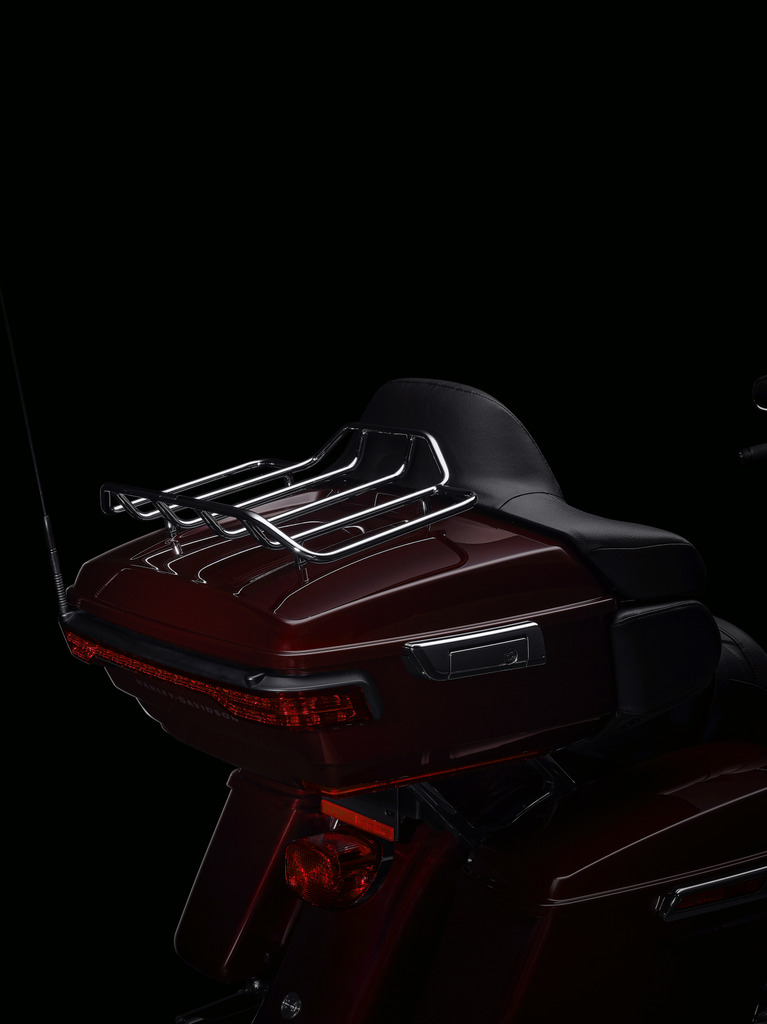

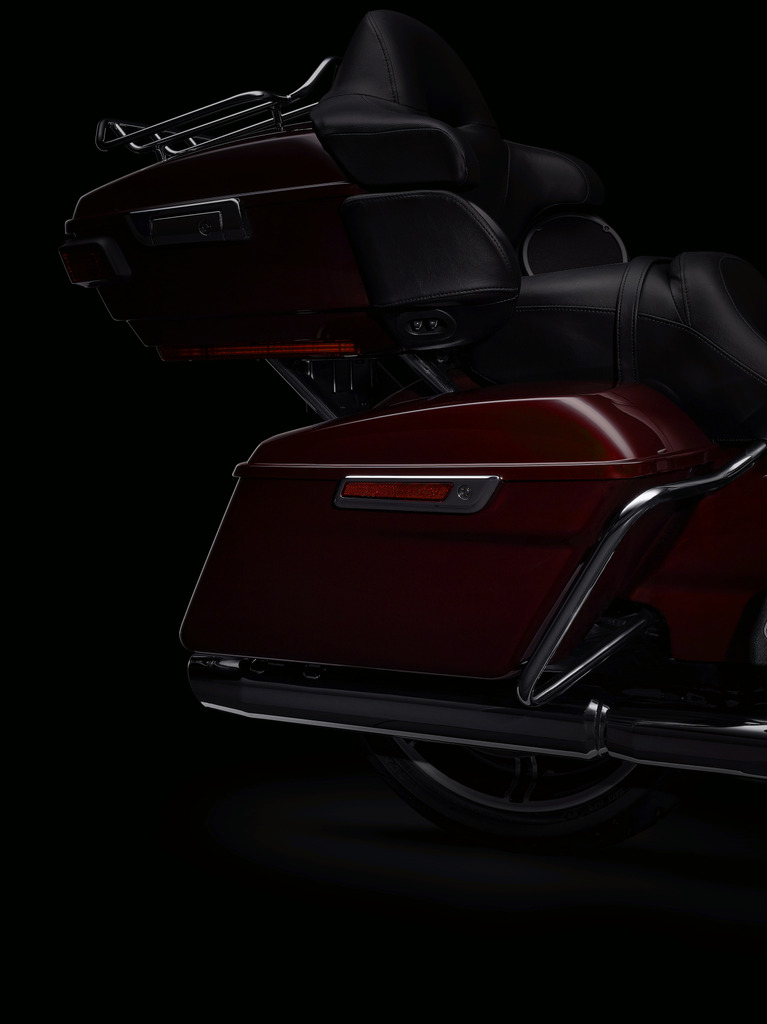

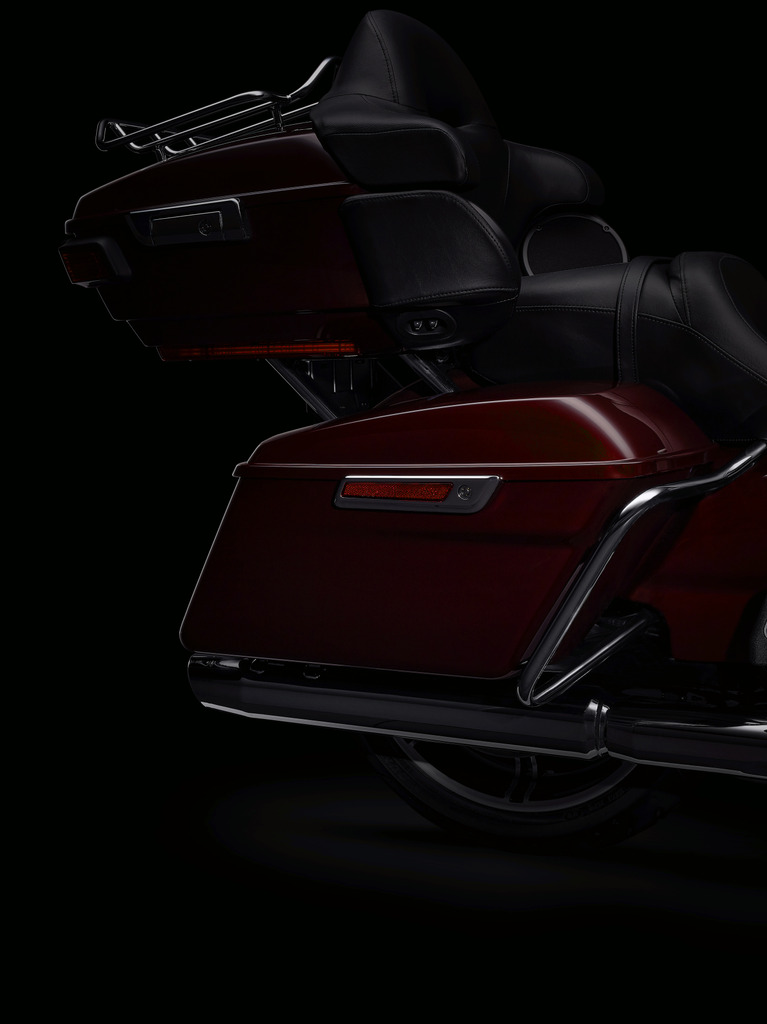

A sleek yet spacious Tour-Pak® luggage carrier with luggage rack that can easily house both rider and passenger helmets along with extra travel essentials.
