2021 Harley Davidson Fat Boy 114 [Specs, Features, Photos]

The 2021 Harley Davidson Fat Boy 114: Shines Even Brighter

Model Overview
Specifications
Features
Photos
Videos
Links

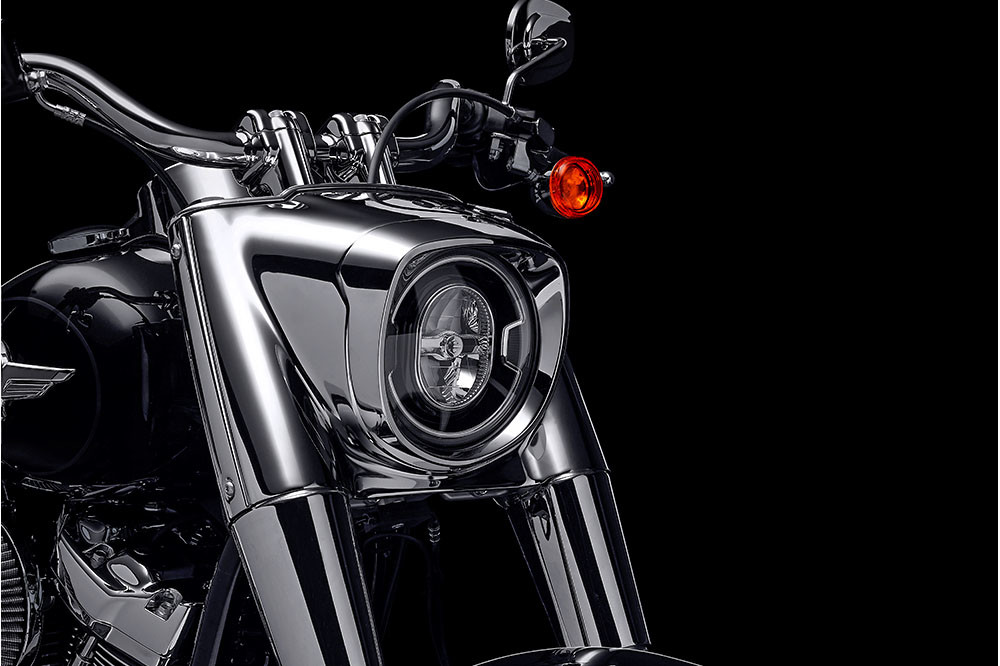

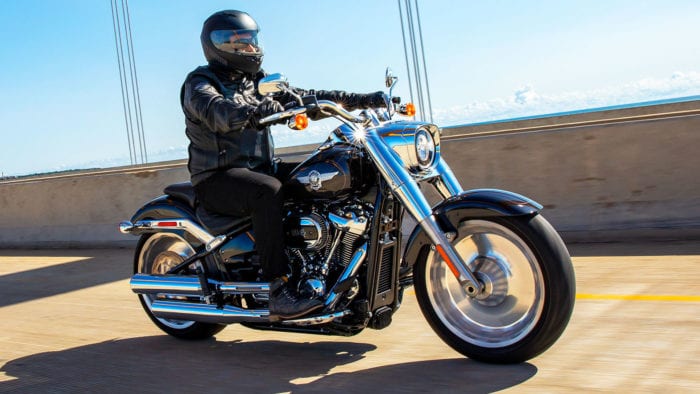

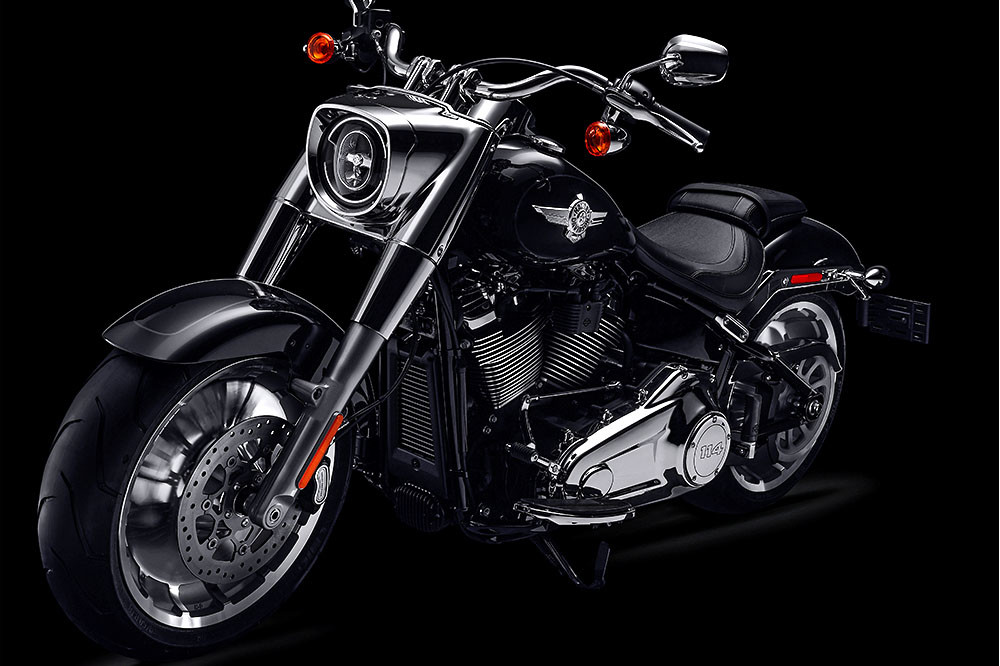

When looking to make a statement, not many bikes can shout “American-made badass” quite like a Fat Boy. Revised for the 2021 Harley Davidson lineup, the Fat Boy 114 has been given a pump to the brightwork. From the headlight nacelle and fork tubes, back over the tank console then the engine and exhaust, everywhere Harley Davidson has chromed elements.

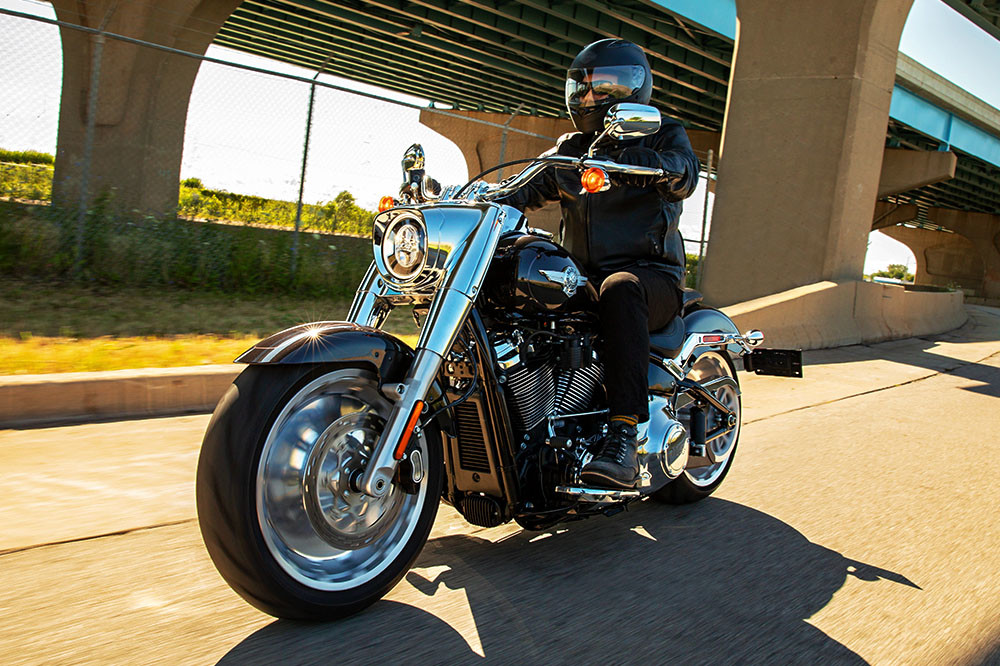

The iconic steamroller stance of the Fat Boy begins with the solid disc Lakester wheels wrapped in fat rubber, 160mm up front and 240mm out back. Such massive rubber is needed in order to harness the power from the Milwaukee-Eight® 114 engine and its 119 lbs-ft of torque.

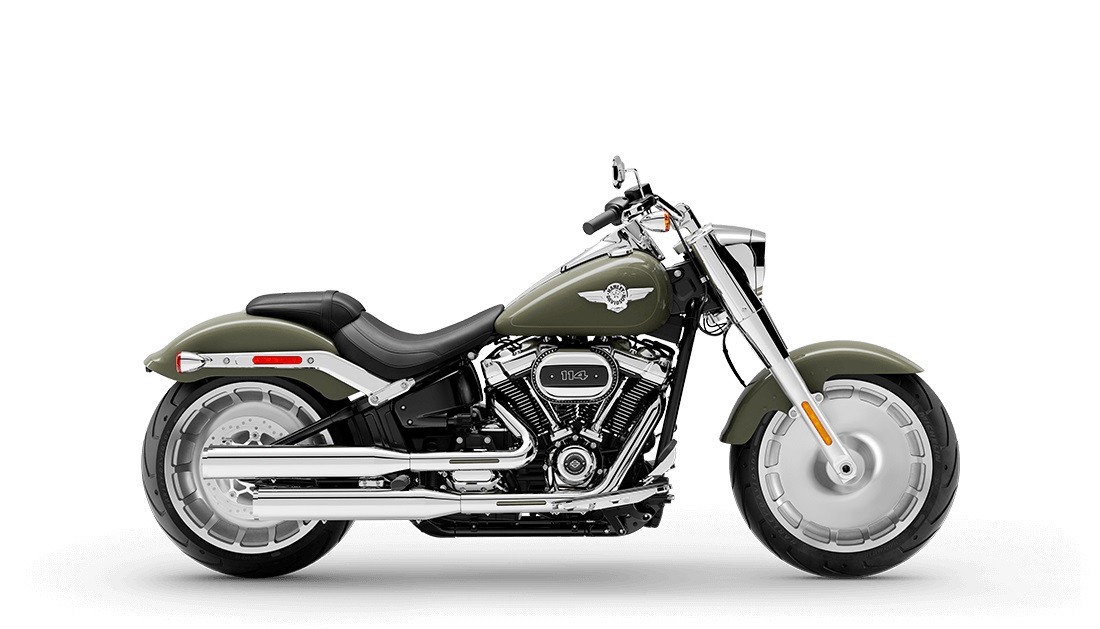

4 Color choices for the 2021 Harley Davidson Fat Boy 114: Vivid Black, Black Jack Metallic, Deadwood Green, and Gauntlet Gray Metallic/Vivid Black.

The 2021 Harley Davidson Fat Boy 114 starts at $19,999 USD / $24,799 CAD.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new 2021 Harley Davidson Fat Boy 114 in one place.

Model Overview

General Info

Price: $19,999 USD / $24,799 CAD
Key Features:
- Milwaukee-Eight® 114 V-Twin engine
- Solid Disc Lakester Wheels
- Forward Controls
- 160mm Front Tire, 240mm Rear Tire

Main Specs

Engine: 114 ci V-twin
Power: 100.5 HP (estimated)
Torque: 119 lbs-ft @ 3000 RPM
Wet Weight: 699 lbs (317 kg)
Seat Height: 25.9 inches (675 mm)

Competitors

2021 Harley Davidson Fat Boy 114 Specifications

From Harley-Davidson

ENGINE
Engine	114 ci V-twin, Milwaukee-Eight^® 114
Engine Torque	119 lbs-ft @ 3000 RPM
Bore x Stroke	4.016 in x 4.5 in
Compression Ratio	10.5:1
Fuel System	Electronic Sequential Port Fuel Injection (ESPFI)
Starter	Electric
Exhaust	2-into-2 staggered; catalyst in muffler
DRIVETRAIN
Clutch
Transmission	6-speed
Primary Drive	Chain, 34/46 ratio
CHASSIS
Wheels, Front Type	Machined, Lakester cast aluminum
Wheels, Rear Type	Machined, Lakester cast aluminum
Brakes Front	4-piston fixed front
Brakes Rear	2-piston floating rear
Tires Front	160/60R18,70V,BW
Tires Rear	240/40R18,79V,BW
Fuel Tank Capacity	5 gal.
Color	Vivid Black, Black Jack Metallic, Deadwood Green, and Gauntlet Gray Metallic/Vivid Black
ELECTRICAL
Ignition
Spark Plugs
Headlight	High beam
Tail Light	LED
DIMENSIONS
Overall Length	93.3 in.
Trail	4.1 in.
Rake	30
Wheelbase	65.6 in.
Ground Clearance	4.5 in..
Seat Height	25.9 in.
Weight, As Shipped	671 lb.
WARRANTY
Warranty
Extension

2021 Harley Davidson Fat Boy 114 Features

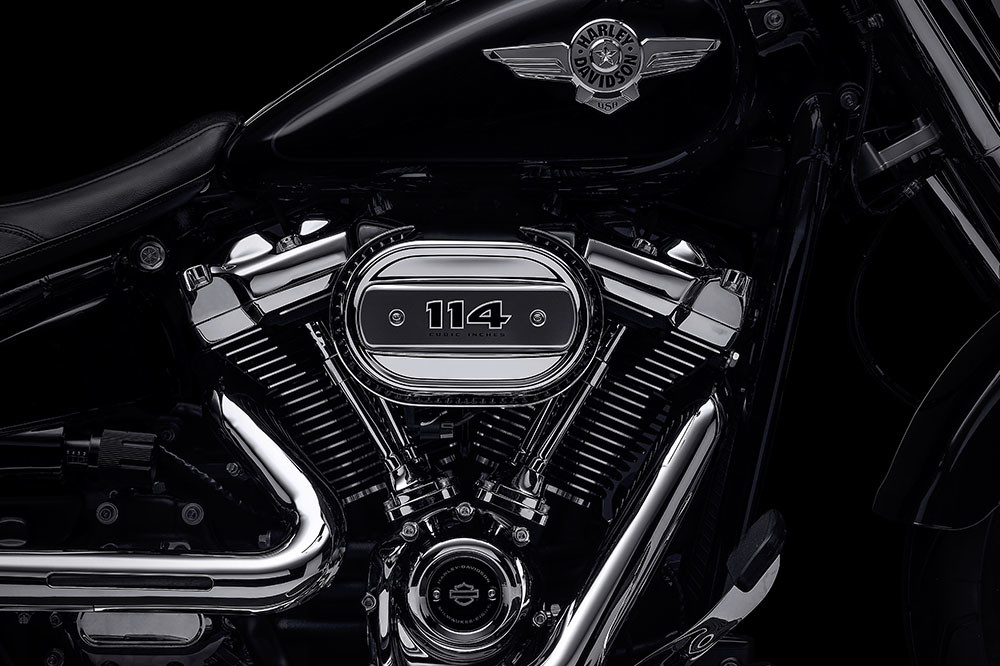

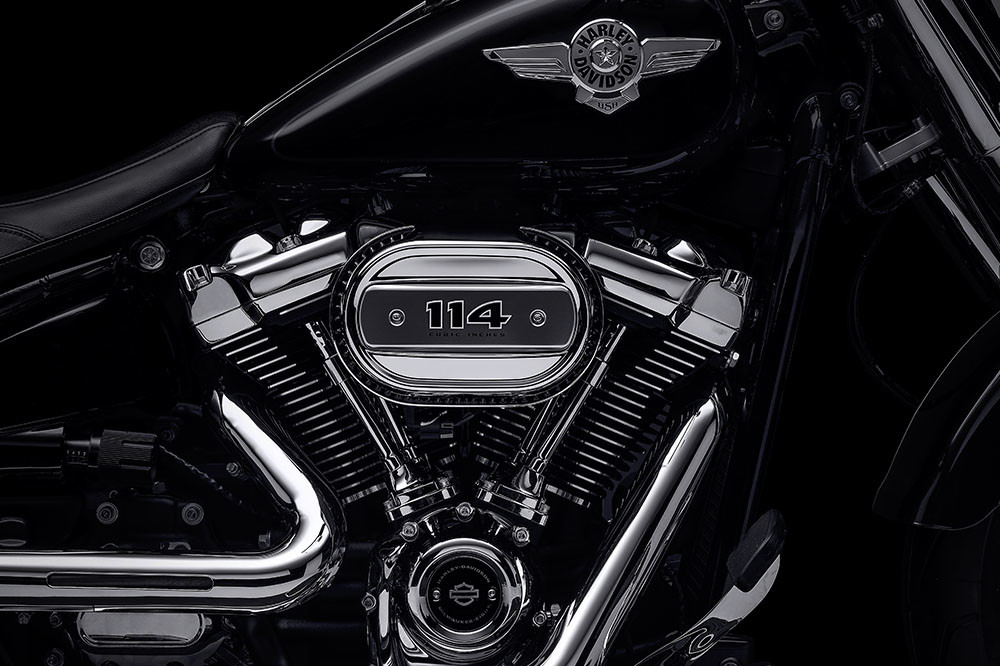

A powerful, smooth-running engine with crisp throttle response and a pure, soul-satisfying rumble.

The frame retains the classic Softail® lines, but its lightweight design and stiffness translate to a responsive ride unlike anything you’ve felt before.

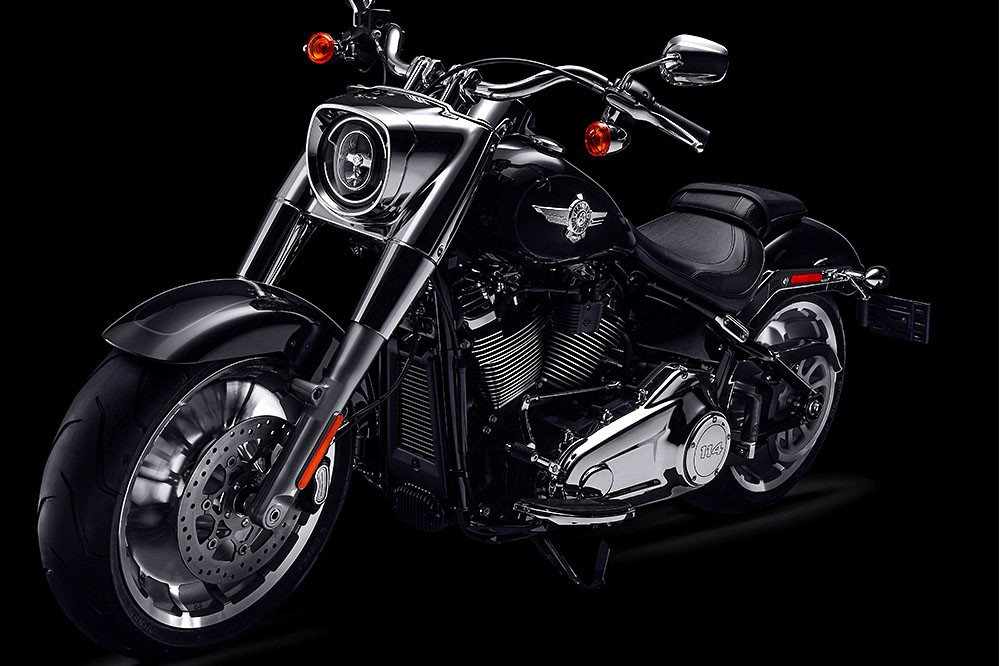

An all-you-can eat portion of sculpted bright chrome gives the Fat Boy® motorcycle a look that’ll make a big impact.

A muscular look thanks to solid-disc Lakester wheels wrapped in the widest front tire we’ve ever offered from the factory at 160mm combined with a rear tire at 240mm.

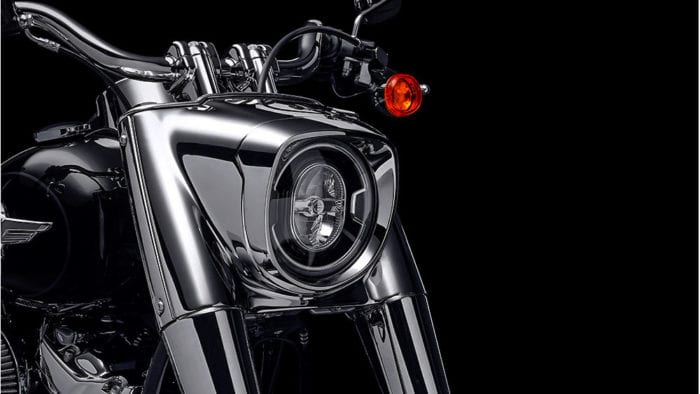

Darkness-defying lighting that gives you great visibility at night.

Sophisticated suspension technology provides the performance of a racing-style cartridge fork for reduced weight with linear damping characteristics.

Easily adjustable mono-shock rear suspension allows for dynamic cornering while preserving the hardtail look.
