2020 Yamaha SMAX

Contents

Much like its big brother the XMAX, the 2020 Yamaha SMAX is a scooter that is poised on the premium end of things, yet won’t break your bank account. Powered by a 155cc, liquid-cooled, fuel-injected single, the SMAX boasts a chunky 15 crank HP. Unlike the XMAX, however, the SMAX is not a full-on maxi-scooter and is intended for usage almost entirely in-city.

One of the nicer things about the SMAX is that it is light enough to have both side stands and a center stand, yet it is heavy enough that at regular traffic speed, it is sure-footed and comfortable. It also has an extremely easy to read three-segment dash, and is fully automatic, just twist the wrist and off you go.

The 2020 Yamaha SMAX starts at $3,799 US/$4,099 CA

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new Yamaha SMAX in one place.

2020 Yamaha SMAX

Model Overview

General Info

  • Price: $3,799 US / $4,099 CA
  • Key Features:
    • On-Board Storage
    • Advanced Brakes
    • Automatic Convenience

Key Specs

  • Engine type: 155 cc liquid-cooled 4-stroke
  • Power: 15 Hp
  • Wet weight: 328 lb
  • Seat height: 31.3 in

Key Competitors

2020 Yamaha SMAX

2020 Yamaha SMAX Specifications

From Yamaha

ENGINE
Engine 155cc liquid-cooled 4-stroke, SOHC single-cylinder; 4 valves
Power 15 Hp
Bore x Stroke 58.0mm x 58.7mm
Compression Ratio 11.0:1
Fuel System Fuel Injection
Starter Electric
Lubrication

DRIVETRAIN
Clutch
Transmission Automatic CVT
Final Drive V-Belt

CHASSIS
Suspension Front Telescopic fork; 3.1-in travel
Suspension Rear Mid-ship, horizontal-positioned rear shock; 3.7-in travel
Brakes Front Hydraulic disc, 267mm
Brakes Rear Hydraulic disc, 245mm
Tires Front 120/70-13
Tires Rear 130/70-13
Fuel Tank Capacity 7.5 L (2 US gal.)
Color Candy Red

ELECTRICAL
Ignition Digital TCI: Transistor Controlled Ignition
Spark Plugs
Headlight LED
Tail Light LED

DIMENSIONS
Overall Length
Overall Width
Overall Height
Wheelbase 55.3 in (1400 mm)
Ground Clearance
Seat Height 31.3 in (795 mm)
Curb Weight 328 lbs (148 kg)

WARRANTY
Warranty 1 Year (Limited Factory Warranty)
Extension

2020 Yamaha SMAX

2020 Yamaha SMAX Features

TOP FEATURES

  • Potent, Economical Engine
    Powerful 155cc, liquid-cooled 4-stroke, SOHC fuel-injected engine is highly fuel-efficient while producing excellent acceleration and power for commuting or highway riding.
  • Automatic Convenience
    Continuously Variable Transmission (CVT) makes operating the SMAX a snap without the need to use a hand clutch or shift gears.
  • Step-Through Design
    The SMAX features a roomy frame designed for overall balance and provides plenty of foot space.
  • On-Board Storage
    Large storage area that holds approximately 32 liters of underseat storage – big enough for a full-face helmet or groceries.
  • Premium Accommodations
    Two-up riding is comfortable for both riders, featuring a spacious, well laid-out design and standard windscreen.

ENGINE

  • Potent, Economical Engine
    Advanced 155cc engine is smooth, quiet and produces outstanding power for commuting or highway riding. Plus, it makes the most of every gallon with 81 mpg* fuel economy.
  • Responsive Performance
    The engine has a linear power feel that pulls through the powerband delivering excellent acceleration and a sporty ride experience.
  • Automatic Convenience
    There is no need to use a clutch or shift gears with the durable and reliable continuously variable transmission (CVT) and that makes riding the SMAX fun and convenient.

CHASSIS/SUSPENSION

  • Modern Chassis
    Frame design makes for a sporty, well-handling machine while still providing plenty of foot space for the rider.
  • Plush Suspension
    Mid-ship, horizontally-positioned rear shock offers 3.7” of travel for added rider and passenger comfort.
  • Confidence-Inspiring Traction
    Wide, high-grip 13-inch tires front and rear offer excellent grip and comfort.
  • Advanced Brakes
    Large 267mm front and 245mm rear disc brakes maintain consistent stopping power.

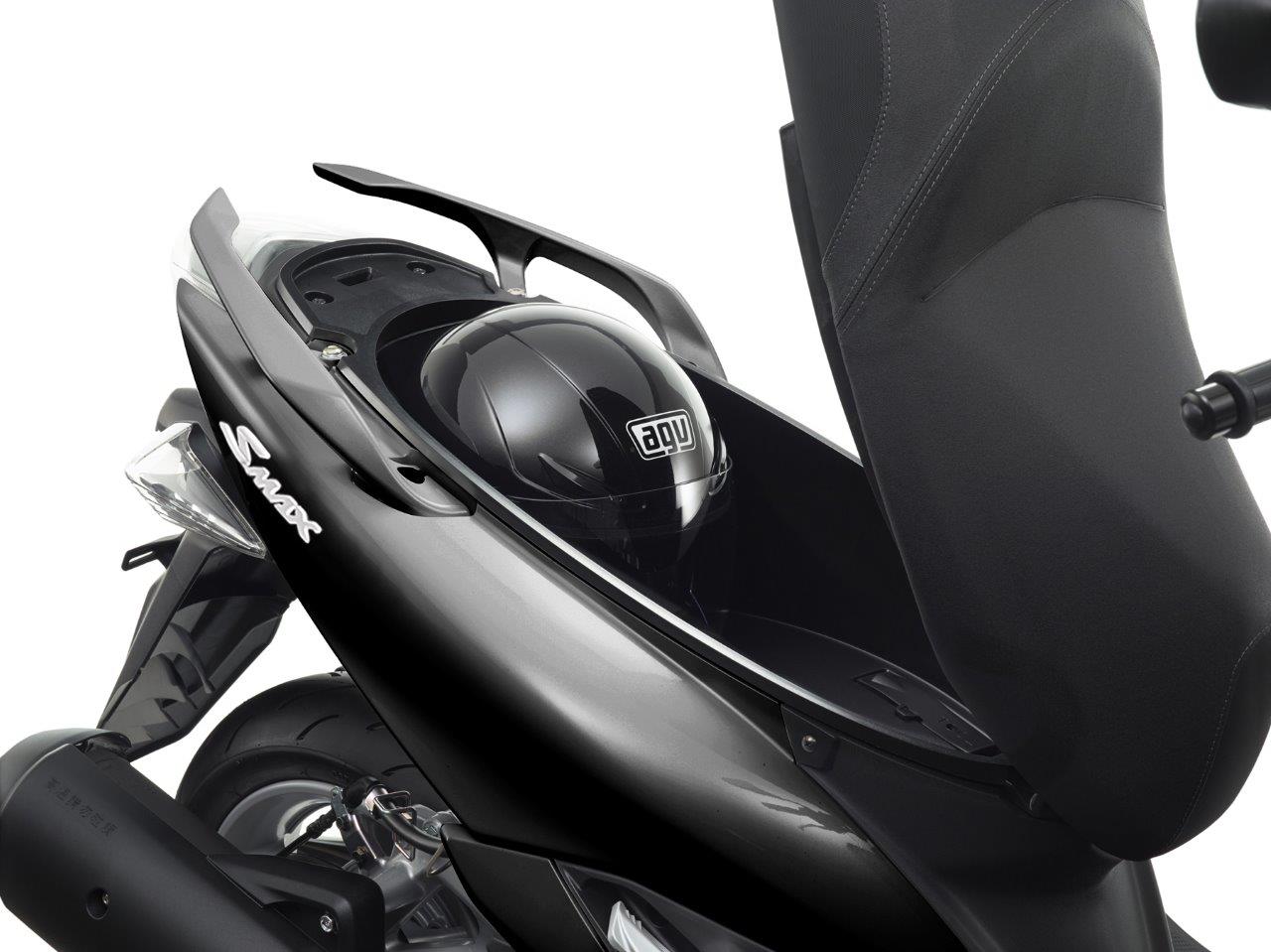

  • On-Board Storage
    Approximately 32-liter underseat storage space will fit a full-face helmet or groceries.
  • Step-Through Design
    Relaxed riding position and flat foot space allow outstanding rider comfort.

ADDITIONAL FEATURES

Style and Function

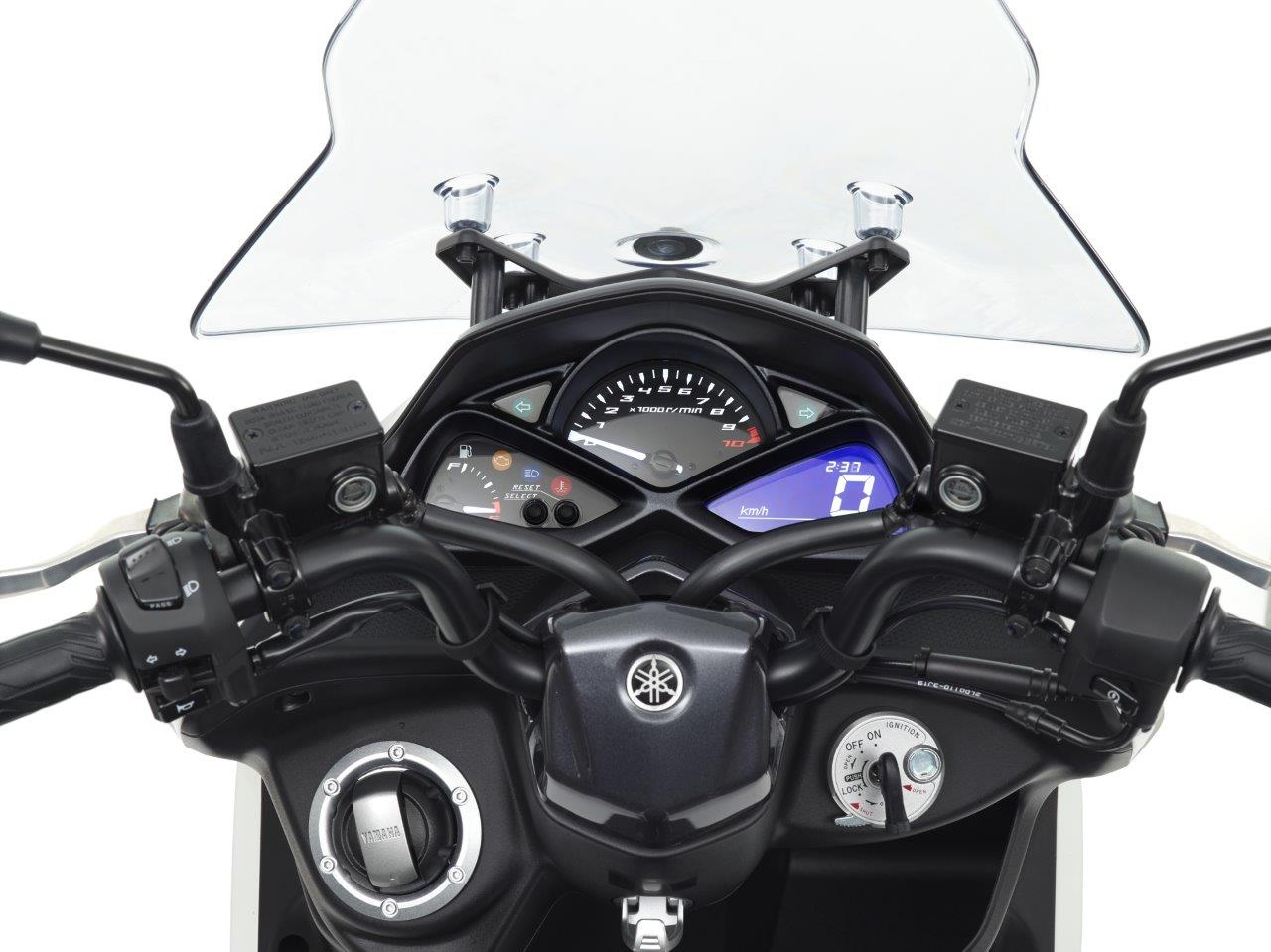

Sporty 3-gauge meter is easy to see and provides great rider information. LED position lights and tail light improve visibility and add to the sporty style.

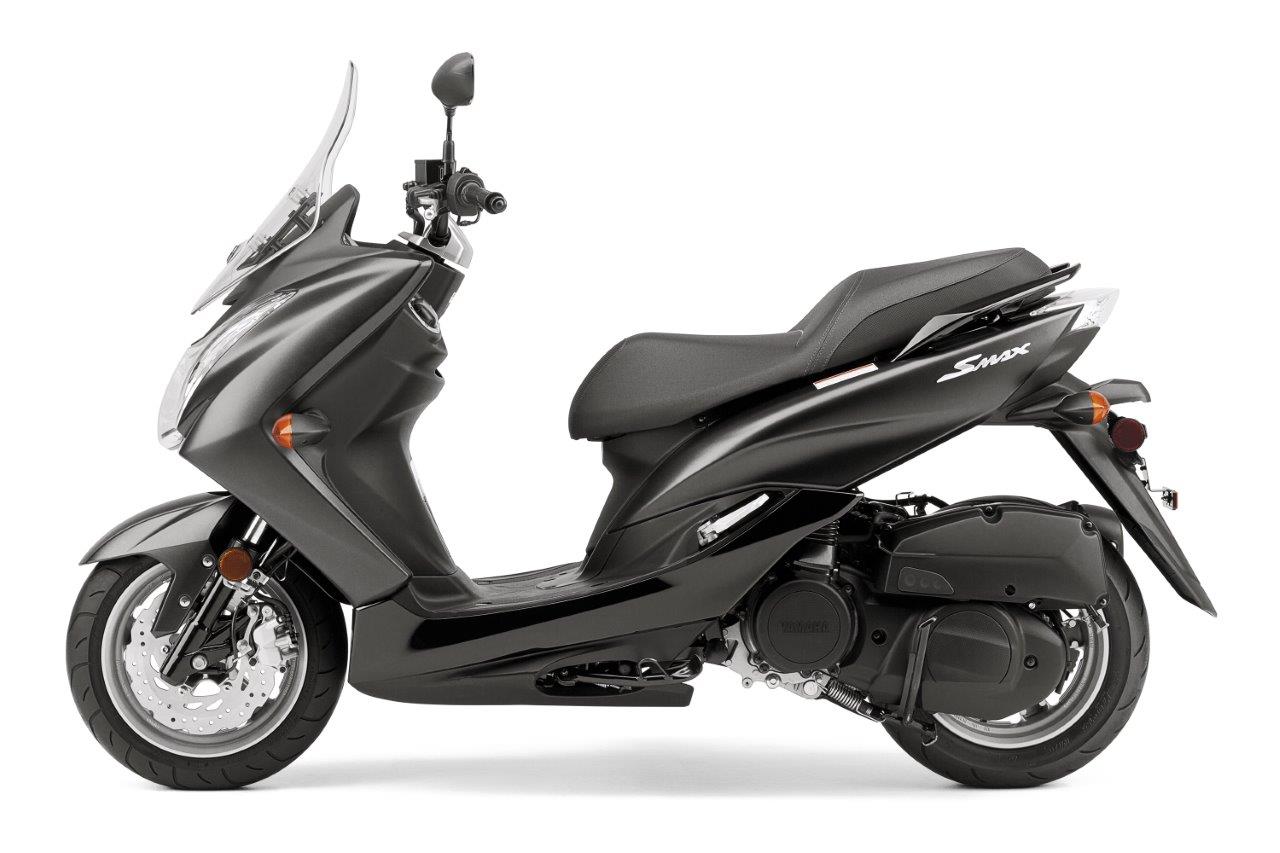

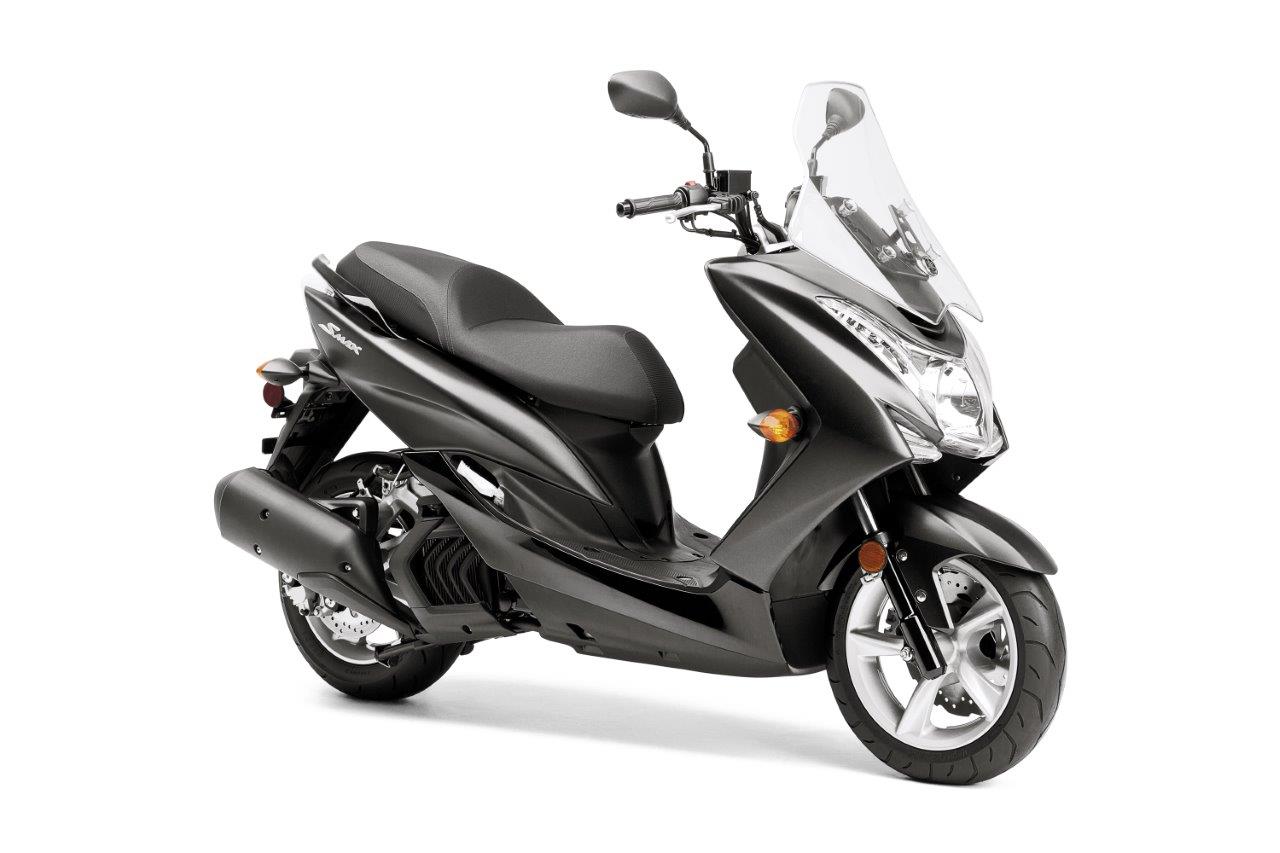

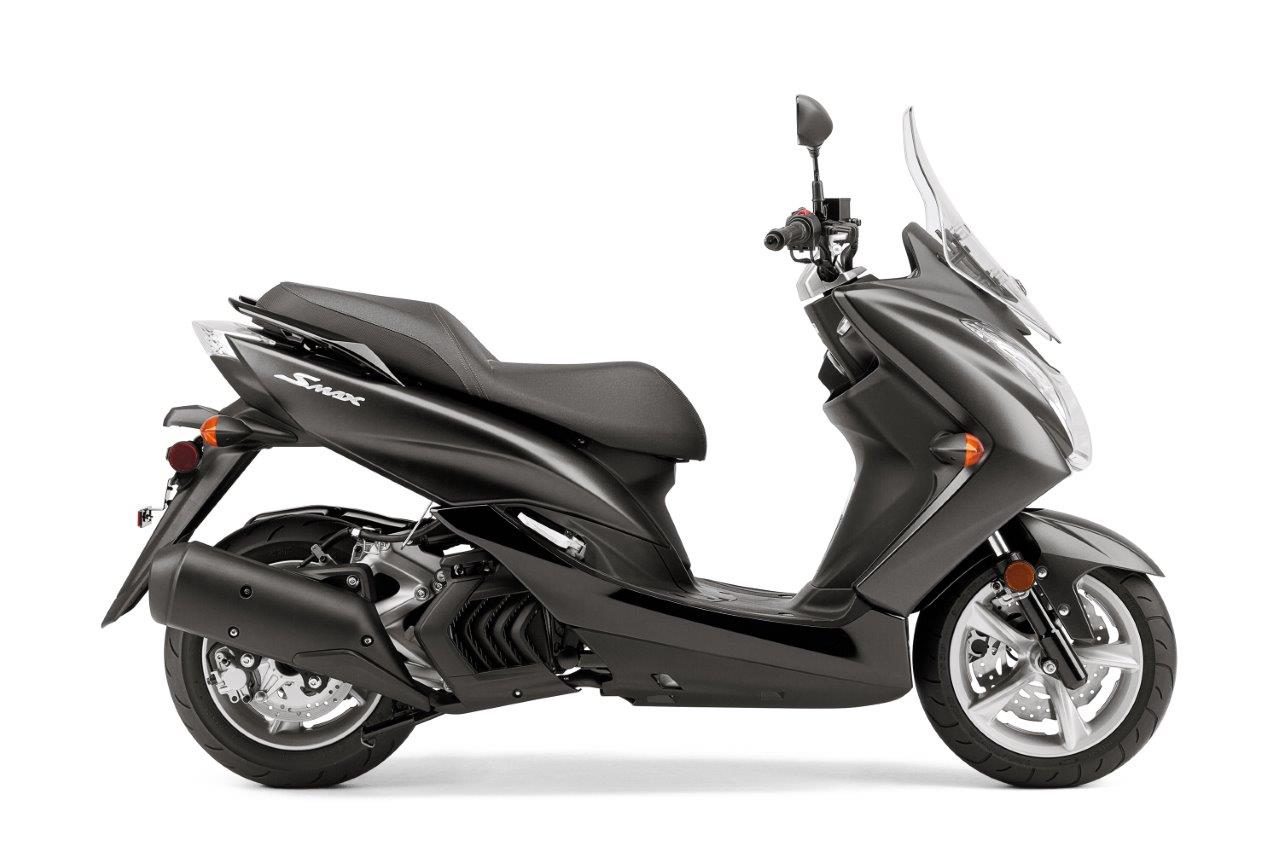

2020 Yamaha SMAX Photos

2020 Yamaha SMAX
2020 Yamaha SMAX
2020 Yamaha SMAX
2020 Yamaha SMAX

2020 Yamaha SMAX Videos

Yamaha Motorcycles Official Websites

Social Media Links

1 Comment

  1. Rod Malzahn
    July 4, 2020
    Reply

    What is the difference from S max XC155FGY and a S Max XC155FL
