2020 Triumph Tiger 800 XR Model Range

The 2020 Triumph Tiger 800 XR model range consists of the XR base model, the XRx and XRx Low, and the range topping XRt. The XR models are the more road and urban focused adventure bikes, however they are certainly still able to handle light off-road duty.

All models share the 800cc DOHC liquid-cooled inline triple that produces 95 HP and 58 lbs-ft of torque, passing through a 6 speed transmission.

The Tiger 800 XR model features a tubular steel trellis frame, with Showa upside down forks at the front and a Showa semi-adjustable rear monoshock for suspension. Front and rear brakes are Nissin, and have standard ABS paired with traction control. One of the best features is that the ergonomics are adjustable, with seat height, handlebar, brake, and clutch lever positions all being customizable.

The Tiger 800 XRx switches out the LCD panel of the XR for a 5 inch TFT panel. A Brembo monoblock brake replaces the Nissin, and a taller, 5 position adjustable windscreen is fitted. Handguards are also fitted as standard, along with heated grips. Cruise control is also available.

The Tiger 800 XRx Low features all the same items as the XRx, but has a 2 inch lower seat height at 30 inches, and bespoke suspension adjustments to make it comfortable.

The Tiger 800 XRt is the top of the line for the XR models, and features fully adjustable front and rear Showa suspension, LED lighting all around, heated seats, and an easy to use center stand.

Pricing for each 2020 Triumph Tiger 800 XR models are as follows:

  • 800 XR: $12,000 US / $13,600 CDN
  • 800 XRx and XRx Low: $13,800 US / $15,900 CDN
  • 800 XRt: $15,700 US / $18,400 CDN

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new Triumph Tiger 800 XR in one place.

2020 Triumph Tiger 800 XR / XRx / XRx Low / XRt


Model Overview

General Info

  • Price: $
  • Key Features:
    • LED Lighting
    • ABS
    • Fuel-injected

Key Specs

  • Engine type: 800 cc, Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
  • Power: 95 HP
  • Wet weight: 439 Lbs (199 kg)
  • Seat height: 31.88 in

2020 Triumph Tiger 800 XR / XRx / XRx Low / XRt


2020 Triumph Tiger 800 XR Specifications

From Triumph

ENGINE

Engine 800 cc, Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Power 95 HP
Bore x Stroke 74.5 mm x 61.9 mm
Compression Ratio 11.3:1
Fuel System Multipoint sequential electronic fuel injection
Starter Electric
Exhaust Stainless steel 3 into 1 header system, side mounted stainless steel muffler

DRIVETRAIN

Clutch Wet, multi-plate
Transmission 6 Speed
Final Drive O-ring chain

CHASSIS

Suspension Front Showa 1.69 in (43 mm) upside down forks, 7.09 in (180 mm) travel
Suspension Rear Showa monoshock with hydraulically adjustable preload, 6.69 in (170 mm) rear wheel travel
Brakes Front Twin 12 in (305 mm) floating discs, Nissin 2­piston sliding calipers, switchable ABS
Brakes Rear Single 10.04 in (255 mm) disc, Nissin single piston sliding caliper, switchable ABS
Tires Front 100/90­-19
Tires Rear
150/70 R17
Fuel Tank Capacity 5 US gal
Color

ELECTRICAL

Ignition
Spark Plugs
Headlight LED
Tail Light LED

DIMENSIONS

Overall Length
Width Handlebars 31.3 in (795 mm)
Height Without Mirror 53.15 in (1,350 mm)
Wheelbase 60.24 in (1,530 mm)
Trail 3.41 in (86.6 mm)
Seat Height 31.88 – 32.67 in (810 – 830 mm)
Dry Weight 439 Lbs (199 kg)

WARRANTY

Warranty
Extension

2020 Triumph Tiger 800 XR / XRx / XRx Low / XRt


2020 Triumph Tiger 800 XR Features

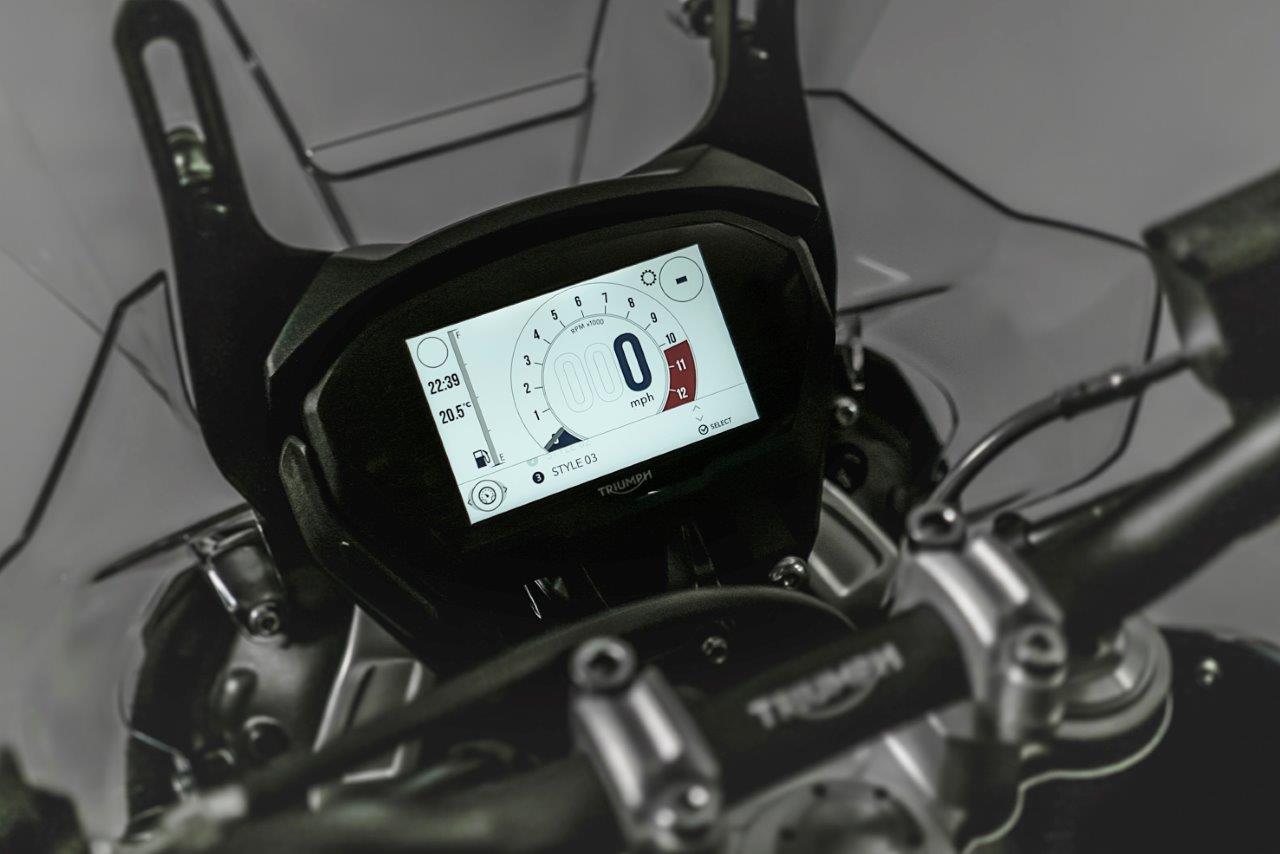

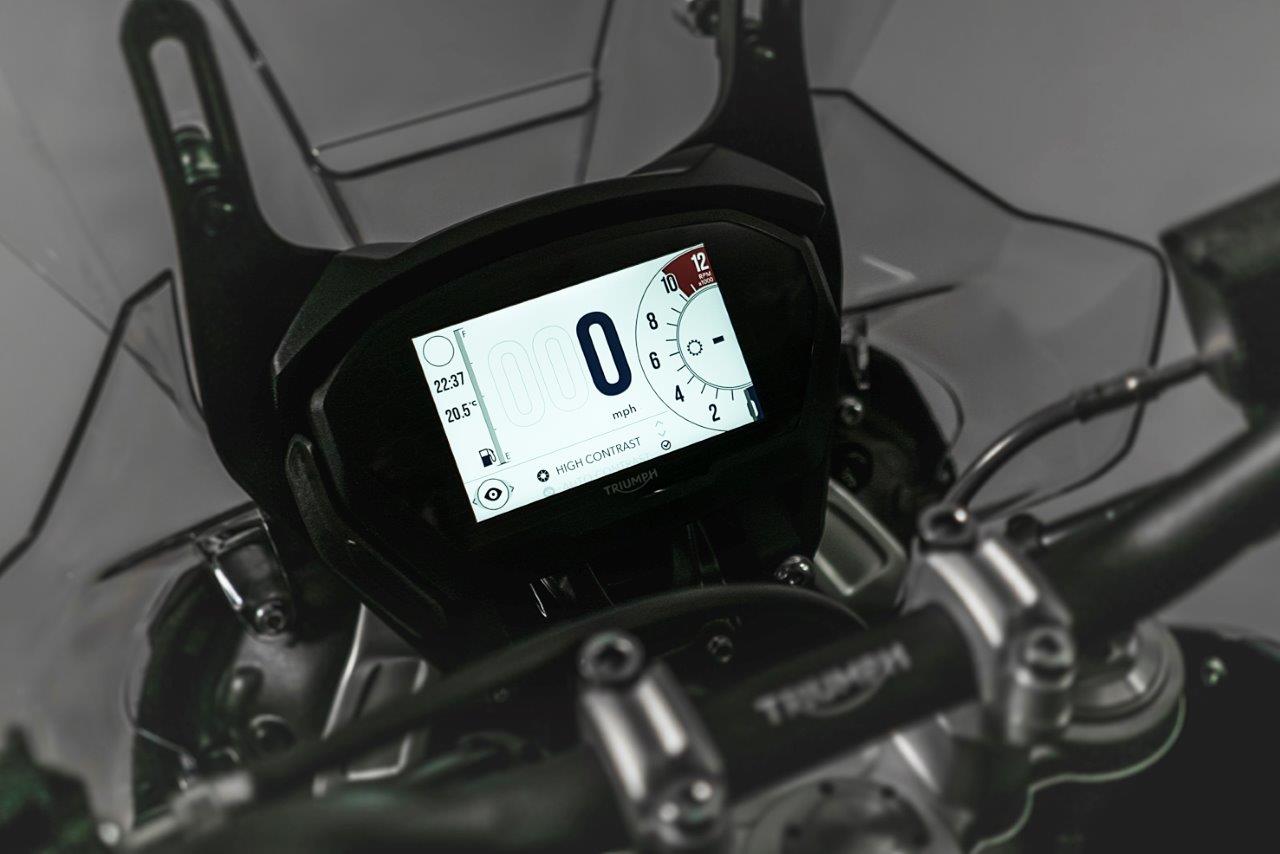

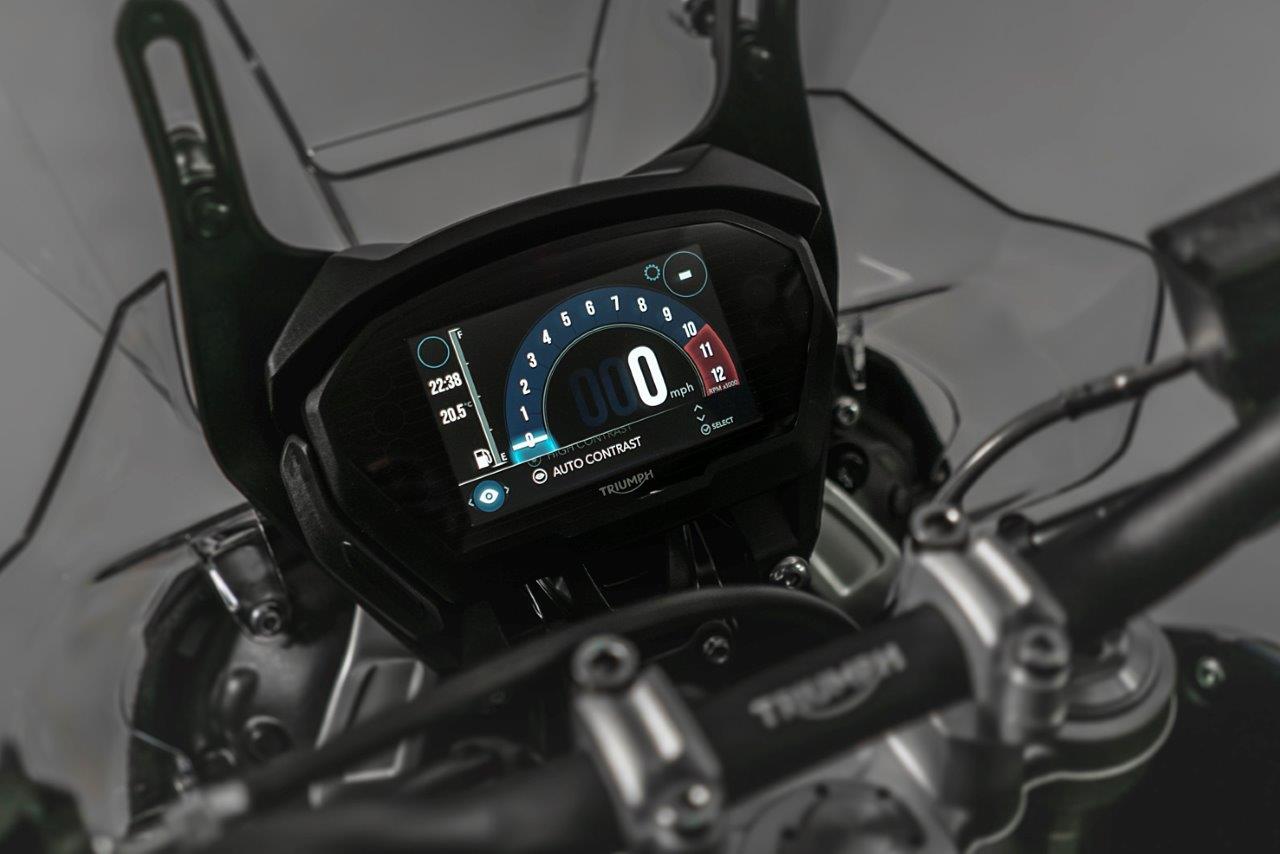

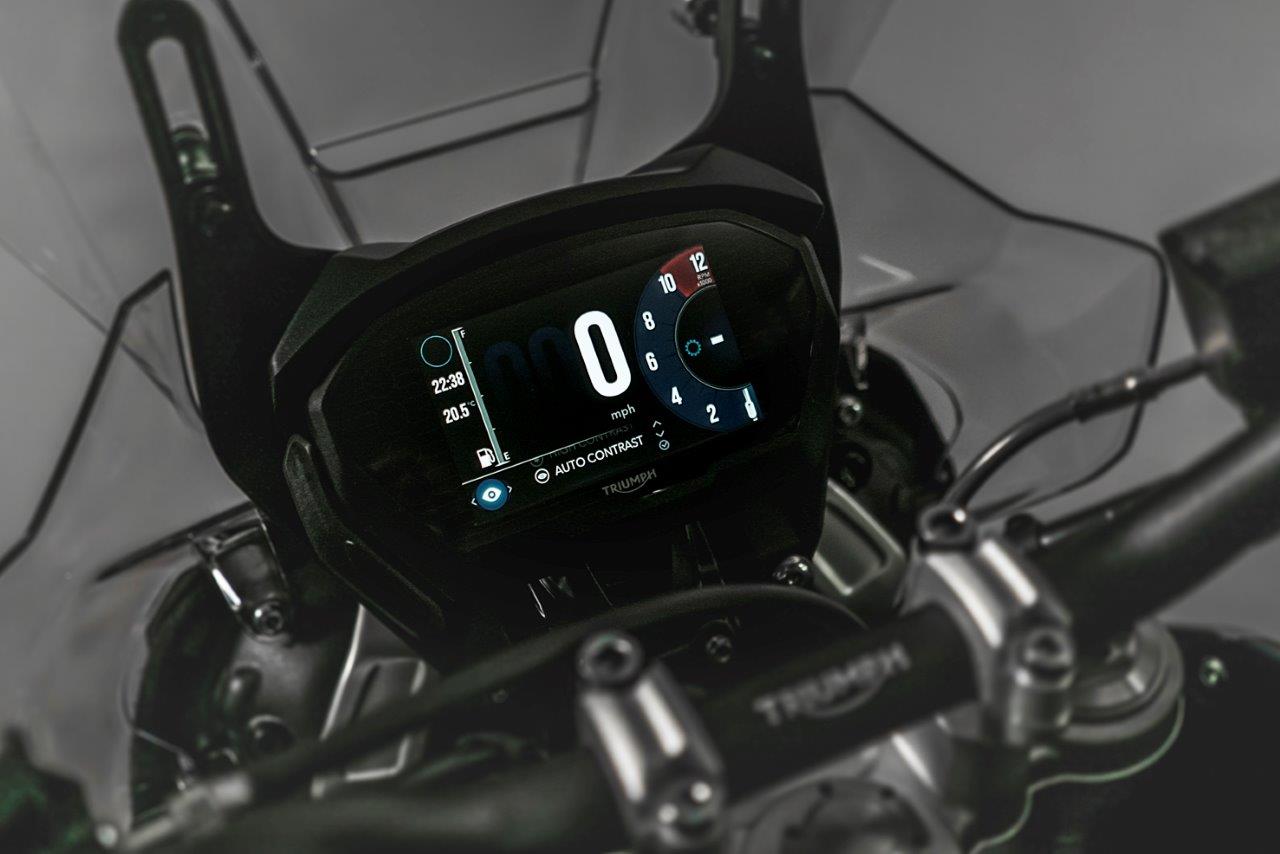

NEW FULL-COLOR TFT INSTRUMENTS & ILLUMINATED SWITCHGEAR

Higher spec Tiger 800s include new angle-adjustable, full color 5’’ TFT instruments for access to all rider-focused technology via new ergonomically designed switchcubes and 5-way joystick with premium illuminated backlit buttons.

MORE RESPONSIVE ENGINE & SHORTER RATIO FIRST GEAR

The thrilling new generation mass-optimized 800cc Triple engine delivers 94 HP with even more responsiveness and acceleration, and a new shorter ratio first gear delivers more low-speed traction and instant responsiveness.

UP TO SIX RIDING MODES, INCLUDING NEW ‘OFF-ROAD PRO’ MODE

To suit every type of environment and riding style, riding modes include: ‘Road’, ‘Rain’, ‘Off-Road’, ‘Sport’, ‘Rider programmable’ and an all-new ‘Off-Road Pro’ mode for advanced off-road fun.

NEW SIGNATURE LED LIGHTING

LED lights and fog lights are included on high specification models, as well as Triumph’s signature Daytime Running Light (DRL) system for maximum safety and minimal maintenance.

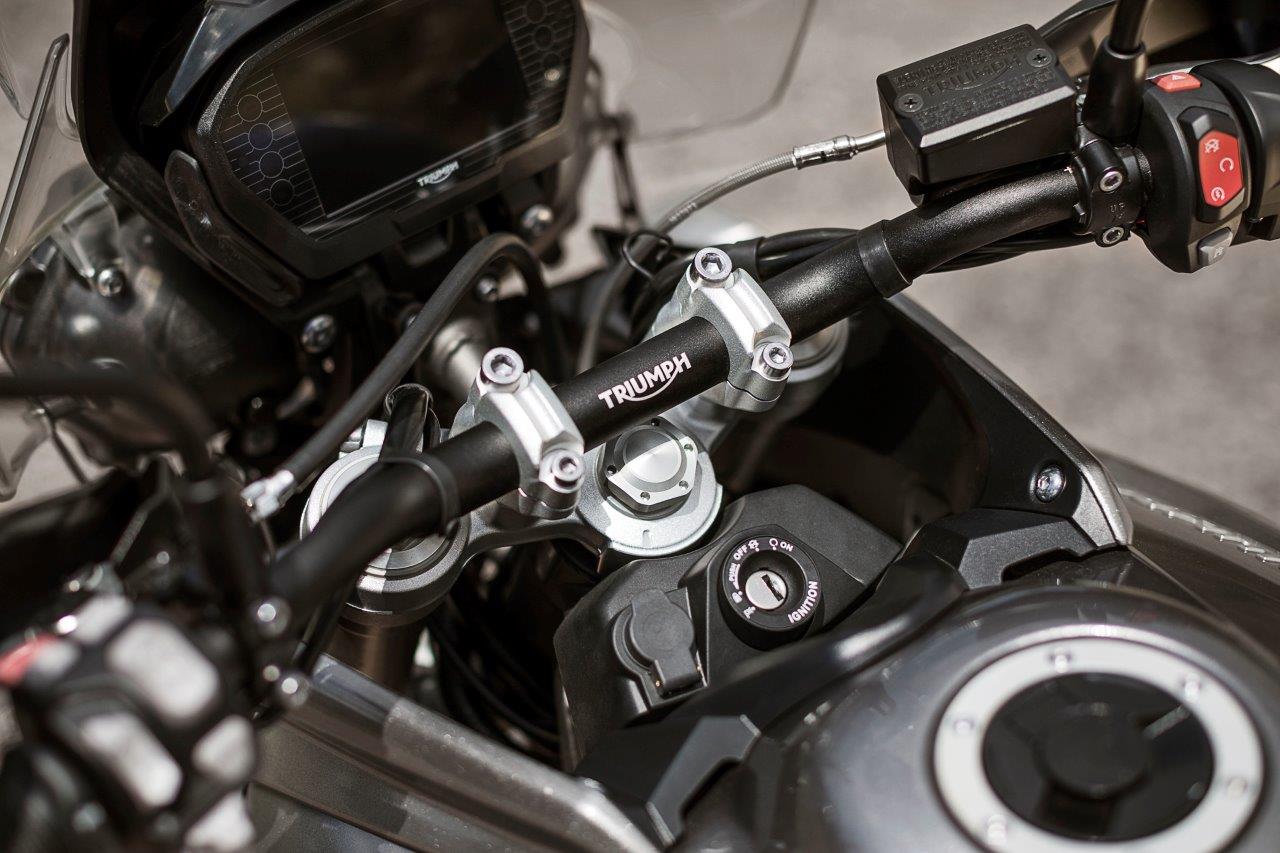

ENHANCED RIDER ERGONOMICS

Incorporating a new seat compound with extra foam & 3D-net technology, and revised handlebar geometry to suit a wider range of riders gaining a more commanding riding position and enhanced long distance comfort.

NEW FIVE-POSITION ADJUSTABLE SCREEN

For superior wind protection the mid and top specification Tigers come with an all-new five-position adjustable screen, and new aero diffusers delivering greater rider and pillion comfort.

NEW BREMBO FRONT BRAKES

High specification Brembo front brakes now come as standard on the mid and top spec Tigers, bringing premium braking capability off-road and on.

HIGH SPECIFICATION SUSPENSION AND RIDER SYSTEMS

Showa suspension on the XR models (including new adjustable set-up on the top spec XRT), off-road focused WP long travel suspension on XC models and switchable ABS and traction control as standard.

EVEN MORE TIGER STYLE

More premium bodywork and the highest-ever level of finish and detailing gives each Tiger 800 a more dynamic stance that reflects the road and off-road bias of each model.

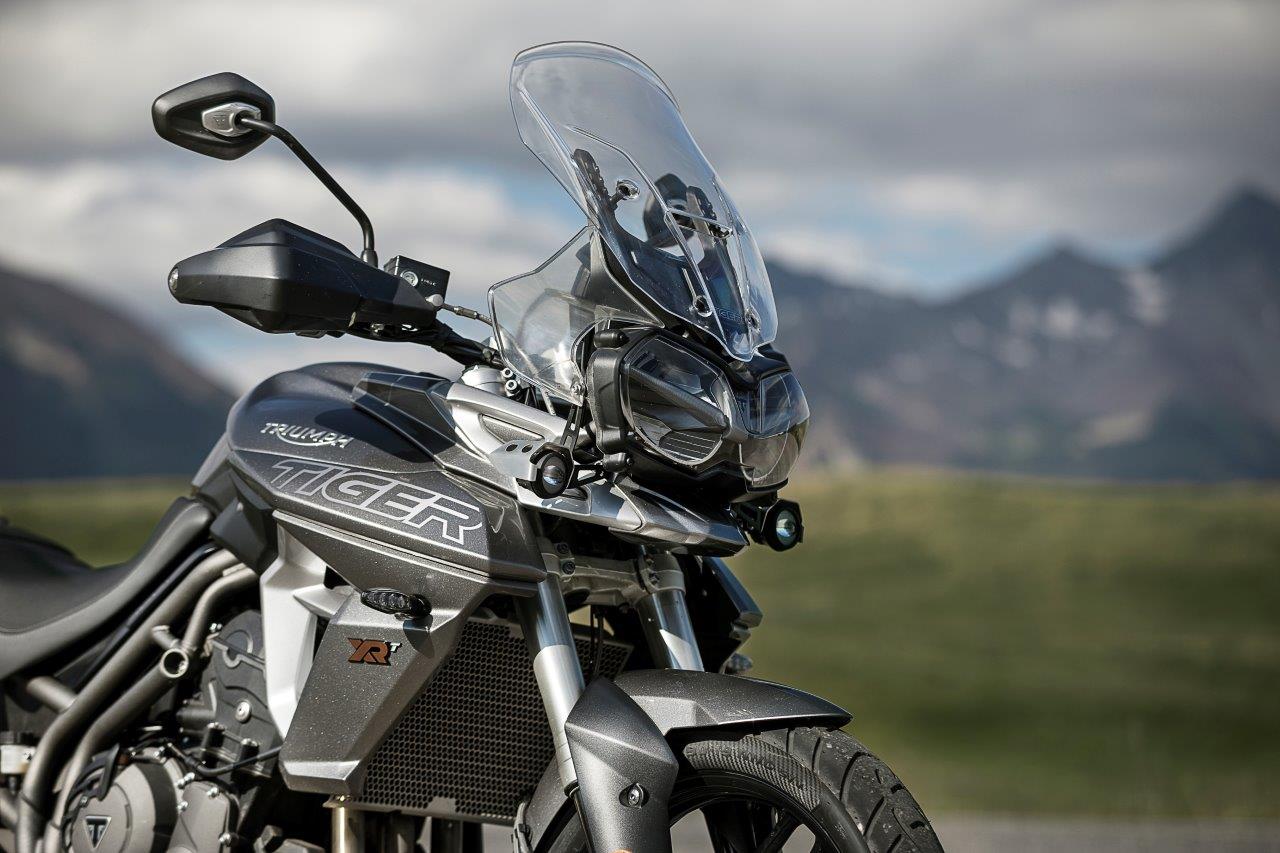

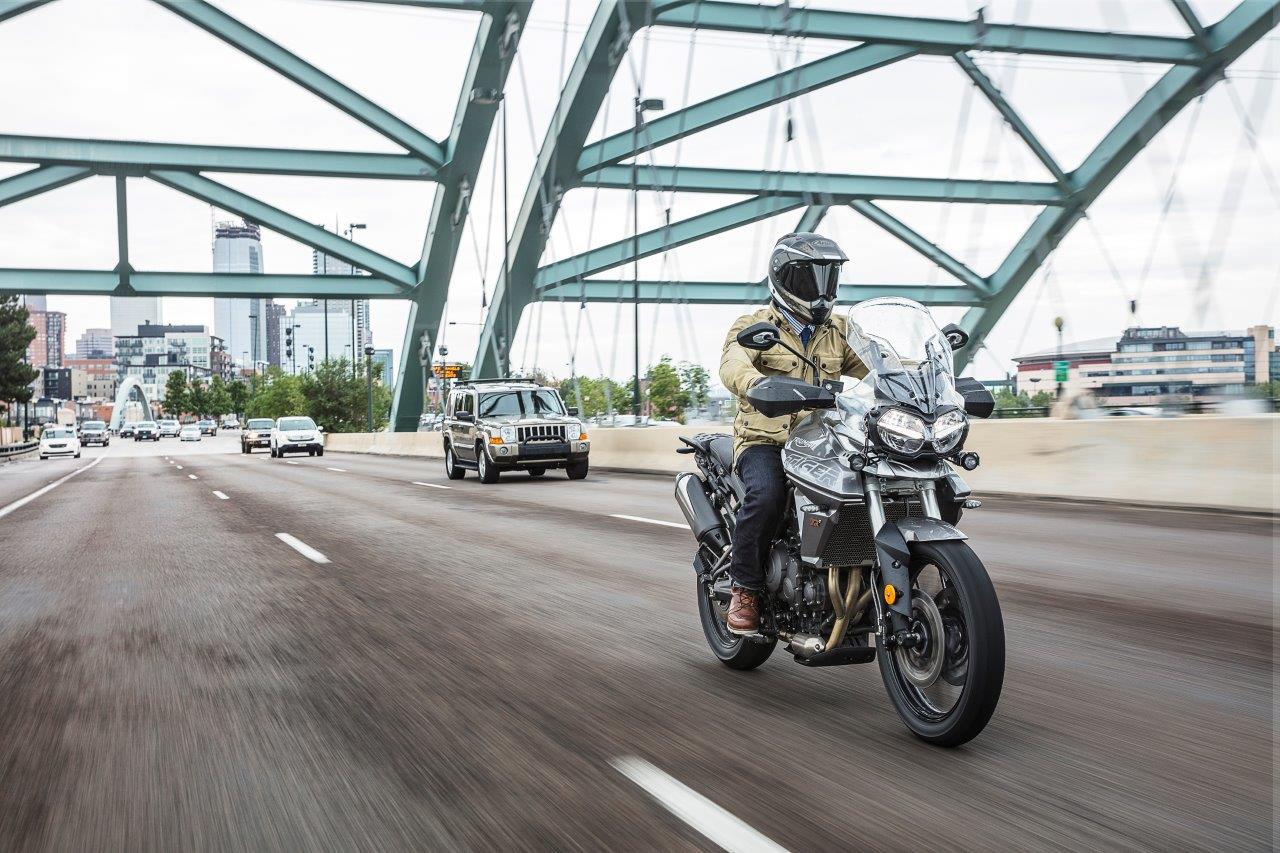

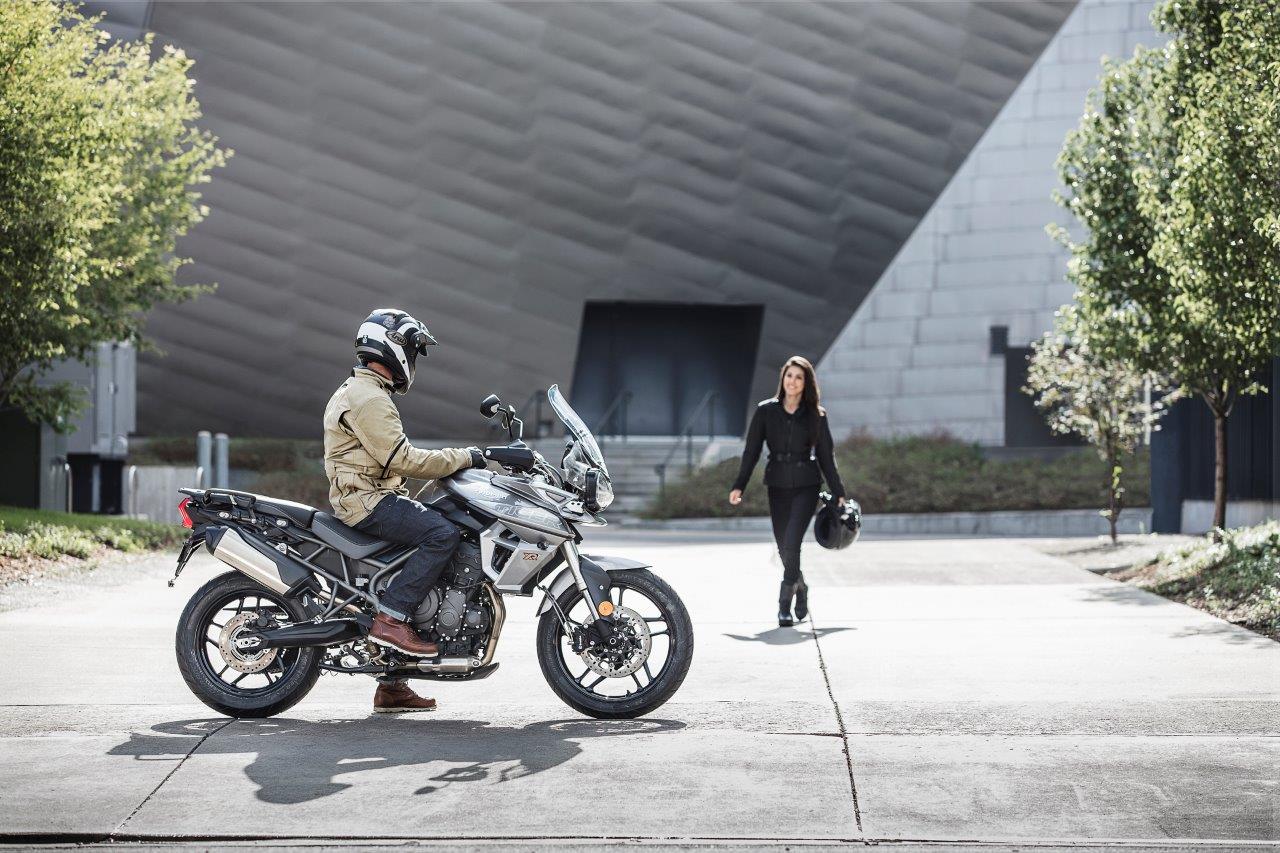

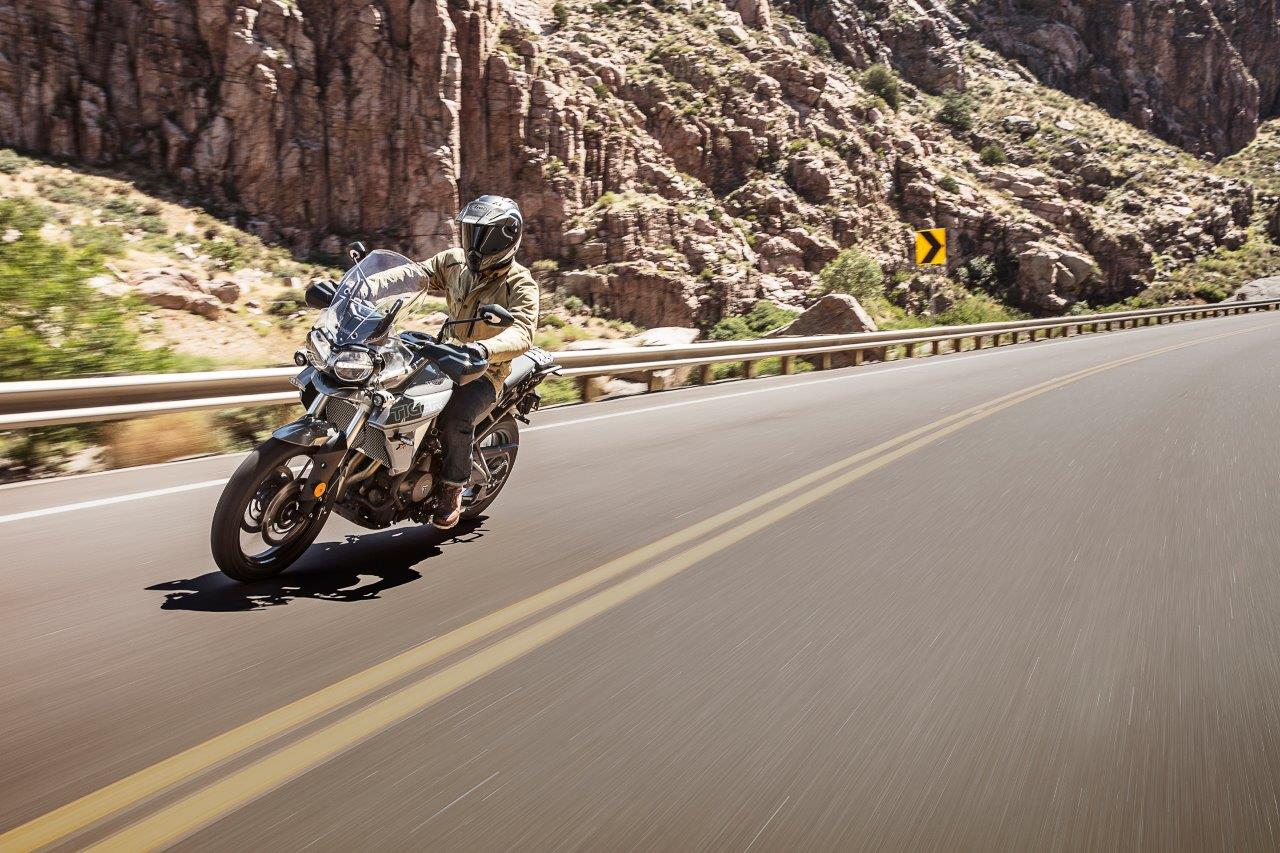

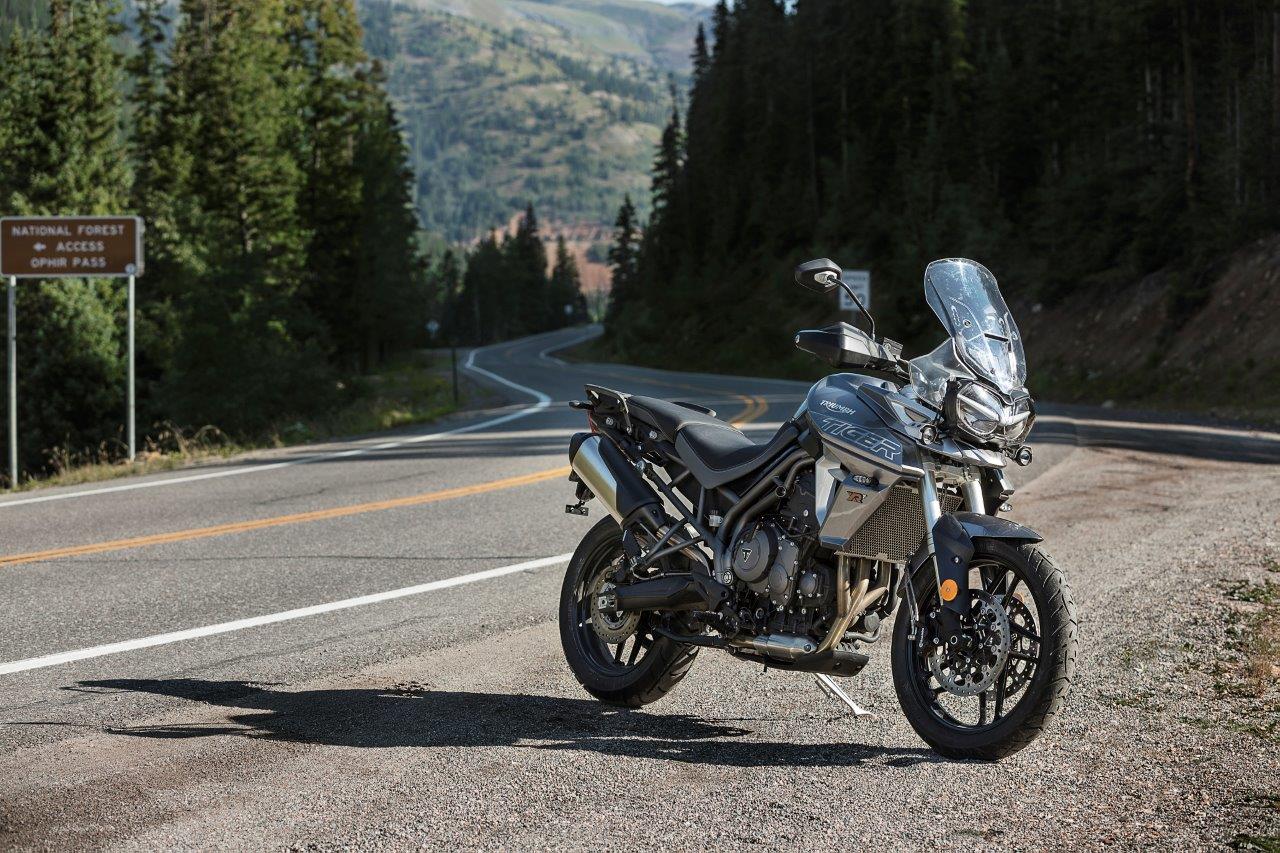

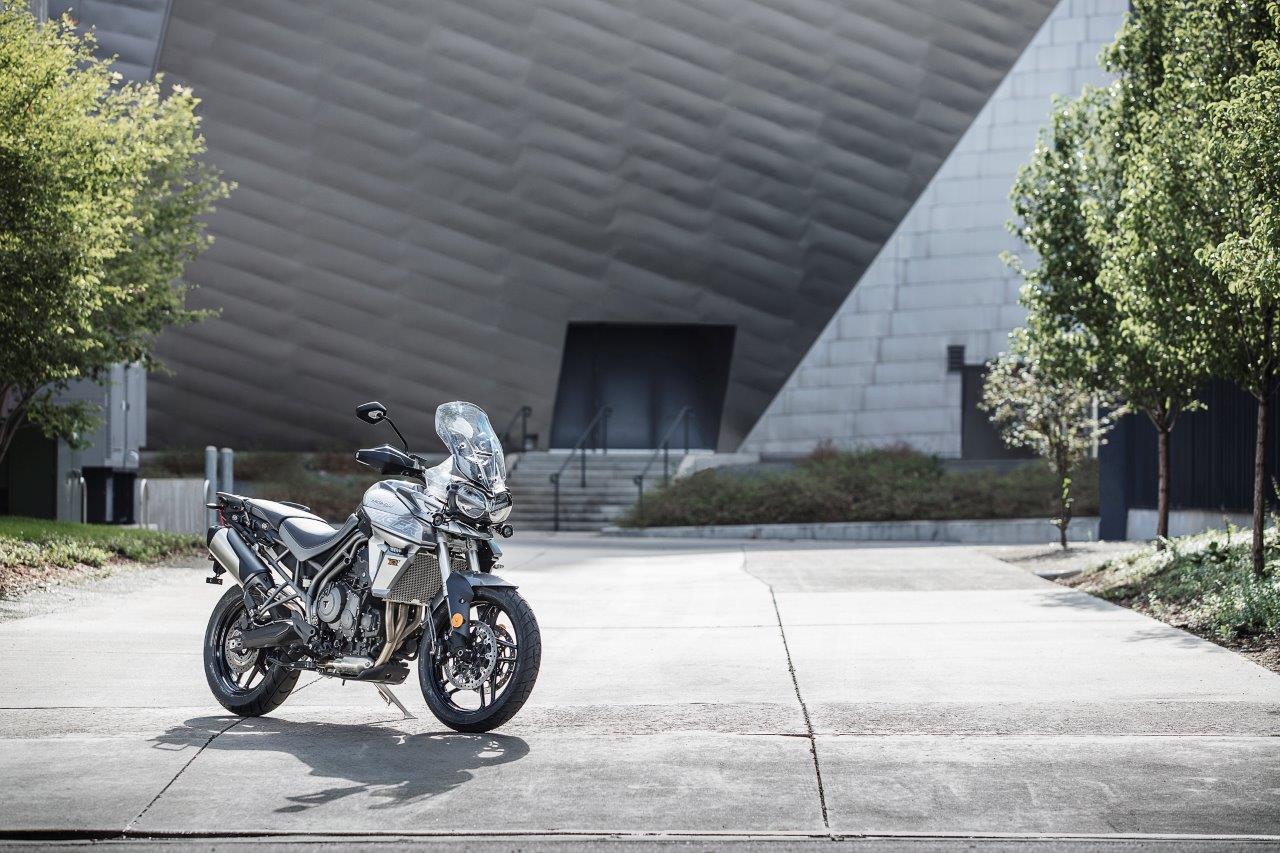

2020 Triumph Tiger 800 XR Photos


2020 Triumph Tiger 800 XR Videos
