The 2020 Harley-Davidson Roadster takes the Sportster like to its pinnacle. The bike is the sportiest-looking of the lineup. The Roadster is the most badass-looking of the Sportster line, too. There’s not a bike in Harley’s lineup that can compete with the Roadster.

The Roadster gets a good looking V-twin engine with a displacement of 1,200cc. The V-twin is air-cooled and sounds like the classic Harley you expect. It’s Harley’s tried and true Evolution motor but slightly up-tuned. The engine is mated to a five-speed manual transmission and it makes 67 hp and 76 lb-ft of torque.

The Roadster offers a lot of what the Forty-Eight and Iron 1200 do but with a more aggressive riding position and style. It’s not the most powerful motorcycle out there, but it is still one you shouldn’t overlook. The bike has a starting price of $11,499.

The motorcycle is available in three colors: Vivid Black, Barracuda Silver, and Billiard Blue.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new Harley-Davidson Roadster in one place.

Model Overview

General Info

Price: $ 11,499
Key Features:
- Evolution® Engine
- ABS
- LED Lighting

Key Specs

Engine type: 1200cc, Air-cooled, Evolution®
Engine Torque: 76 lb-ft
Wet weight: 551 lbs
Seat height: 29.5

Key Competitors

2020 Harley-Davidson Roadster Specifications

From Harley-Davidson

ENGINE
Engine	1200cc, Air-cooled, Evolution®
Engine Torque	76 lb-ft
Bore x Stroke	3.5 in x 3.8 in.
Compression Ratio	10:01
Fuel System	Electronic Sequential Port Fuel Injection (ESPFI)
Starter	Electric
Lubrication
DRIVETRAIN
Clutch
Transmission	5-speed
Final Drive	Gear, 38/57 ratio
CHASSIS
Suspension Front	Black Offset, Split 5-Spoke Cast Aluminum
Suspension Rear	Black Offset, Split 5-Spoke Cast Aluminum
Brakes Front	Dual-piston front
Brakes Rear	Dual-piston rear
Tires Front	120/70R19 M/C
Tires Rear	150/70R18 M/C
Fuel Tank Capacity	12.4 L (3.3 US gal.)
Color	Vivid Black, Barracuda Silver, and Billiard Blue
ELECTRICAL
Ignition
Spark Plugs
Headlight	LED
Tail Light	LED
DIMENSIONS
Overall Length	86 in (2,185 mm)
Overall Width
Overall Height
Wheelbase	59.3 in (1,505 mm)
Ground Clearance	5.9 in (150 mm)
Seat Height	29.5 in (750 mm)
Curb Weight	551 lbs (249 kg)
WARRANTY
Warranty
Extension

2020 Harley-Davidson Roadster Features

An iconic V-Twin engine that is renowned for its massive low-end torque and soul-satisfying sound. Lightweight aluminium heads and cylinders improve air-cooling efficiency.

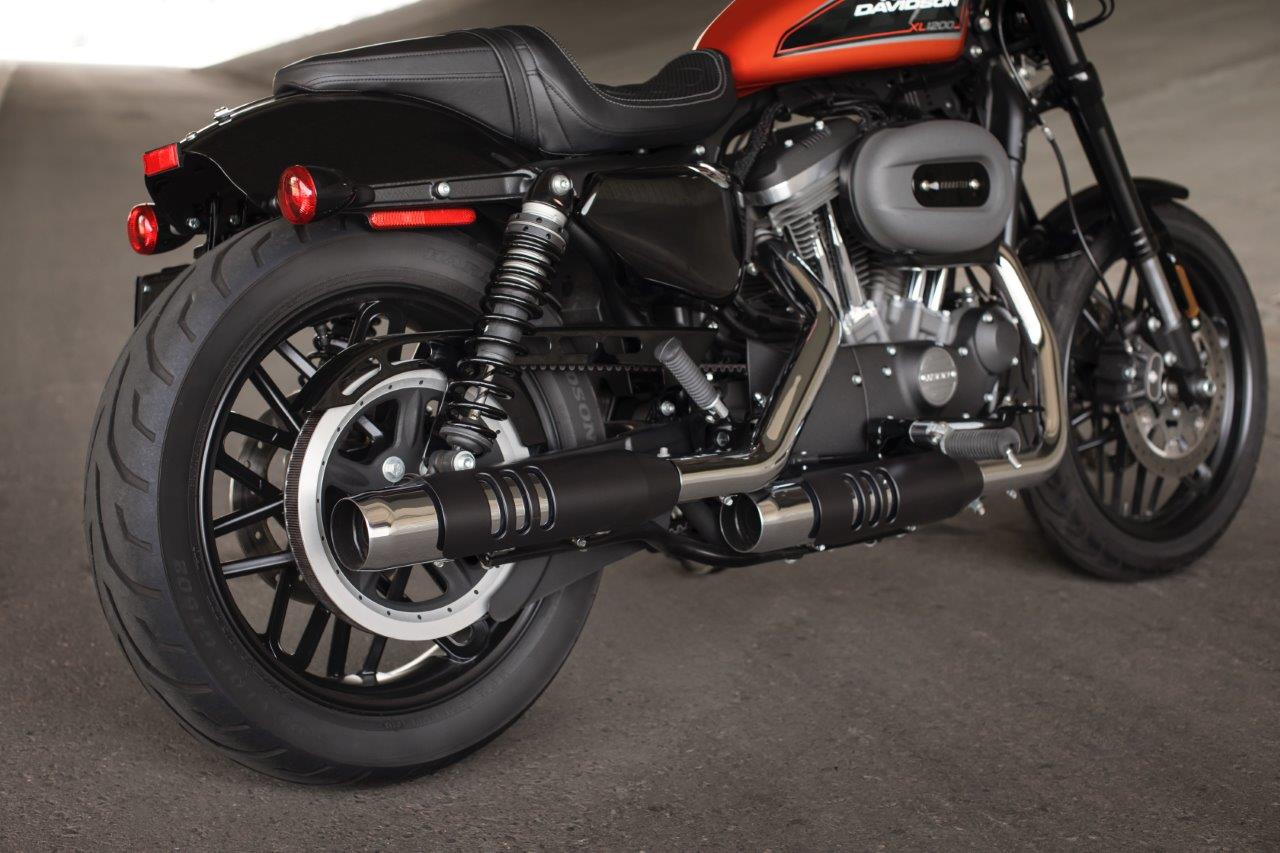

There’s plenty of black to bring a dark edge to the garage-built look of the Roadster™ motorcycle. The mirrors, belt guard and headlamp are black. The oval air cleaner has a black insert. There are slotted black exhaust shields and a blacked-out powertrain.

You get the performance, and the look and feel of slammed handlebars that put you in an aggressive riding position. The gauge includes a speedometer and tach so you can keep track of what’s going on in your power plant.

The 43mm front suspension with inverted forks features cartridge damping and the brawny look of massive new triple clamps. They’ll keep your rubber on the road when the pavement gets rough.

Dual disc front brakes with floating rotors so you can be more confident in your stopping with all that muscle behind you.

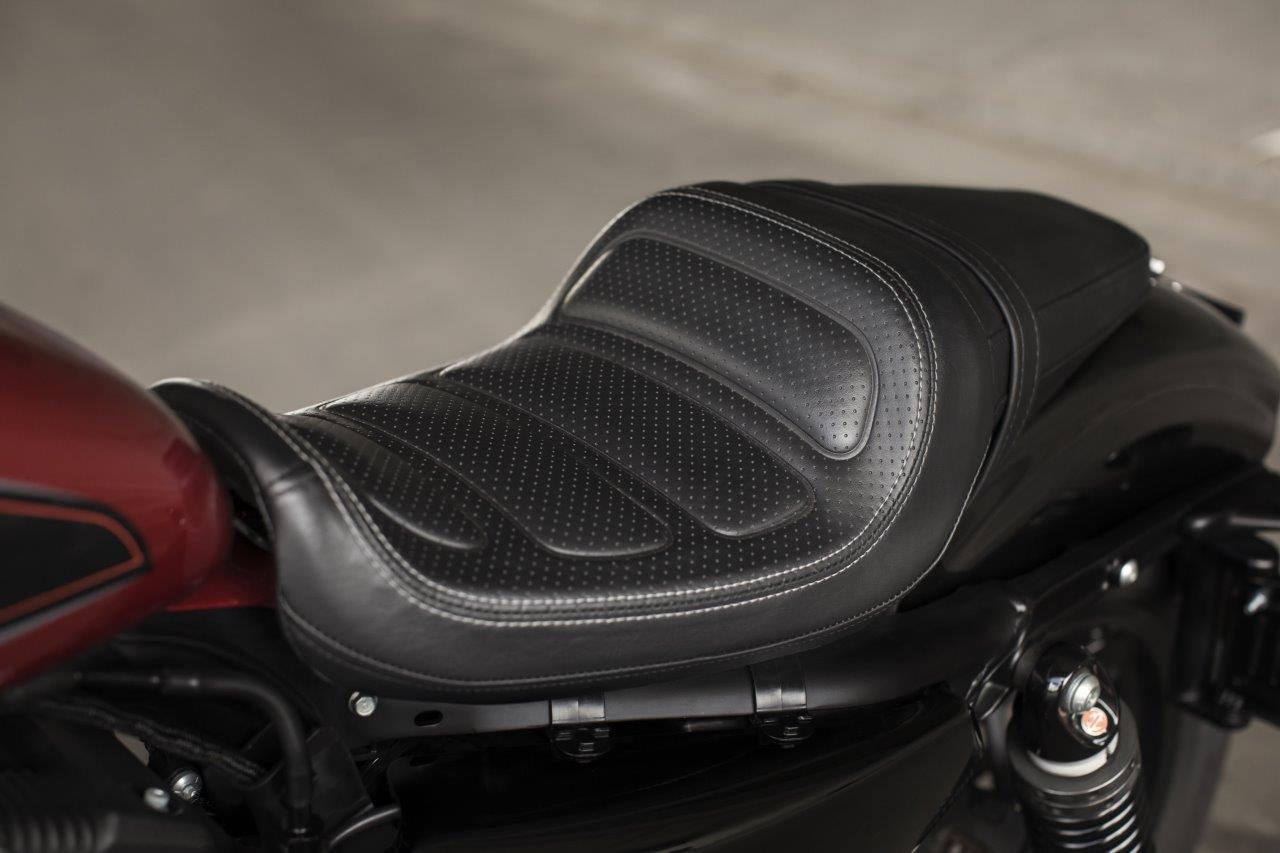

The optimal combination of comfort and custom style. It’s a low profile, two-up seat with a nice, deep scoop to keep you firmly planted under acceleration, and it puts you just 29.5 inches off the ground for a low center of gravity and confident handling.

19-inch front and 18-inch rear wheels that give the bike a custom look, easy-steering and a better power to weight ratio.
