The 2020 Harley-Davidson Low Rider S utilizes the Softail design to make a performance cruiser that looks blacked out and fantastic. The Low Rider S features a small fly screen, slightly taller handlebars than some of the other Softail models, and the venerable Milwaukee-Eight 114 engine.

The Low Rider S’s engine is an air-cooled V-twin that has a displacement of 1,868cc. The engine is mated to a six-speed manual transmission and it makes 100 hp and 119 lb-ft of torque.

The Low Rider S is one of the most unique Softail designs in Harley’s lineup. The Softail design is complex but the Low Rider S brings something that only the Dyna Low Rider S, which is no longer in the lineup can bring. It’s a unique bike that should satisfy the folks who miss the Dyna line. The bike has a starting price of $17,999.

The motorcycle is available in two colors: Vivid Black and Barracuda Silver.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new Harley-Davidson Low Rider S in one place.

Model Overview

General Info

Price: $ 17,999
Key Features:
- Classic Chrome
- Milwaukee-Eight® Engine
- LED Lighting

Key Specs

Engine type: 1,868cc, Milwaukee-Eight® 114, V-Twin
Engine Torque: 119 lb-ft
Wet weight: 650 lbs
Seat height: 26.5

Key Competitors

2020 Harley-Davidson Low Rider S Specifications

From Harley-Davidson

ENGINE
Engine	1,868, Milwaukee-Eight® 114, V-Twin
Engine Torque	119 lb-ft
Bore x Stroke	4.016 in x 4.5 in.
Compression Ratio	10.5:1
Fuel System	Electronic Sequential Port Fuel Injection (ESPFI)
Starter	Electric
Lubrication
DRIVETRAIN
Clutch
Transmission	6-speed
Final Drive	Gear, 34/46 ratio
CHASSIS
Suspension Front	Dark bronze, Radiate cast aluminium wheel
Suspension Rear	Dark bronze, Radiate cast aluminium wheel
Brakes Front	4-piston fixed front
Brakes Rear	2-piston floating rear
Tires Front	110/90B19,62H,BW
Tires Rear	180/70B16,77H,BW
Fuel Tank Capacity	18.9 L (5 US gal.)
Color	Vivid Black and Barracuda Silver
ELECTRICAL
Ignition
Spark Plugs
Headlight	LED
Tail Light	LED
DIMENSIONS
Overall Length	92.7 in (2,355 mm)
Overall Width
Overall Height
Wheelbase	63.6 in (1,615 mm)
Ground Clearance	4.7 in (120 mm)
Seat Height	26.5 in (675 mm)
Curb Weight	650 lbs (294 kg)
WARRANTY
Warranty
Extension

2020 Harley-Davidson Low Rider S Features

Loads of torque for blasting off from stoplights, hitting entrance ramps, and rolling on the passing power. Pure sound with a soul-satisfying rumble.

The Low Rider® S model frame rake is reduced to 28 degrees from the 30 degree rake of the standard Low Rider® model, resulting in more responsive handling.

Inverted design stiffens the front end for improved response to steering input, and the single-cartridge internal technology responds quickly to inputs and keeps the front wheel planted for improved braking and handling performance.

The frame retains the classic Softail® lines, but its lightweight design and stiffness translate to a responsive ride unlike anything you’ve felt before.

Easily adjustable mono-shock rear suspension allows for dynamic cornering capability, quicker acceleration, and braking while preserving the hardtail look.

Blacked-out finishes, moto-style bars with 4-inch risers, and mini speed screen let everyone know that this machine wasn’t built for those who want to take the conventional route.

The defining element of the tall-bike style. The 1-inch diameter motocross-style handlebar is mounted on 4-inch risers to put you in an aggressive riding position.

Radiate Cast-Aluminum Wheels are finished in a matte dark bronze to complete its raw dark look.

Stronger braking performance with less lever effort than the single front disc brake on the standard Low Rider® model, and standard ABS (anti-lock braking system) for confident braking performance when conditions are less than ideal.

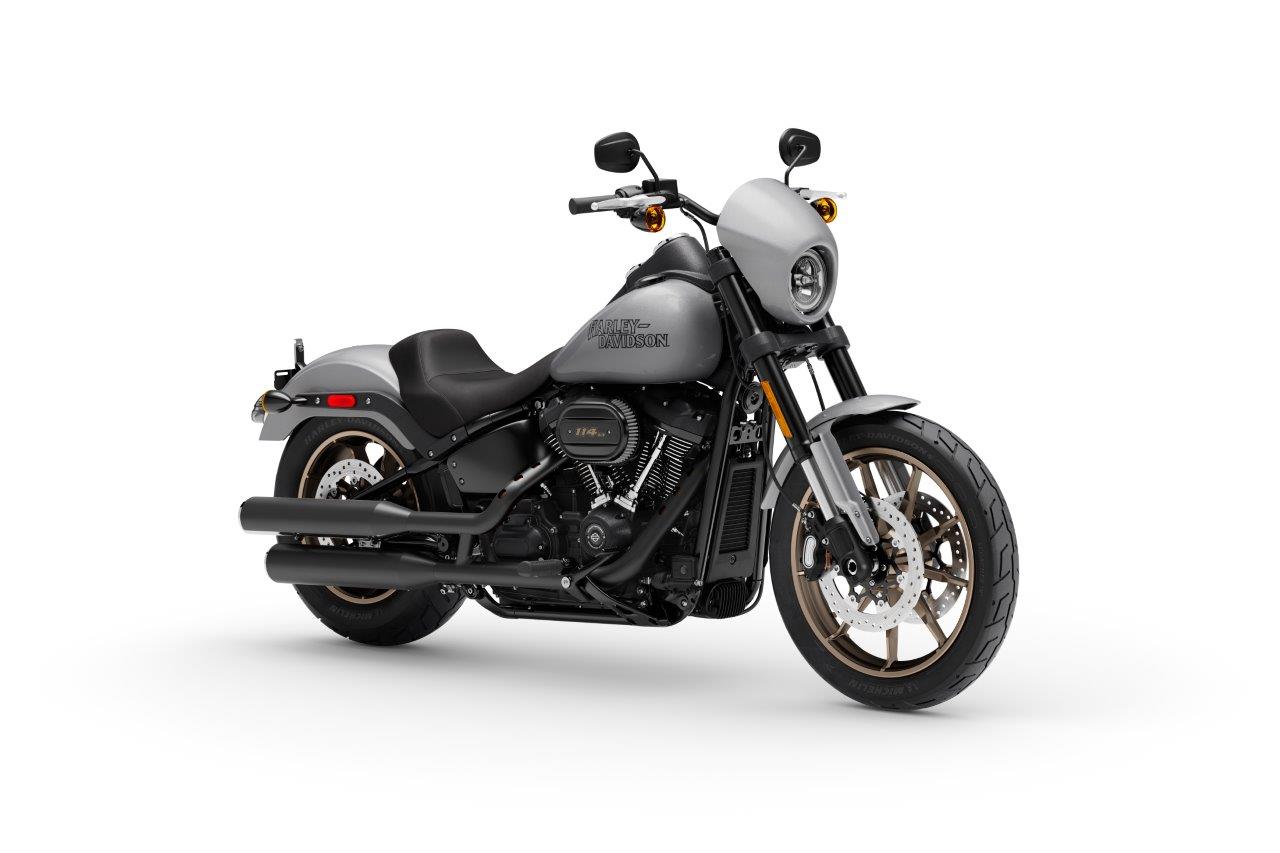

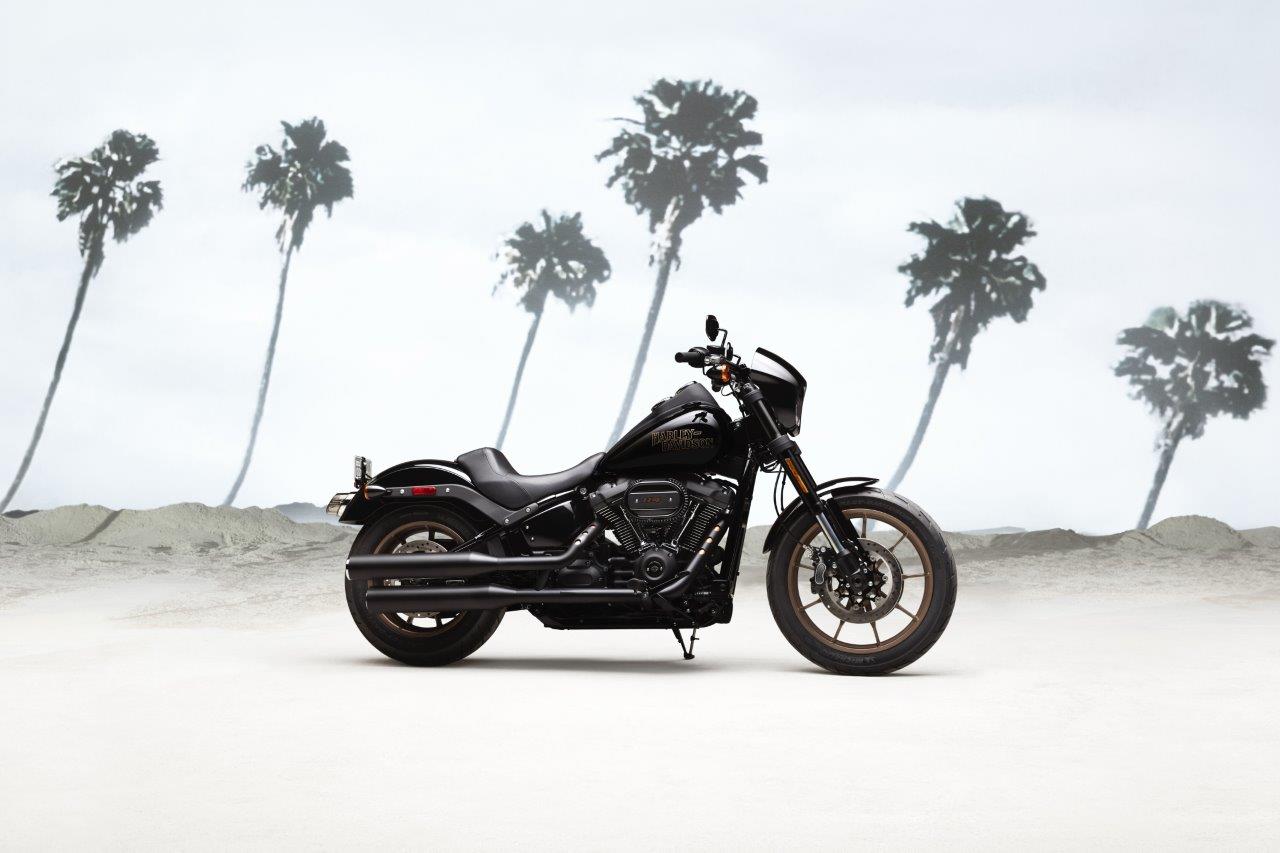

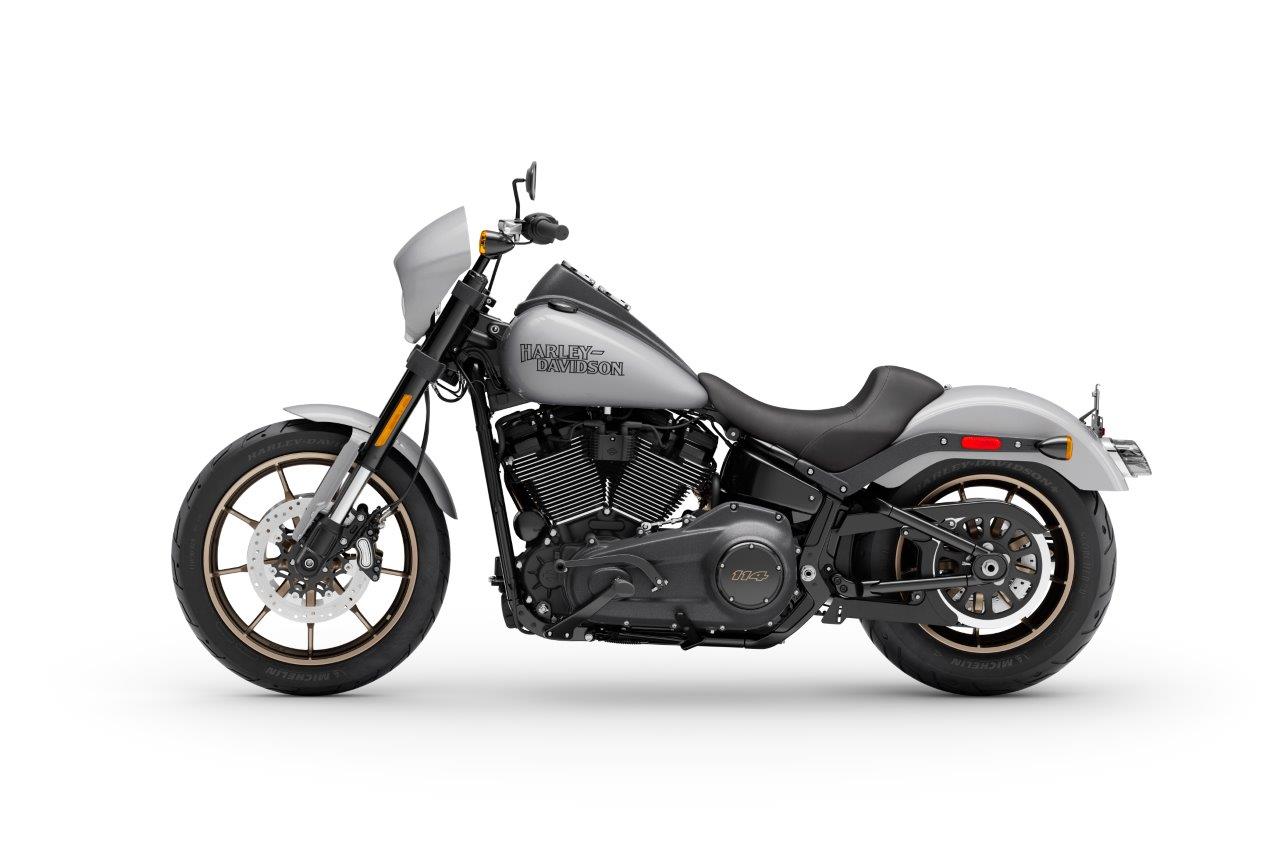

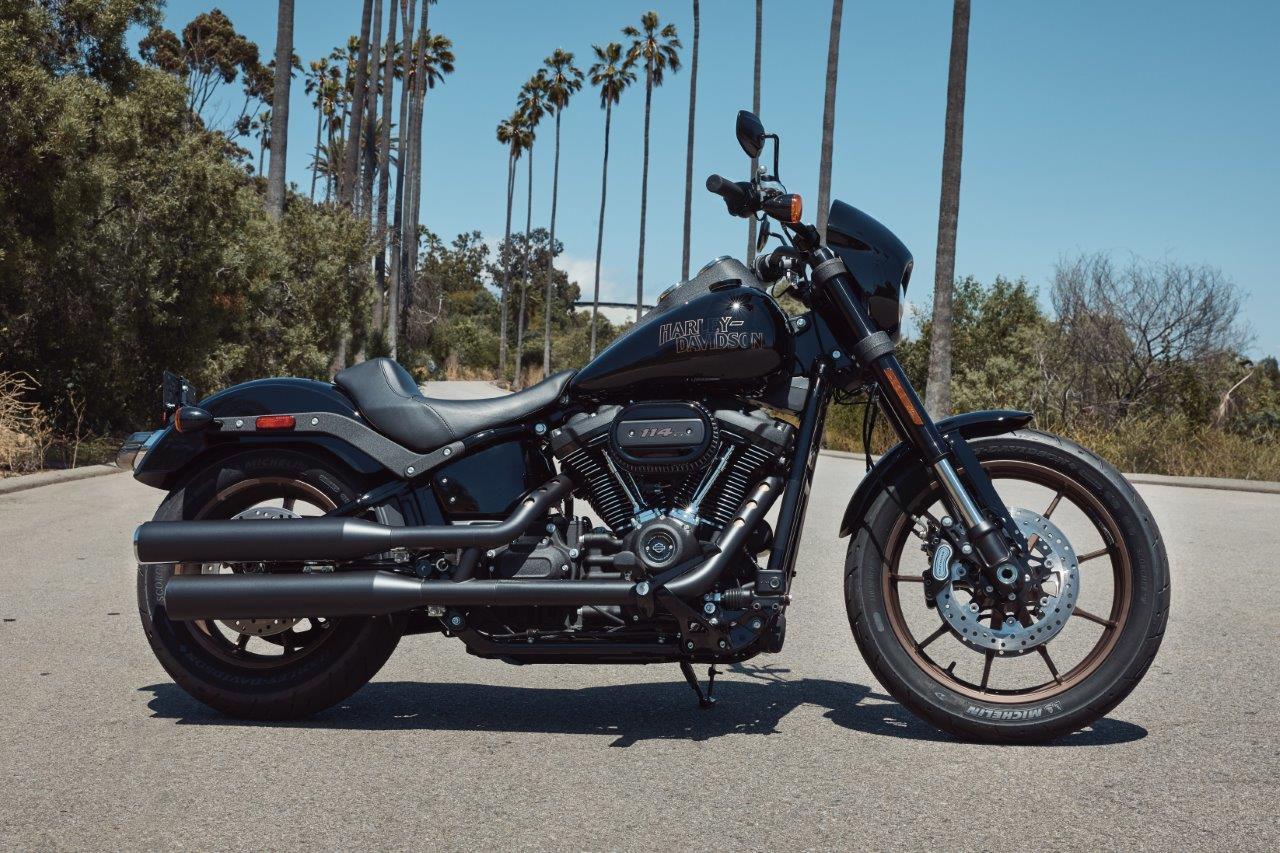

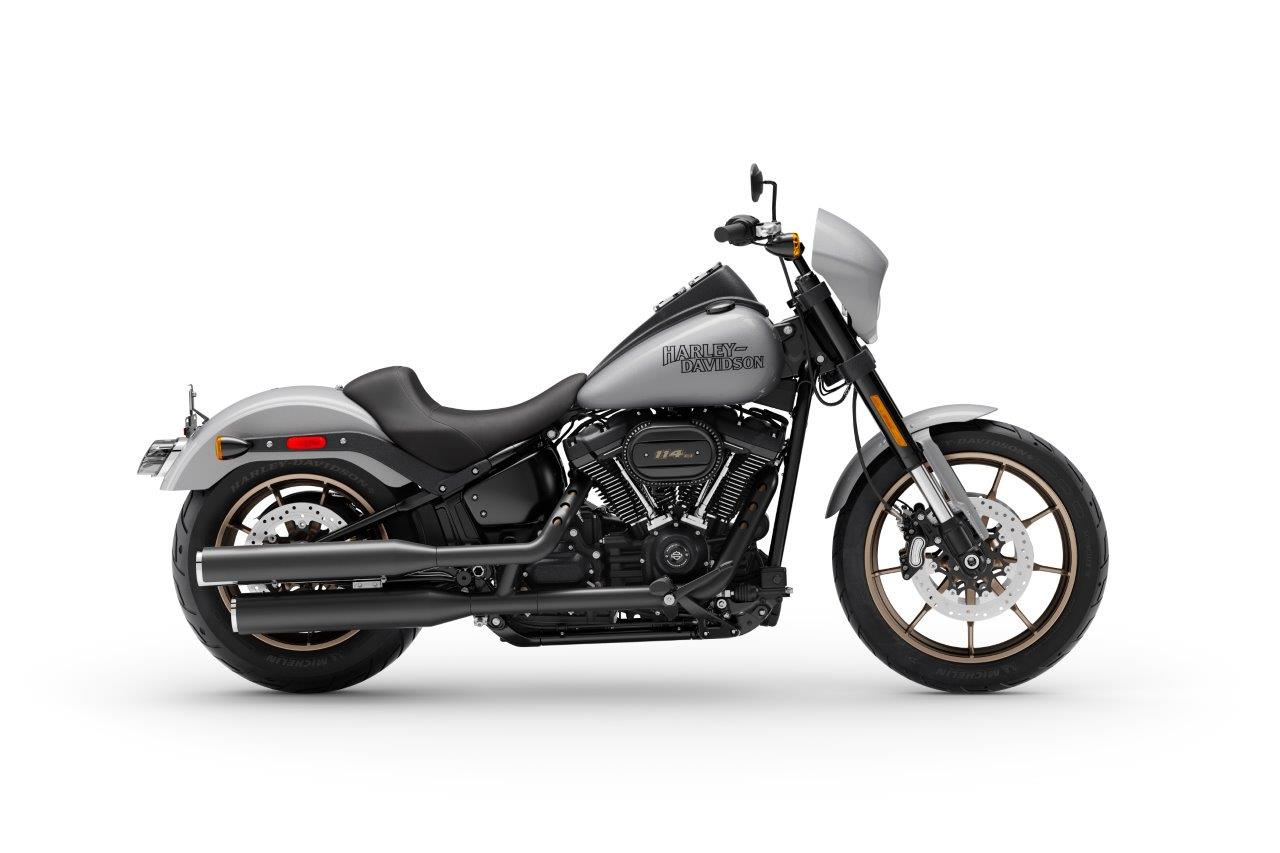

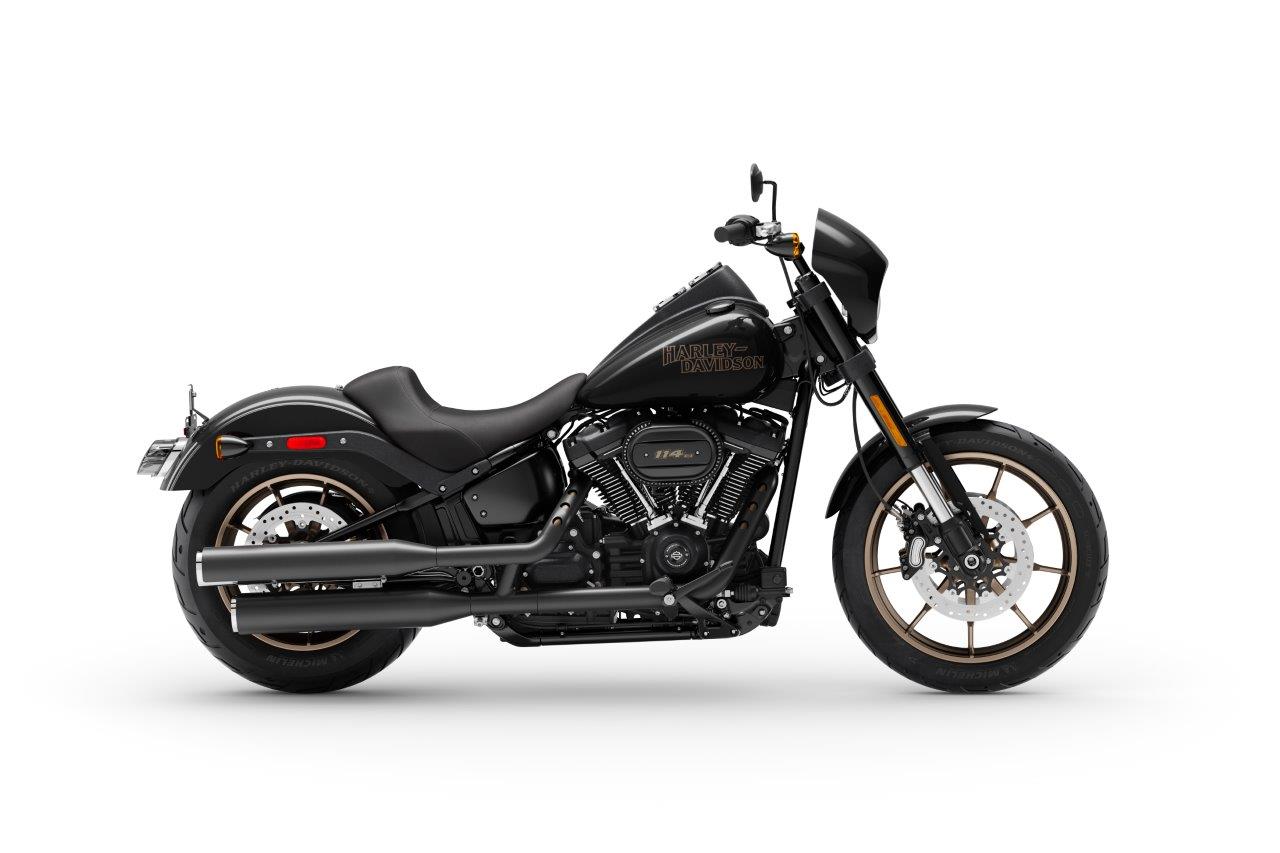

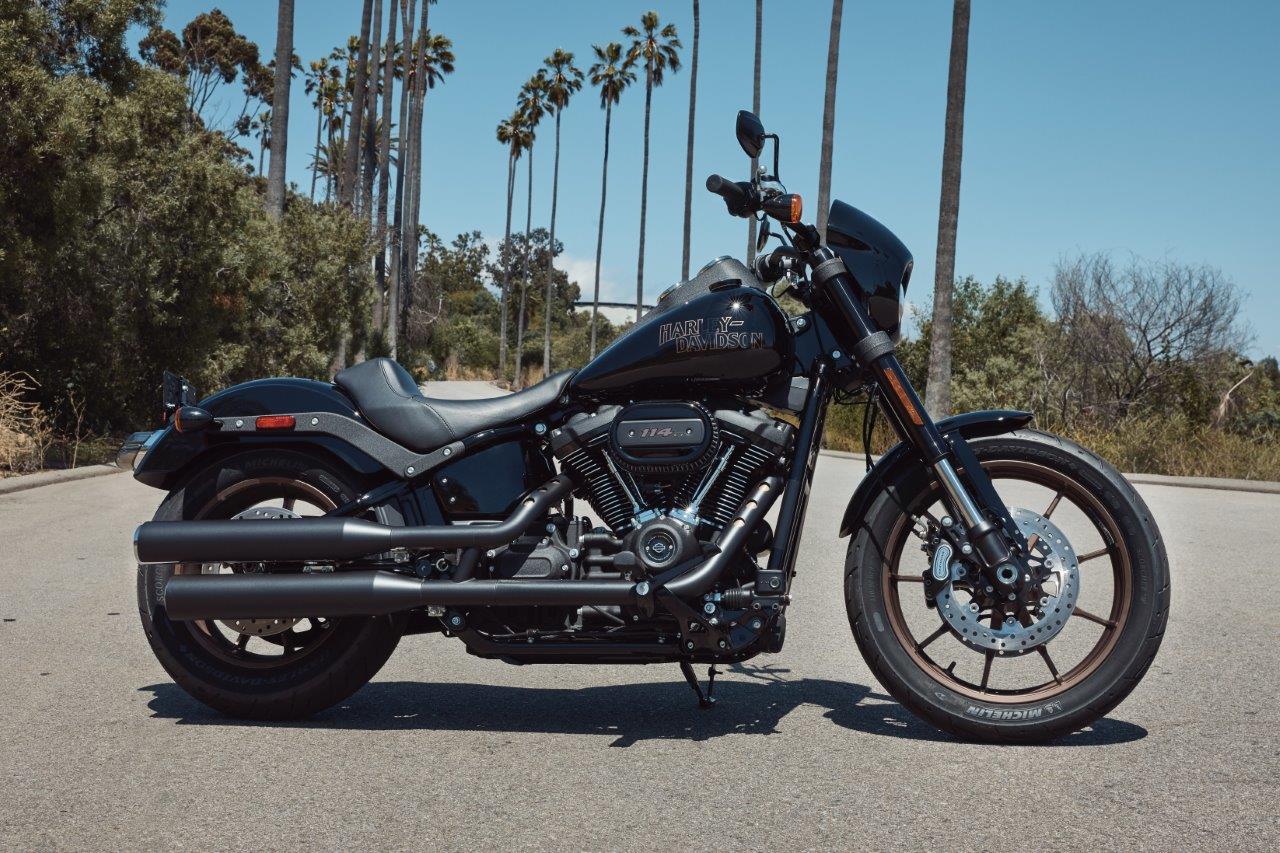

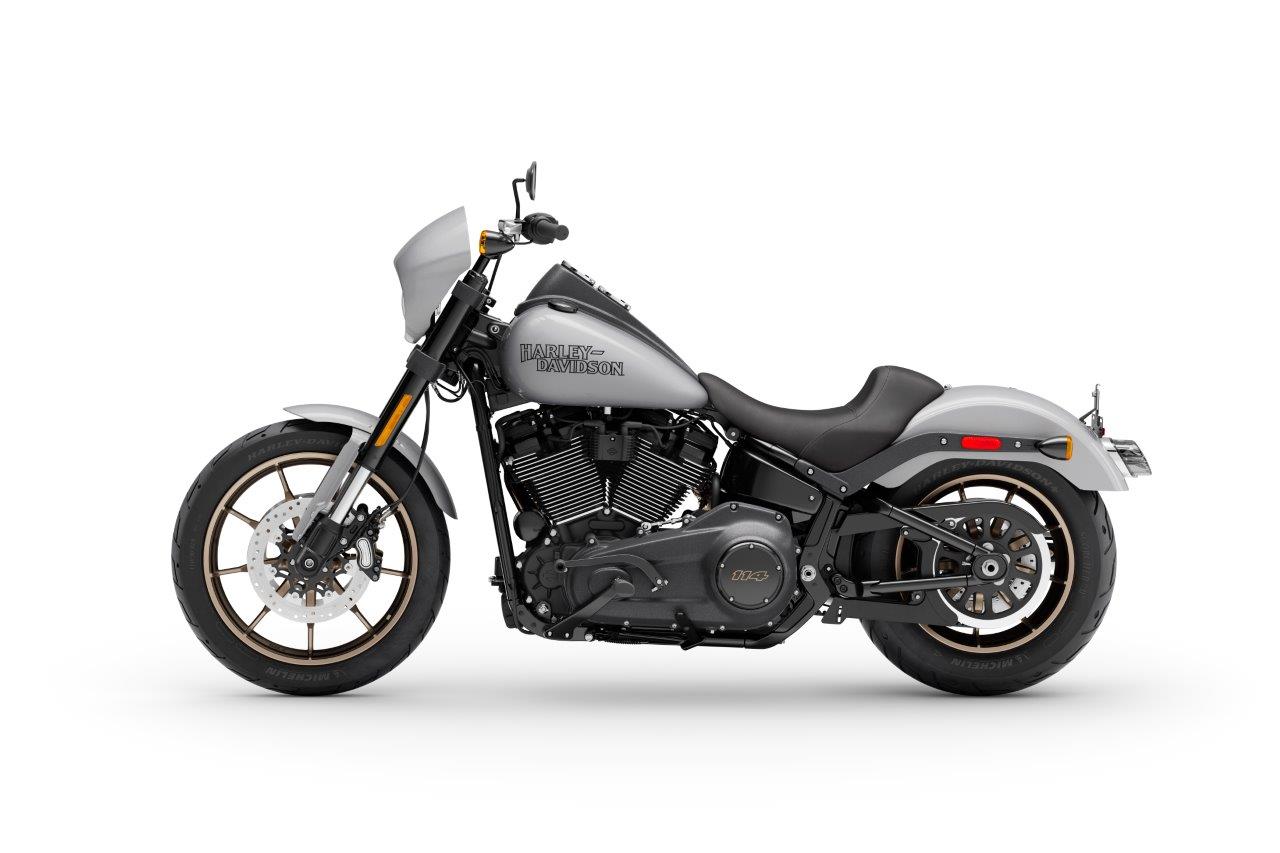

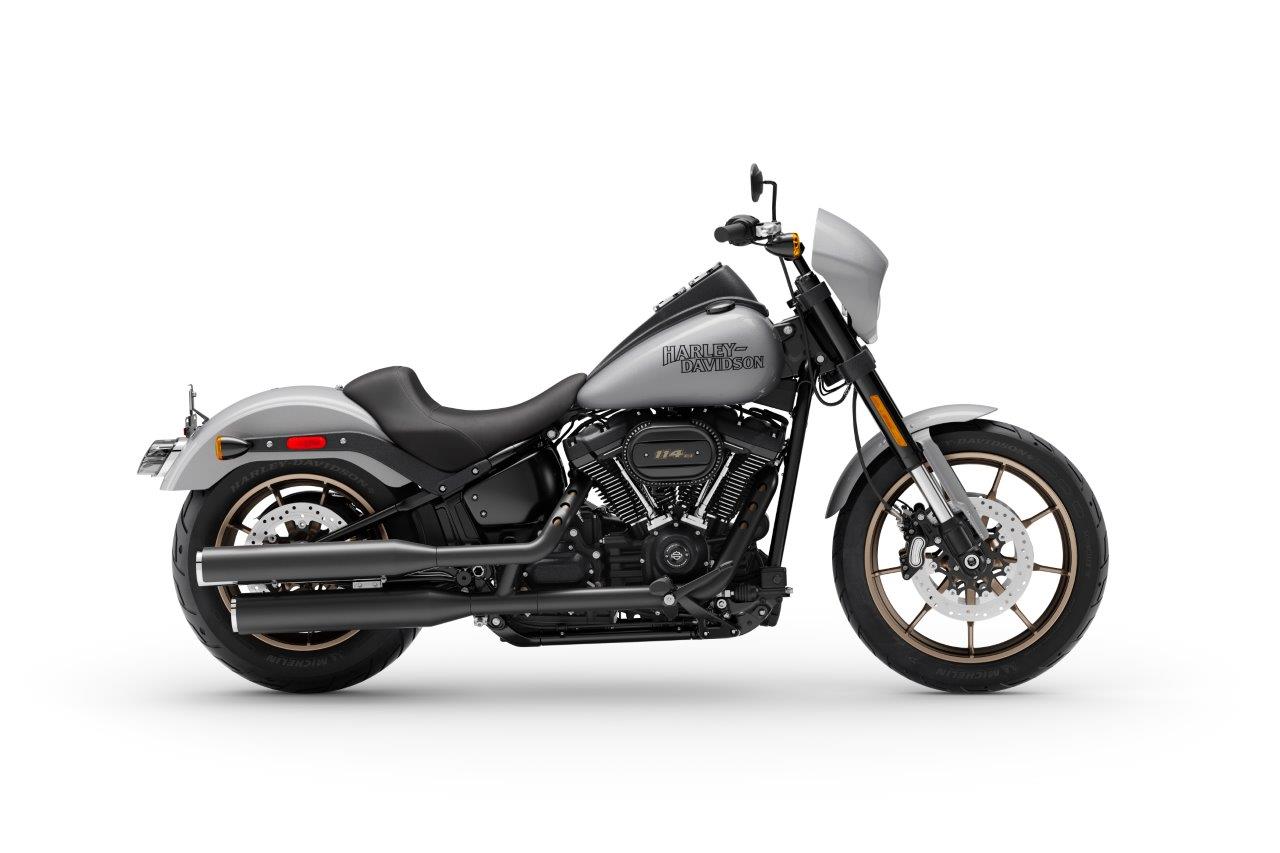

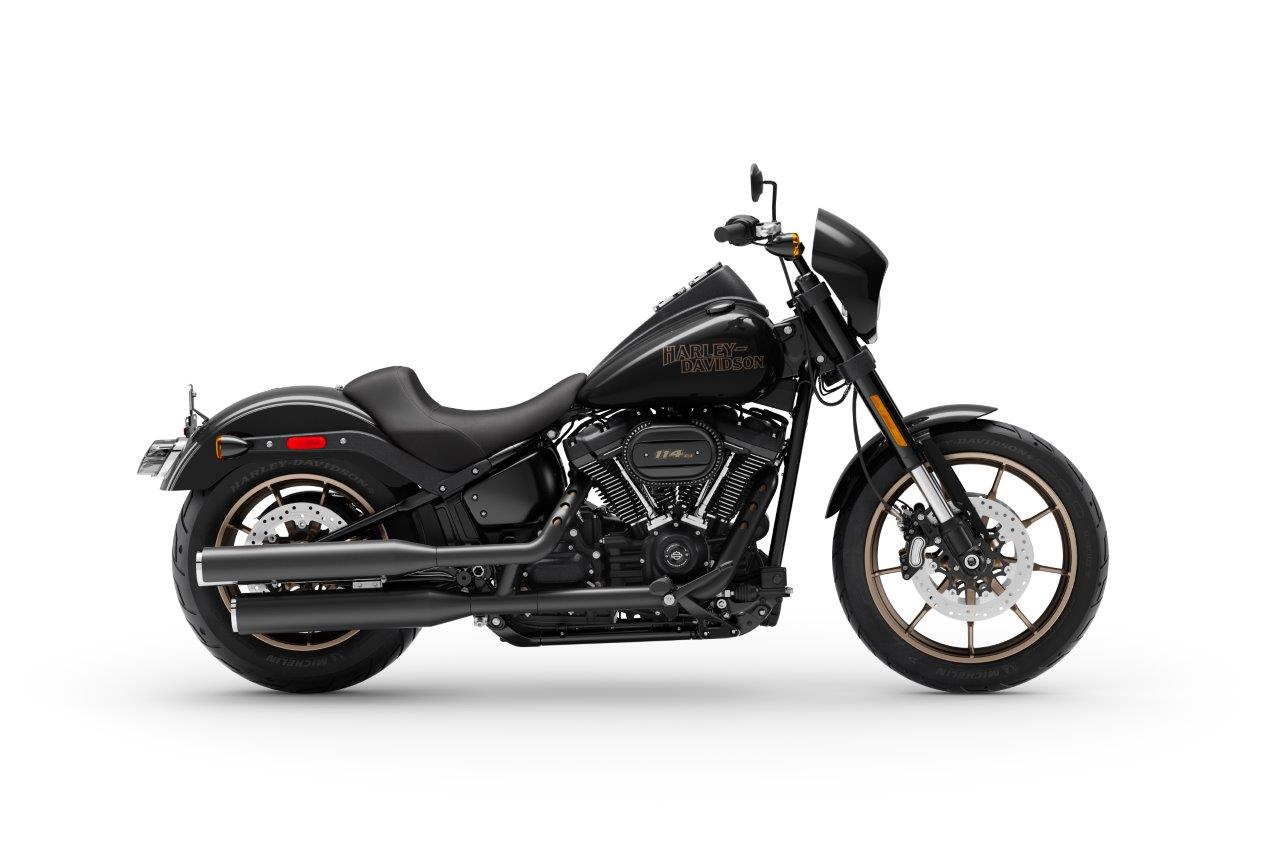

2020 Harley-Davidson Low Rider S Photos
