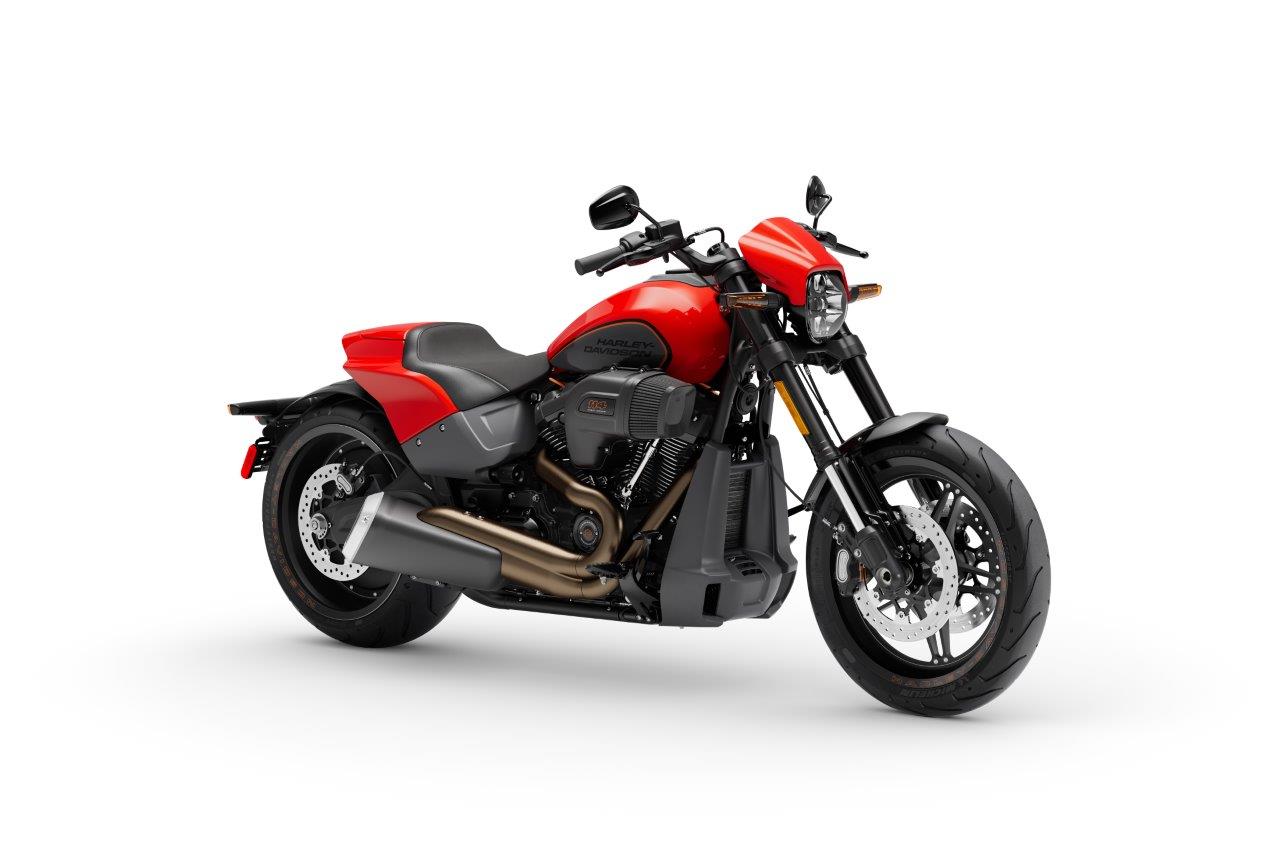

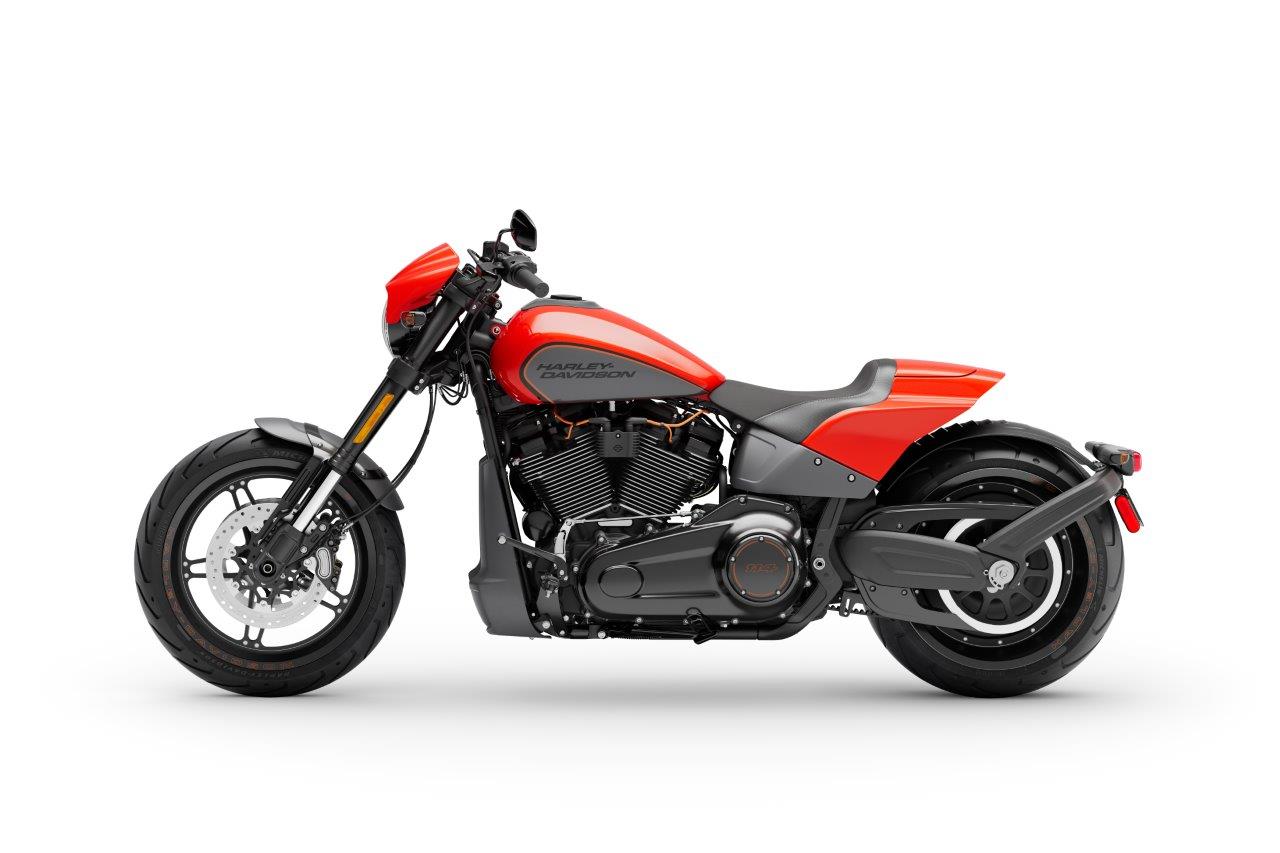

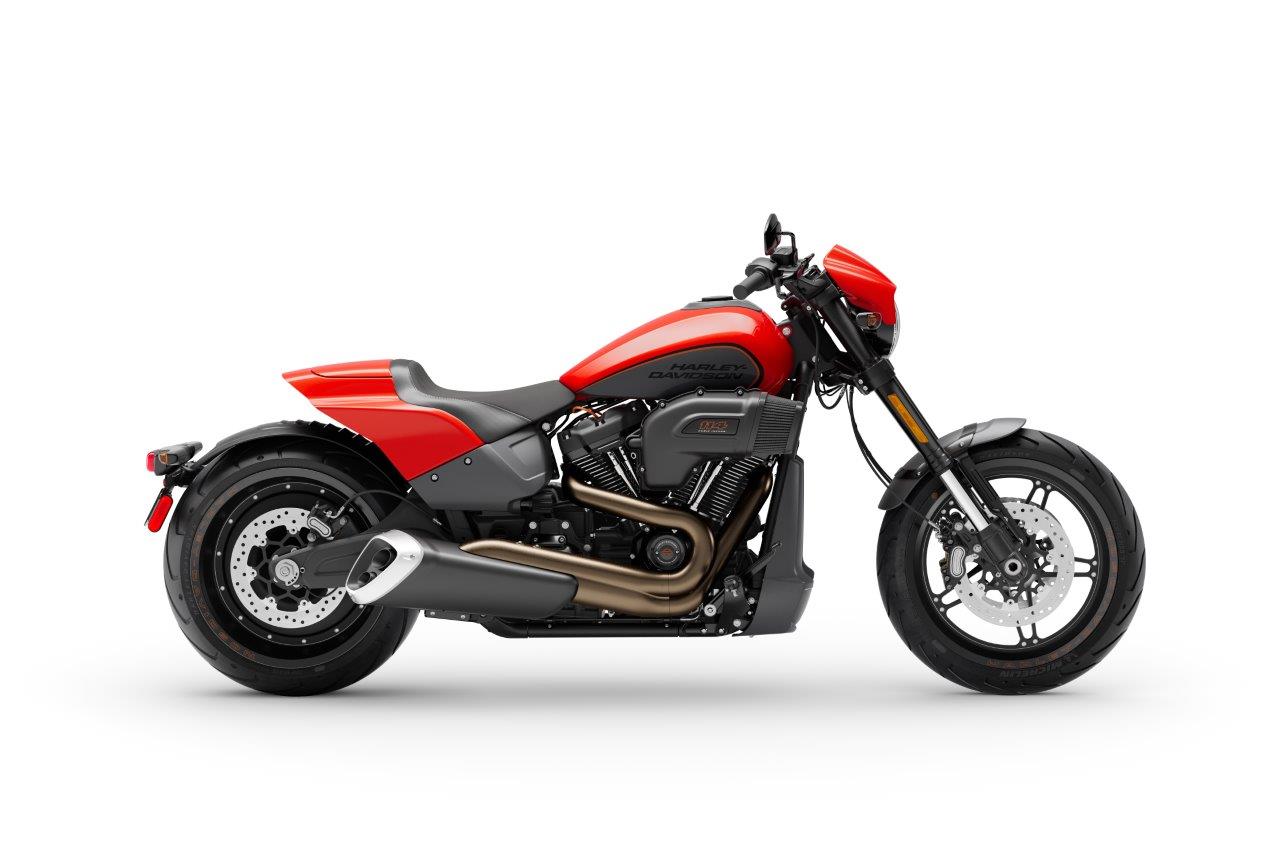

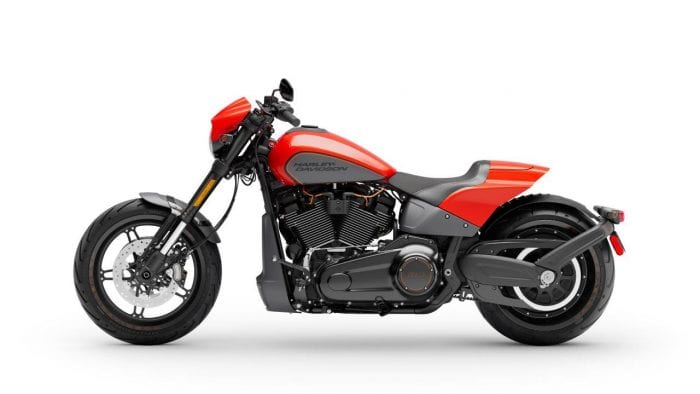

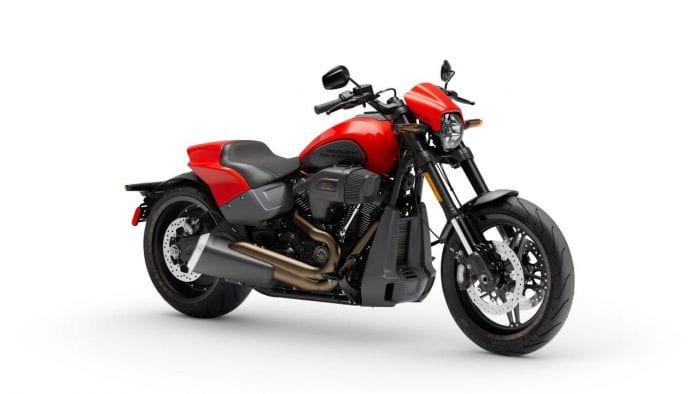

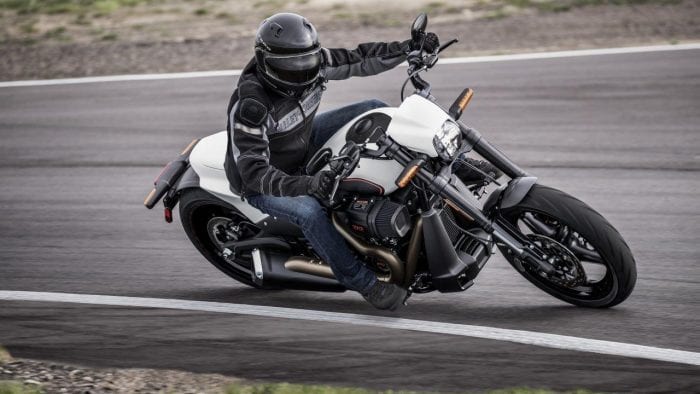

The 2020 Harley-Davidson FXDR 114 is a bike that really defies definition. It’s a Softail design, but only just. The bike is a powerful cruiser with a design and a look unlike any of the other bikes in Harley’s lineup.

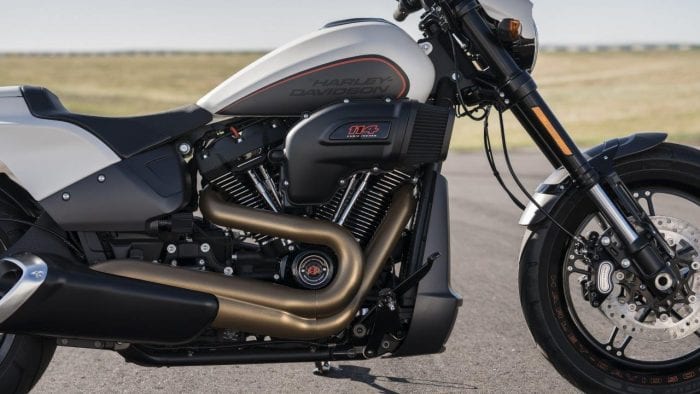

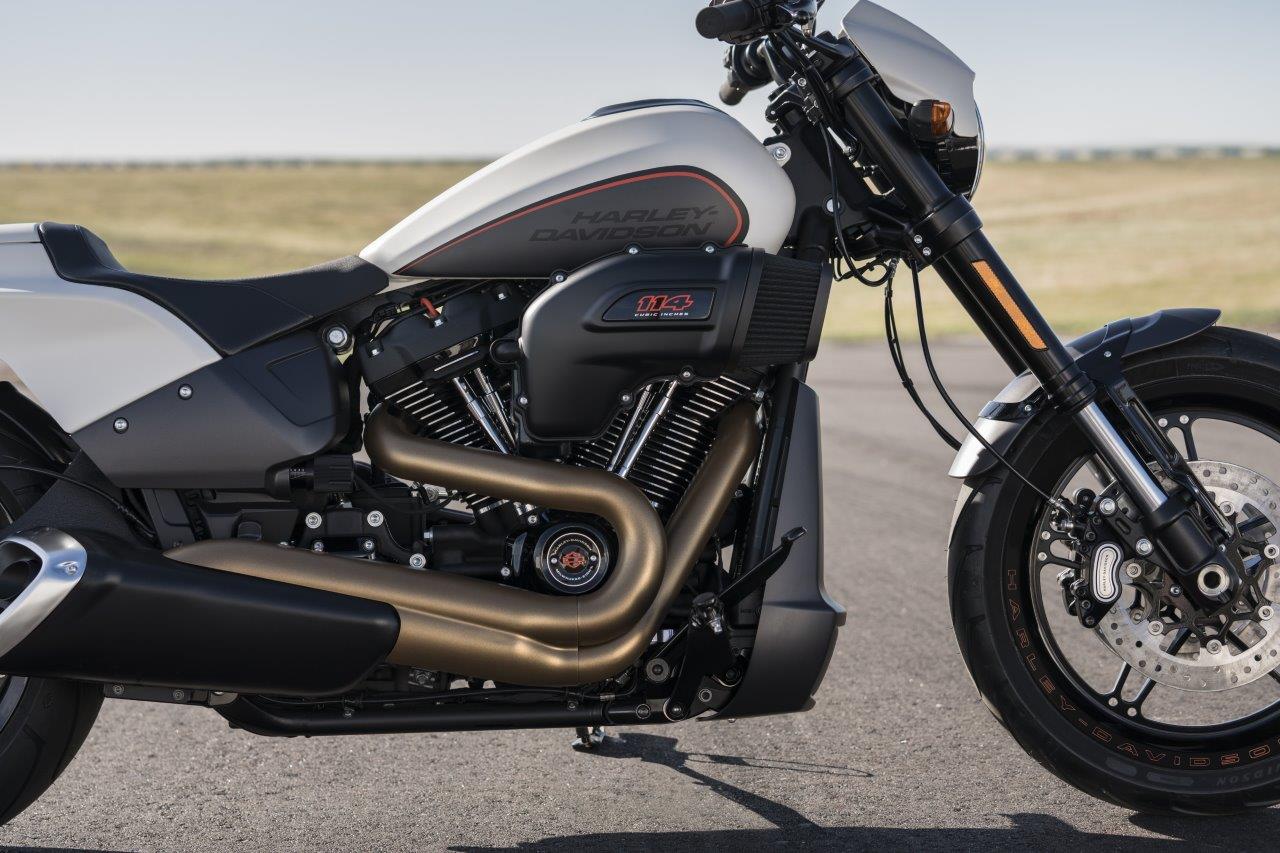

The FXDR 114 has the Milwaukee-Eight 114 engine. It’s an air-cooled V-twin that has a displacement of 1,868cc. The 114 engine is mated to a six-speed manual transmission and it makes 119 lb-ft of torque.

The FXDR 114is the kind of bike you get if you love the Harley-Davidson brand but you want something with some modern styling and a look completely different than HD’s other bikes. The FXDR 114 is a unique cruiser and unlike other Softail machines. The company has a price tag of $18,999 on it.

The motorcycle is available in a few different colors: Vivid Black, Barracuda Silver Denim, Black Denim, Performance Orange, and River Rock Gray Denim.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new Harley-Davidson FXDR 114 in one place.

Model Overview

General Info

Price: $ 18,999
Key Features:
- Low Seat Height
- Softail® Frame
- LED Lighting

Key Specs

Engine type: 1,868cc, Milwaukee-Eight® 107
Torque: 119 ft-lb
Wet weight: 637 lbs
Seat height: 27.7 Inch

Key Competitors

2020 Harley-Davidson FXDR 114 Specifications

From Harley-Davidson

ENGINE
Engine	1,868cc, Milwaukee-Eight® 107
Engine Torque	119 ft-lb
Bore x Stroke	4.016 in x 4.5 in
Compression Ratio	10.5:1
Fuel System	Electronic Sequential Port Fuel Injection (ESPFI)
Starter	Electric
Lubrication
DRIVETRAIN
Clutch
Transmission	6-speed
Final Drive	Chain, 34/46 ratio
CHASSIS
Suspension Front	Gloss/satin black, split 5-spoke, cast aluminum with laser etched graphics
Suspension Rear	Gloss/satin black, split 5-spoke, cast aluminum with laser etched graphics
Brakes Front	4-piston fixed front
Brakes Rear	2-piston floating rear
Tires Front	120/70ZR-19 60W
Tires Rear	240/40R-18 79V
Fuel Tank Capacity	16.65 L (4.4 US gal.)
Color	Vivid Black, Barracuda Silver Denim, Black Denim, Performance Orange, and River Rock Gray Denim
ELECTRICAL
Ignition
Spark Plugs
Headlight	LED
Tail Light	LED
DIMENSIONS
Overall Length	95.5 in (2,425 mm)
Overall Width
Overall Height
Wheelbase	68.3 in (1,735 mm)
Ground Clearance	5.5 in (140 mm)
Seat Height	27.7 in (705 mm)
Curb Weight	637 lbs (289 kg)
WARRANTY
Warranty
Extension

2020 Harley-Davidson FXDR 114 Features

Loads of torque for blasting off from stoplights, hitting entrance ramps, and rolling on the passing power. Pure sound with a soul-satisfying rumble.

Designed with a number of alloy and composite components to reduce the overall weight, including an aluminum swingarm and subframe. Maximizes acceleration, braking and handling performance.

Tuned to emit a throaty rumble. Plus dramatic performance-inspired design that won’t interfere with lean angle.

Inverted race-style design, with single-cartridge technology that improves response to steering input and braking and handling performance.

Inspired by Screamin’ Eagle® NHRA drag bikes and shaped to enhance air flow to the engine. A fresh interpretation of the Heavy Breather with an exposed, forward-facing filter element.

The frame retains the classic Softail® lines, but its lightweight design and stiffness translate to a responsive ride unlike anything you’ve felt before.

Easily adjustable mono-shock rear suspension allows for dynamic cornering, quick acceleration and braking while preserving the hardtail look.

A sleek design that lengthens the profile of the bike to give it an aggressive look.

You get a LED Daymaker™ headlamp, LED rear lighting and LED turn signals; digital riser gauge, and a keyless ignition.
