2020 Harley-Davidson Fat Boy 114
Contents
The 2020 Harley-Davidson Fat Boy 114 utilizes the Softail design to make a modern power cruiser unlike any other bike on the road. Its muscular styling and solid cast wheel are what make this bike stand out.
The Fat Boy 114 has the Milwaukee 114 engine that’s an air-cooled V-twin—in true Harley form—that has a displacement of 1,868cc. The engine is mated to a six-speed manual transmission and it makes 119 lb-ft of torque.
The Fat Boy 114 is perfect for cruising around town and it has the grunt to get the job done on the highway, too. It’s a badass bike and that much power and style doesn’t come cheap. Harley has a price tag of $20,599 on it.
The motorcycle is available in several different colors: Vivid Black, Midnight Blue, Barracuda Silver, Spruce, River Rock Gray/Vivid Black, Barracuda Silver Denim/Black Denim, Stiletto Red, and Zepher Blue/Black Sunglo.
On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new Harley-Davidson Fat Boy 114 in one place.
Model Overview
General Info
- Price: $ 20,599
- Key Features:
- Softail® Frame
- Milwaukee-Eight® Engine
- LED Lighting
Key Specs
- Engine type: 1,868cc, Milwaukee-Eight® 114, V-Twin
- Engine Torque: 119 lb-ft
- Wet weight: 671 lbs
- Seat height: 25.9
2020 Harley-Davidson Fat Boy 114 Specifications
ENGINE |
||
| Engine | 1,868cc, Milwaukee-Eight® 114, V-Twin | |
| Engine Torque | 119 lb-ft | |
| Bore x Stroke | 4.016 in x 4.5 in | |
| Compression Ratio | 10.5:1 | |
| Fuel System | Electronic Sequential Port Fuel Injection (ESPFI) | |
| Starter | Electric | |
| Lubrication | ||
DRIVETRAIN |
||
| Clutch | ||
| Transmission | 6-speed | |
| Final Drive | Gear, 34/46 ratio | |
CHASSIS |
||
| Suspension Front | Machined, Lakester cast aluminum | |
| Suspension Rear | Machined, Lakester cast aluminum | |
| Brakes Front | 4-piston fixed front | |
| Brakes Rear | 2-piston floating rear | |
| Tires Front | 160/60R18,70V,BW | |
| Tires Rear | 240/40R18,79V,BW | |
| Fuel Tank Capacity | 18.9 L (5 US gal.) | |
| Color | Vivid Black, Midnight Blue, Barracuda Silver, Spruce, River Rock Gray/Vivid Black, Barracuda Silver Denim/Black Denim, Stiletto Red, and Zepher Blue/Black Sunglo | |
ELECTRICAL |
||
| Ignition | ||
| Spark Plugs | ||
| Headlight | LED | |
| Tail Light | LED | |
DIMENSIONS |
||
| Overall Length | 93.3 in (2,370 mm) | |
| Overall Width | ||
| Overall Height | ||
| Wheelbase | 65.6 in (1,665 mm) | |
| Ground Clearance | 4.5 in (115 mm) | |
| Seat Height | 25.9 in (655 mm) | |
| Curb Weight | 671 lbs (304 kg) | |
WARRANTY |
||
| Warranty | ||
| Extension | ||
2020 Harley-Davidson Fat Boy 114 Features
Satin Chrome Finishes
An all-you-can eat portion of sculpted satin chrome gives the Fat Boy® motorcycle a look that’ll make a big impact.
Steamroller Stance
A muscular look thanks to solid-disc Lakester wheels wrapped in the widest front tire we’ve ever offered from the factory at 160mm combined with a rear tire at 240mm.

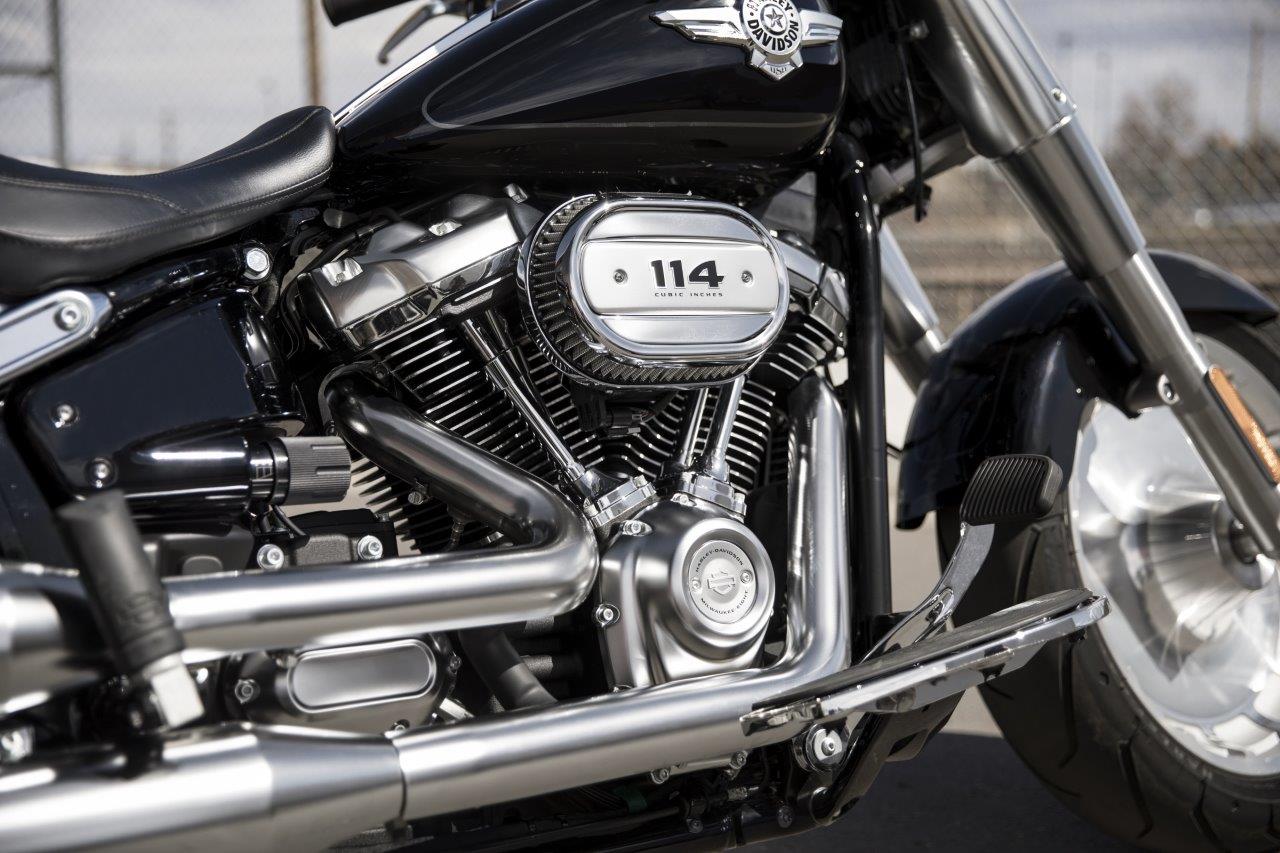

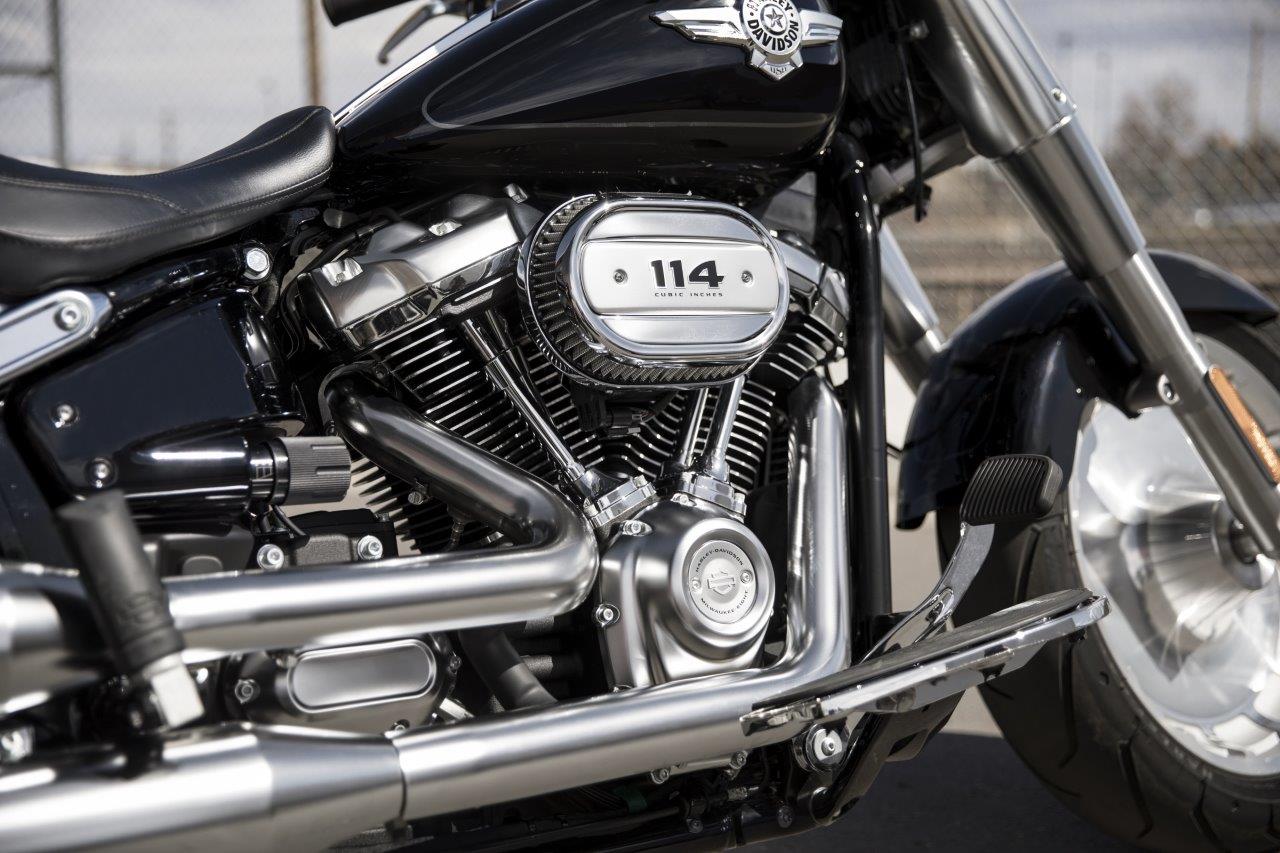

Milwaukee-Eight® Big Twin Engine
A powerful, smooth-running engine with crisp throttle response and a pure, soul-satisfying rumble. Available in 107 and 114 engine displacements.
Signature LED Forward Lighting
Darkness-defying lighting that gives you great visibility at night.
Softail® Frame
The frame retains the classic Softail® lines, but its lightweight design and stiffness translate to a responsive ride unlike anything you’ve felt before.
High Performance Front Suspension
Sophisticated suspension technology provides the performance of a racing-style cartridge fork for reduced weight with linear damping characteristics.
High Performance Rear Mono Shock
Easily adjustable mono-shock rear suspension allows for dynamic cornering while preserving the hardtail look.

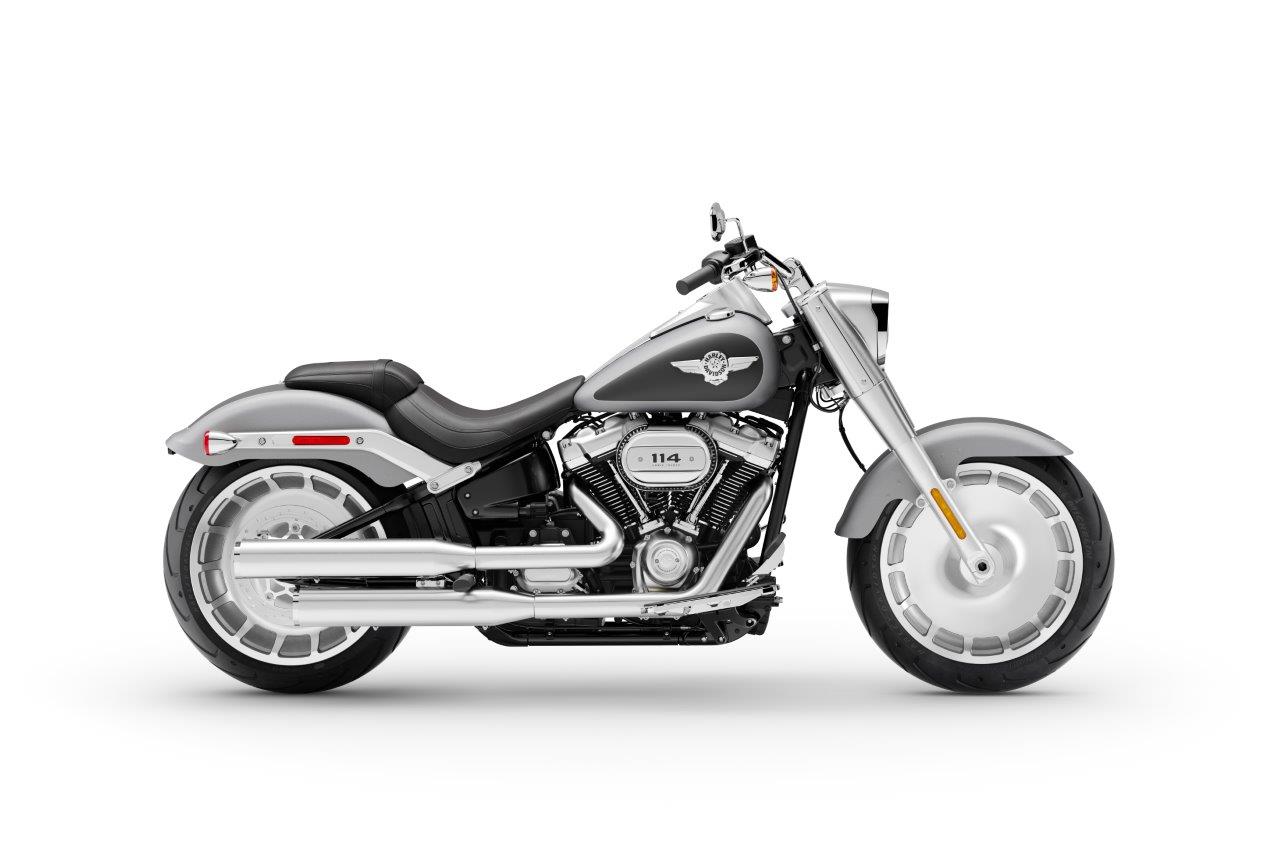

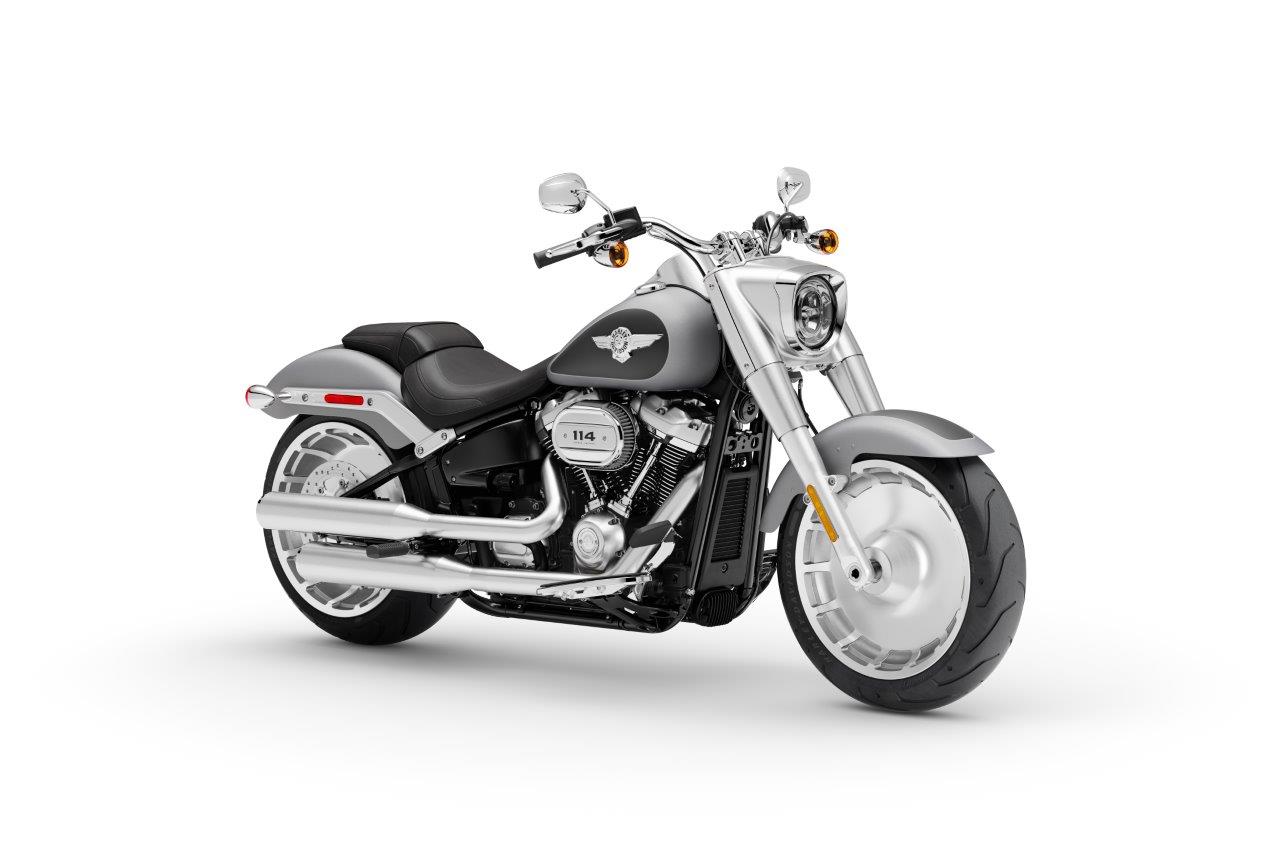

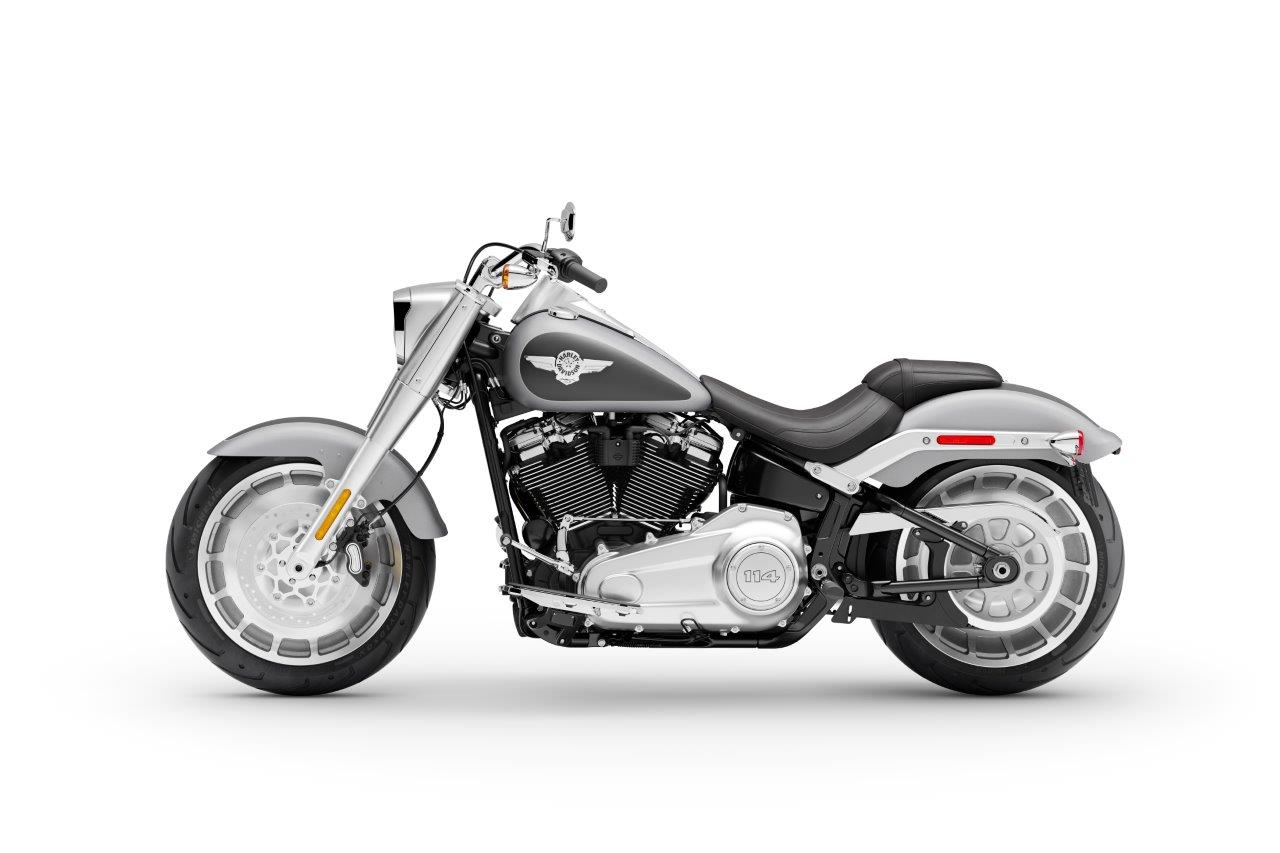

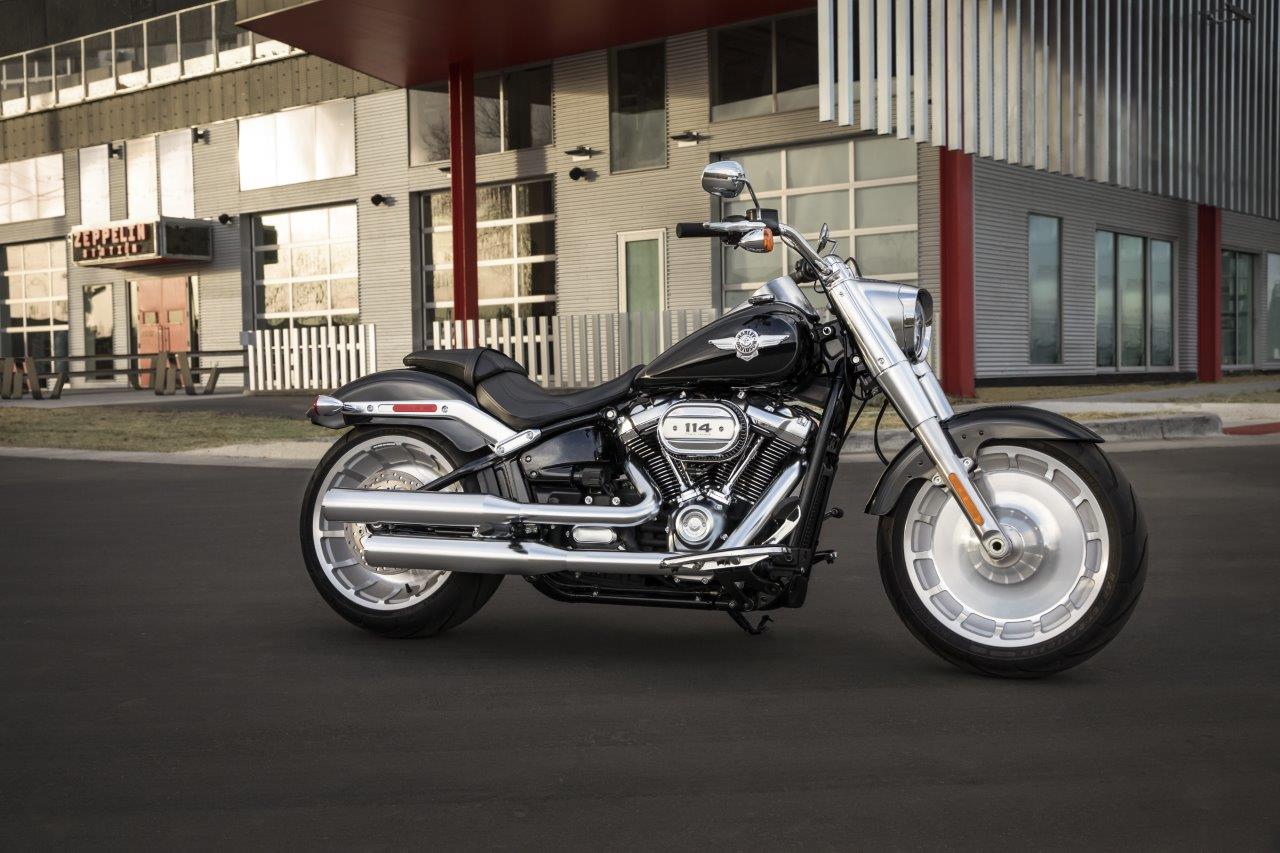

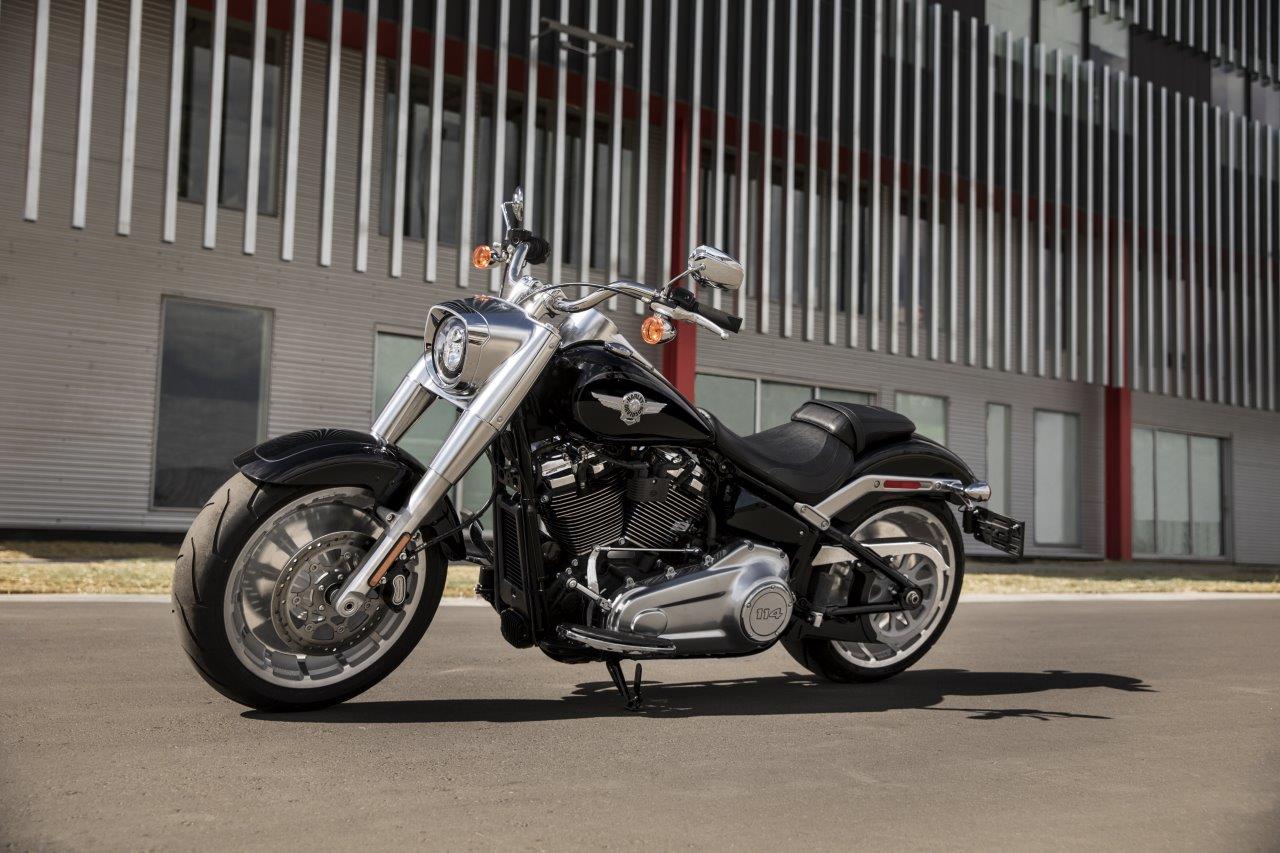

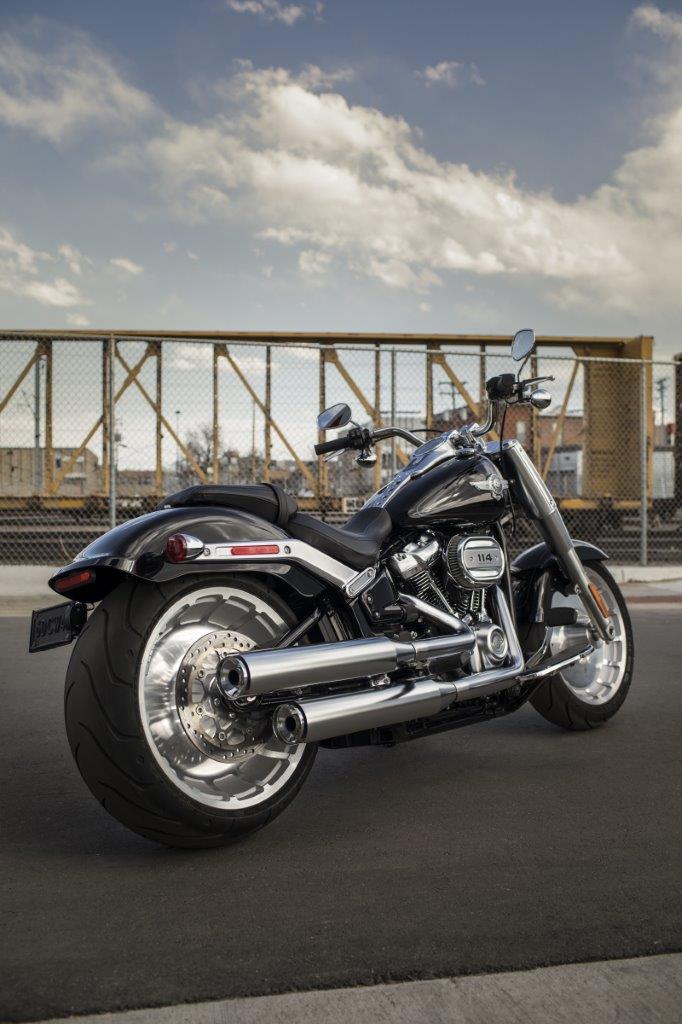

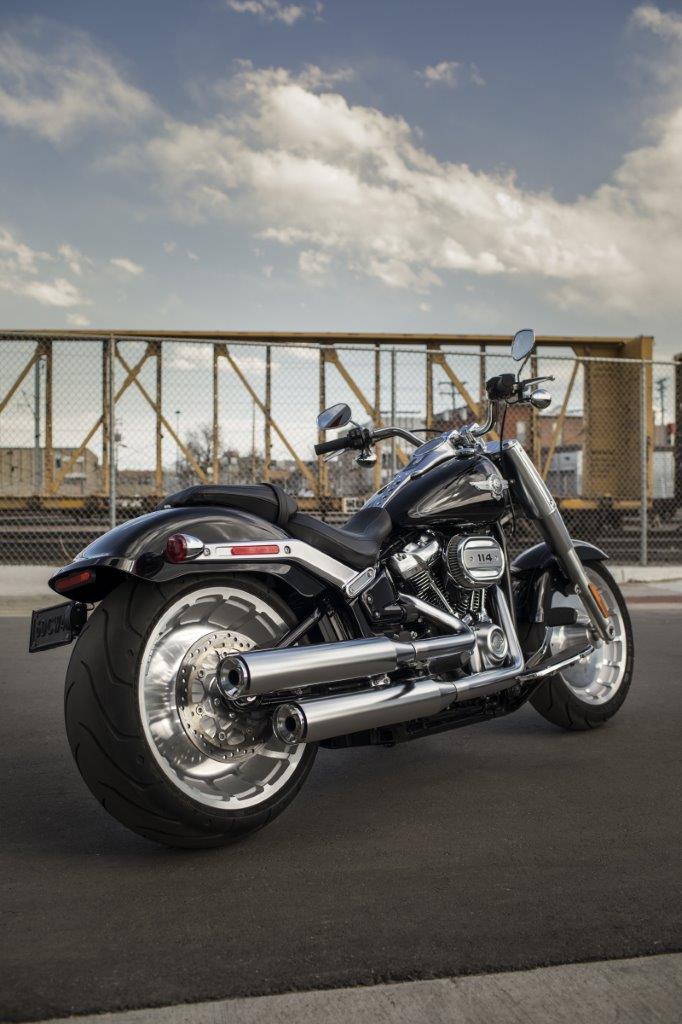

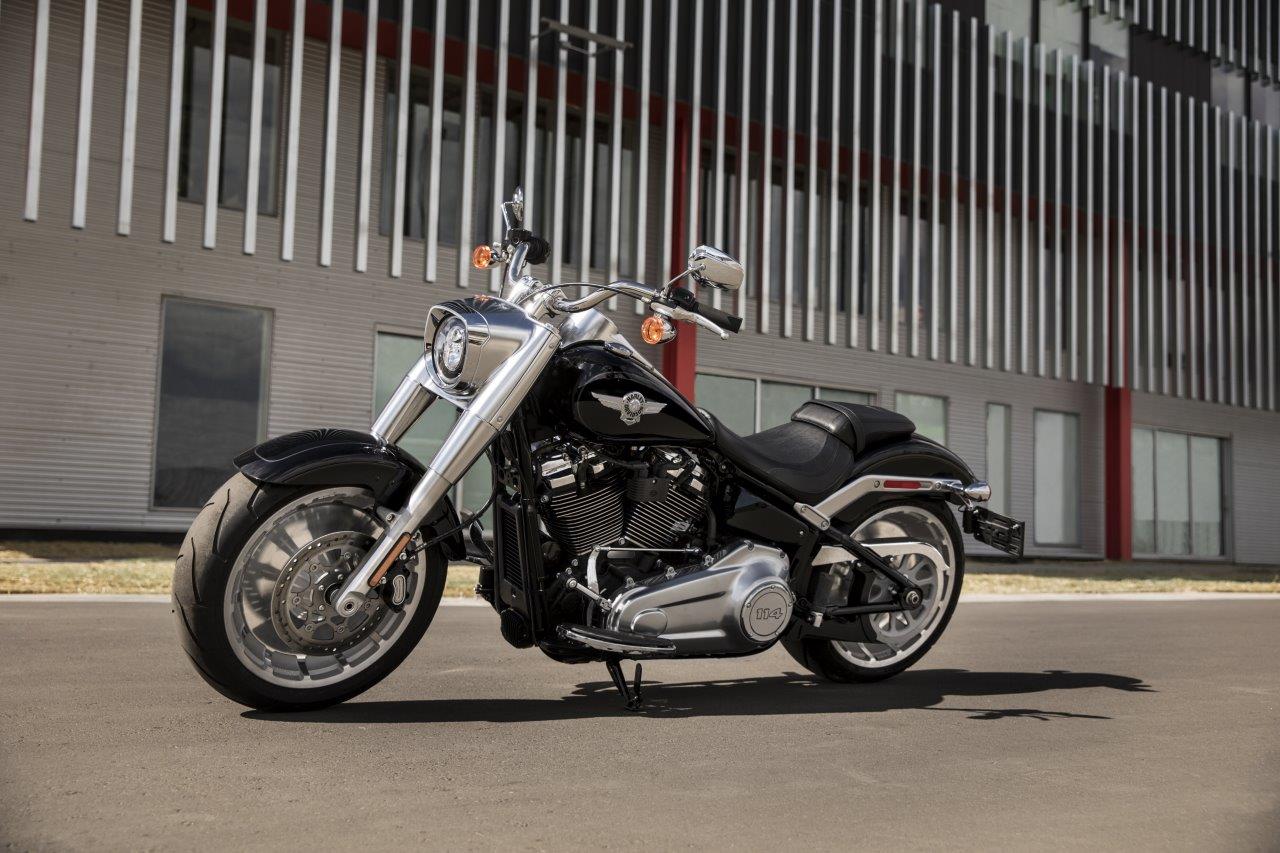

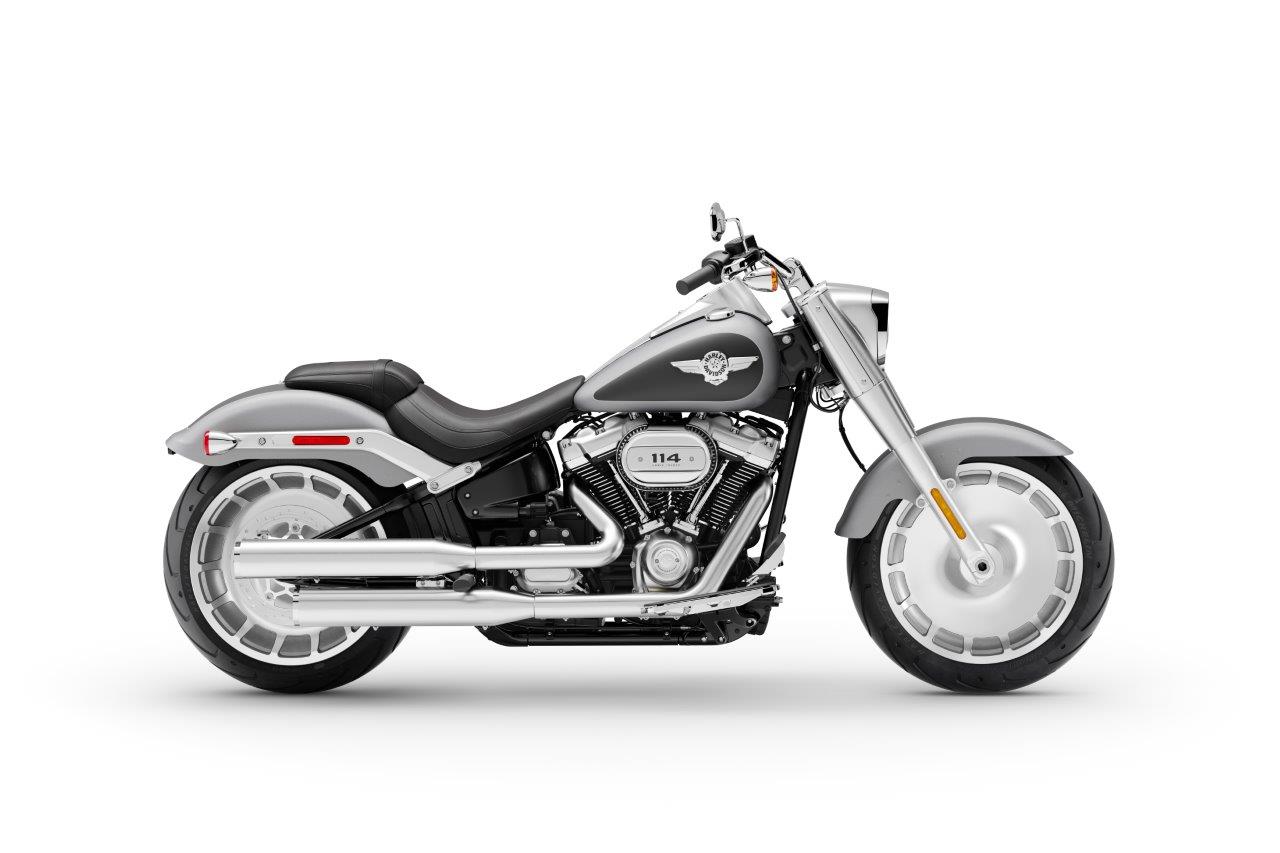

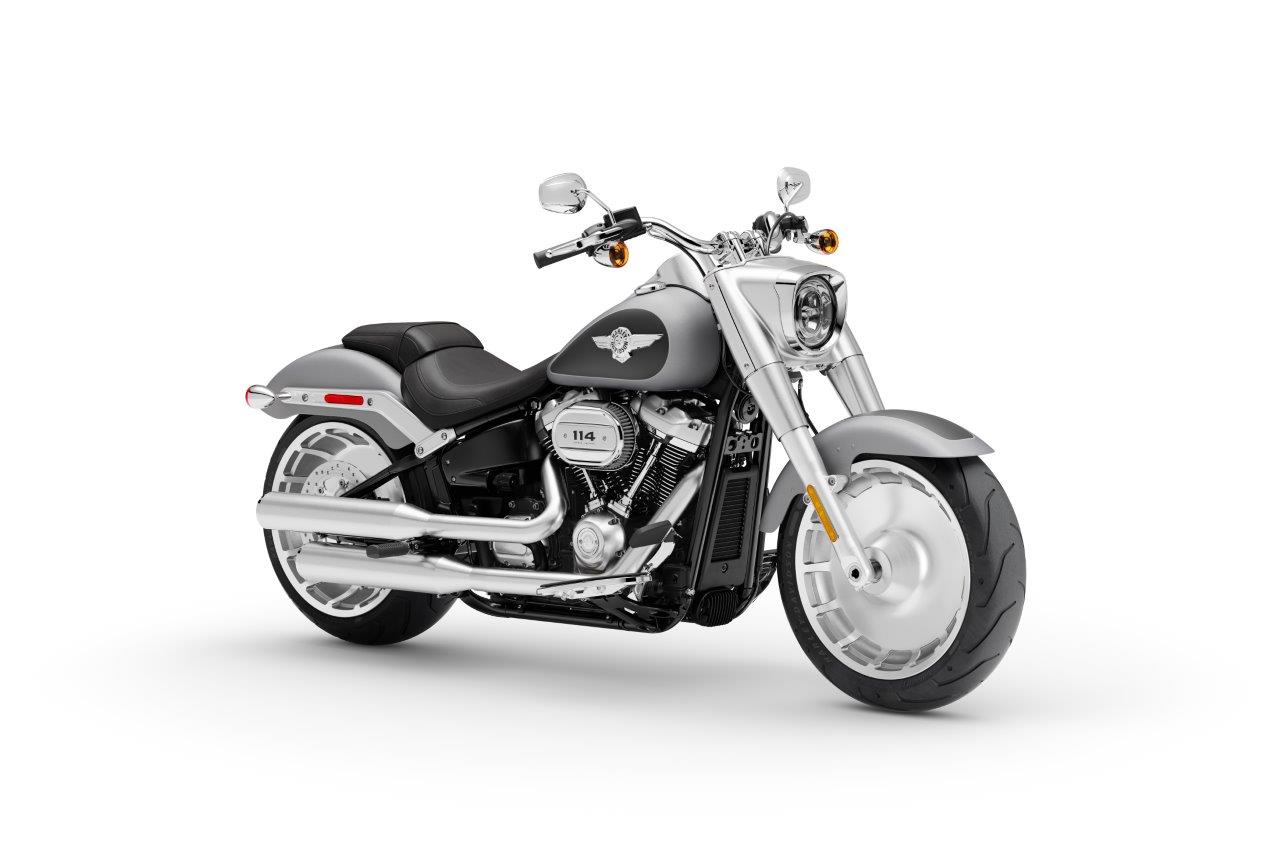

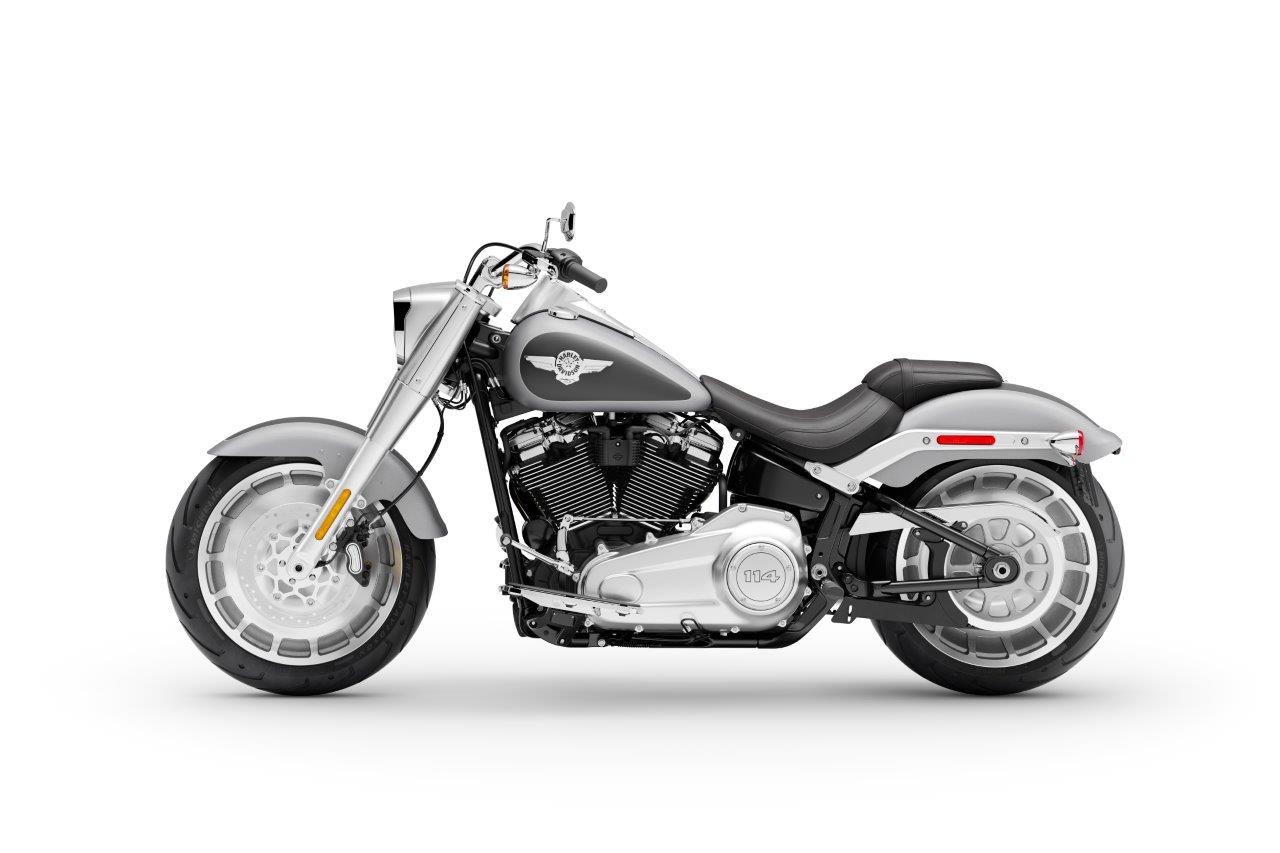

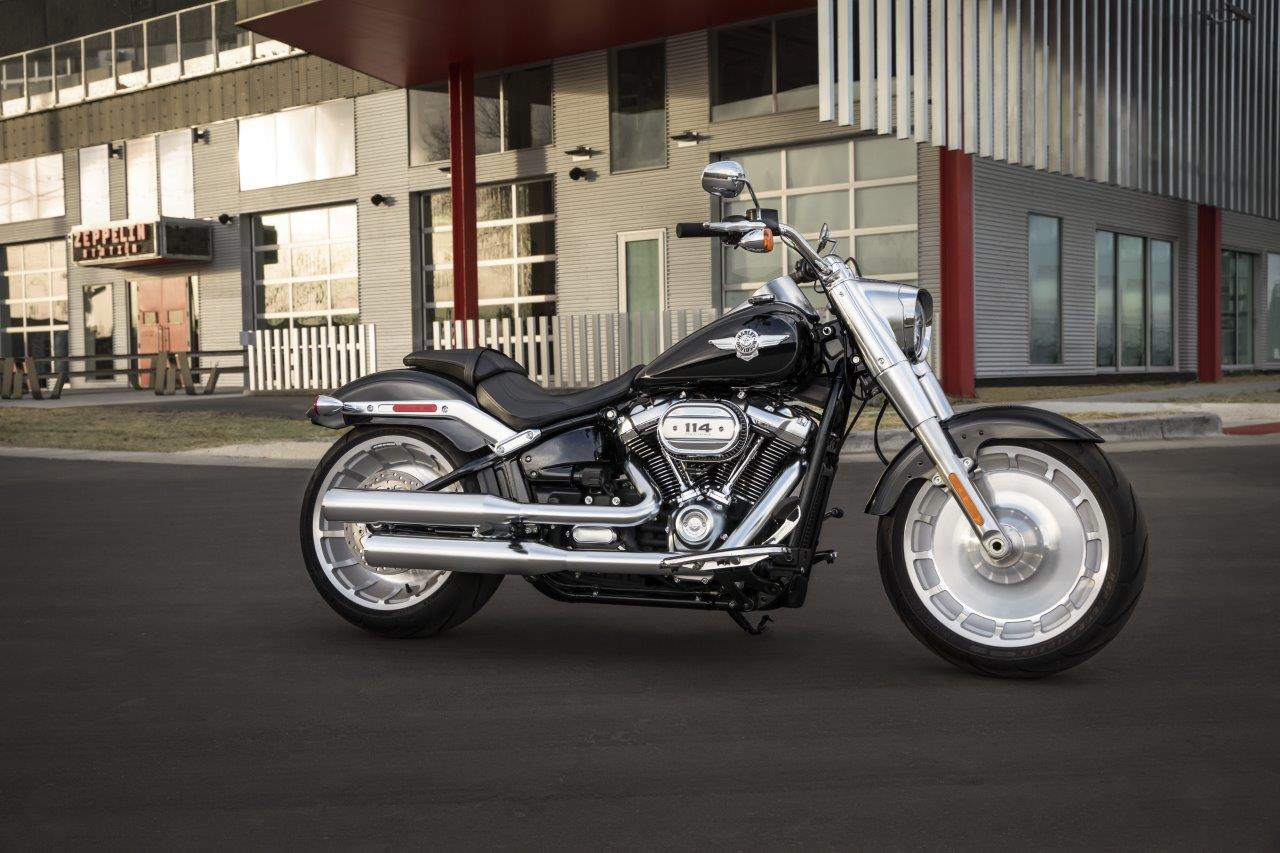

2020 Harley-Davidson Fat Boy 114 Photos
2020 Harley-Davidson Fat Boy 114 Videos
