The 2020 Harley-Davidson CVO Tri Glide is the company’s true highest level three-wheeler. It’s a limited edition machine that takes the Tri Glide Ultra to all new heights. It’s large, offers tons of storage, plenty of stability, and a long list of features.

The CVO Tri Glide has the Milwaukee-Eight 117 engine. It’s an air-cooled V-twin that has a displacement of 1,917cc. The 117 engine is mated to a six-speed manual transmission and it makes 125 lb-ft of torque.

The Tri Glide Ultra is the kind of bike you get if you love the Harley-Davidson brand and touring machines but simply can’t or doesn’t want to make it on two wheels anymore. You want something truly special that very few other riders will have. That privilege comes with a pretty hefty price tag of $48,999.

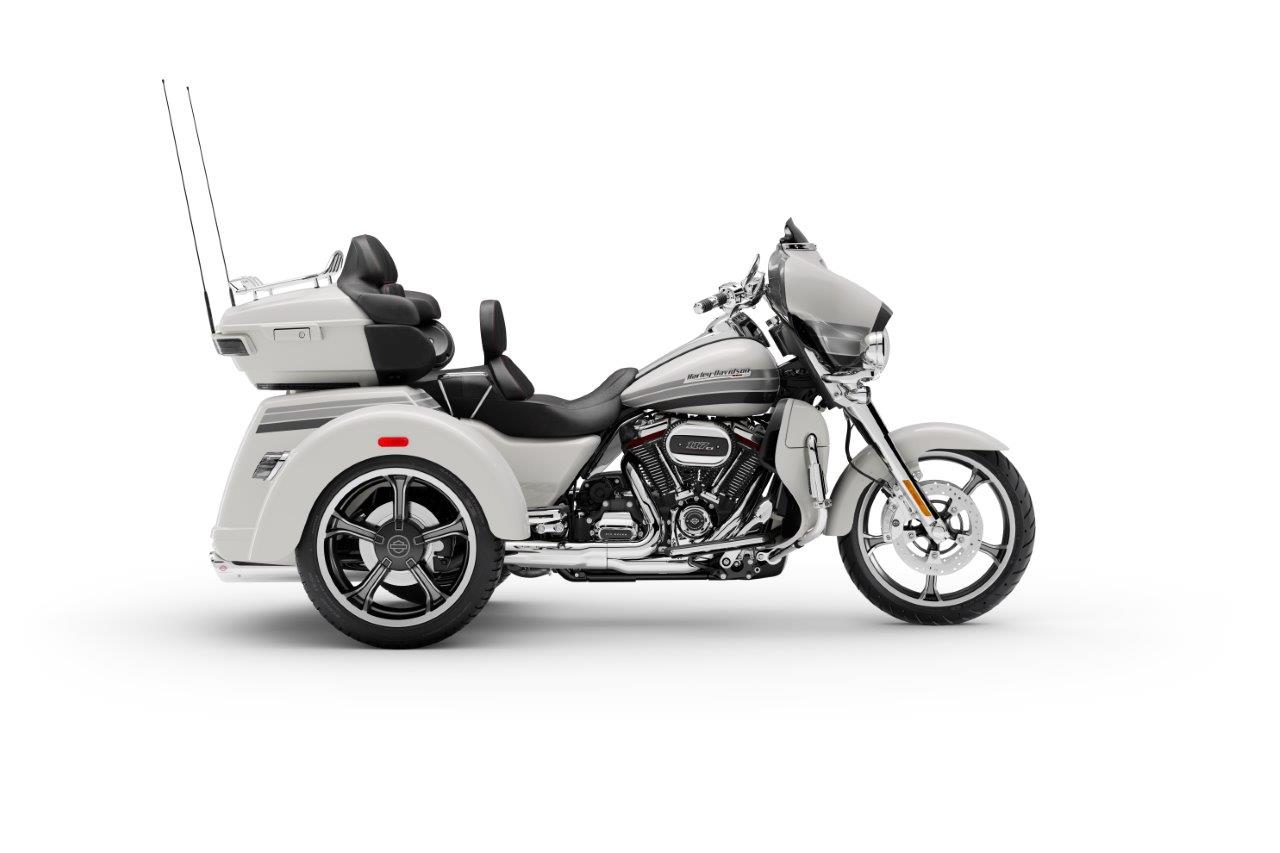

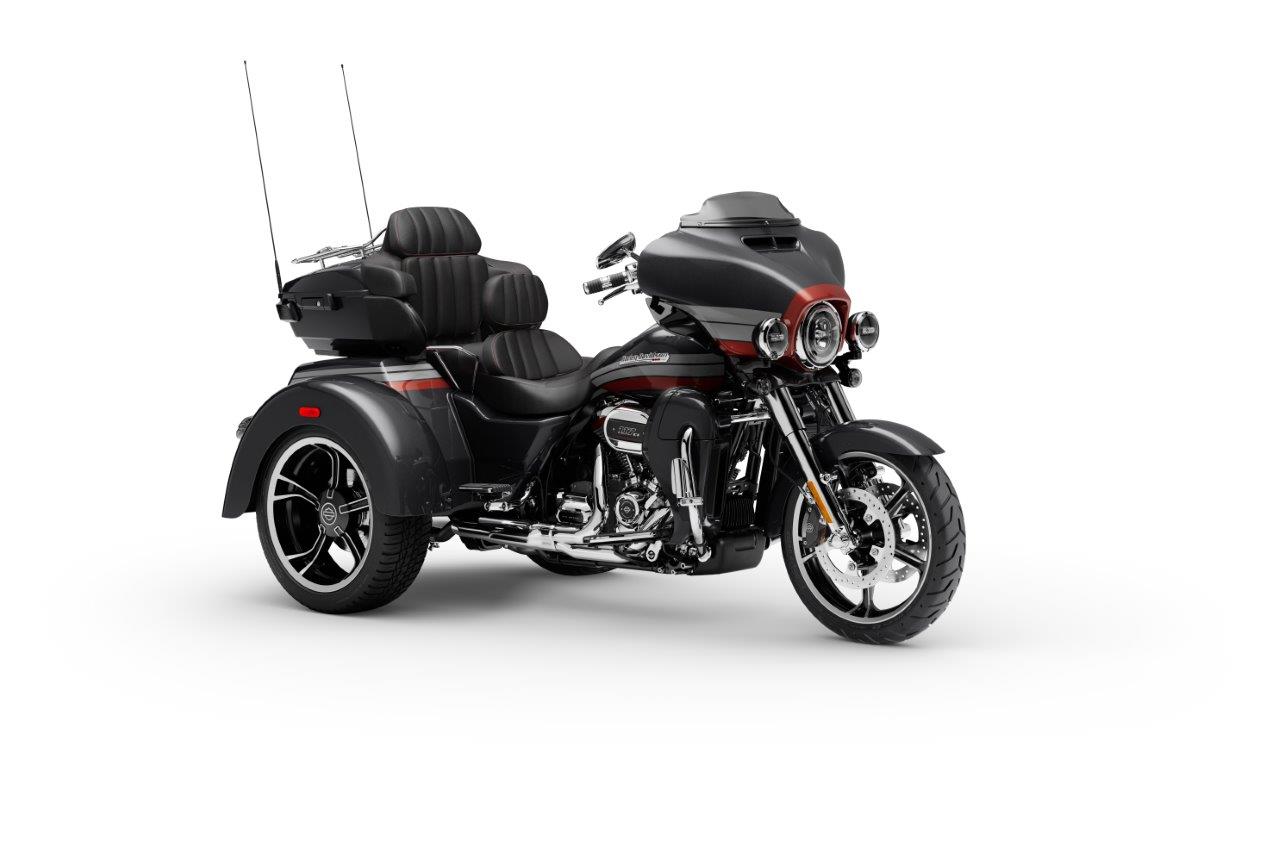

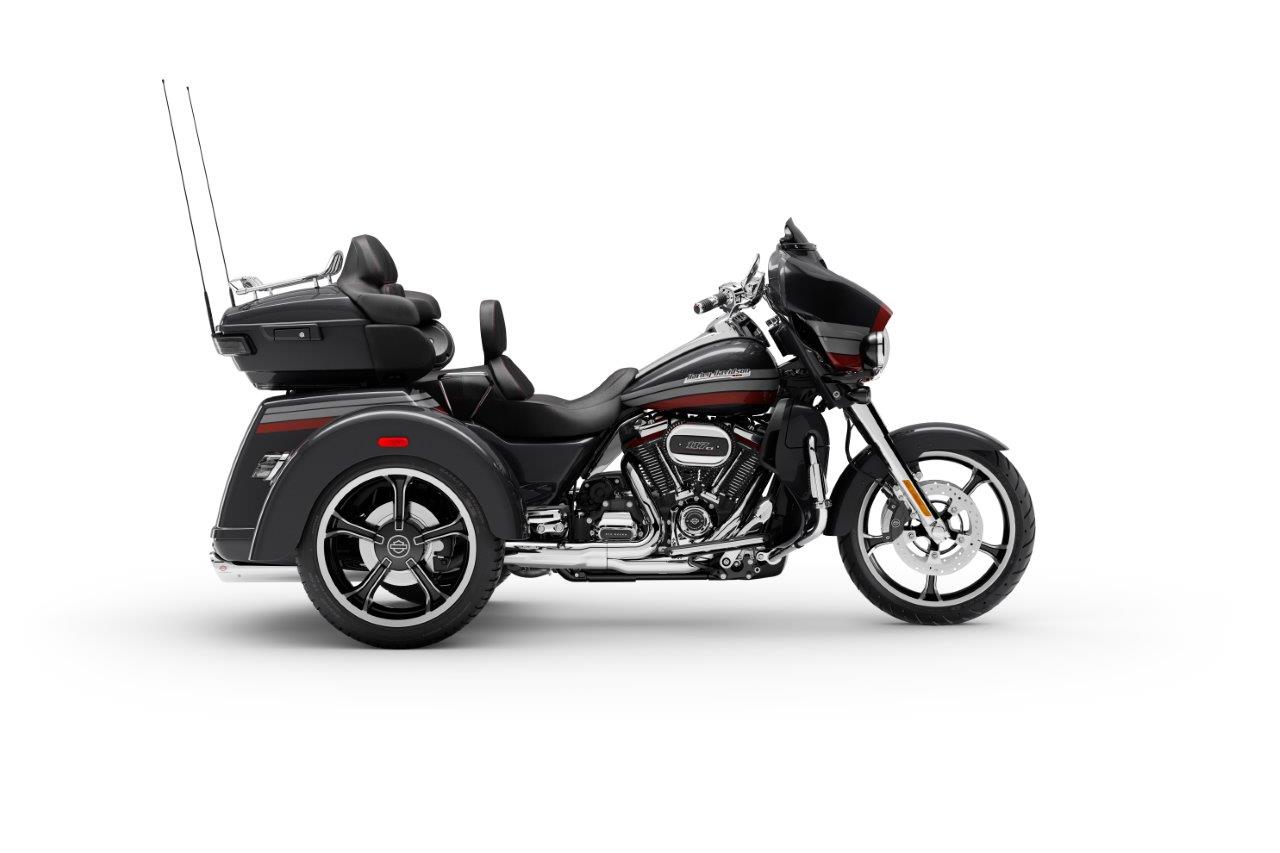

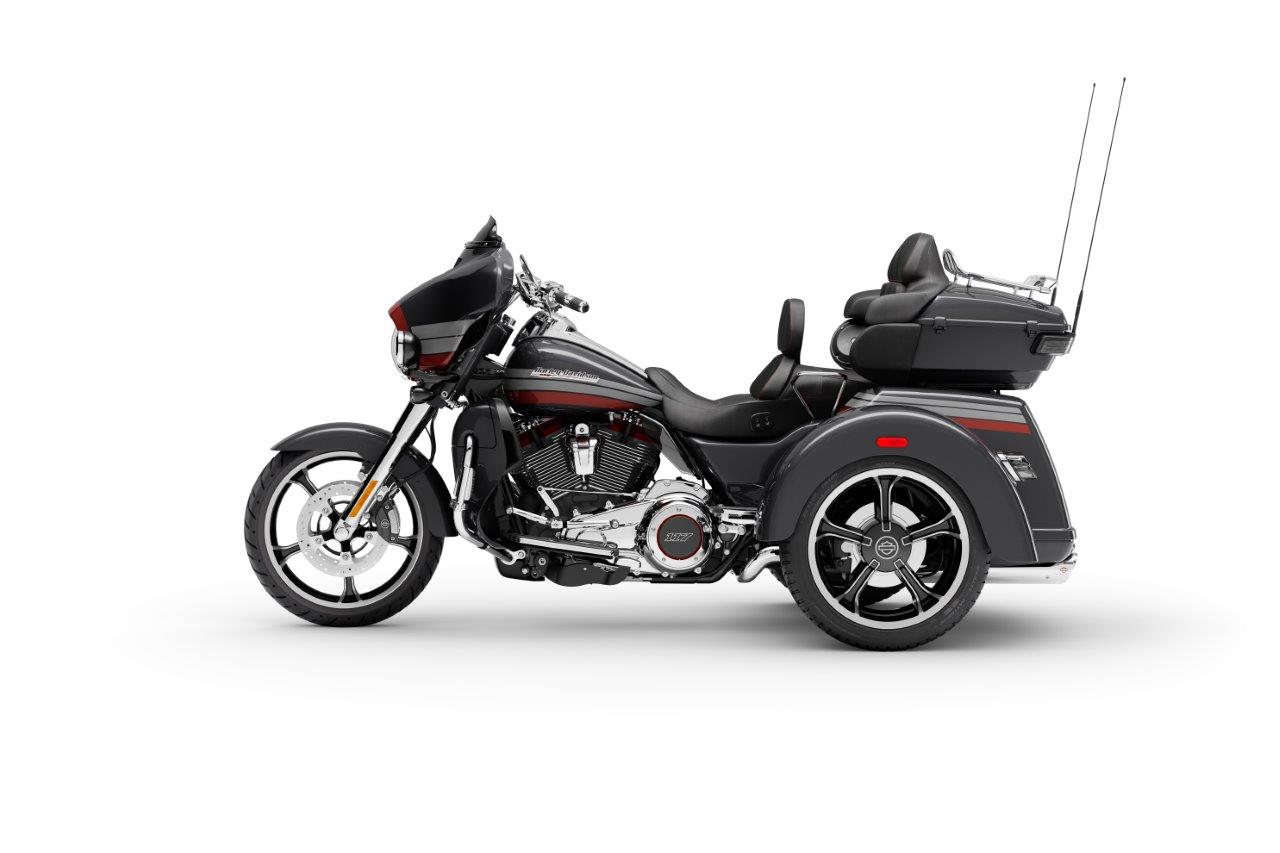

The motorcycle is available in a couple of different colors, including Black Stardust with Magnetic Gray & Wicked Red or the Blizzard White Pearl with Lightning Silver & Stormcloud.

On this page: we’ve curated specs, features, news, photos/videos, etc. so you can read up on the new Harley-Davidson CVO Tri Glide in one place.

Model Overview

General Info

Price: $ 48,999
Key Features:
- Low Seat Height
- PREMIUM BOOM!™ AUDIO
- LED Lighting

Key Specs

Engine type: 1,917cc, Milwaukee-Eight® 107
Torque: 125 ft-lb
Wet weight: 1239 lbs
Seat height: 25.9 Inch

Key Competitors

2020 Harley-Davidson CVO Tri Glide Specifications

From Harley-Davidson

ENGINE
Engine	1,917cc, Milwaukee-Eight® 114
Engine Torque	125 ft-lb
Bore x Stroke	4.075 in x 4.5 in
Compression Ratio	10.2:1
Fuel System	Electronic Sequential Port Fuel Injection (ESPFI)
Starter	Electric
Lubrication
DRIVETRAIN
Clutch
Transmission	6-speed
Final Drive	Chain, 34/46 ratio
CHASSIS
Suspension Front	Gloss Black and Contrast Clear Tomahawk
Suspension Rear	Gloss Black and Contrast Clear Tomahawk
Brakes Front	32mm 4 piston fixed
Brakes Rear	floating 36mm piston integrated park brake
Tires Front	130/60B19 M/C 61H
Tires Rear	P215/45R18 83T
Fuel Tank Capacity	22.71 L (6 US gal.)
Color	Black Stardust with Magnetic Gray & Wicked Red or the Blizzard White Pearl with Lightning Silver & Stormcloud
ELECTRICAL
Ignition
Spark Plugs
Headlight	LED
Tail Light	LED
DIMENSIONS
Overall Length	105.1 in (2,670 mm)
Overall Width
Overall Height
Wheelbase	65.7 in (1,670 mm)
Ground Clearance	5.1 in (130 mm)
Seat Height	25.9 in (660 mm)
Curb Weight	1239 lbs (562 kg)
WARRANTY
Warranty
Extension

2020 Harley-Davidson CVO Tri Glide Features

The most powerful Twin-Cooled V-Twin engine ever offered from the H-D factory, and only available in CVO™ models. Features color accented Rocker Box Lowers with Blaze Red finish.

With subscription-based cellular connectivity, you can connect to your bike through your smart phone using the latest version of the Harley-Davidson® App. Check your bike’s vitals including fuel level, get tamper alerts and stolen-vehicle tracking, and more.

Exclusive paint colors and designs executed to a level of intricate quality that is unmatched in the motorcycle and automotive categories.

An evolved interface experience that offers a contemporary look, feel and function, with exceptional durability and features designed specifically for motorcycling. Every element is optimized to enhance the rider’s interaction with the bike and connectivity with the world.

Dual bending valve front suspension and emulsion rear suspension with hand-adjustable pre-load put you in control of a plush ride.

The lighting is all LED: headlamp, fog lamps, tail and brake lamps and signals. See and be seen with these darkness-defying lights.

Features a Front 19-inch and new Rear 18-inch wheel with custom style-matched hubcap.

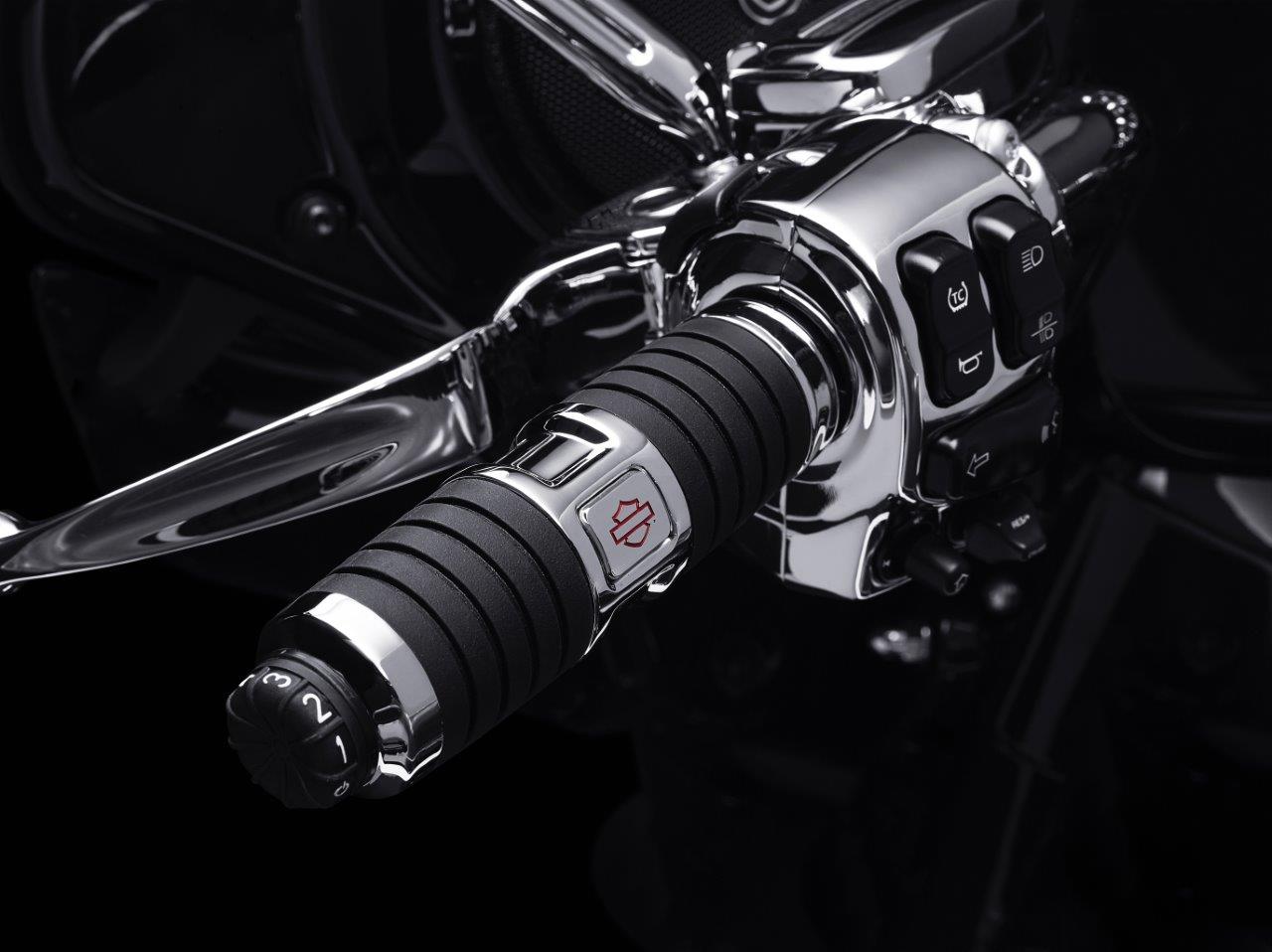

The rider and passenger seat covers are heated for riding comfortably, and longer, in cooler weather.

Full-on custom treatment from fender to fender. You get custom seat covers and stitching, a heavy breather air cleaner with two paint treatments, billet fairing mount mirrors—the list goes on.

The Boom!™ Audio 30K Bluetooth headset lets you call hands-free on your Bluetooth mobile phone, listen to stereo music or voice instructions of GPS navigation and have intercom conversations with your passenger or fellow riders.
